Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#22451) — 15 parça
◀

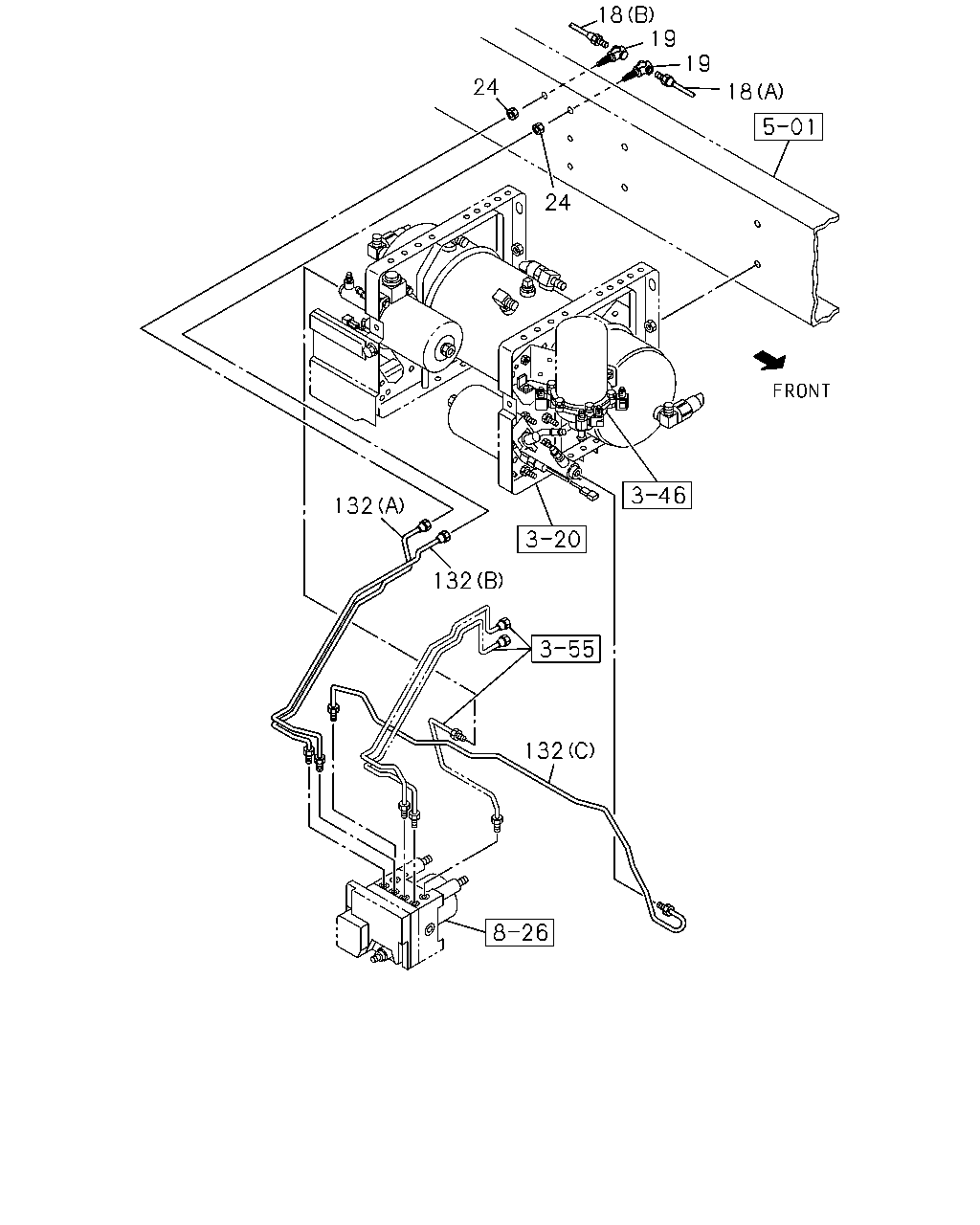

[352A] AIR TANK SIDE (7 parça)

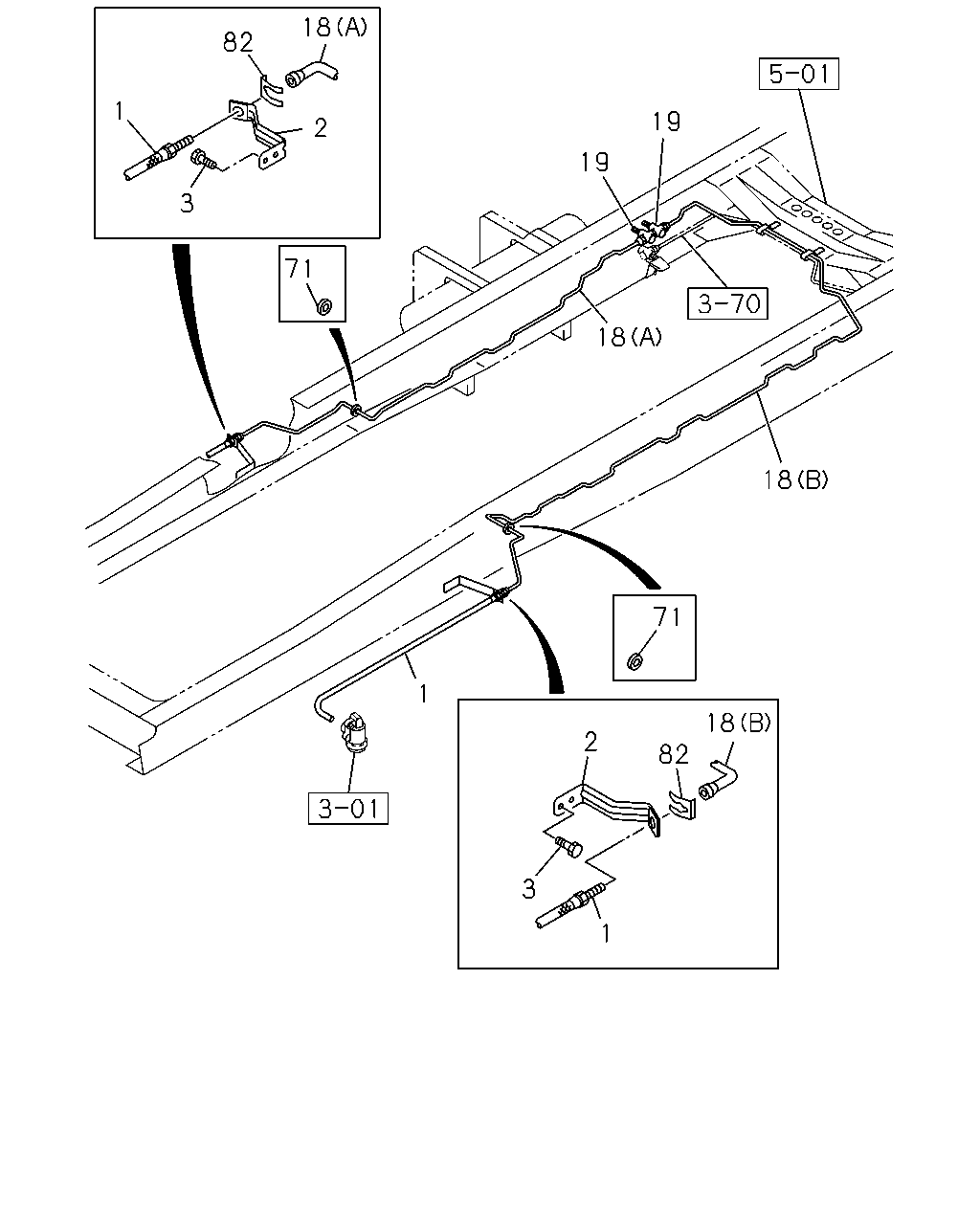

[352A] FRAME SIDE (8 parça)
▶
18
19
19
24
18
24
132
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2901
8-98147-071-0
01
1
0907-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1697
8-98067-425-0
01
1
0907-
19
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
0907-
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0907-
132
PIPE; OIL,BRK,HYD UNIT
(C) L=949
8-98078-732-0
01
1
0907-
132
PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=625
8-98116-095-0
01
1
0907-
132
PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645
8-98011-949-0
01
1
0907-
18
82
1
19
2
19
3
71
18
18
71
1
18
2
82
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=330
8-98024-433-0
02
1
0907-
2
BRACKET; FLEX HOSE,FRT BRK
8-98012-343-1
02
1
0907-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
0907-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2901
8-98147-071-0
01
1
0907-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1697
8-98067-425-0
01
1
0907-
19
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
0907-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0907-
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
