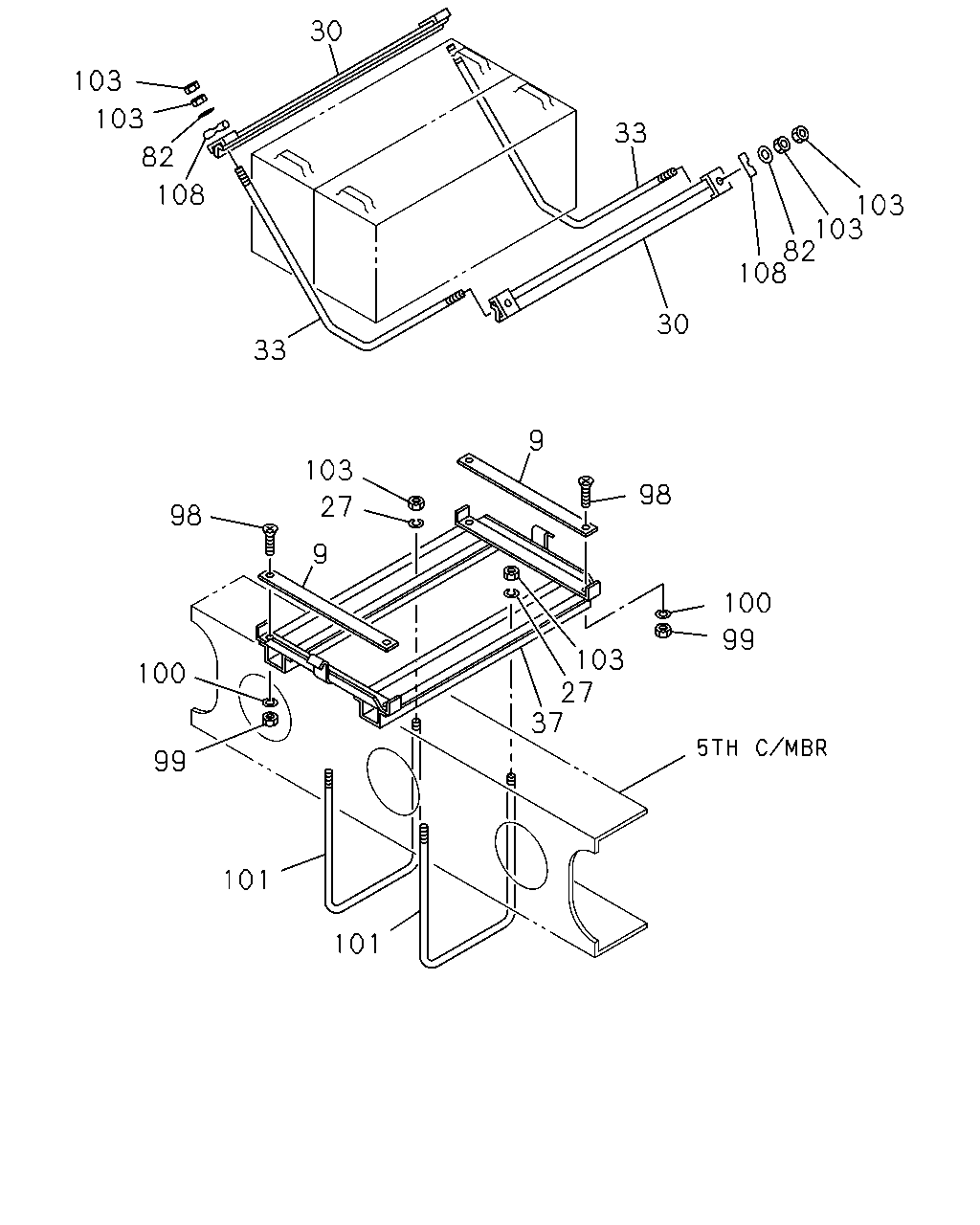

5-20 — BATTERY CARRIER (#2245) — 28 parça

30 103 103 33 82 108 103 103 82 108 30 33 9 103 98 27 98 9 100 99 103 27 37 100 99 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SEAT; BATTERY BATTERY 145G51 N150<SJ8>	9-53613-535-0	02	1	9101-	●	●
9	SEAT; BATTERY EXC. BATTERY 145G51 N150<SJ8>	9-53613-094-1	02	1	9101-	●	●
27	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	9101-	●	●
30	PLATE; BATTERY BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	9-53616-119-0	02	1	9101-	●	●
30	PLATE; BATTERY BATTERY 95E41R N100<SJ1>	1-53616-105-0	02	1	9101-0203	●	●
30	PLATE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-095-0	02	1	9101-0203	●	●
30	PLATE; BATTERY EXC. BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-095-0	02	1	0204-	●	●
33	BOLT; PLATE TO BRKT BATTERY 145G51 N150<SJ8>	9-53616-214-1	02	1	9101-	●	●
33	BOLT; PLATE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115F51 N120<SJ3>	9-53616-079-1	02	1	9101-0203	●	●
33	BOLT; PLATE TO BRKT BATTERY 115F51 N120<SJ3>	9-53616-079-1	02	1	0204-	●	●
33	BOLT; PLATE TO BRKT EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-093-0	02	1	9101-0203	●	●
33	BOLT; PLATE TO BRKT EXC. BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-093-0	02	1	0204-	●	●
37	BRACKET; BATTERY BATTERY 115F51 N120<SJ3>	9-53610-112-1	01	1	9101-	●	●
37	BRACKET; BATTERY BATTERY 145G51 N150<SJ8>	9-53613-534-0	01	1	9101-	●	●
37	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>	1-53613-273-0	01	1	9101-0203	●	●
37	BRACKET; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53613-288-0	01	1	9101-0203	●	●
37	BRACKET; BATTERY EXC. BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53613-288-1	01	1	0204-	●	●
82	WASHER; PL CENTER PEACE ID=10.5	9-09164-510-0	04	1	9101-	●	●
98	SCREW; SEAT M6X25 CK-HEAD	9-03090-625-0	04	1	9101-	●	●
99	NUT; SEAT M6	9-09110-406-0	04	1	9101-	●	●
100	WASHER; LK SEAT ID=6.1	9-09150-506-0	04	1	9101-	●	●
101	BOLT; CLIP BATTERY BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115F51 N120<SJ3>, BATTERY 145G51 N150<SJ8>	1-53616-075-3	02	1	9101-0203	●	●
101	BOLT; CLIP BATTERY BRKT BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-075-3	02	1	0204-	●	●
101	BOLT; CLIP BATTERY BRKT EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-092-0	02	1	9101-0203	●	●
101	BOLT; CLIP BATTERY BRKT EXC. BATTERY 115F51 N120<SJ3>,BATTERY 145G51 N150<SJ8>	1-53616-092-0	02	1	0204-	●	●
103	NUT; BATTERY BRKT M10	9-09110-410-0	12	1	9101-9307	●	●
103	NUT; BATTERY BRKT M10	9-09110-510-0	12	1	9308-	●	●
108	PEACE; CENTER	9-53619-037-0	04	1	9101-	●	●
