Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#22440) — 96 parça
◀

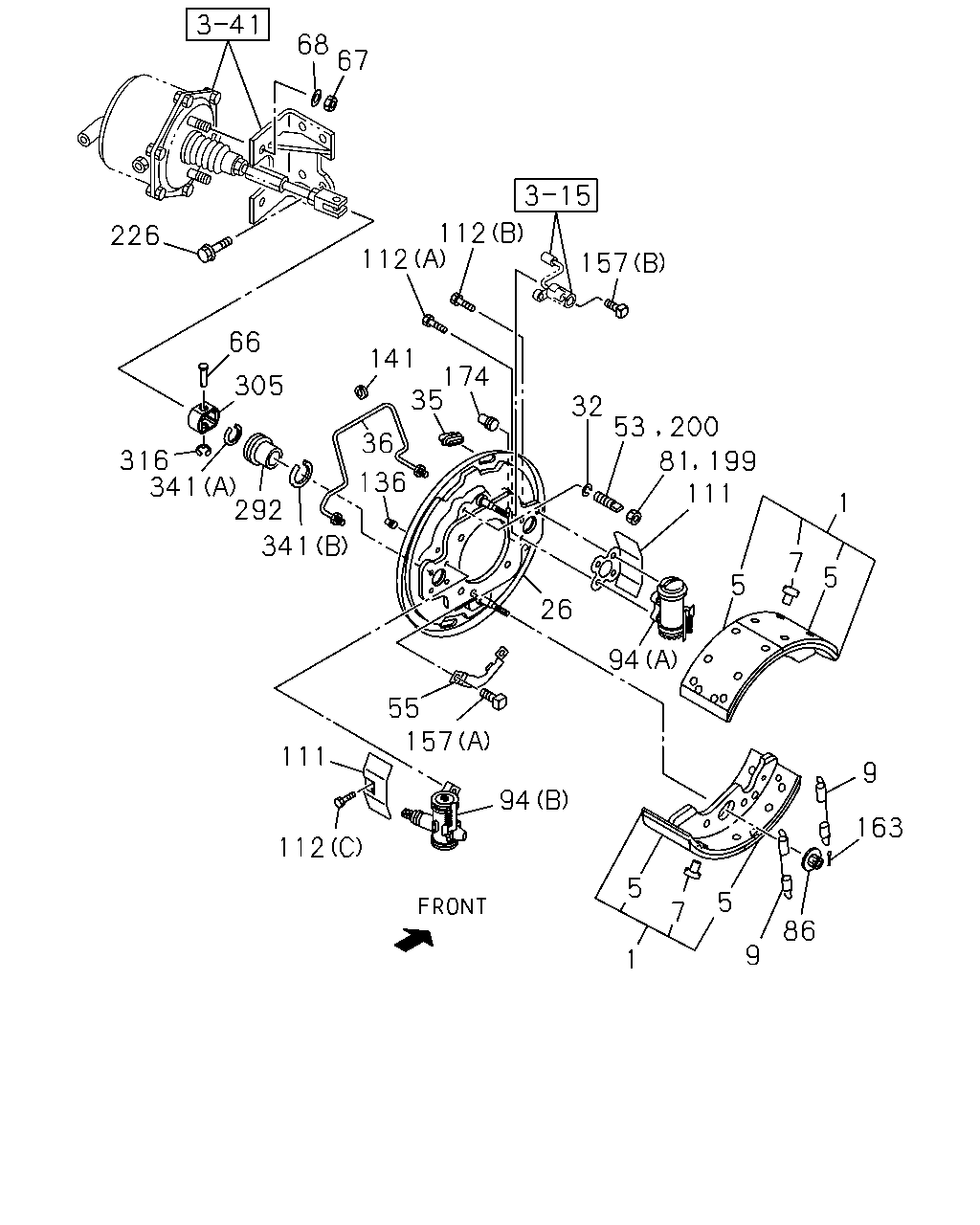

[305A] NO.2 (55 parça)

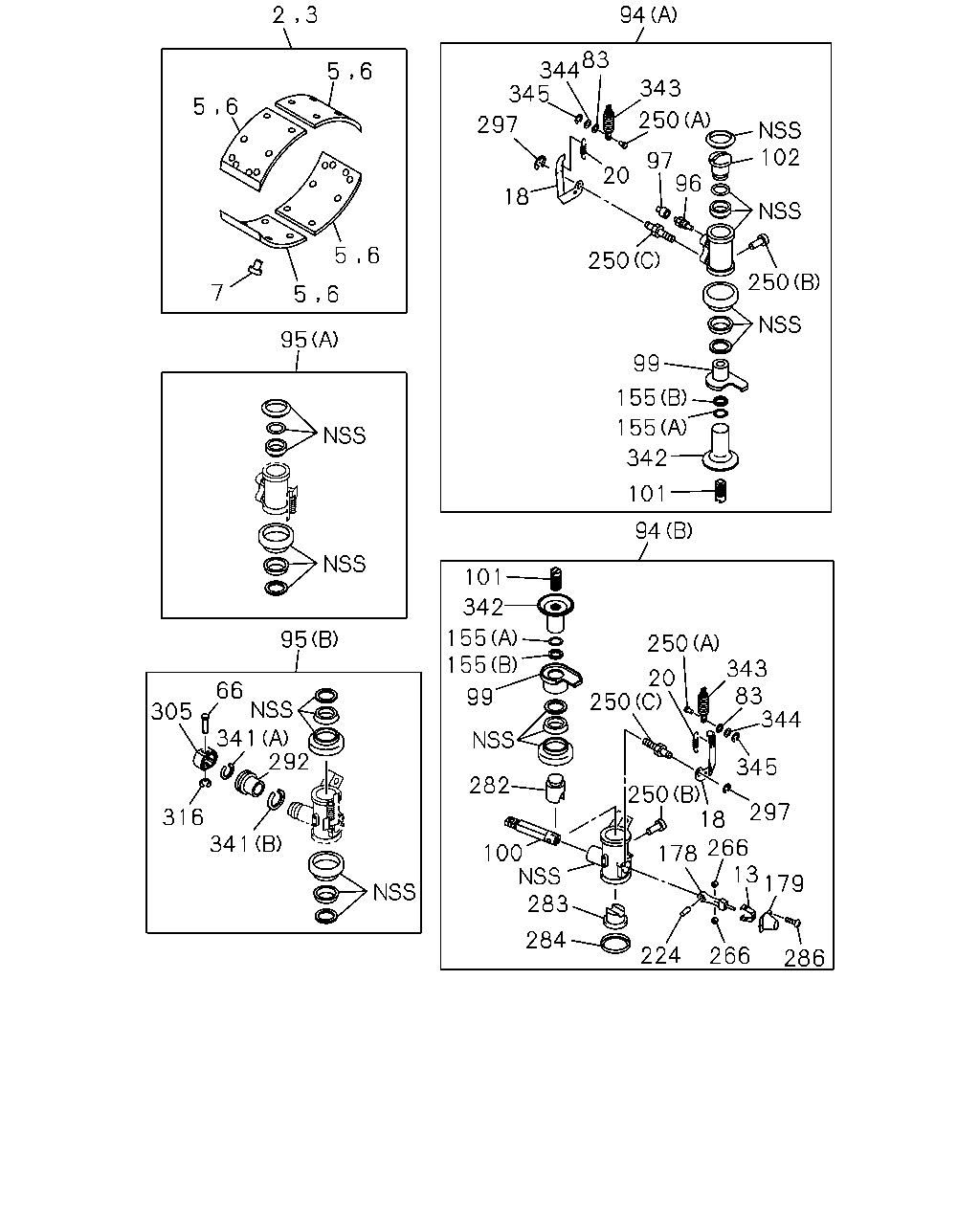

[305A] NO.1 (41 parça)
▶
2
3
94
83
344
345
5
6
343
5
6
250
297
102
97
96
20
18
5
6
250
250
7
5
6
95
99
155
155
342
101
94
101
342
155
155
95
250
343
83
344
20
250
66
99
305
341
292
345
250
18
282
297
316
341
266
178
13
179
100
283
284
224
266
286
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINING SET; RR BRK,STANDARD
1-88310-839-1
02
1
0907-
3
LINING SET; RR BRK,OVER SIZE
1-88310-840-1
02
1
0907-
5
LINING; RR BRK SHOE,STANDARD
1-47126-161-0
08
1
0907-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-162-0
08
1
0907-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
0907-
13
CLIP; ROLLER PIN,BRK SHOE
1-47619-139-0
02
1
0907-
18
LEVER; AUTO ADJ
1-47629-164-0
02
1
0907-
18
LEVER; AUTO ADJ
1-47629-165-0
02
1
0907-
20
SPRING; ADJ LEVER
1-09583-345-0
04
1
0907-
66
PIN; JAW JOINT
1-09744-128-0
02
1
0907-
83
WASHER; PL
1-47619-108-0
04
1
0907-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-184-0
01
1
0907-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-185-0
01
1
0907-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-186-0
01
1
0907-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-367-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-187-0
01
1
0907-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-368-0
01
1
1411-
95
CUP SET; RR WHEEL CYL
(A)
1-87830-933-0
02
1
0907-
95
CUP SET; RR WHEEL CYL
(B)
1-87831-246-1
02
1
0907-
96
SCREW; BLEEDER,RR BRK
8-98050-477-0
02
1
0907-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
02
1
0907-
99
PISTON; RR WHEEL CYL
FORWARD
1-47624-349-0
01
1
0907-
99
PISTON; RR WHEEL CYL
FORWARD
1-47624-350-0
01
1
0907-
99
PISTON; RR WHEEL CYL
BACKWARD
1-47624-351-0
01
1
0907-
99
PISTON; RR WHEEL CYL
BACKWARD
1-47624-352-0
01
1
0907-
100
ROD; PUSH,RR WHEEL CYL
1-47619-169-0
02
1
0907-1410
100
ROD; PUSH,RR WHEEL CYL
8-98290-467-0
02
1
1411-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-053-0
02
1
0907-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-054-0
02
1
0907-
102
PISTON; REAR WHEEL CYL
1-47624-333-0
02
1
0907-
155
WASHER; PL,WHEEL CYL
(A)
1-47629-150-0
04
1
0907-
155
WASHER; PL,WHEEL CYL
(B)
1-47629-151-0
04
1
0907-
178
WEDGE; RR WHEEL CYL
1-47619-168-0
02
1
0907-
179
COVER; WEDGE,RR WHEEL CYL
1-47619-141-0
02
1
0907-
224
PIN; ROD
1-47619-130-0
02
1
0907-
250
PIN; RETAINING
(B)
1-47629-112-0
04
1
0907-
250
PIN; RETAINING
(C)
1-47629-262-0
04
1
0907-
250
PIN; RETAINING
(A)
1-47619-106-0
04
1
0907-
266
ROLLER; WEDGE
1-47619-138-0
04
1
0907-
282
PLUNGER; INNER
1-47629-255-0
02
1
0907-
283
PLUNGER; OUTER
1-47629-256-0
01
1
0907-
283
PLUNGER; OUTER
1-47629-257-0
01
1
0907-
284
BOOT; PISTON
1-47616-093-0
02
1
0907-
286
SCREW; COVER
1-47619-132-0
06
1
0907-
292
BOOT; ROD
1-47616-107-0
02
1
0907-
297
RING; SNAP
1-47629-263-0
04
1
0907-
305
GUIDE; SLACK ADJ
1-46346-023-0
02
1
0907-
316
RING; SNAP
ID=9
0-91805-509-0
02
1
0907-
341
SPRING; ASSIST,BOOT
(A)
1-47619-175-0
02
1
0907-
341
SPRING; ASSIST,BOOT
(B)
1-47619-176-0
02
1
0907-
342
GEAR; WHEEL CYL
1-47629-158-0
02
1
0907-
342
GEAR; WHEEL CYL
1-47629-159-0
02
1
0907-
343
SPRING; WHEEL CYL
1-47629-141-0
04
1
0907-
344
WASHER; WAVE
1-47619-107-0
04
1
0907-
345
RETAINER; LEVER
1-47619-109-0
04
1
0907-
68
67
112
226
112
157
66
141
174
35
305
32
36
316
341
81
199
111
136
292
1
341
7
5
5
26
94
55
157
111
9
94
163
112
5
5
7
86
9
1
53
200
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47170-466-0
04
1
0907-
5
LINING; RR BRK SHOE,STANDARD
1-47126-161-0
08
1
0907-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
0907-
9
SPRING; RETURN,BRK SHOE
1-09583-346-0
04
1
0907-
26
PLATE; BACK,RR BRK
1-47150-642-0
01
1
0907-
26
PLATE; BACK,RR BRK
1-47150-643-0
01
1
0907-
32
WASHER; LK
1-09985-346-0
04
1
0907-
35
GROMMET; CHECK HOLE
1-09333-033-0
04
1
0907-
36
PIPE; OIL,RR BRK
1-49167-875-0
01
1
0907-
36
PIPE; OIL,RR BRK
1-49167-876-0
01
1
0907-
53
BOLT; LOCK PLATE
1-47162-050-0
02
1
0907-
55
PLATE; LK,RR WHEEL CYL
1-47139-169-0
02
1
0907-
66
PIN; JAW JOINT
1-09744-128-0
02
1
0907-
67
NUT; POWER CHAMBER FIX
M16
0-91110-516-0
04
1
0907-
68
WASHER; LK,CHAMBER
ID=16.2
0-91510-816-0
04
1
0907-
81
NUT
1-09400-167-0
02
1
0907-
86
NUT; FLANGE
1-09440-102-0
04
1
0907-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-184-0
01
1
0907-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-185-0
01
1
0907-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-186-0
01
1
0907-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-367-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-187-0
01
1
0907-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-368-0
01
1
1411-
111
COVER; WHEEL CYL
1-47159-233-0
04
1
0907-
112
BOLT; WHEEL CYL SETTING
(A)
1-47159-231-0
08
1
0907-
112
BOLT; WHEEL CYL SETTING
(B)
1-47159-232-0
06
1
0907-
112
BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE
8-94134-103-0
08
1
0907-
136
GROMMET
9-09956-640-0
04
1
0907-
141
PROTECTOR; RR BRK PIPE
1-47143-008-0
02
1
0907-
157
BOLT; RR BRK SET
(A)
1-09060-021-0
12
1
0907-
157
BOLT; RR BRK SET
(B)
1-09060-022-0
04
1
0907-
163
PIN; SPLIT,SHOE HOLD
1-09740-098-0
04
1
0907-
174
COVER; CYL,RR WHEEL CYL
1-47154-008-0
04
1
0907-
199
NUT
1-09400-167-0
02
1
0907-
200
BOLT
1-47162-050-0
02
1
0907-
226
BOLT; BRKT
M14X35 FLANGE
0-28651-435-0
08
1
0907-
292
BOOT; ROD
1-47616-107-0
02
1
0907-
305
GUIDE; SLACK ADJ
1-46346-023-0
02
1
0907-
316
RING; SNAP
ID=9
0-91805-509-0
02
1
0907-
341
SPRING; ASSIST,BOOT
(A)
1-47619-175-0
02
1
0907-
341
SPRING; ASSIST,BOOT
(B)
1-47619-176-0
02
1
0907-
