5-01 — FRAME AND OTHER PARTS (#2244) — 114 parça

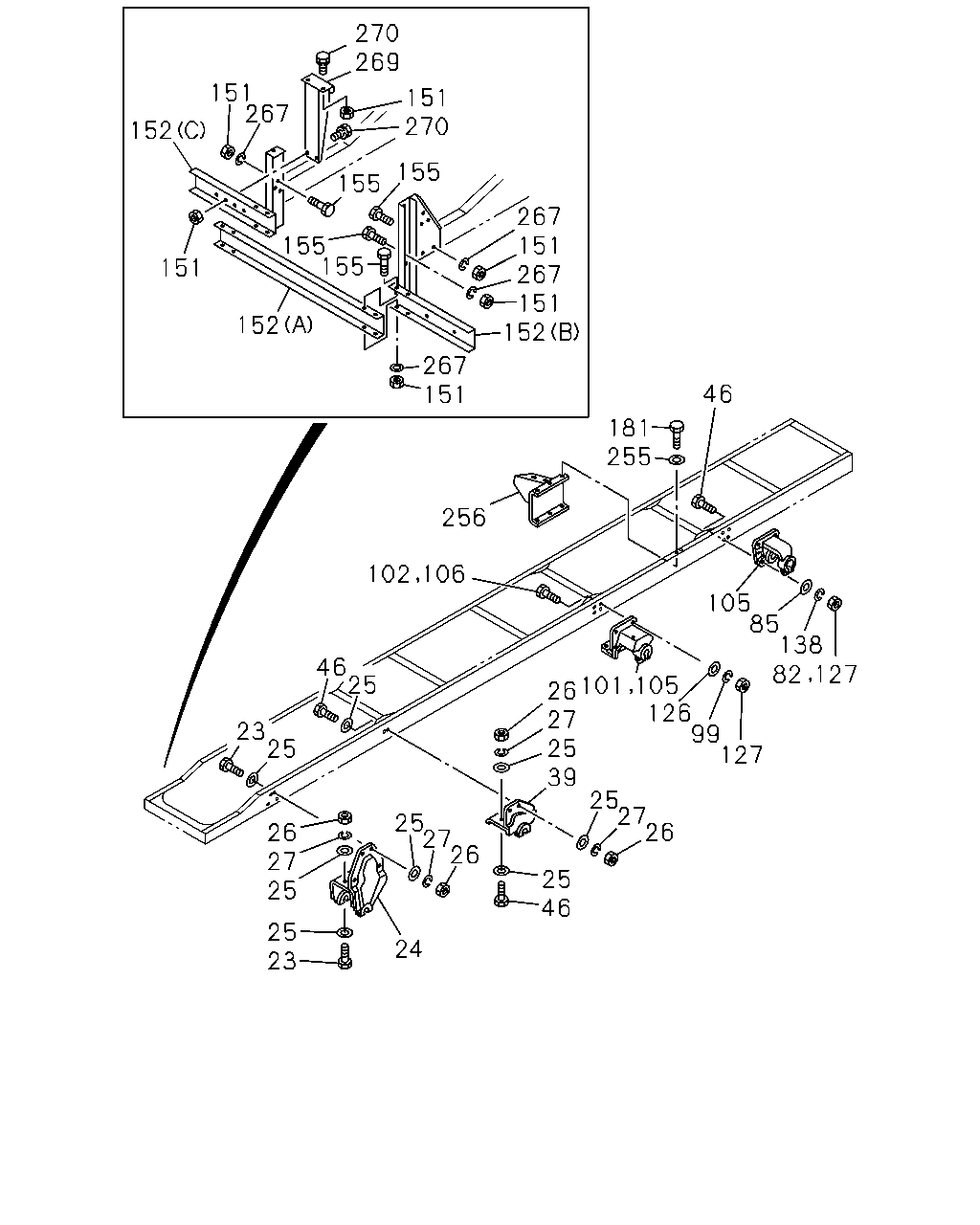

270 269 151 267 151 270 152 155 155 267 151 267 151 152 155 155 151 152 267 151 46 181 255 256 102 105 85 138 127 46 25 101 105 26 126 27 99 25 127 39 23 25 25 27 26 25 27 26 26 27 25 25 46 25 23 24 106 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT,SPR M14X50	9-91066-450-0	08	1	9101-	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9101-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-179-0	01	1	9101-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-178-0	01	1	9101-	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9101-	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9101-	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9101-	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9101-	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	16	1	9101-9112	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9101-9112	●	●
39	BRACKET; FRT SPR,RR	1-53352-071-5	01	1	9101-9407	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9408-	●	●
39	BRACKET; FRT SPR,RR	1-53352-072-5	01	1	9101-9407	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9408-	●	●
46	BOLT; BRKT FIX M14X50	9-91066-450-0	08	1	9101-	●	●
82	NUT; BRKT M14	9-99110-514-0	12	1	9101-9112	●	●
85	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9101-9112	●	●
99	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9101-9112	●	●
101	BRACKET; RR SPR,FRT WHEEL BASE 6000MM(60W)	9-53354-088-2	01	1	9101-9112	●
101	BRACKET; RR SPR,FRT WHEEL BASE 6000MM(60W)	9-53354-087-2	01	1	9101-9112	●
101	BRACKET; RR SPR,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53353-067-1	02	1	9101-9108	●	●
101	BRACKET; RR SPR,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-048-2	01	1	9109-9112	●	●
101	BRACKET; RR SPR,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-049-2	01	1	9109-9112	●	●
102	BOLT; BRKT,RR SPR M14X55	9-91061-455-0	12	1	9101-9112	●	●
105	BRACKET; RR SPR,RR WHEEL BASE 6000MM(60W)	9-53354-087-2	01	1	9101-9112	●
105	BRACKET; RR SPR,RR WHEEL BASE 6000MM(60W)	9-53354-087-2	02	1	9201-	●
105	BRACKET; RR SPR,RR WHEEL BASE 6000MM(60W)	9-53354-088-2	01	1	9101-9112	●
105	BRACKET; RR SPR,RR WHEEL BASE 6000MM(60W)	9-53354-088-2	02	1	9201-	●
105	BRACKET; RR SPR,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-048-2	01	1	9101-9112	●	●
105	BRACKET; RR SPR,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-048-2	02	1	9201-9205	●	●
105	BRACKET; RR SPR,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-067-0	02	1	9206-	●	●
105	BRACKET; RR SPR,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-049-2	01	1	9101-9112	●	●
105	BRACKET; RR SPR,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-049-2	02	1	9201-9205	●	●
105	BRACKET; RR SPR,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53354-068-0	02	1	9206-	●	●
106	BOLT; BRKT M14X55	9-91061-455-0	12	1	9101-0203	●	●
106	BOLT; BRKT M14X55	9-91061-455-0	24	1	0204-	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9101-9112	●	●
127	NUT; BRKT M14	9-99110-514-0	12	1	9101-9112	●	●
127	NUT; BRKT M14	9-99110-514-0	24	1	9201-	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9101-9112	●	●
151	NUT; OUTRIGGER M14	9-99110-514-0	03	1	9101-	●
151	NUT; OUTRIGGER M12	9-99110-412-0	02	1	9101-9307	●	●
151	NUT; OUTRIGGER M12	9-99110-512-0	14	1	9101-9307	●	●
151	NUT; OUTRIGGER M12	9-99110-512-0	16	1	9308-	●	●
151	NUT; OUTRIGGER M14	9-99110-514-0	01	1	9101-		●
152	OUTRIGGER (B)	1-53456-189-0	01	1	9101-	●
152	OUTRIGGER (C)	1-53456-190-1	01	1	9101-	●
152	OUTRIGGER (A)	1-53456-160-3	01	1	9101-	●	●
152	OUTRIGGER (C)	1-53456-215-0	01	1	9101-		●
152	OUTRIGGER (B)	1-53456-216-1	01	1	9101-		●
155	BOLT; OUTRIGGER M14X35	9-92061-435-0	03	1	9101-	●
155	BOLT; OUTRIGGER M12X32	9-92061-232-0	08	1	9101-	●	●
155	BOLT; OUTRIGGER M12X35	9-92061-235-0	06	1	9101-	●	●
155	BOLT; OUTRIGGER M14X35	9-92061-435-0	01	1	9101-		●
181	BOLT; S/ABS BRKT TO FRAME M12X35 W/LK WASHER	0-50041-235-0	12	1	9101-	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9201-	●	●
256	BRACKET; S/ABS WHEEL BASE 6000MM(60W)	1-53369-171-0	01	1	9101-	●
256	BRACKET; S/ABS WHEEL BASE 6000MM(60W)	1-53369-172-0	01	1	9101-	●
256	BRACKET; S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53369-145-0	01	1	9101-	●	●
256	BRACKET; S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53369-146-0	01	1	9101-	●	●
267	WASHER; LK,OUTRIGGER ID=14.2	9-09150-614-0	03	1	9101-	●
267	WASHER; LK,OUTRIGGER ID=16.2	9-09150-516-0	02	1	9101-	●	●
267	WASHER; LK,OUTRIGGER ID=12.2	9-09150-612-0	14	1	9101-	●	●
267	WASHER; LK,OUTRIGGER ID=14.2	9-09150-614-0	01	1	9101-		●
269	STAY; OUTRIGGER TO PEDAL BOARD	1-53459-706-1	01	1	9101-	●	●
270	BOLT; STAY,OUTRIGGER M12X32	0-50141-232-0	06	1	9101-	●	●

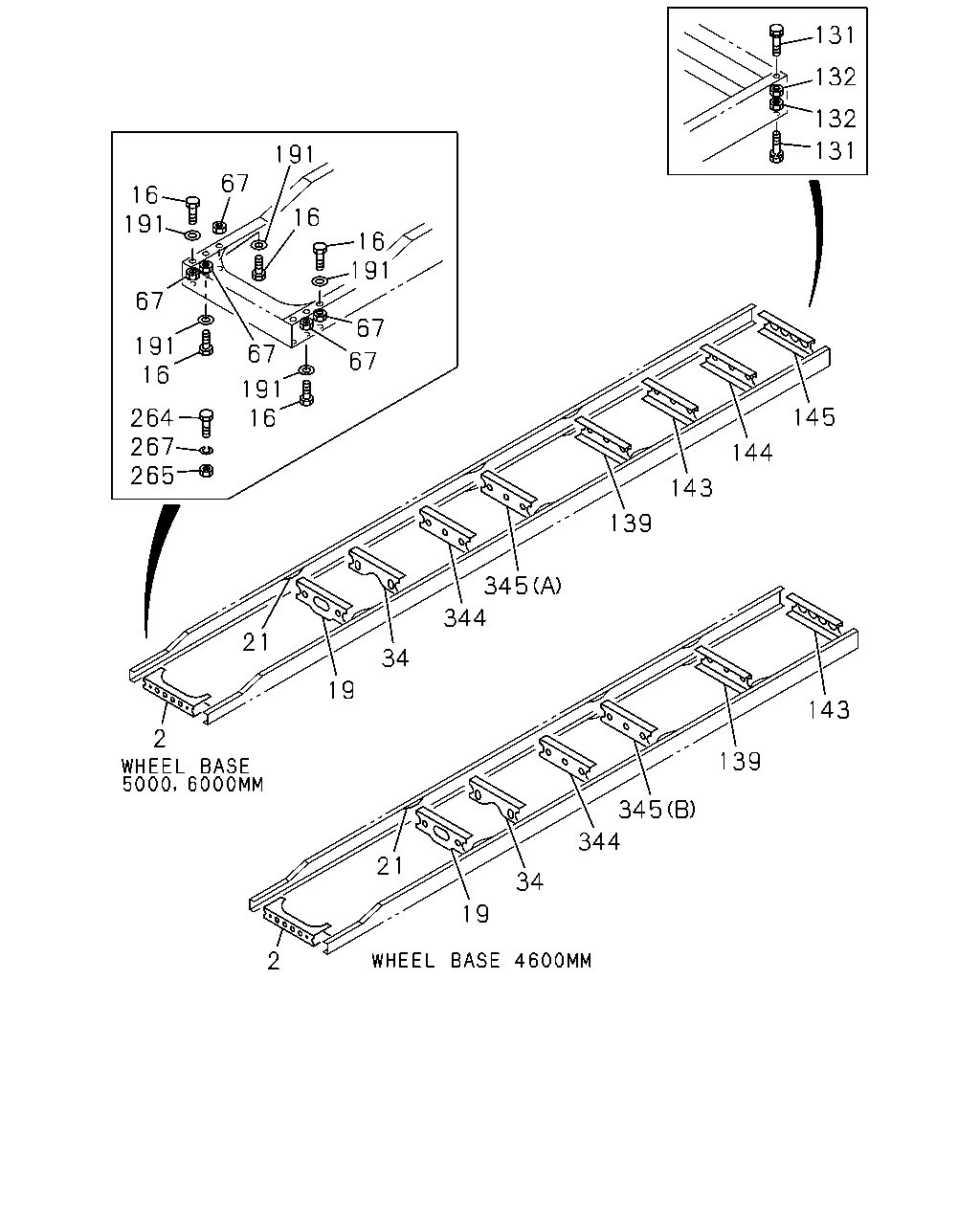

131 132 132 131 191 67 16 191 16 16 191 67 67 191 16 67 67 191 16 145 264 267 265 144 143 139 345 344 21 34 19 143 2 139 345 344 21 34 19 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-058-1	01	1	9101-0203	●
2	MEMBER; CROSS,1ST USER DAEWOO MOTORS<D4S>	1-53181-058-1	01	1	9101-0203		●
2	MEMBER; CROSS,1ST	1-53181-058-1	01	1	0204-	●
2	MEMBER; CROSS,1ST WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S>	1-53181-057-1	01	1	9101-0203		●
2	MEMBER; CROSS,1ST	1-53181-057-1	01	1	0204-		●
16	BOLT; 1ST C/MBR TO S/MBR M14X28	9-92061-428-0	09	1	9101-	●	●
19	MEMBER; CROSS,2ND	1-53171-984-0	01	1	9101-	●	●
21	GUSSET; 2ND CROSS 2ND-UP,4TH/5TH-UP&LOW	1-53167-184-1	10	1	9101-0203	●	●
21	GUSSET; 2ND CROSS WHEEL BASE 4600MM(46W) 2ND-UP,4TH/5TH-UP&LOW	1-53167-184-1	10	1	0204-	●
21	GUSSET; 2ND CROSS WHEEL BASE 5000MM(50W) 2ND-UP,4TH/5TH-UP&LOW	1-53167-184-1	10	1	0204-		●
34	MEMBER; CROSS,3RD WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W)	1-53181-055-4	01	1	9101-0203	●	●
34	MEMBER; CROSS,3RD WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S>	1-53181-055-4	01	1	9101-0203	●	●
34	MEMBER; CROSS,3RD	1-53181-055-4	01	1	0204-	●	●
34	MEMBER; CROSS,3RD WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S>	1-53181-318-1	01	1	9101-0203	●	●
67	NUT; C/MBR M14	9-99110-514-0	08	1	9101-	●	●
131	BOLT; END C/MBR M12X25 W/LK WASHER	0-50041-225-0	04	1	9101-	●	●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9101-	●	●
139	MEMBER; CROSS,6TH	1-53171-983-2	01	1	9101-	●	●
143	MEMBER; CROSS,7TH WHEEL BASE 6000MM(60W)	1-53171-983-2	01	1	9101-	●
143	MEMBER; CROSS,7TH WHEEL BASE 4600MM(46W)	1-53171-958-0	01	1	9101-0203	●	●
143	MEMBER; CROSS,7TH WHEEL BASE 4600MM(46W)	1-53171-958-0	01	1	0204-	●
143	MEMBER; CROSS,7TH WHEEL BASE 5000MM(50W)	1-53171-957-2	01	1	9101-	●	●
144	MEMBER; CROSS,8TH WHEEL BASE 6000MM(60W)	1-53171-957-2	01	1	9101-	●
144	MEMBER; CROSS,8TH WHEEL BASE 5000MM(50W)	1-53171-958-0	01	1	9101-	●	●
145	MEMBER; CROSS,9TH WHEEL BASE 6000MM(60W)	1-53171-958-0	01	1	9101-	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	09	1	9101-	●	●
264	BOLT; FRT C/MBR M16X35	0-20801-635-0	02	1	9101-	●	●
265	NUT; FRT C/MBR M16	9-99110-416-0	02	1	9101-	●	●
267	WASHER; LK,OUTRIGGER ID=14.2	9-09150-614-0	03	1	9101-	●
267	WASHER; LK,OUTRIGGER ID=16.2	9-09150-516-0	02	1	9101-	●	●
267	WASHER; LK,OUTRIGGER ID=12.2	9-09150-612-0	14	1	9101-	●	●
267	WASHER; LK,OUTRIGGER ID=14.2	9-09150-614-0	01	1	9101-		●
344	MEMBER; CROSS,4TH	1-53171-957-2	01	1	9101-	●	●
345	MEMBER; CROSS,5TH WHEEL BASE 6000MM(60W) (A)	1-53171-957-2	01	1	9101-	●
345	MEMBER; CROSS,5TH WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (B)	1-53171-983-2	01	1	9101-	●	●

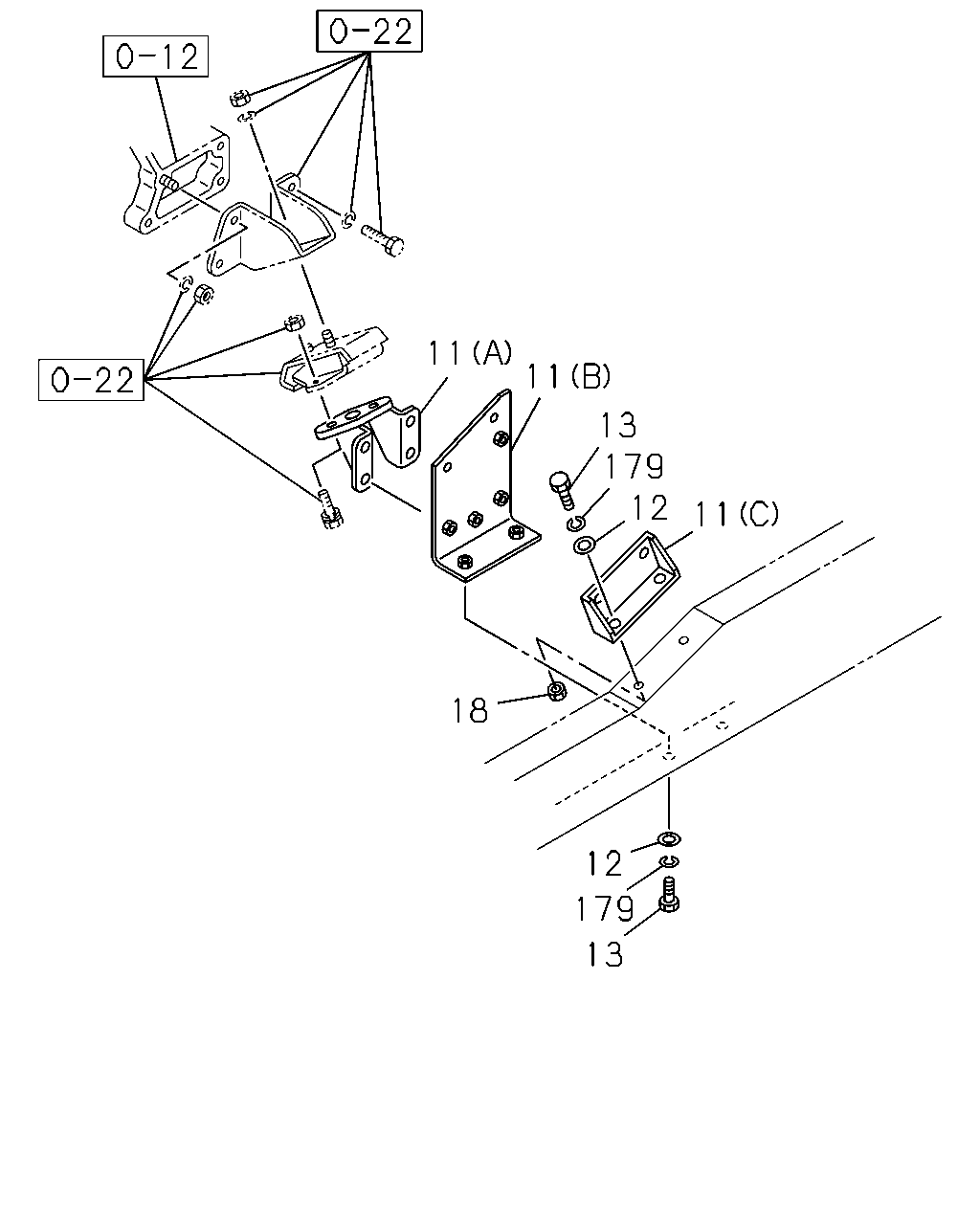

11 11 13 179 12 11 18 12 179 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG (A)	1-53219-260-0	02	1	9101-	●	●
11	BRACKET; ENG MTG (C)	1-53221-157-0	02	1	9101-	●	●
11	BRACKET; ENG MTG (B)	1-53219-262-0	01	1	9101-	●	●
11	BRACKET; ENG MTG (B)	1-53219-261-0	01	1	9101-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	02	1	9101-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	04	1	9101-	●	●
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	06	1	9101-9309	●	●
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	10	1	9310-	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	04	1	9101-9309	●	●
13	BOLT; BRKT,ENG MTG M14X35	9-92061-435-0	08	1	9101-	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	04	1	9101-	●	●
179	WASHER; LK ID=12.2	9-09150-612-0	10	1	9101-	●	●
179	WASHER; LK ID=14.2	9-09150-614-0	08	1	9101-	●	●
