2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#22434) — 22 parça

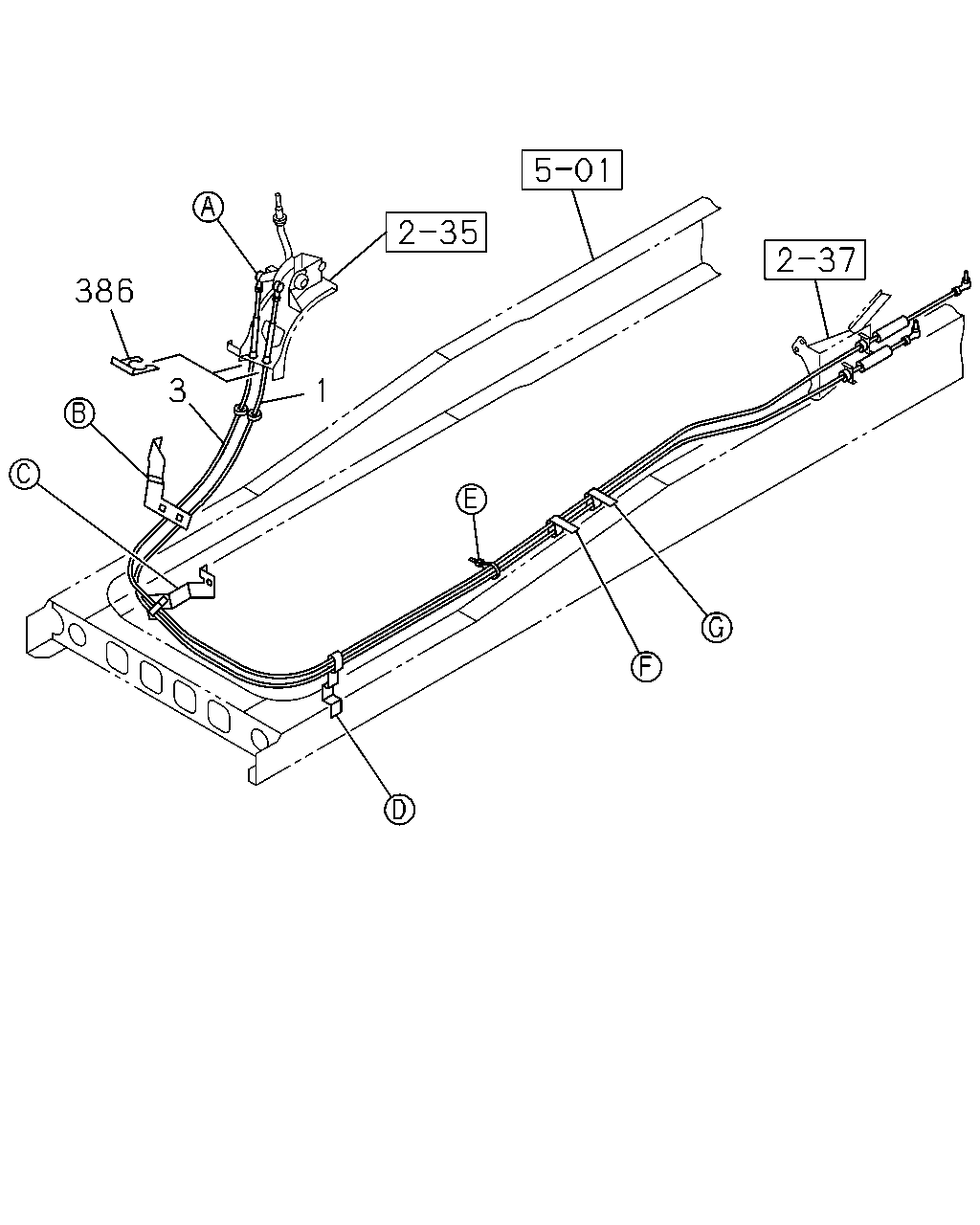

çizim 61837
386 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3320 		8-98010-442-4 01 1 0907-
3 CABLE; SELECT,TRANS CONT
L=3550 		8-98010-482-2 01 1 0907-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0907-

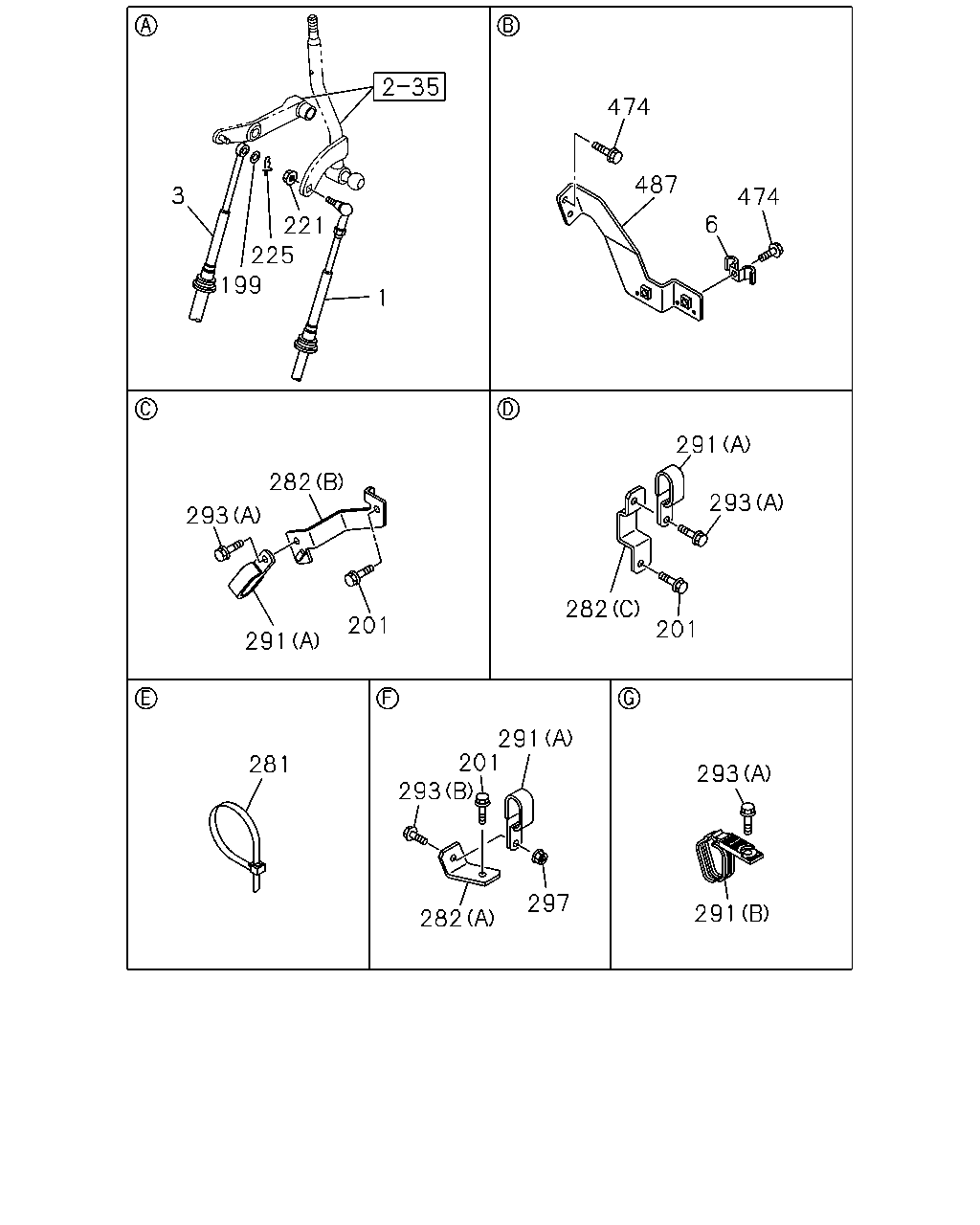

çizim 62015
474 487 3 474 6 221 225 199 1 291 282 293 293 282 201 201 291 291 201 293 281 293 297 291 282
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3320 		8-98010-442-4 01 1 0907-
3 CABLE; SELECT,TRANS CONT
L=3550 		8-98010-482-2 01 1 0907-
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0907-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0907-
201 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0907-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0907-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0907-
281 CLIP; BAND
L=350 		1-09707-183-0 01 1 0907-
282 BRACKET; TRANS SIDE
(A) 		1-82699-199-0 01 1 0907-
282 BRACKET; TRANS SIDE
(B) 		8-98010-417-1 01 1 0907-
282 BRACKET; TRANS SIDE
(C) 		8-98025-103-1 01 1 0907-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 03 1 0907-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0907-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0907-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0907-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0907-
487 BRACKET; CONT CABLE 8-98021-922-3 01 1 0907-
