2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#22433) — 21 parça

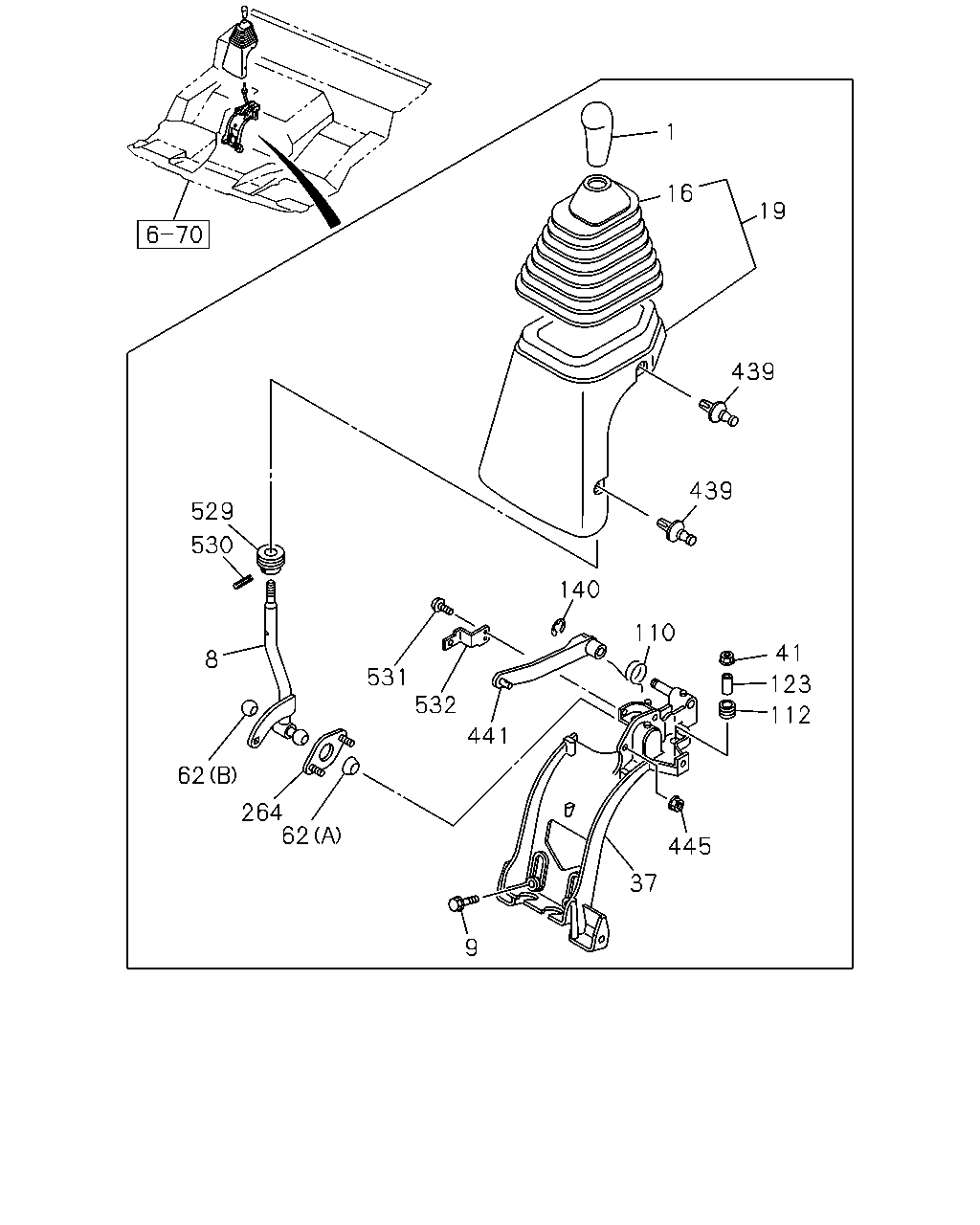

çizim 62061
1 16 19 439 439 529 530 140 110 41 8 531 123 532 112 441 62 264 62 445 37 9
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0907-
8 LEVER; CHANGE 8-98071-282-0 01 1 0907-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0907-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0907-
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 0907-
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-281-0 01 1 0907-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0907-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0907-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0907-
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 0907-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0907-
123 COLLAR; DIST,CHANGE LEVER 8-97091-427-0 04 1 0907-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0907-
264 PLATE; COVER 1-33619-430-0 01 1 0907-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0907-
441 LEVER; SELECT 8-98071-283-0 01 1 0907-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0907-
529 RING; BOOT 1-33619-504-0 01 1 0907-
530 PIN; SPRING 1-33619-505-0 01 1 0907-
531 SCREW; STAY
M5X10 W/PL WASHER 		9-03900-510-0 01 1 0907-
532 STAY 8-98071-284-0 01 1 0907-
