◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#2243) — 36 parça

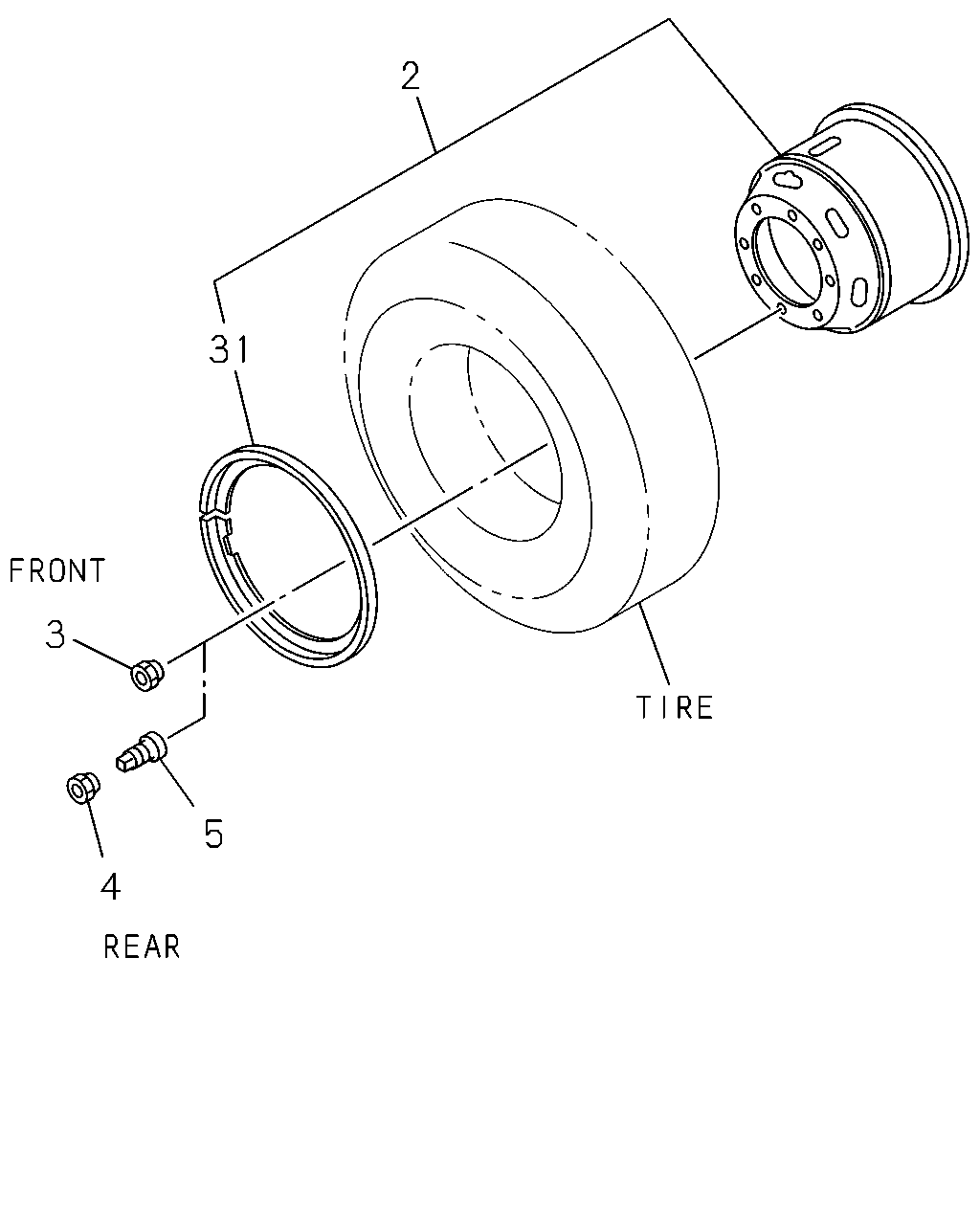

çizim 29523
2 31 3 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42350-131-3 01 1 9101-9402 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42350-478-0 01 1 9403- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42350-012-3 01 1 9101-9206 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42350-268-2 01 1 9207-0203 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42350-268-2 01 1 0204- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42350-268-2 01 1 0204- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42350-134-2 01 1 9101-9204 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42350-420-0 01 1 9205-0105 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42350-362-0 01 1 0106-0203 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) 		1-42350-131-3 06 1 9101-9402 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) 		1-42350-478-0 06 1 9403- ● ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42350-012-3 06 1 9101-9206 ● ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42350-268-2 06 1 9207-0203 ● ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 7.00TX20 162-12(Q54) 		1-42350-268-2 06 1 0204- ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42350-134-2 06 1 9101-9204 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42350-420-0 06 1 9205-0105 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42350-362-0 06 1 0106-0203 ● ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		1-42334-021-0 08 1 9101- ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		1-42333-021-0 08 1 9101- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 08 1 9101- ● ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 08 1 9101- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9101- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9101- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42355-003-1 01 1 0204- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) 		1-42355-003-1 06 1 0204- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42355-012-1 01 1 9207-0203 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42355-012-1 01 1 0204- ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42355-012-1 01 1 0204- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42355-004-1 01 1 9101-0203 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE 		1-42355-003-1 01 1 9101-9206 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE 		1-42355-003-1 01 1 9207-0203 ● ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42355-012-1 06 1 9207-0203 ● ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8STUD 7.00TX20 162-12(Q54) 		1-42355-012-1 06 1 0204- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42355-004-1 06 1 9101-0203 ● ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42355-003-1 06 1 9101-9206 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) 		1-42355-003-1 06 1 9207-0203 ● ●
