Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶
4-33 — STEERING LINKAGE
(#22420) — 23 parça
◀

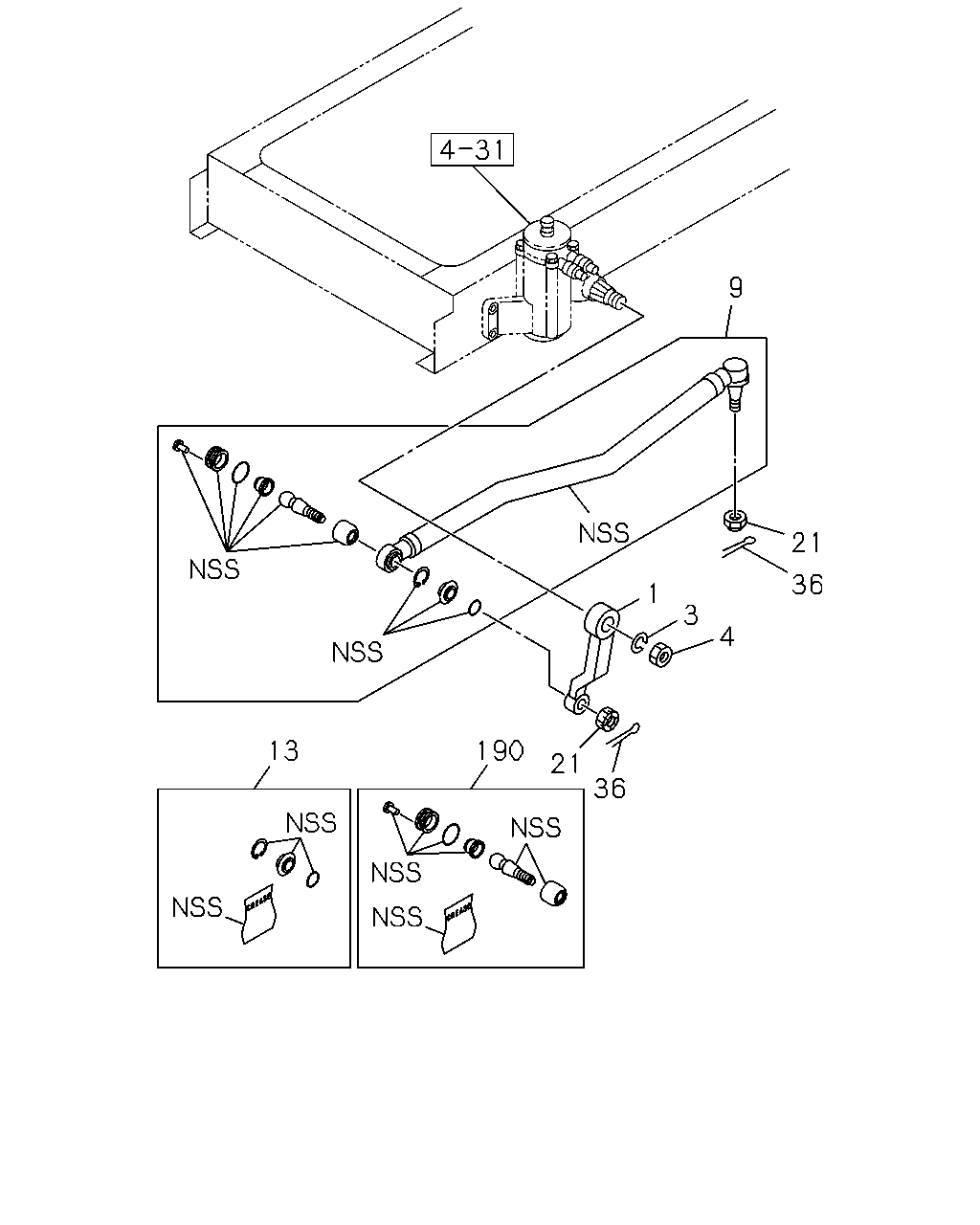

[433A] '00/5-'01/9 (12 parça)

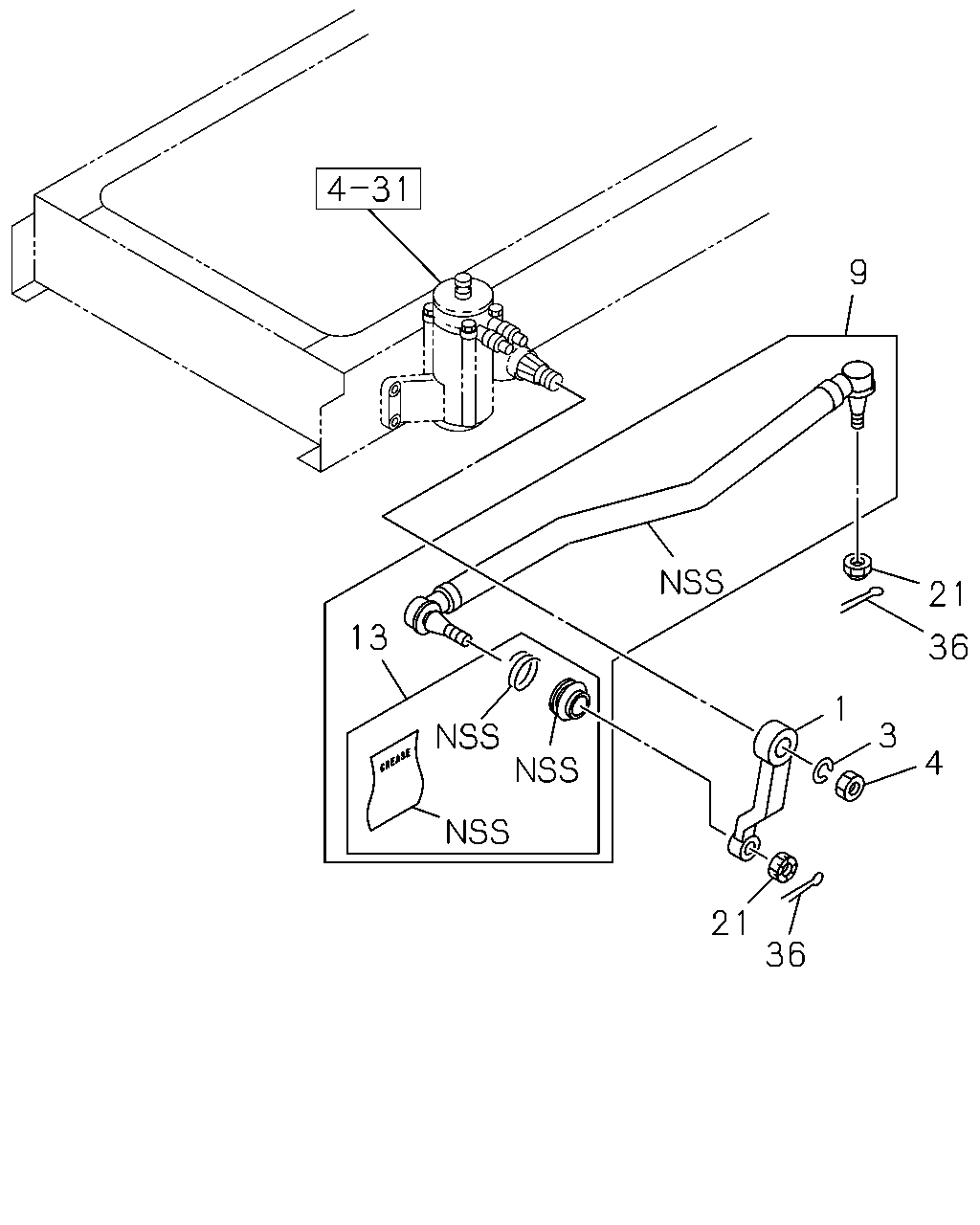

[433A] -'00/4,'01/10- (11 parça)
▶
9
21
36
1
3
4
13
190
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-447-0
01
1
9510-0210
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
9510-0210
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
9510-0210
9
LINK; DRAG
1-44380-132-0
01
1
9510-0004
9
LINK; DRAG
1-44380-237-0
01
1
0005-0109
9
LINK; DRAG
1-44380-267-0
01
1
0110-0210
13
BOOT; DRAG LINK
1-85574-046-0
02
1
9510-0004
13
BOOT; DRAG LINK
1-85574-063-0
02
1
0005-0109
13
BOOT; DRAG LINK
1-85574-046-0
02
1
0110-0210
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
9510-0210
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
9510-0210
190
REPAIR KIT; DRAG LINK
1-85574-062-0
02
1
0005-0109
9
21
13
36
1
3
4
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-447-0
01
1
9510-0210
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
9510-0210
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
9510-0210
9
LINK; DRAG
1-44380-132-0
01
1
9510-0004
9
LINK; DRAG
1-44380-237-0
01
1
0005-0109
9
LINK; DRAG
1-44380-267-0
01
1
0110-0210
13
BOOT; DRAG LINK
1-85574-046-0
02
1
9510-0004
13
BOOT; DRAG LINK
1-85574-063-0
02
1
0005-0109
13
BOOT; DRAG LINK
1-85574-046-0
02
1
0110-0210
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
9510-0210
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
9510-0210
