4-65 — REAR LEAF SPRING (#2242) — 137 parça

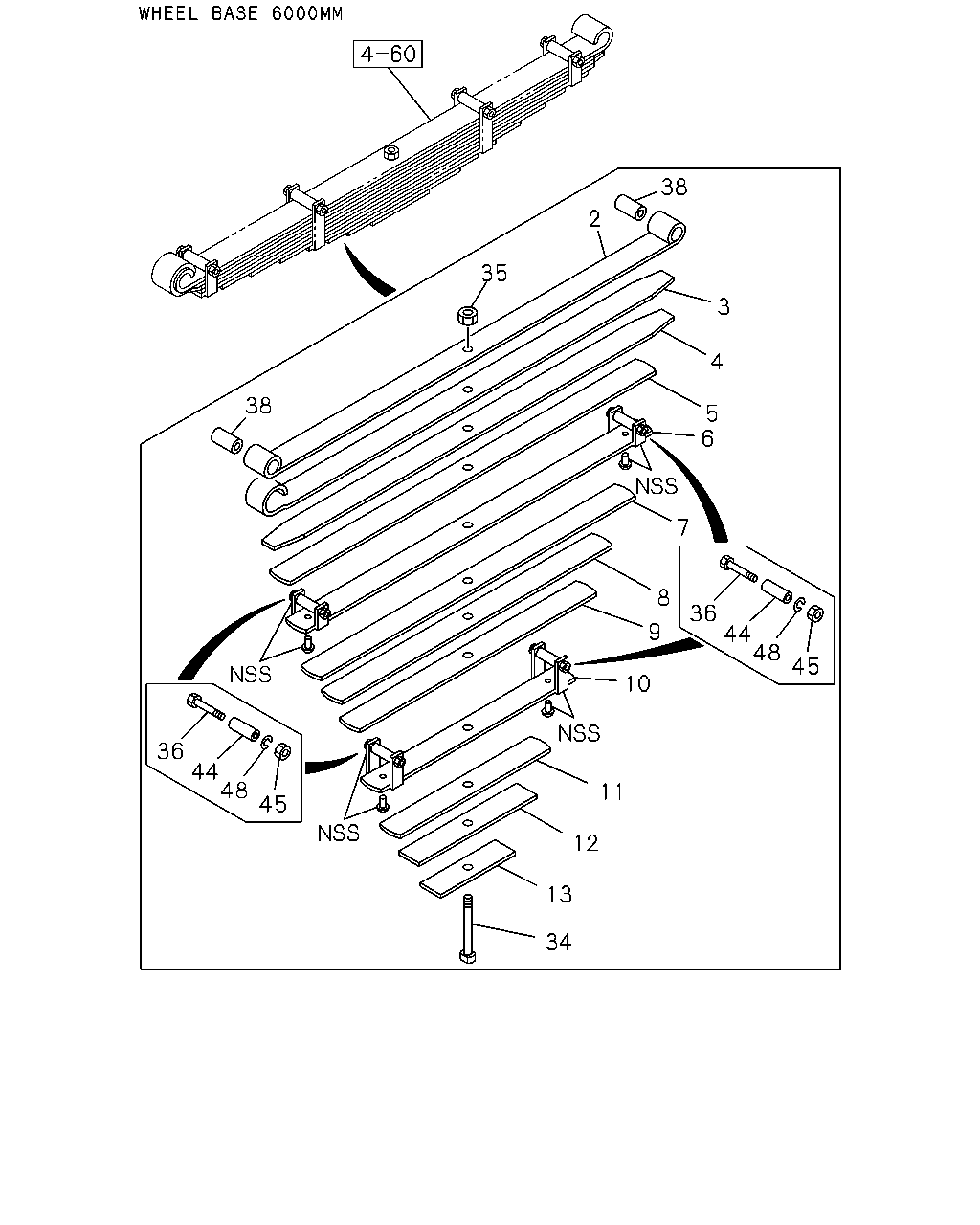

38 2 35 3 4 38 5 6 7 8 36 44 48 9 45 10 36 44 48 11 45 12 13 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-820-0	1-51311-820-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-907-0	1-51311-907-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51310-967-0	1-51311-967-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-820-0	1-51312-820-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-907-0	1-51312-907-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51310-967-0	1-51312-967-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-820-0	1-51313-820-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-907-0	1-51313-907-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51310-967-0	1-51313-967-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-820-0	1-51314-820-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-907-0	1-51314-907-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51310-967-0	1-51314-967-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-820-0	1-51315-820-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-907-0	1-51315-907-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: C = 1-51310-967-0	1-51315-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-820-0	1-51316-820-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51310-907-0	1-51316-907-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51310-967-0	1-51316-967-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-820-0	1-51317-820-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-907-0	1-51317-907-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51310-967-0	1-51317-967-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-820-0	1-51318-820-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51310-907-0	1-51318-907-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51310-967-0	1-51318-967-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-820-0	1-51319-820-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51310-907-0	1-51319-907-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN W/CLIP ASM PART: C = 1-51310-967-0	1-51319-967-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51310-820-0	1-51320-820-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51310-907-0	1-51321-907-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 1-51310-967-0	1-51321-967-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: B = 1-51310-907-0	1-51322-907-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: C = 1-51310-967-0	1-51322-967-0	01	1	-
13	SPRING; LEAF,NO 12,RR MAIN ASM PART: C = 1-51310-967-0	1-51323-967-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=175 ASM PART: B = 1-51310-907-0	1-51356-240-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=180 ASM PART: C = 1-51310-967-0	1-51356-317-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 1-51310-820-0	9-51356-272-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0, C = 1-51310-967-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X105 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-09000-391-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 1-51310-967-0	1-09000-433-0	04	1	-
38	BUSHING; LEAF SPR,RR OD=38 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-51351-009-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51310-967-0	1-51351-024-1	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-51353-009-0	04	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: C = 1-51310-967-0	1-51353-011-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M8 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	9-09110-008-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: C = 1-51310-967-0	9-09110-010-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=8.2 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	9-09150-508-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: C = 1-51310-967-0	9-09150-510-0	04	1	-

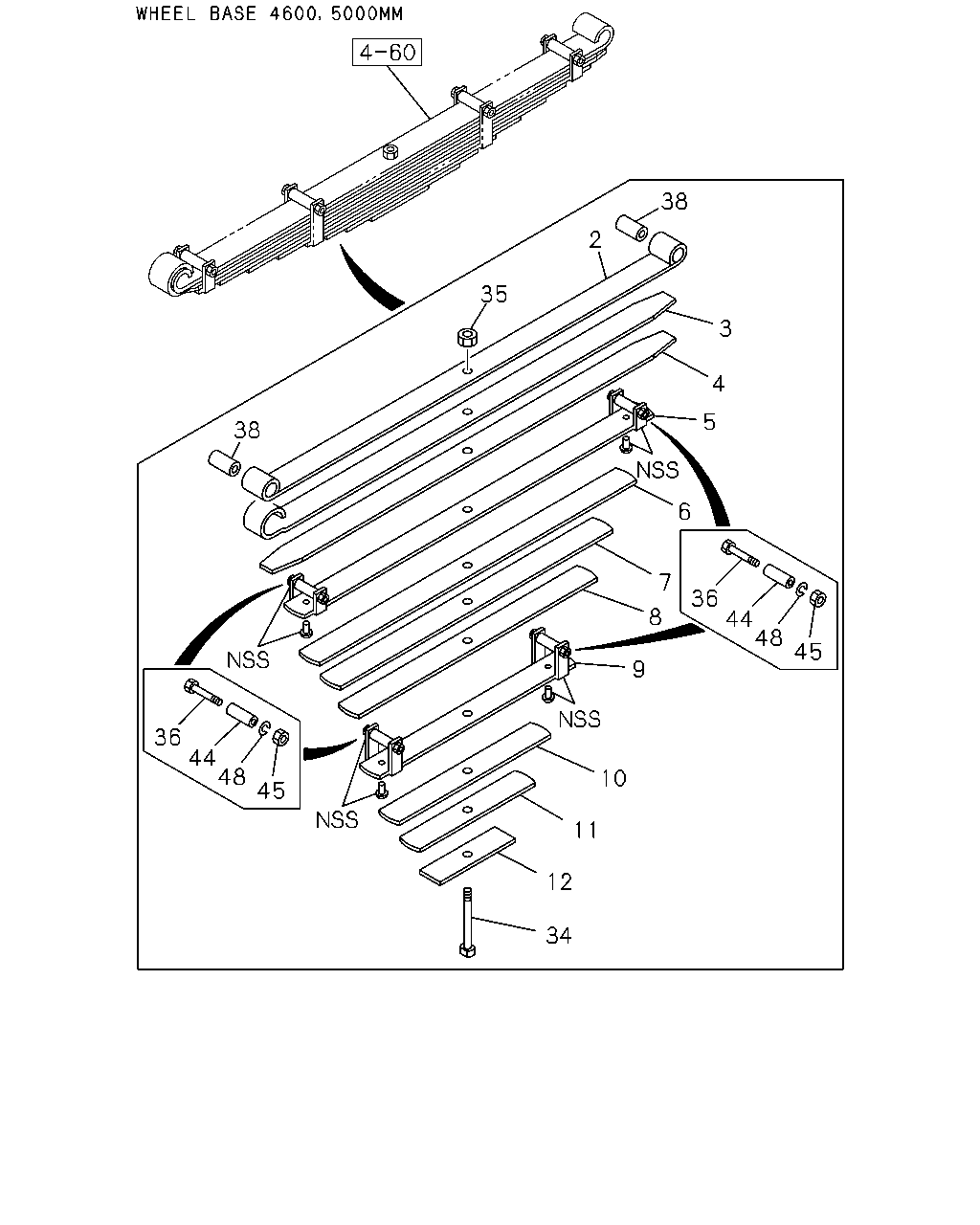

38 2 35 3 4 5 38 6 7 36 44 48 8 45 9 36 44 48 10 45 11 12 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-820-0	1-51311-820-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-907-0	1-51311-907-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51310-967-0	1-51311-967-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-820-0	1-51312-820-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-907-0	1-51312-907-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51310-967-0	1-51312-967-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-820-0	1-51313-820-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-907-0	1-51313-907-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51310-967-0	1-51313-967-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-820-0	1-51314-820-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-907-0	1-51314-907-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51310-967-0	1-51314-967-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-820-0	1-51315-820-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-907-0	1-51315-907-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: C = 1-51310-967-0	1-51315-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-820-0	1-51316-820-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51310-907-0	1-51316-907-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51310-967-0	1-51316-967-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-820-0	1-51317-820-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-907-0	1-51317-907-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51310-967-0	1-51317-967-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-820-0	1-51318-820-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51310-907-0	1-51318-907-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51310-967-0	1-51318-967-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-820-0	1-51319-820-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51310-907-0	1-51319-907-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN W/CLIP ASM PART: C = 1-51310-967-0	1-51319-967-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51310-820-0	1-51320-820-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51310-907-0	1-51321-907-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 1-51310-967-0	1-51321-967-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: B = 1-51310-907-0	1-51322-907-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: C = 1-51310-967-0	1-51322-967-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=175 ASM PART: B = 1-51310-907-0	1-51356-240-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=180 ASM PART: C = 1-51310-967-0	1-51356-317-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 1-51310-820-0	9-51356-272-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0, C = 1-51310-967-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X105 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-09000-391-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 1-51310-967-0	1-09000-433-0	04	1	-
38	BUSHING; LEAF SPR,RR OD=38 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-51351-009-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51310-967-0	1-51351-024-1	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-51353-009-0	04	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: C = 1-51310-967-0	1-51353-011-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M8 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	9-09110-008-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: C = 1-51310-967-0	9-09110-010-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=8.2 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	9-09150-508-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: C = 1-51310-967-0	9-09150-510-0	04	1	-

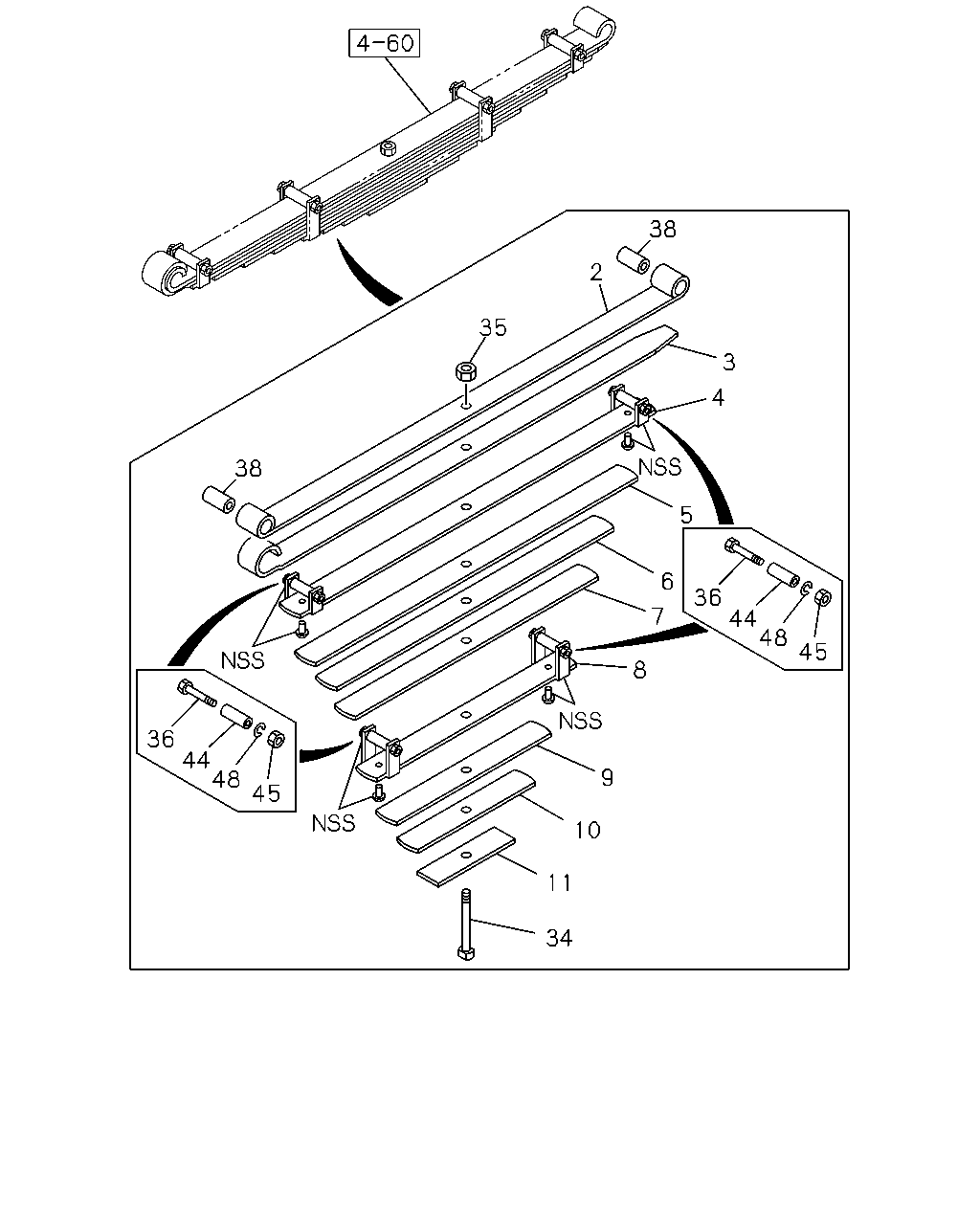

38 2 35 3 4 38 5 6 36 44 48 7 45 8 36 44 48 9 45 10 11 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-820-0	1-51311-820-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-907-0	1-51311-907-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51310-967-0	1-51311-967-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-820-0	1-51312-820-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-907-0	1-51312-907-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51310-967-0	1-51312-967-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-820-0	1-51313-820-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-907-0	1-51313-907-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51310-967-0	1-51313-967-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-820-0	1-51314-820-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-907-0	1-51314-907-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51310-967-0	1-51314-967-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-820-0	1-51315-820-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-907-0	1-51315-907-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: C = 1-51310-967-0	1-51315-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-820-0	1-51316-820-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51310-907-0	1-51316-907-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51310-967-0	1-51316-967-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-820-0	1-51317-820-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-907-0	1-51317-907-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51310-967-0	1-51317-967-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-820-0	1-51318-820-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51310-907-0	1-51318-907-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51310-967-0	1-51318-967-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-820-0	1-51319-820-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51310-907-0	1-51319-907-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN W/CLIP ASM PART: C = 1-51310-967-0	1-51319-967-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51310-820-0	1-51320-820-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51310-907-0	1-51321-907-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 1-51310-967-0	1-51321-967-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=175 ASM PART: B = 1-51310-907-0	1-51356-240-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=180 ASM PART: C = 1-51310-967-0	1-51356-317-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 1-51310-820-0	9-51356-272-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0, C = 1-51310-967-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X105 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-09000-391-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 1-51310-967-0	1-09000-433-0	04	1	-
38	BUSHING; LEAF SPR,RR OD=38 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-51351-009-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51310-967-0	1-51351-024-1	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	1-51353-009-0	04	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: C = 1-51310-967-0	1-51353-011-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M8 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	9-09110-008-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: C = 1-51310-967-0	9-09110-010-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=8.2 ASM PART: A = 1-51310-820-0, B = 1-51310-907-0	9-09150-508-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: C = 1-51310-967-0	9-09150-510-0	04	1	-
