1 |
DRUM; BRK,RR
|
1-42315-340-0 |
02 |
1 |
9510-9811 |
| |
1 |
DRUM; BRK,RR
|
1-42315-361-0 |
02 |
1 |
9812-0210 |
| |
8 |
HUB; RR AXLE
|
1-42311-009-6 |
02 |
1 |
9510-0210 |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X43.5 RH THREAD
|
1-42331-106-0 |
06 |
1 |
9510-0210 |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X43.5 RH THREAD
|
1-42332-106-0 |
06 |
1 |
9510-0210 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
12 |
1 |
9510-9609 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-055-0 |
12 |
1 |
9610-9811 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
12 |
1 |
9812-0210 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-049-0 |
02 |
1 |
9510-0210 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-159-0 |
02 |
1 |
9510-0210 |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-331-0 |
02 |
1 |
9510-0210 |
| |
20 |
NUT; BRG,RR HUB
M64
|
9-09843-721-2 |
02 |
1 |
9510-0210 |
| |
21 |
WASHER; LK,BRG NUT
ID=64
|
9-09854-122-0 |
02 |
1 |
9510-0210 |
| |
24 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
06 |
1 |
9510-9701 |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9702-0210 |
| |
25 |
SHAFT; AXLE,RR
L=921.5
|
1-42171-360-1 |
02 |
1 |
9510-0210 |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M12X45
|
9-09804-239-1 |
20 |
1 |
9510-0210 |
| |
33 |
WASHER; AXLE SHAFT
ID=12.2
|
9-09150-812-0 |
20 |
1 |
9510-0210 |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-044-0 |
02 |
1 |
9510-0210 |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-053-0 |
02 |
1 |
9510-0210 |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-161-0 |
02 |
1 |
9510-0210 |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-569-0 |
02 |
1 |
9510-0210 |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
|
9-09950-201-0 |
02 |
1 |
9510-0210 |
| |
49 |

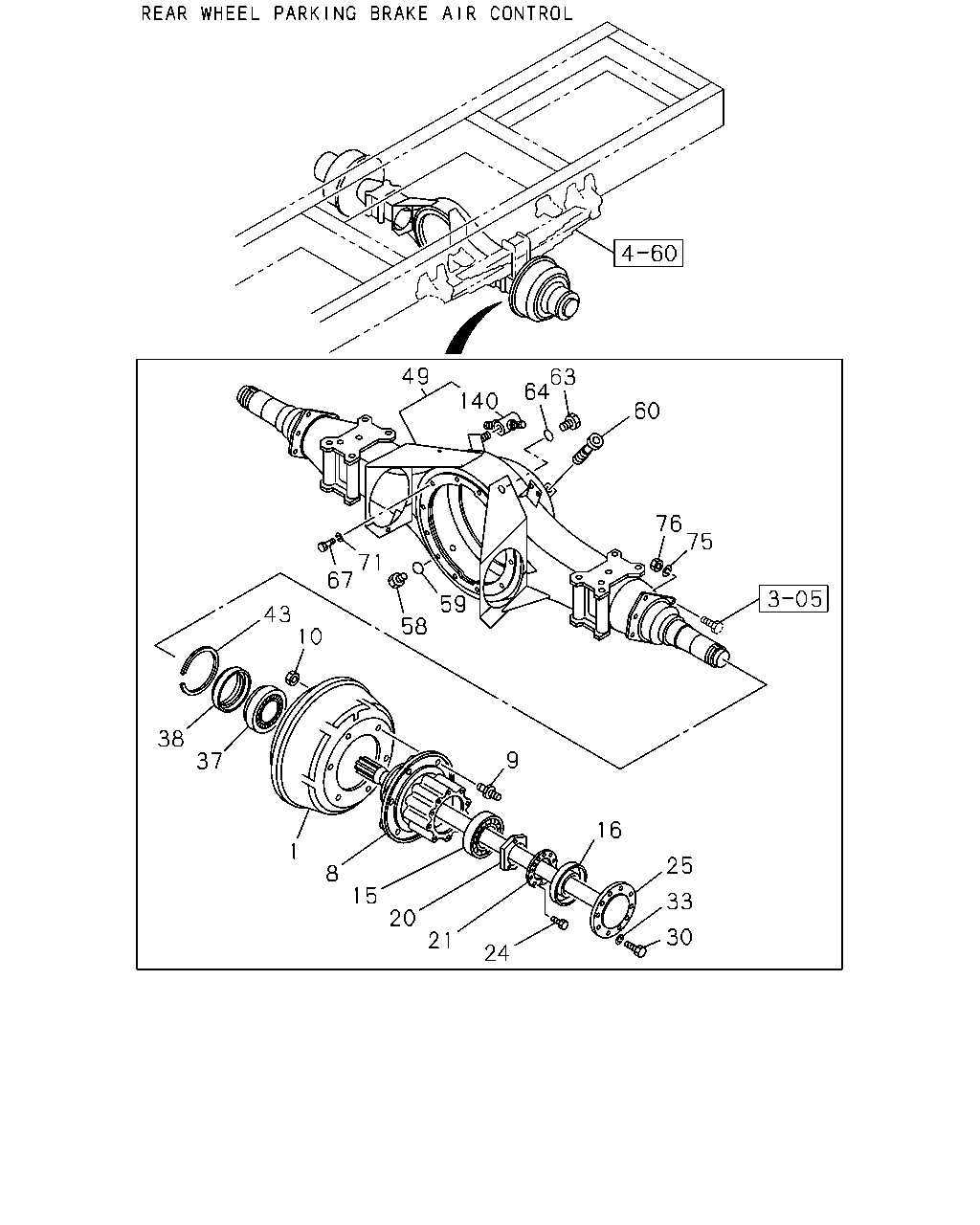

CASE; RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-146-0 |
01 |
1 |
9510-0210 |
| |
49 |

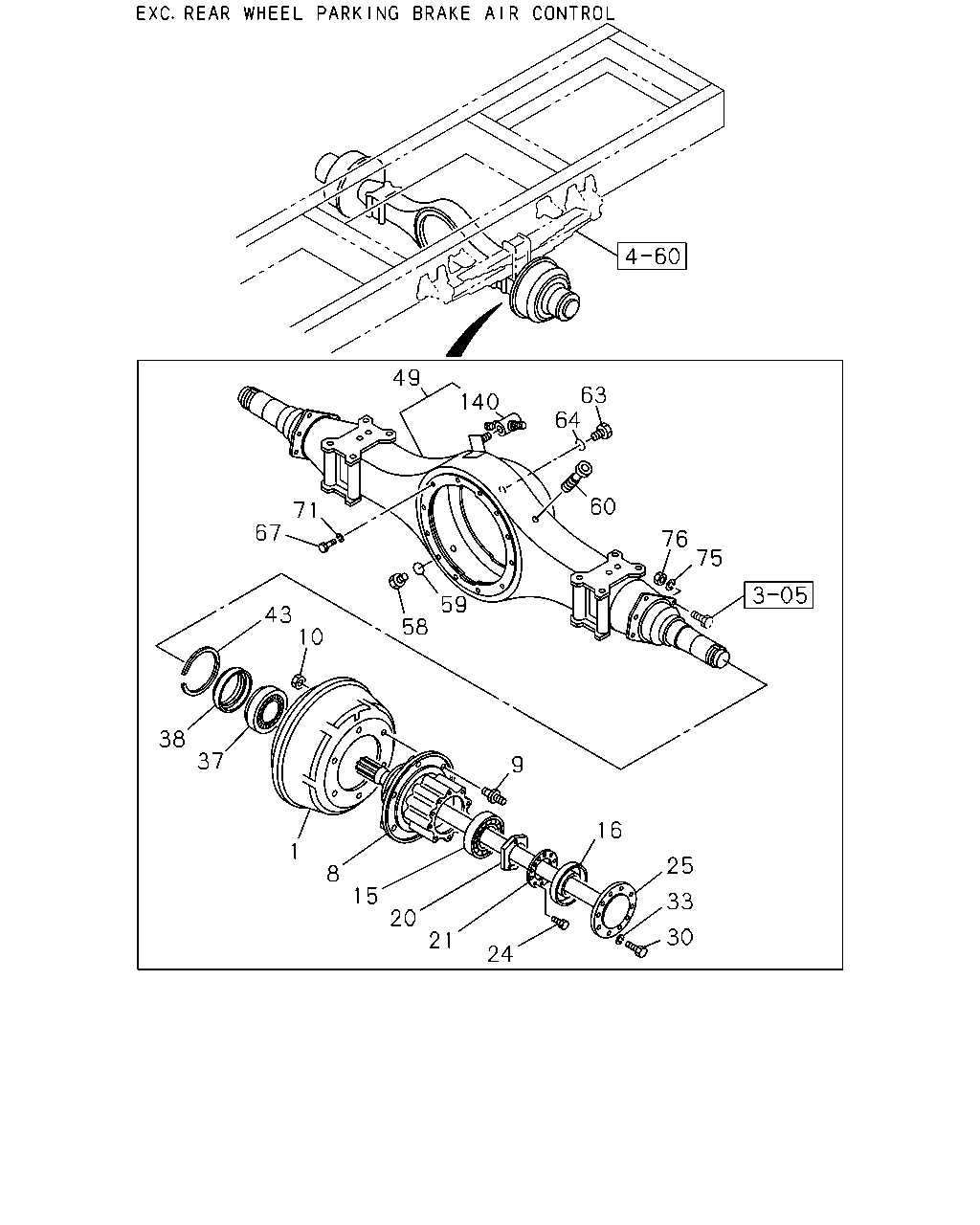

CASE; RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42150-956-0 |
01 |
1 |
9510-0210 |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9510-0210 |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9510-0210 |
| |
60 |
BREATHER; RR AXLE CASE
|
1-09893-003-0 |
01 |
1 |
9510-0210 |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9510-0210 |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9510-0210 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X35
|
1-09000-398-0 |
08 |
1 |
9510-0210 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X55
|
1-09000-429-1 |
04 |
1 |
9510-0210 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=10.2
|
9-09150-810-0 |
12 |
1 |
9510-0210 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9510-0210 |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
12 |
1 |
9510-0210 |
| |
140 |
CONNECTOR; AXLE CASE
|
1-09656-239-3 |
01 |
1 |
9510-0210 |
