◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#22413) — 142 parça

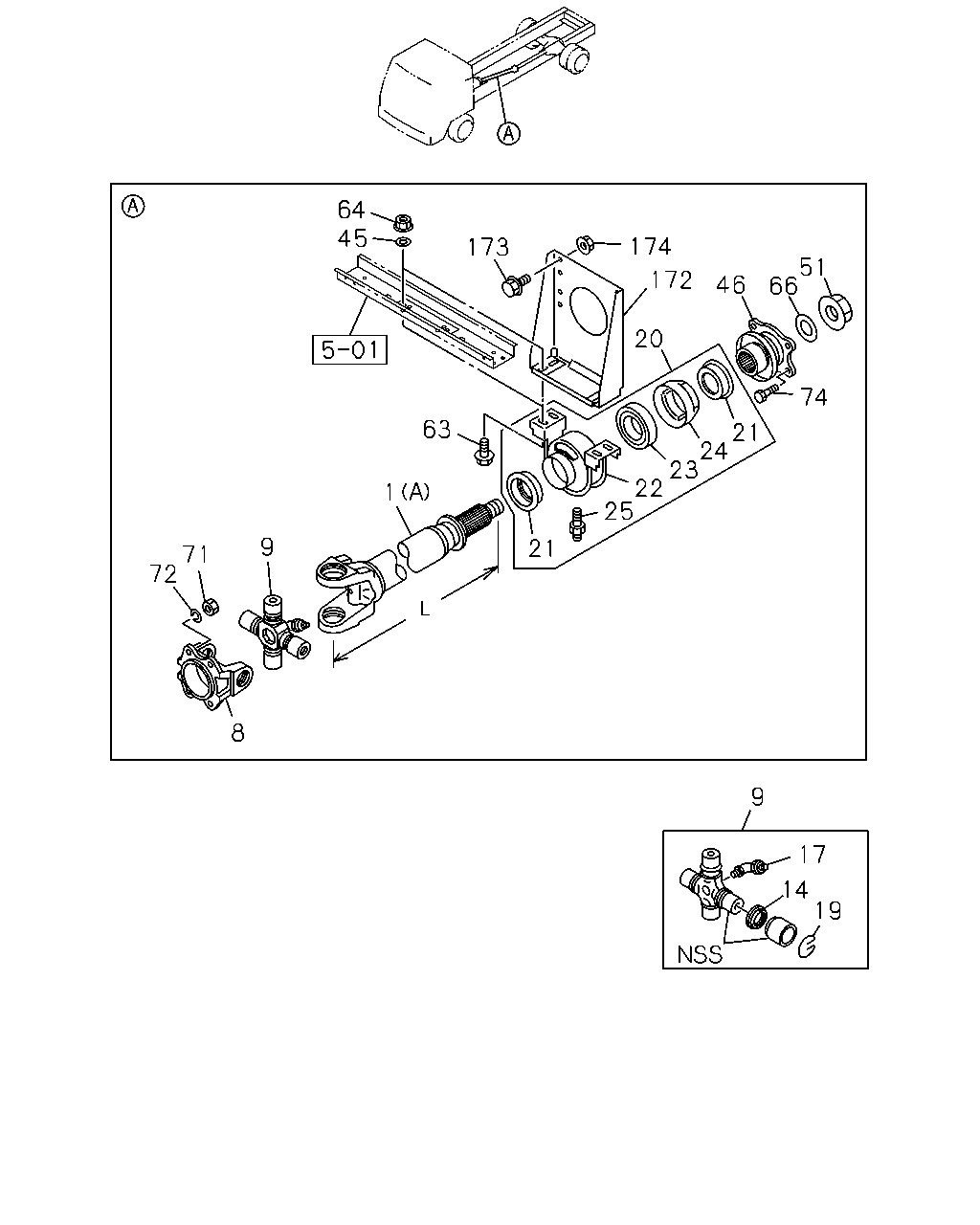

çizim 63469
64 45 174 173 51 66 172 46 20 74 63 21 24 23 22 25 1 9 21 71 72 8 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=747 		1-37123-758-1 01 1 9510-0210 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=893 		1-37151-893-1 01 1 9510-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=893 		1-37151-893-1 01 1 0005-0210 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=793 		1-37151-553-1 01 1 9510-0210 ●
1 SHAFT; PROP
(B) L=997 		1-37122-946-1 01 1 9510-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005-0210 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1108 		1-37151-896-1 01 1 9510-0210 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1108 		1-37151-897-1 01 1 9510-0210 ●
1 SHAFT; PROP
(B) L=1302 		1-37122-704-1 01 1 9803-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1258 		1-37152-015-1 01 1 0005-0210 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1403 		1-37152-014-1 01 1 9803-0210 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1303 		1-37151-478-1 01 1 9810-0210 ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-3 01 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-4 02 1 9803-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-3 02 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-4 01 1 9803-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9510-9802 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9510-9802 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9803-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9803-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-103-0 AR 1 9810-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-103-0 AR 1 9810-0210 ● ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 04 1 9510-9802 ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 08 1 9803-9809 ● ● ●
14 COVER; DUST,SPIDER 1-37319-011-0 08 1 9810-0210 ● ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 08 1 9510-9802 ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 04 1 9803-9809 ● ● ●
14 COVER; DUST,SPIDER 1-37319-011-0 04 1 9810-0210 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9802 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9803-0210 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-9802 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 04 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 08 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 08 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 04 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 04 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 08 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 08 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 04 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 04 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 08 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 08 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 04 1 9803-0210 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0210 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0210 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0210 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0210 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0210 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0210 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-9802 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-115-0 01 1 9510-9802 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-115-0 01 1 9803-0210 ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0210 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0210 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0210 ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ●
71 NUT; YOKE
M12 		9-99110-512-0 04 1 9510-9802 ● ●
71 NUT; YOKE
M12 		9-99110-512-0 04 1 9803-0210 ● ● ●
72 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 04 1 9510-9802 ● ●
72 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 04 1 9803-0210 ● ● ●
74 BOLT; YOKE,TRANS
M12X32 		1-09000-076-1 04 1 9510-9802 ● ●
74 BOLT; YOKE,TRANS
M12X32 		1-09000-076-1 04 1 9803-0210 ● ● ●
172 BRACKET; CENTER BRG 1-37515-118-0 01 1 9510-0210 ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 9803-0210 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9802 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0210 ● ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0210 ● ●
çizim 64638
1 128 106 95 8 9 225 8 104 57 56 56 57 9 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=747 		1-37123-758-1 01 1 9510-0210 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=893 		1-37151-893-1 01 1 9510-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=893 		1-37151-893-1 01 1 0005-0210 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=793 		1-37151-553-1 01 1 9510-0210 ●
1 SHAFT; PROP
(B) L=997 		1-37122-946-1 01 1 9510-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005-0210 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1108 		1-37151-896-1 01 1 9510-0210 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1108 		1-37151-897-1 01 1 9510-0210 ●
1 SHAFT; PROP
(B) L=1302 		1-37122-704-1 01 1 9803-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1258 		1-37152-015-1 01 1 0005-0210 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1403 		1-37152-014-1 01 1 9803-0210 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1303 		1-37151-478-1 01 1 9810-0210 ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-3 01 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-4 02 1 9803-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-3 02 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-4 01 1 9803-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9510-9802 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9510-9802 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9803-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-089-0 AR 1 9803-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-103-0 AR 1 9810-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-103-0 AR 1 9810-0210 ● ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 04 1 9510-9802 ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 08 1 9803-9809 ● ● ●
14 COVER; DUST,SPIDER 1-37319-011-0 08 1 9810-0210 ● ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 08 1 9510-9802 ● ●
14 COVER; DUST,SPIDER 1-37319-006-0 04 1 9803-9809 ● ● ●
14 COVER; DUST,SPIDER 1-37319-011-0 04 1 9810-0210 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9802 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9803-0210 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-9802 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 04 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 08 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 08 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 04 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 04 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 08 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 08 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 04 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 04 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 08 1 9803-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 08 1 9510-9802 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 04 1 9803-0210 ● ● ●
56 NUT; YOKE
M12 		9-99110-512-0 08 1 9510-9802 ● ●
56 NUT; YOKE
M12 		9-99110-512-0 08 1 9803-0210 ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9510-9802 ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9803-0210 ● ● ●
95 BOLT; YOKE,FINAL
M12X32 		1-09000-076-1 04 1 9510-9802 ● ●
95 BOLT; YOKE,FINAL
M12X32 		1-09000-076-1 04 1 9803-0210 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-014-0 01 1 9510-9802 ● ●
104 PLUG; SLEEVE YOKE 1-09600-014-0 01 1 9803-0210 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-9802 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9803-0210 ● ● ●
128 SEAL; SLEEVE 1-37247-001-1 01 1 9510-9802 ● ●
128 SEAL; SLEEVE 1-37247-001-1 01 1 9803-0210 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=228 		1-37241-098-1 01 1 9510-9802 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=228 		1-37241-098-2 01 1 9803-0210 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
