Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#22412) — 205 parça

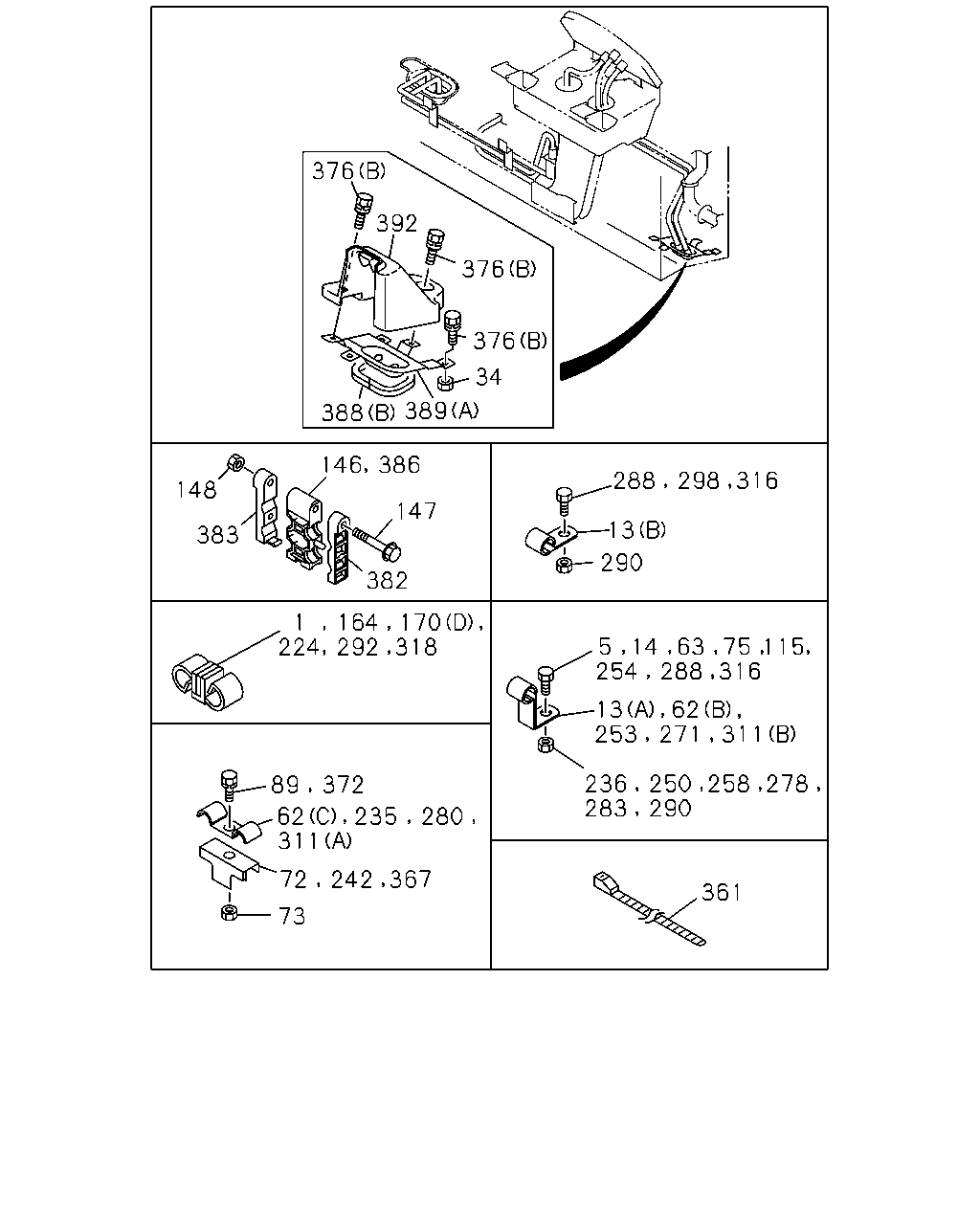

376 392 376 376 34 148 147 13 383 290 382 1 311 280 361 73 389 388 146 386 288 298 316 164 170 224 292 318 5 14 63 75 115 254 288 316 13 62 253 271 311 278 258 250 290 283 236 372 89 62 235 72 242 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9510-9606
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9802
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-0004
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9510-0004
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
34	NUT; BRKT M8 FLANGE	8-94279-517-0	01	1	9510-9611
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-0210
34	NUT; BRKT M8 FLANGE	8-94279-517-0	03	1	9510-9611
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0210
62	CLIP; AIR PIPE (A) ID=13X2 L=20	9-09535-236-0	02	1	9510-0210
62	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	5-09700-351-0	03	1	9510-9802
62	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9510-9802
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	03	1	9510-9606
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	03	1	9607-9802
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802
72	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9510-9802
73	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9510-9606
73	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9802
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	03	1	9607-9802
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	03	1	9607-9802
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
89	BOLT; PIPE CLIP EXC. PTO CONTROL<SV6> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
115	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	9802-9802
146	CLIP; AIR PIPE ID=10	1-09709-242-0	01	1	9510-9802
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	9510-9802
148	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9510-9606
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9802
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9510-0210
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-0210
170	CLIP; NYLON TUBE (C)	1-09700-940-0	02	1	9803-9804
170	CLIP; NYLON TUBE (C) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-9805
170	CLIP; NYLON TUBE (C) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-0210
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0210
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0001
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9510-0210
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	02	1	9510-9802
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802
253	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-9801
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9804-0210
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	12	1	9804-0210
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-0210
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9510-9606
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9802
280	CLIP; AIR PIPE EXC. PTO CONTROL<SV6> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8	9-09110-408-0	03	1	9510-9606
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8	9-09110-408-0	03	1	9510-9606
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	03	1	9607-9802
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	03	1	9607-9802
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9712
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	9801-0004
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0102
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0103-0210
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9510-9606
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-0004
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0005-0102
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0103-0210
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9510-0210
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9510-9802
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9510-9802
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	01	1	9510-9911
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	01	1	9912-0210
318	CLIP; AIR PIPE ID=6.35 & 12	1-09709-275-1	01	1	9510-0210
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=140	5-09707-031-1	01	1	9510-0210
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9510-9802
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	01	1	9607-9802
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-0210
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0210
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
376	BOLT; BRKT ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9510-9802
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	9510-9802
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	9510-9802
388	SEAL (A) L=280	1-79738-793-1	01	1	9510-0210
388	SEAL (B) L=215	1-79738-794-1	01	1	9510-0210
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-790-1	01	1	9510-0210
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-79738-795-1	01	1	9510-0210
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-806-1	01	1	9510-9802
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-839-0	01	1	9803-0210
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-811-1	01	1	9510-0210
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9510-0210

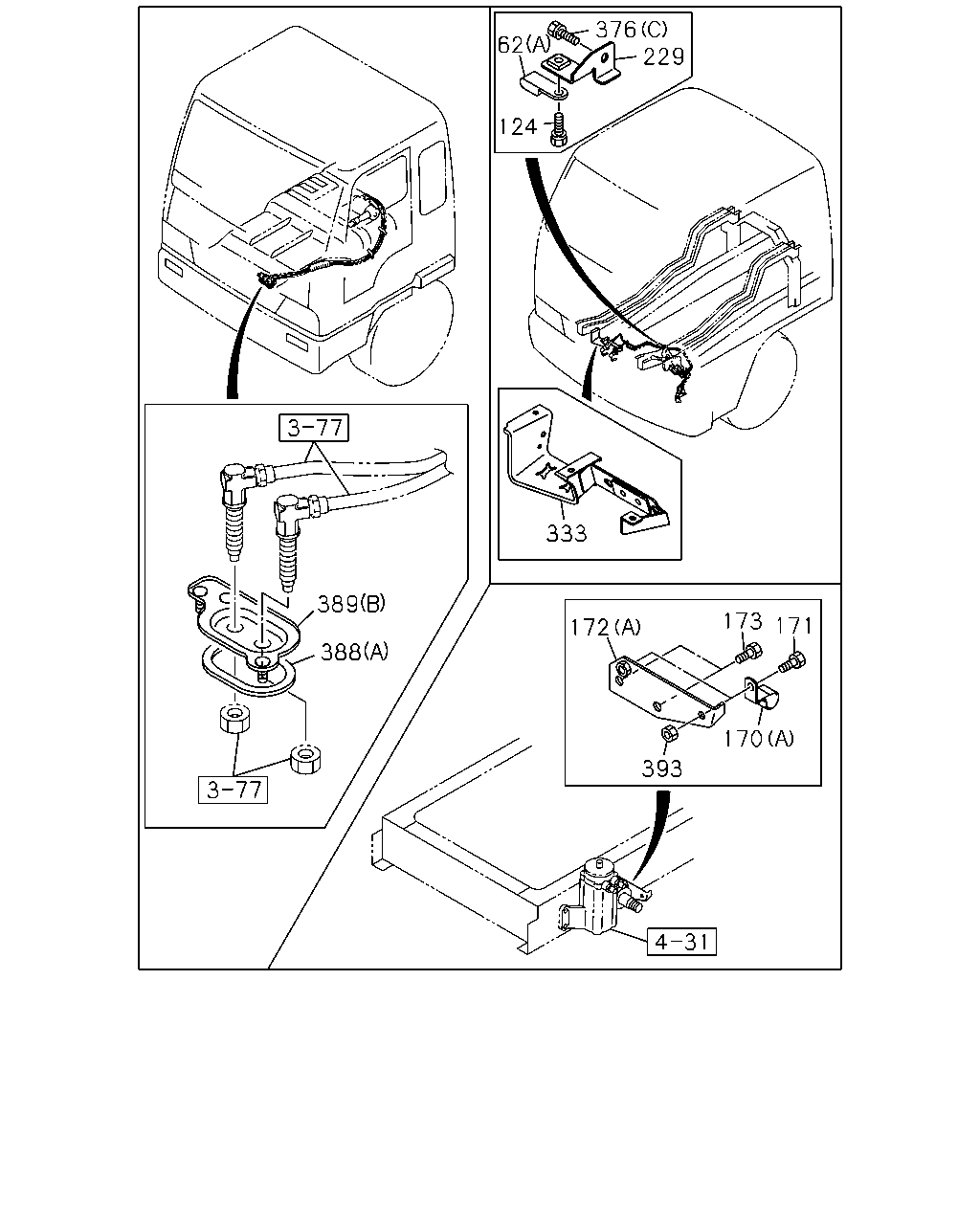

376 229 62 124 333 389 173 171 172 388 170 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	CLIP; AIR PIPE (A) ID=13X2 L=20	9-09535-236-0	02	1	9510-0210
62	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	5-09700-351-0	03	1	9510-9802
62	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9510-9802
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0210
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-0210
170	CLIP; NYLON TUBE (C)	1-09700-940-0	02	1	9803-9804
170	CLIP; NYLON TUBE (C) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-9805
170	CLIP; NYLON TUBE (C) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-0210
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0210
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0001
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9803-0210
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9510-0210
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9803-0006
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0007-0210
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	9803-0210
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-0	02	1	9803-0210
172	BRACKET; TUBE CLIP (E) L=59 B=20	1-47479-048-0	01	1	0007-0210
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28081-016-0	02	1	9510-9806
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9807-0210
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9803-0210
229	BRACKET; PIPE CLIP	1-79738-819-0	01	1	9510-0004
229	BRACKET; PIPE CLIP	1-79738-858-0	01	1	0005-0210
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9804-0210
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	12	1	9804-0210
333	BRACKET; BRK AIR PIPE	1-79738-804-4	01	1	9510-0210
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-0210
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0210
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
376	BOLT; BRKT ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210
388	SEAL (A) L=280	1-79738-793-1	01	1	9510-0210
388	SEAL (B) L=215	1-79738-794-1	01	1	9510-0210
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-790-1	01	1	9510-0210
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-79738-795-1	01	1	9510-0210
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-806-1	01	1	9510-9802
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-839-0	01	1	9803-0210
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-811-1	01	1	9510-0210
393	NUT; UNION M8	9-09110-408-0	01	1	9510-9606
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9607-9802
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9803-0210

172 393 174 174 172 172 173 170 173 171 20 375 322 267 376 21 268 297 172 173 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	01	1	0005-0210
21	NUT; CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0005-0210
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-0210
170	CLIP; NYLON TUBE (C)	1-09700-940-0	02	1	9803-9804
170	CLIP; NYLON TUBE (C) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-9805
170	CLIP; NYLON TUBE (C) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-0210
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0210
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0001
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9803-0210
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9510-0210
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9803-0006
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0007-0210
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	9803-0210
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-0	02	1	9803-0210
172	BRACKET; TUBE CLIP (E) L=59 B=20	1-47479-048-0	01	1	0007-0210
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28081-016-0	02	1	9510-9806
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9807-0210
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9803-0210
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	9803-0210
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9804-0210
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	12	1	9804-0210
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0210
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0210
297	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0005-0210
322	BRACKET; CLIP ISUZU M/T<X9A> L=90 B=25	1-47475-530-0	01	1	0005-0210
375	CLIP; AIR PIPE ISUZU M/T<X9A> D=9 T=45	5-09700-021-0	01	1	0005-0210
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-0210
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0210
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
376	BOLT; BRKT ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210
393	NUT; UNION M8	9-09110-408-0	01	1	9510-9606
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9607-9802
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9803-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
