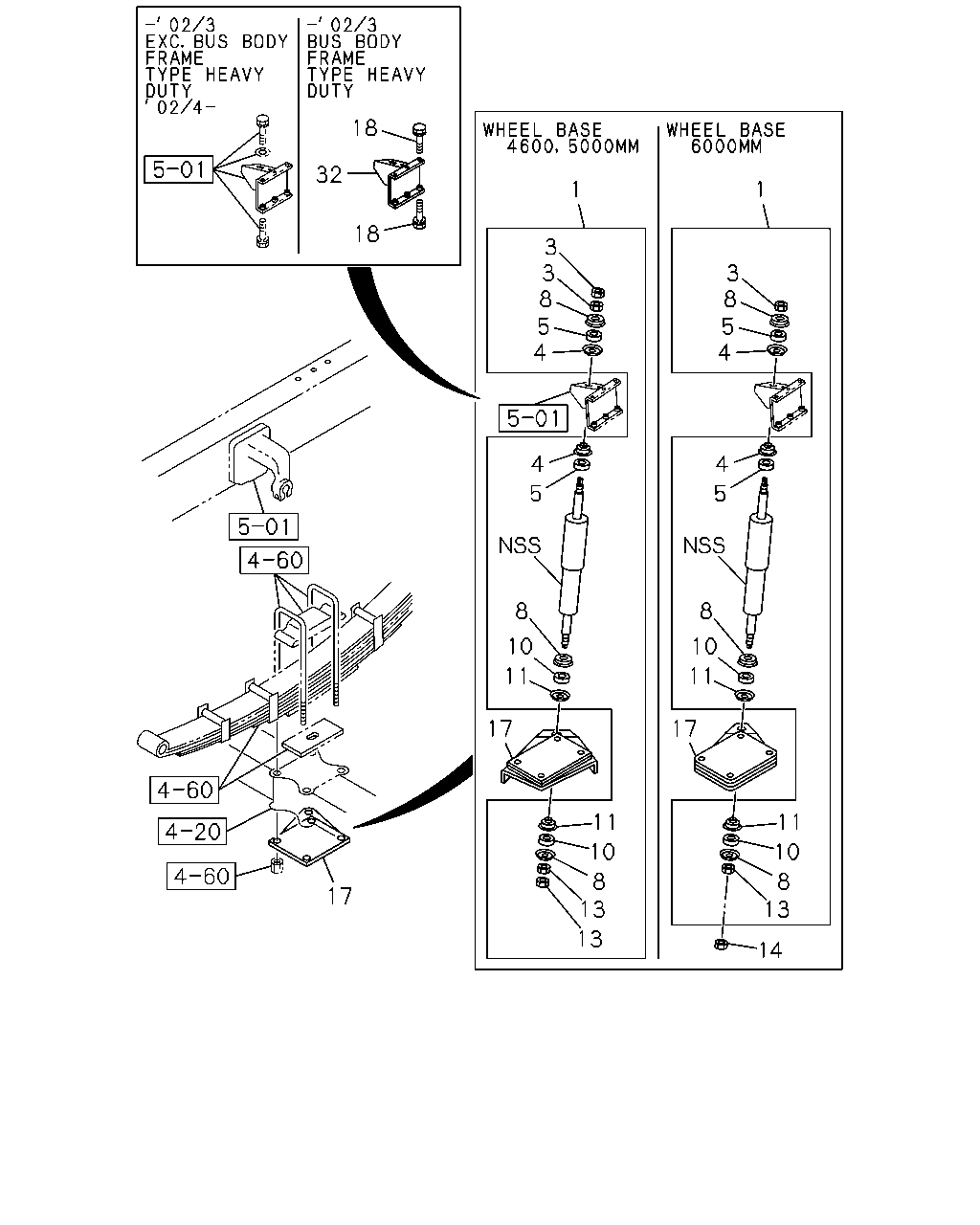

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#2241) — 27 parça

18 32 1 1 18 3 3 8 5 4 3 8 5 4 4 4 5 5 8 8 10 10 11 11 17 17 11 11 10 10 8 13 8 13 17 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ABSORBER ASM; SHOCK,RR WHEEL BASE 6000MM(60W)	9-51630-388-1	02	1	9101-	●
1	ABSORBER ASM; SHOCK,RR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	9-51630-387-1	02	1	9101-	●	●
3	NUT; S/ABS WHEEL BASE 6000MM(60W) M18	9-99111-418-0	02	1	9101-	●
3	NUT; S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M14	9-99111-414-0	04	1	9101-	●	●
4	WASHER; CENTER,S/ABS WHEEL BASE 6000MM(60W) ID=24.4 OD=74 T=2.3	9-51631-045-0	04	1	9101-	●
4	WASHER; CENTER,S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=20.8	9-51631-041-0	04	1	9101-	●	●
5	BUSHING; RUBBER,S/ABS,UPR WHEEL BASE 6000MM(60W)	9-51631-043-0	04	1	9101-	●
5	BUSHING; RUBBER,S/ABS,UPR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	9-51631-039-0	04	1	9101-	●	●
8	WASHER; S/ABS WHEEL BASE 6000MM(60W) ID=20.5 OD=74 T=6	9-51631-044-0	04	1	9101-9707	●
8	WASHER; S/ABS WHEEL BASE 6000MM(60W) ID=20.5 OD=74 T=6	9-51631-044-0	06	1	9708-	●
8	WASHER; S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=16.5	9-51631-040-0	04	1	9101-9707	●	●
8	WASHER; S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=16.5	9-51631-040-0	06	1	9708-	●	●
10	BUSHING; RUBBER,S/ABS WHEEL BASE 6000MM(60W)	9-51631-043-0	04	1	9101-	●
10	BUSHING; RUBBER,S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	9-51631-039-0	02	1	9101-0203	●	●
10	BUSHING; RUBBER,S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	9-51631-039-0	04	1	0204-	●	●
11	WASHER; CENTER,LWR,RR S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=20.8	9-51631-041-0	04	1	9101-	●	●
11	WASHER; CENTER,LWR,RR S/ABS WHEEL BASE 6000MM(60W)	9-51631-045-0	04	1	9101-	●
13	NUT; LWR,RR S/ABS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M14	9-99111-414-0	04	1	9101-	●	●
13	NUT; LWR,RR S/ABS WHEEL BASE 6000MM(60W) M18	9-99111-418-0	02	1	9101-	●
14	NUT; S/ABS PIN SETTING WHEEL BASE 6000MM(60W) M18	9-99111-418-0	04	1	0204-	●
17	BRACKET; S/ABS LWR WHEEL BASE 6000MM(60W)	1-51681-430-0	01	1	9101-	●
17	BRACKET; S/ABS LWR WHEEL BASE 6000MM(60W)	1-51681-429-0	01	1	9101-	●
17	BRACKET; S/ABS LWR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-42129-152-0	01	1	9101-	●	●
17	BRACKET; S/ABS LWR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-42129-151-0	01	1	9101-	●	●
18	BOLT; S/ABS BRKT THAILAND EQUIPMENT(PM9) M12X35 W/LK WASHER	0-50041-235-0	12	1	9101-0203	●
32	BRACKET; S/ABS UPR BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9)	1-53369-136-1	01	1	9101-0203	●
32	BRACKET; S/ABS UPR BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9)	1-53369-135-1	01	1	9101-0203	●
