Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#22409) — 344 parça

243 243 140 138 139 244 244 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802
138	NUT; FLEX HOSE,AIR GOV AIR SUSP DRIVER SEAT<A56> M12	9-09840-280-0	01	1	9510-9802
138	NUT; FLEX HOSE,AIR GOV EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9510-9802
139	WASHER; LK,FLEX HOSE,AIR GOV AIR SUSP DRIVER SEAT<A56> ID=12.2	9-09150-512-0	01	1	9510-9802
139	WASHER; LK,FLEX HOSE,AIR GOV EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9510-9802
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE ISUZU M/T<X9A> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (A) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (A) M12	9-09840-280-0	01	1	9803-0004
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE (B) M16	9-99111-416-0	01	1	9510-9802

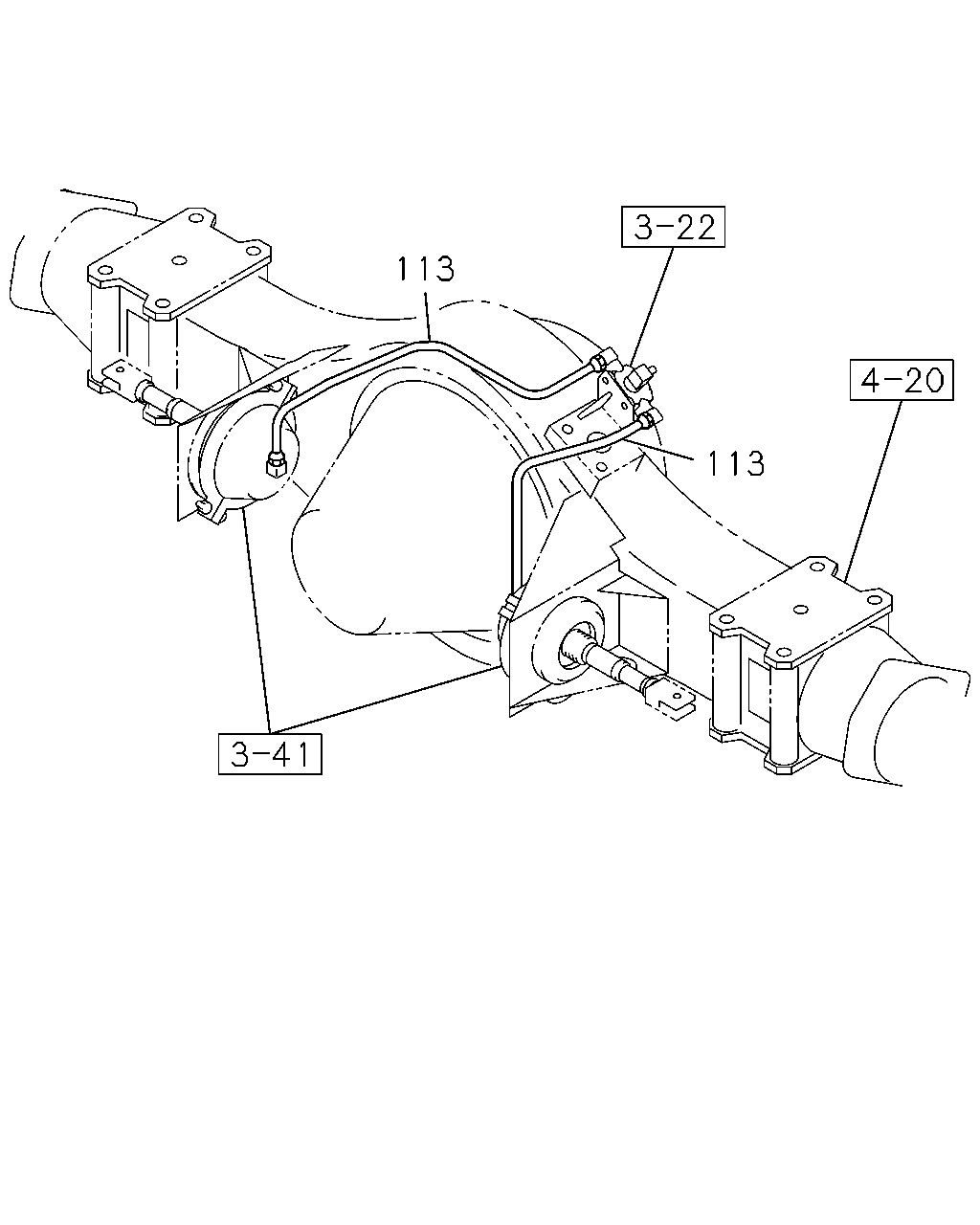

113 113

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635	1-49112-658-0	01	1	9510-0210
	113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324	1-49112-659-0	01	1	9510-0210

251 222 217 272 250 238 222 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV	1-49114-871-0	01	1	9510-9802
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9510-0004
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0005-0210
238	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=1379 SERVICED BY L=1500	1-47426-355-0	01	1	9510-9802
250	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT<A56> L=2646 SERVICED BY L=2900	1-47426-364-0	01	1	9510-9802
250	PIPE; AIR,UNION TO FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2646 SERVICED BY L=2900	1-47426-364-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-028-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6>	1-49116-267-0	01	1	9510-9802

171 154 34 176 14 170 154 14 184 6 186 185 3 2 155 1 155 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=350	1-09363-558-0	01	1	9510-0210
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9510-0210
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9510-0210
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9510-0210
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9607-0210
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49114-923-0	01	1	9510-9802
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49119-158-0	01	1	9803-0109
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49119-158-0	01	1	0110-0210
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-920-0	01	1	0110-0210
34	PIPE; AIR AIR DRYER<PS7>	1-49119-150-1	01	1	0110-0210
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-967-0	01	1	9510-0004
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-146-0	01	1	0005-0210
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9510-0004
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49115-964-0	01	1	9510-9802
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49119-159-0	01	1	9803-0004
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49122-148-0	01	1	0005-0109
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-148-0	01	1	0110-0208
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49123-104-0	01	1	0209-0210
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-150-0	01	1	0110-0210
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49115-910-0	01	1	0110-0208
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49119-646-0	01	1	0209-0210
184	HOSE; FLEX,AIR GOV L=330	1-09363-584-0	01	1	9510-9606
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	9607-0210
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9510-0210
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9510-0210

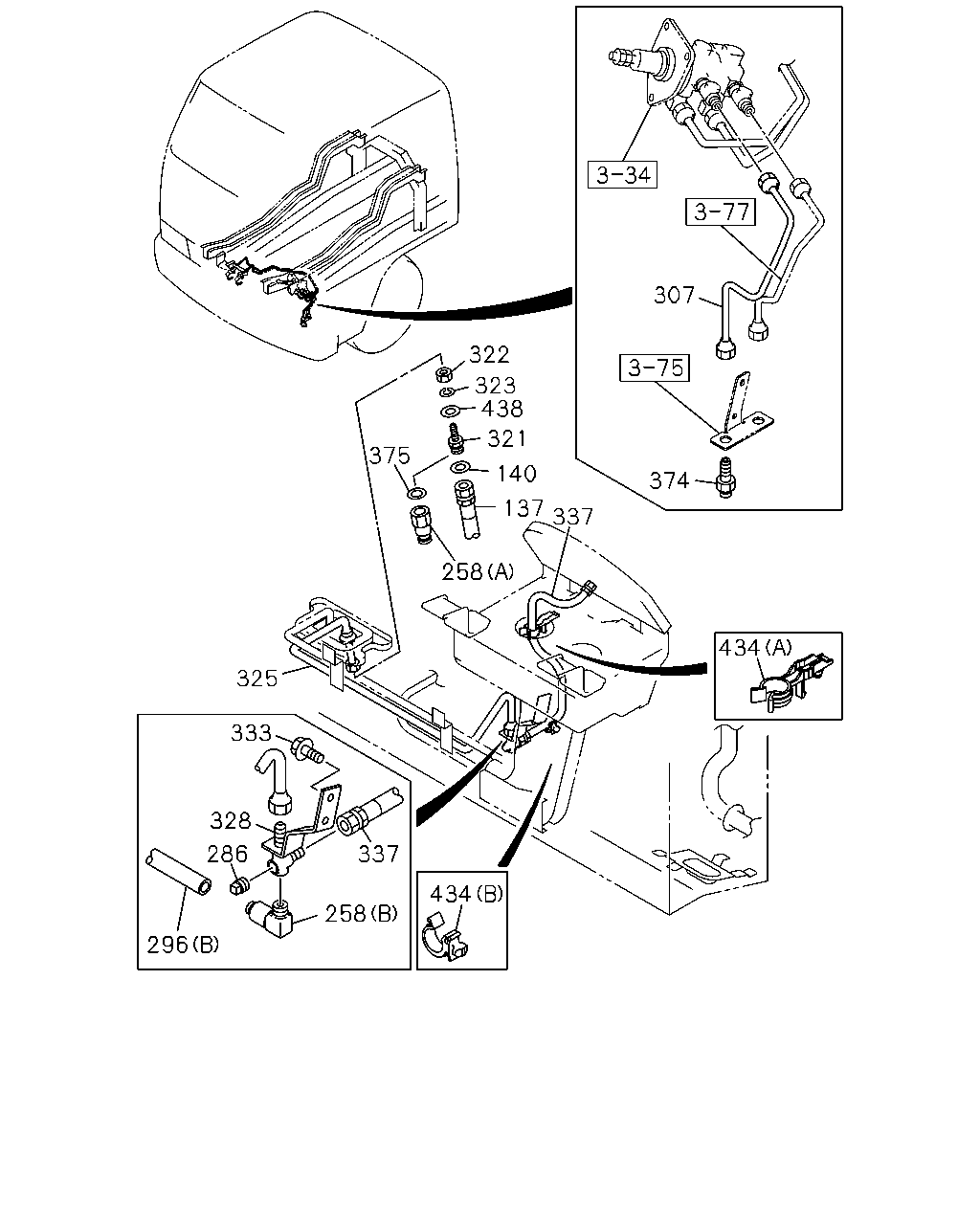

307 322 323 438 321 375 140 374 137 337 258 434 325 333 328 286 337 434 258 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9510-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9708
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9708
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0210
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	9510-0210
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-0	01	1	0002-0210
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
307	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=540	1-49113-427-2	01	1	9510-0210
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=434	1-49116-435-1	01	1	9510-0210
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9811
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9811
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0210
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0210
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-0210
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-0210
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-0210
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-0210
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	9510-0210
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	9510-0210
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-415-1	01	1	9510-0210
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-473-0	01	1	9510-0210
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9510-0210
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9510-0210
374	CONNECTOR	1-09654-324-0	01	1	9601-9802
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	9803-0210
375	GASKET AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9707-9708
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9707-9708
375	GASKET AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9811
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9811
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9803-0004
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-0210
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-0210
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-0210
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0210
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0210

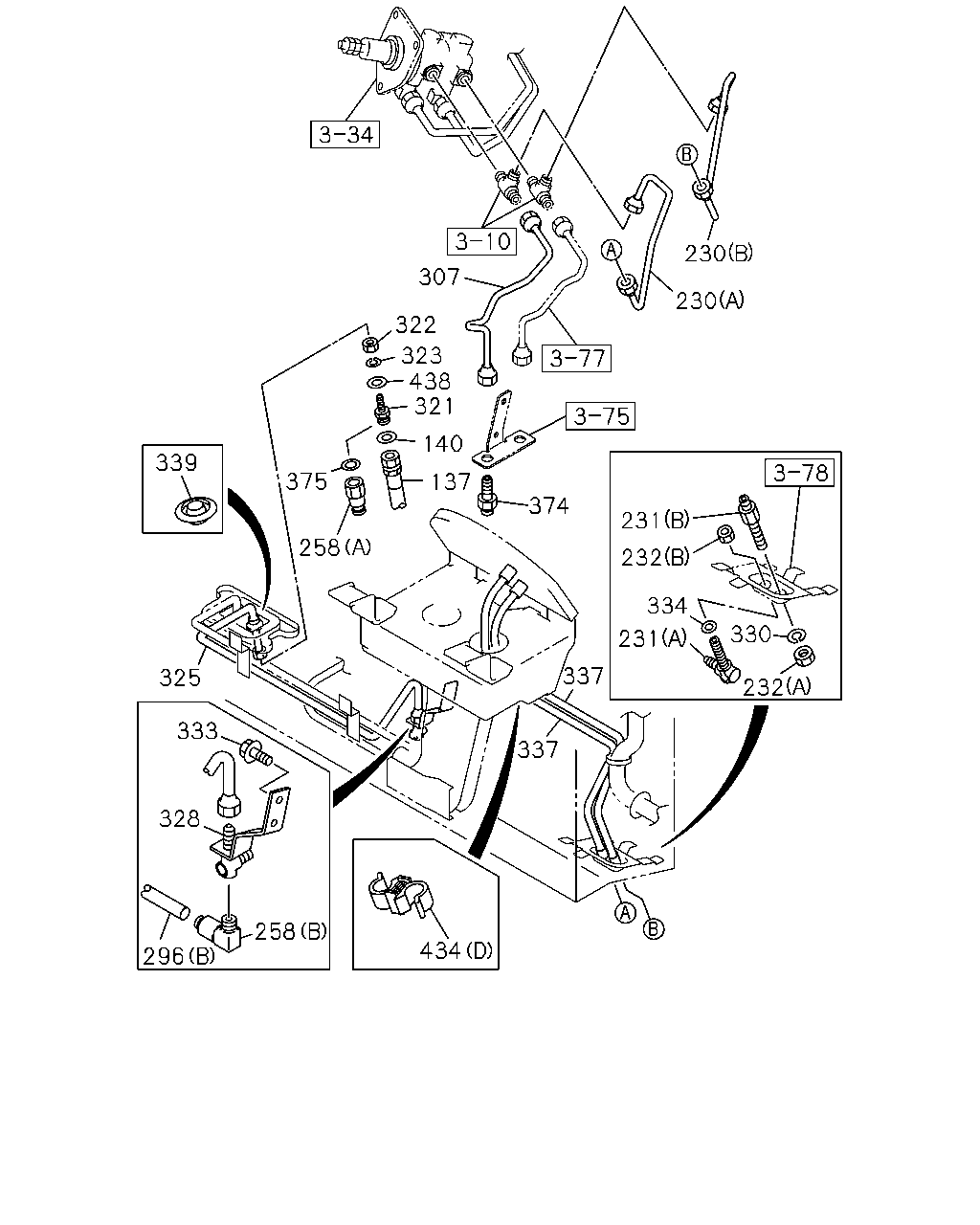

230 307 230 322 323 438 321 137 140 339 375 374 231 258 232 334 330 231 337 325 232 333 337 328 258 296 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A) L=426	1-49116-433-0	01	1	9510-0210
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=483	1-49116-434-0	01	1	9510-0210
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 ELBOW	1-09654-186-2	01	1	9510-0210
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B) M10 STRAIGHT	1-09654-361-0	01	1	9510-0210
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 H=8	1-09400-029-0	01	1	9510-0210
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (B) M10	9-09110-410-0	01	1	9510-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9510-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9708
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9708
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0210
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-0	01	1	0002-0210
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
307	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=540	1-49113-427-2	01	1	9510-0210
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=434	1-49116-435-1	01	1	9510-0210
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9811
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9811
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0210
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0210
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-0210
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-0210
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-0210
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-0210
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	9510-0210
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	9510-0210
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-415-1	01	1	9510-0210
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-473-0	01	1	9510-0210
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9510-0210
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9510-0210
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9510-0210
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9510-0210
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	9510-0210
374	CONNECTOR	1-09654-324-0	01	1	9601-9802
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	9803-0210
375	GASKET AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9707-9708
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9707-9708
375	GASKET AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9811
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9811
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9803-0004
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-0210
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-0210
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-0210
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0210
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0210

359 358 75 242 244 244 243 243 238 251 238 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2235 SERVICED BY L=2500	1-47428-798-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=1379 SERVICED BY L=1500	1-47426-355-0	01	1	9510-9802
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49118-369-0	01	1	9803-0210
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-536-0	01	1	9803-0210
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49114-992-0	01	1	9510-9802
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-368-0	01	1	9803-0004
242	PIPE; AIR,AIR TANK TO UNION AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A)	1-49118-368-0	01	1	0005-0210
242	PIPE; AIR,AIR TANK TO UNION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-368-0	01	1	0005-0210
242	PIPE; AIR,AIR TANK TO UNION A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A)	1-49118-368-0	01	1	0005-0210
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE ISUZU M/T<X9A> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (A) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (A) M12	9-09840-280-0	01	1	9803-0004
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE (B) M16	9-99111-416-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-028-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-872-0	01	1	9510-9802
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-873-0	01	1	9510-9802

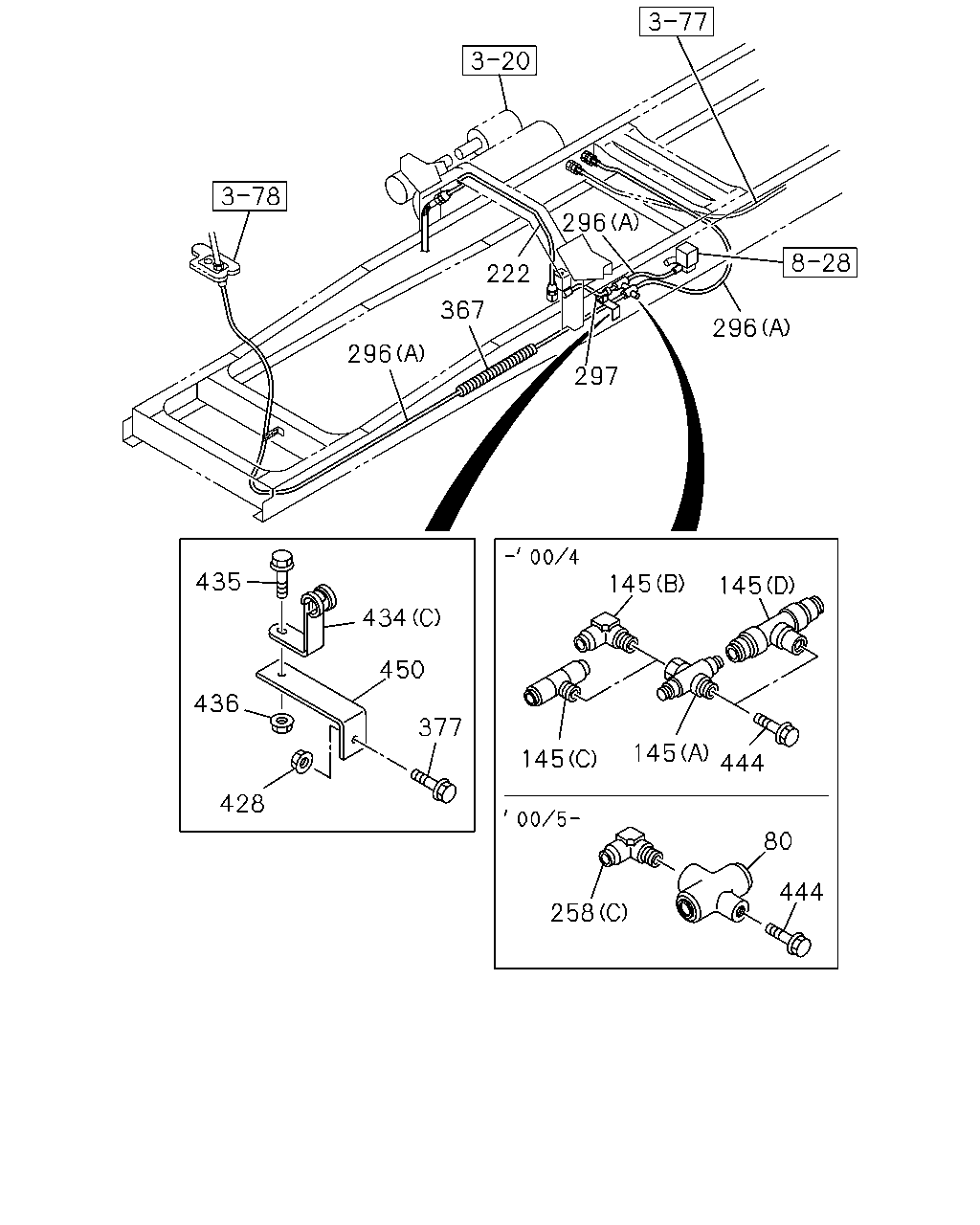

296 222 367 296 296 297 435 145 145 434 450 436 377 145 444 145 428 80 444 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0210
80	UNION; 3 WAY ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0210
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804
145	UNION; NYLON TUBE PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-0004
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-0004
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9803-9804
145	UNION; NYLON TUBE PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9803-9804
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804
145	UNION; NYLON TUBE PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-0004
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-0004
145	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> (D)	1-09660-788-0	01	1	9803-9804
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9510-0004
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0005-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9510-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9708
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9708
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0210
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0210
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-0	01	1	0002-0210
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
297	TUBE; NYLON ISUZU M/T<X9A> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9803-9804
367	TUBE; CORRUGATE EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9805-0004
367	TUBE; CORRUGATE ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0210
377	BOLT; BRKT FIX M8X25 FLANGE	0-28680-825-0	01	1	9803-0004
428	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9803-0004
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9803-0004
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-0210
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-0210
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-0210
435	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9803-0004
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9803-0004
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9803-0001
444	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0002-0004
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	01	1	0005-0210
444	BOLT; UNION ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	0005-0210
450	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	9803-0004

244 67 243 229 202 68 242 242 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	JOINT; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74	9-09233-310-1	01	1	9803-0210
68	NUT; JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9803-0210
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-9803
202	ADAPTER PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-9803
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004
202	ADAPTER AIR SUSP DRIVER SEAT<A56> A/T<X9D> DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007
202	ADAPTER ISUZU M/T<X9A> DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007
202	ADAPTER A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007
202	ADAPTER AIR SUSP DRIVER SEAT<A56> A/T<X9D> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210
202	ADAPTER ISUZU M/T<X9A> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210
202	ADAPTER A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0005-0007
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0210
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49118-369-0	01	1	9803-0210
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-536-0	01	1	9803-0210
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49114-992-0	01	1	9510-9802
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-368-0	01	1	9803-0004
242	PIPE; AIR,AIR TANK TO UNION AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A)	1-49118-368-0	01	1	0005-0210
242	PIPE; AIR,AIR TANK TO UNION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-368-0	01	1	0005-0210
242	PIPE; AIR,AIR TANK TO UNION A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A)	1-49118-368-0	01	1	0005-0210
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE ISUZU M/T<X9A> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) M12 L=66.5	9-09223-306-1	01	1	0005-0210
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (A) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (A) M12	9-09840-280-0	01	1	9803-0004
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0005-0210
244	NUT; UNION,AIR PIPE (B) M16	9-99111-416-0	01	1	9510-9802
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-0	01	1	0002-0210
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
