1 |

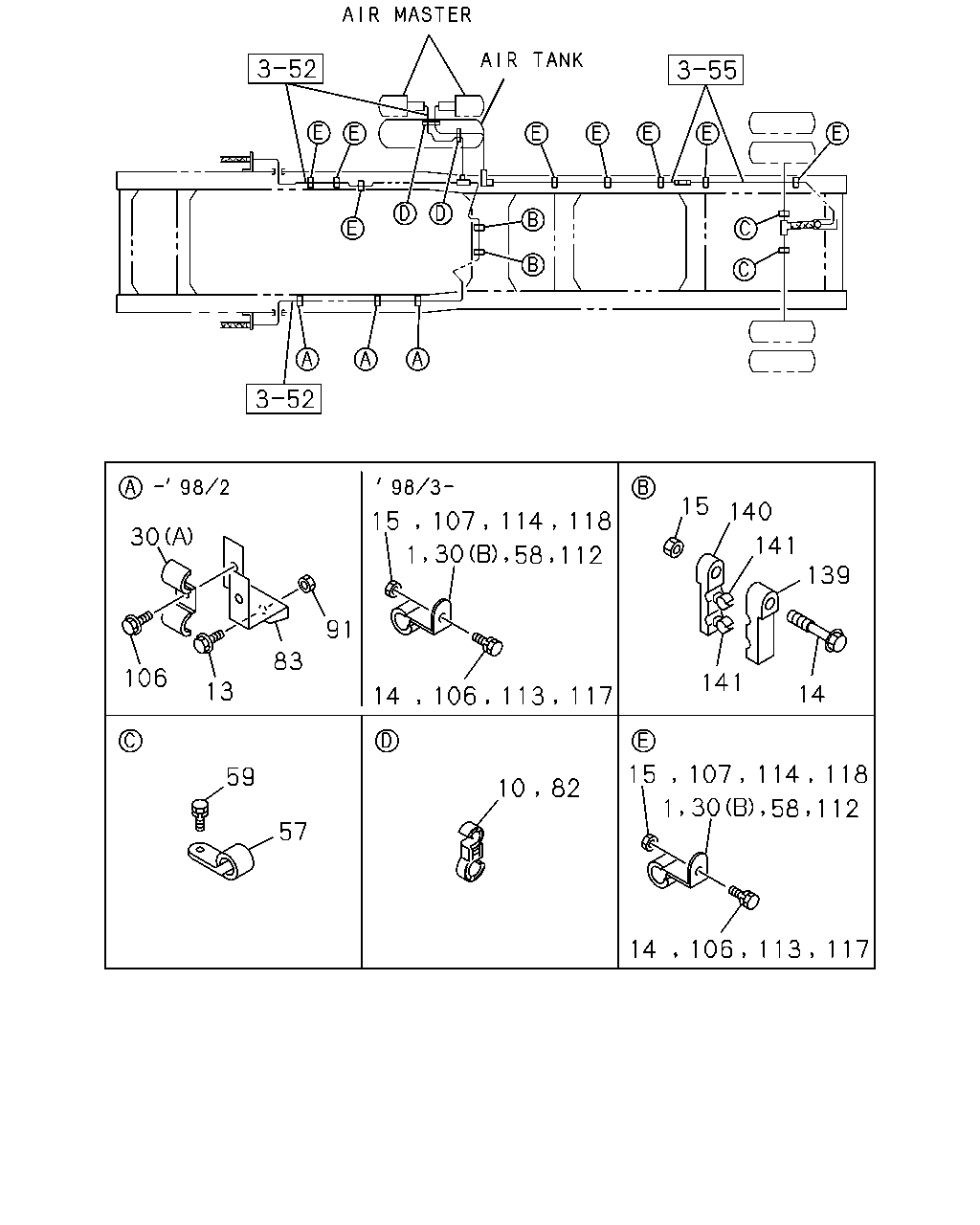

CLIP; OIL PIPE TO BODY
ID=6 H=20 L=20
|
1-09700-603-0 |
02 |
1 |
9510-0210 |
| |
10 |
CLIP; OIL PIPE
ID=6.35 & 12
|
1-09709-275-1 |
01 |
1 |
9510-0210 |
| |
13 |
BOLT; BRKT,OIL PIPE
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
| |
13 |
BOLT; BRKT,OIL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-0210 |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
9510-0210 |
| |
15 |
NUT; CLIP,OIL PIPE
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
| |
15 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-0210 |
| |
30 |
CLIP; OIL PIPE
(A)
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
03 |
1 |
9510-9802 |
| |
30 |
CLIP; OIL PIPE
(B)
ID=6 H=20 L=20
|
1-09700-603-0 |
06 |
1 |
9803-0210 |
| |
57 |
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
|
9-09524-635-0 |
04 |
1 |
9510-0210 |
| |
58 |
CLIP; OIL PIPE
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9510-0210 |
| |
59 |
BOLT; BRK PIPE,RR AXLE
M8X12 W/LK WASHER
|
0-50040-812-0 |
04 |
1 |
9510-9911 |
| |
59 |
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
|
0-28080-810-0 |
04 |
1 |
9912-0210 |
| |
82 |
CLIP; OIL PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
02 |
1 |
9510-9802 |
| |
82 |
CLIP; OIL PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
03 |
1 |
9803-0210 |
| |
82 |
CLIP; OIL PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9802 |
| |
82 |
CLIP; OIL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9803-0210 |
| |
83 |
BRACKET; PIPE CLIP
M8 W/NUT
|
1-47475-439-2 |
03 |
1 |
9510-9802 |
| |
91 |
NUT; BRKT,OIL PIPE
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
| |
91 |
NUT; BRKT,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
|
0-28080-816-0 |
03 |
1 |
9510-9802 |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9803-0210 |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X50 FLANGE
|
0-28080-850-0 |
02 |
1 |
9510-9802 |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
9803-0210 |
| |
107 |
NUT; CLIP,OIL PIPE
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
9803-0210 |
| |
112 |
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
ID=6 H=20 L=20
|
1-09700-603-0 |
02 |
1 |
9510-0210 |
| |
112 |
CLIP; OIL PIPE
WHEEL BASE 4200MM(42W)
ID=6 H=20 L=20
|
1-09700-603-0 |
03 |
1 |
9510-0210 |
| |
112 |
CLIP; OIL PIPE
WHEEL BASE 4800MM(48W)
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9803-0210 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9806 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9807-0210 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W)
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W)
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9806 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9807-0210 |
| |
113 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
9803-0210 |
| |
114 |
NUT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
| |
114 |
NUT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0210 |
| |
114 |
NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W)
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
| |
114 |
NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-0210 |
| |
114 |
NUT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9803-0210 |
| |
117 |
BOLT; CLIP,OIL PIPE
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
| |
117 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-0210 |
| |
117 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
| |
117 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9806 |
| |
117 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W)
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9807-0210 |
| |
117 |
BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9807-0210 |
| |
118 |
NUT; CLIP,OIL PIPE
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
| |
118 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-0210 |
| |
139 |
CLIP; UPR
ID=10 & 10
|
1-09709-241-0 |
04 |
1 |
9510-9601 |
| |
139 |
CLIP; UPR
ID=10 & 10
|
1-09709-241-0 |
02 |
1 |
9602-9802 |
| |
139 |
CLIP; UPR
ID=10 & 10
|
1-09709-241-0 |
02 |
1 |
9602-9802 |
| |
139 |
CLIP; UPR
ID=10 & 10
|
1-09709-241-0 |
02 |
1 |
9803-0210 |
| |
140 |
CLIP; LWR
ID=10 & 10
|
1-09709-243-0 |
02 |
1 |
9510-0210 |
| |
140 |
CLIP; LWR
ID=6 & 6
|
1-09709-244-0 |
02 |
1 |
9510-9802 |
| |
141 |
COLLAR
ID=6
|
1-47459-010-0 |
02 |
1 |
9510-0210 |
| |
141 |
COLLAR
ID=8
|
1-47459-011-0 |
02 |
1 |
9510-0210 |
