Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#22405) — 25 parça
◀

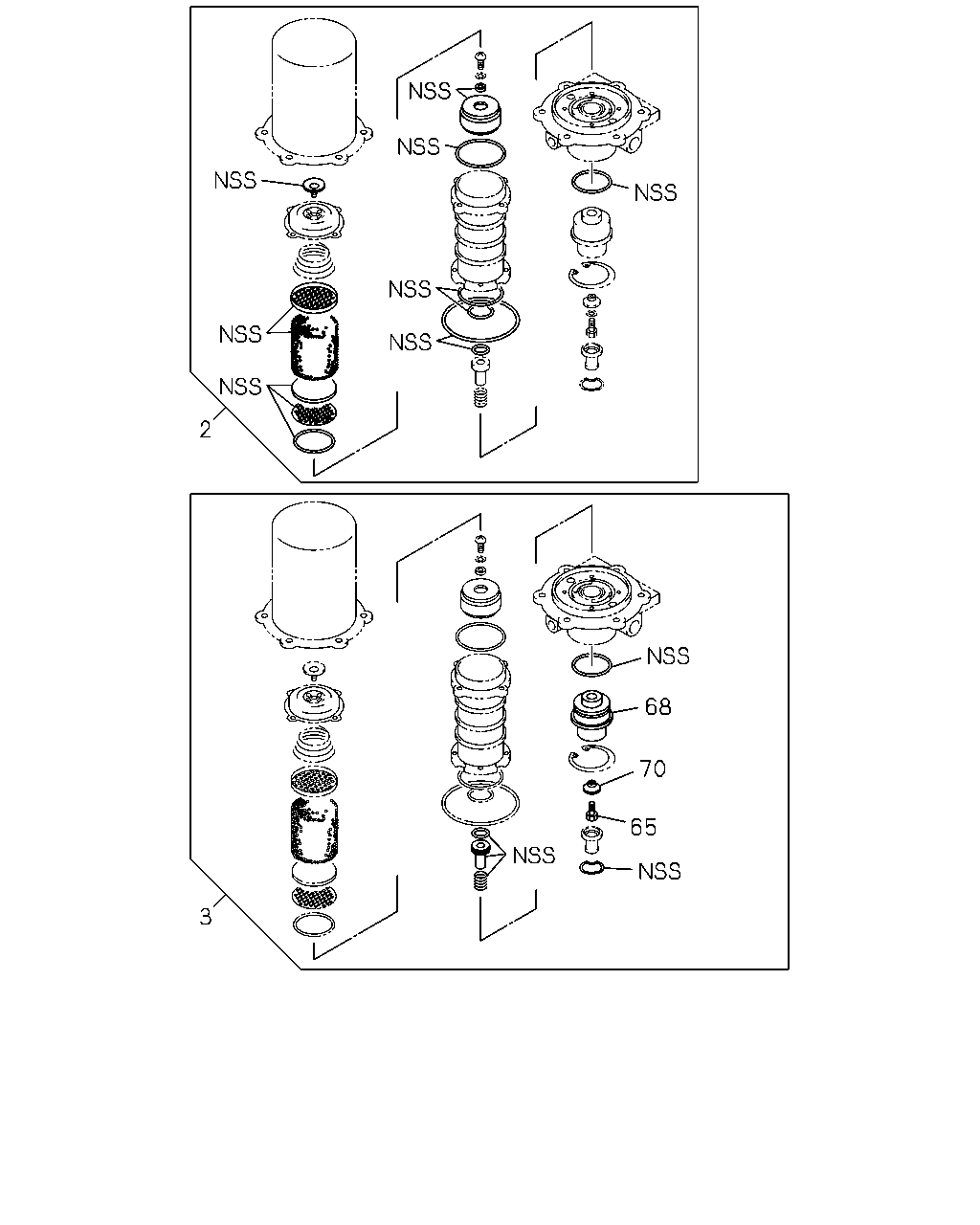

[346A] REPAIR,PISTON KIT (5 parça)

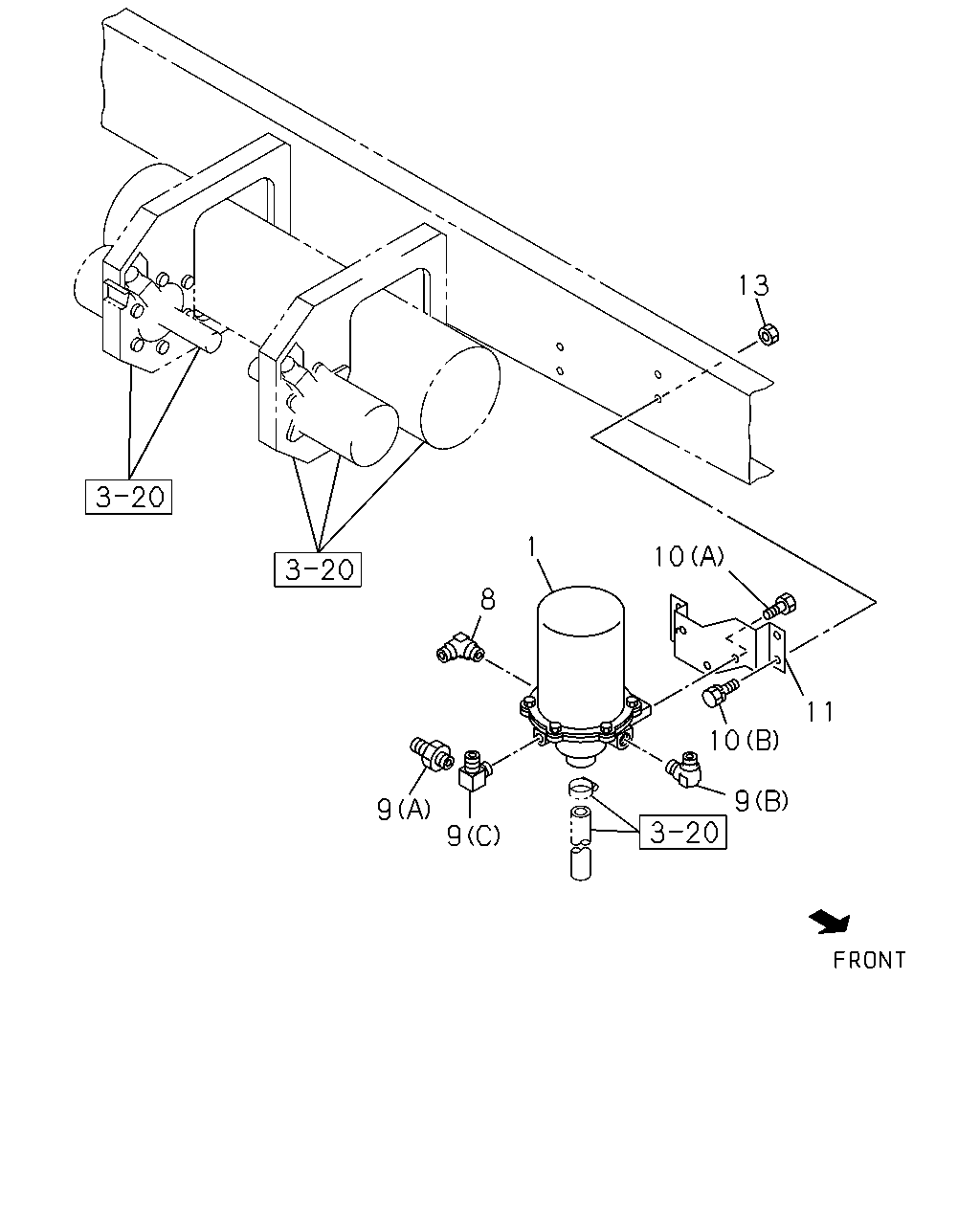

[346A] FIXING (9 parça)

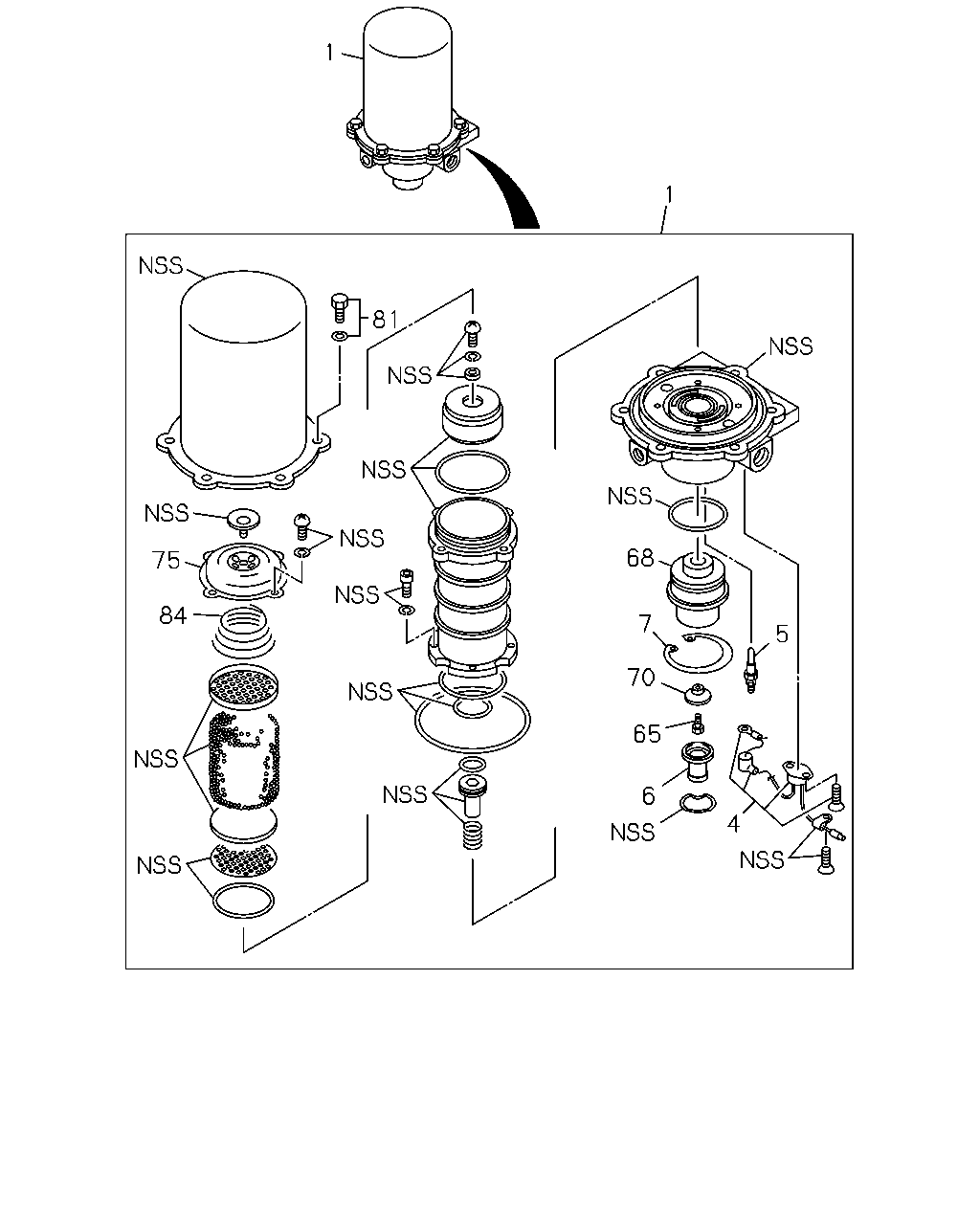

[346A] COMPONENT,THERMOSTAT KIT (11 parça)
▶
2
68
70
65
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-194-0
01
1
0110-0210
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-193-0
01
1
0110-0210
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0110-0210
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
0110-0210
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0110-0210
13
1
10
8
11
10
9
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-200-0
01
1
0110-0210
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW
1-09650-443-0
01
1
0110-0210
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0110-0210
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW
1-09656-665-0
01
1
0110-0210
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE
1-48320-026-1
01
1
0110-0210
10
BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X16
0-20801-016-0
03
1
0110-0210
10
BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X35 FLANGE
0-28681-035-0
04
1
0110-0210
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48195-066-0
01
1
0110-0210
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0110-0210
1
1
81
68
75
84
7
5
70
65
6
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-200-0
01
1
0110-0210
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-152-0
01
1
0110-0210
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
01
1
0110-0210
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-404-0
01
1
0110-0210
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-403-0
01
1
0110-0210
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0110-0210
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
0110-0210
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0110-0210
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-395-0
01
1
0110-0210
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-365-0
06
1
0110-0210
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-396-0
01
1
0110-0210
