Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#22403) — 34 parça
◀
[334A] REPAIR KIT (2 parça)

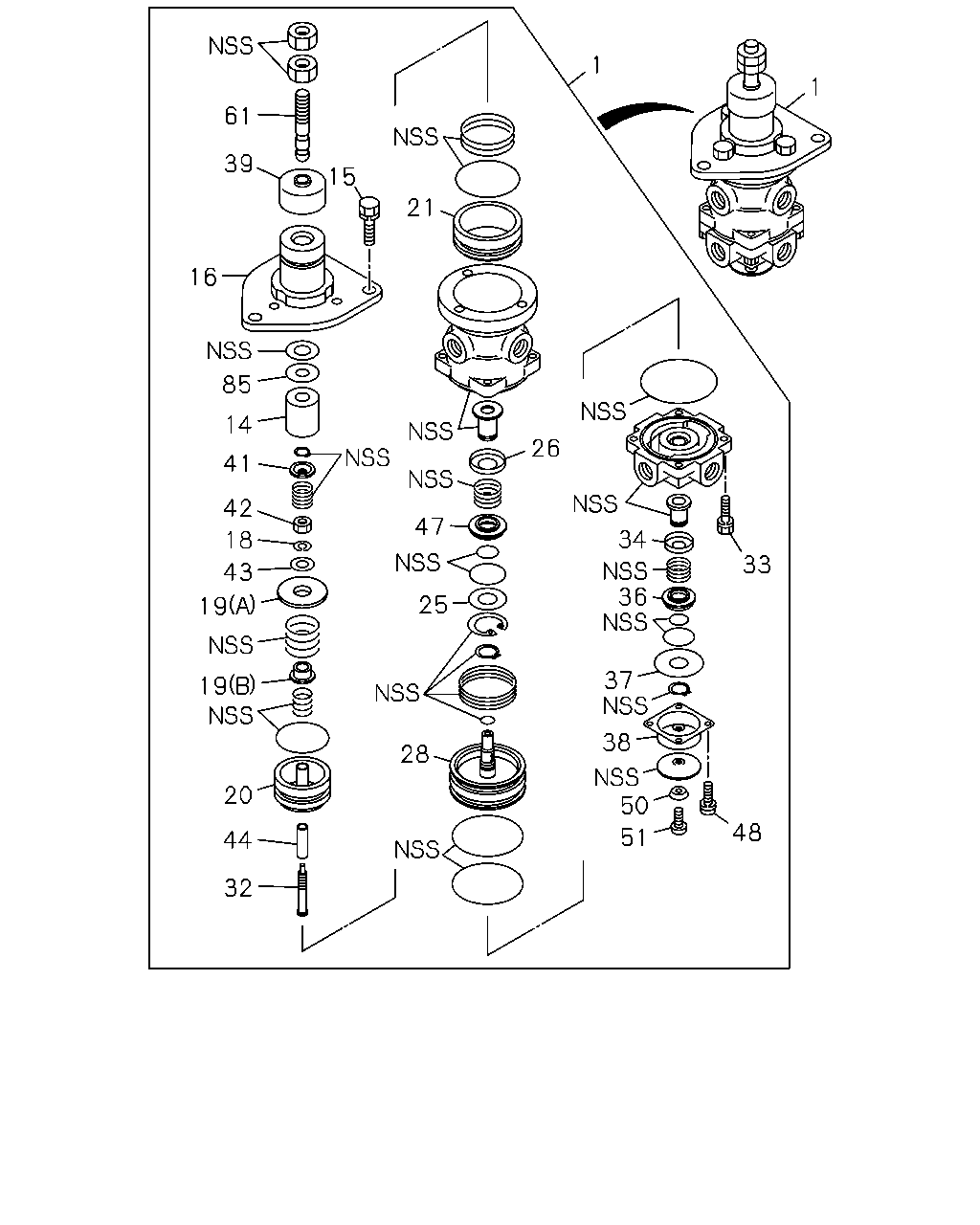

[334A] VALVE ASM (32 parça)
▶
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-177-0
01
1
9510-0210
4
REPAIR KIT; SPRING,BRK VLV
1-85576-176-0
01
1
9510-0210
1
1
61
39
15
21
16
85
14
26
41
42
47
34
18
33
36
43
25
19
37
19
38
28
50
20
48
51
44
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-726-5
01
1
9510-0210
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
9510-0210
15
BOLT; PLATE,BRK VLV
1-48119-232-0
03
1
9510-0210
16
PLATE; MTG,BRKT VLV
1-48119-364-1
01
1
9510-0210
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
9510-0210
19
SEAT; SPRING,BRK VLV
(A)
1-48119-321-0
01
1
9510-0210
19
SEAT; SPRING,BRK VLV
(B)
1-48119-339-0
01
1
9510-0210
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
9510-0210
21
BUSHING; UPR BODY
1-48119-317-0
01
1
9510-0210
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
9510-0210
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
9510-0210
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
9510-0210
32
SCREW; BRK VLV
1-48119-323-0
01
1
9510-0210
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
9510-0210
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
9510-0210
36
RETAINER; GASKET,BRK VLV
1-48129-169-0
01
1
9510-9708
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
9709-0210
37
WASHER; VLV LWR,BRK VLV
1-48129-166-0
01
1
9510-0210
38
COVER; EXH,BRK VLV
1-48119-217-0
01
1
9510-0210
39
BOOT; PLUNGER,BRK VLV
1-48119-368-0
01
1
9510-9711
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
9712-0210
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
9510-0210
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
9510-0210
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
9510-0210
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
9510-0210
47
RETAINER; GASKET,BRK VLV
1-48129-147-0
01
1
9510-9708
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
9709-0210
48
BOLT; COVER,BRK VLV
1-48119-216-0
04
1
9510-0210
50
WASHER; RET,BRK VLV
1-48129-112-0
01
1
9510-0210
51
SCREW; FORMING,BRK VLV
1-48129-111-0
01
1
9510-0210
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
9510-0210
85
WASHER; PUSH ROD
1-48119-366-0
01
1
9510-0210
