Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#22401) — 34 parça
◀
[326A] VALVE ASM (9 parça)
[326A] COMPONENT (25 parça)
▶

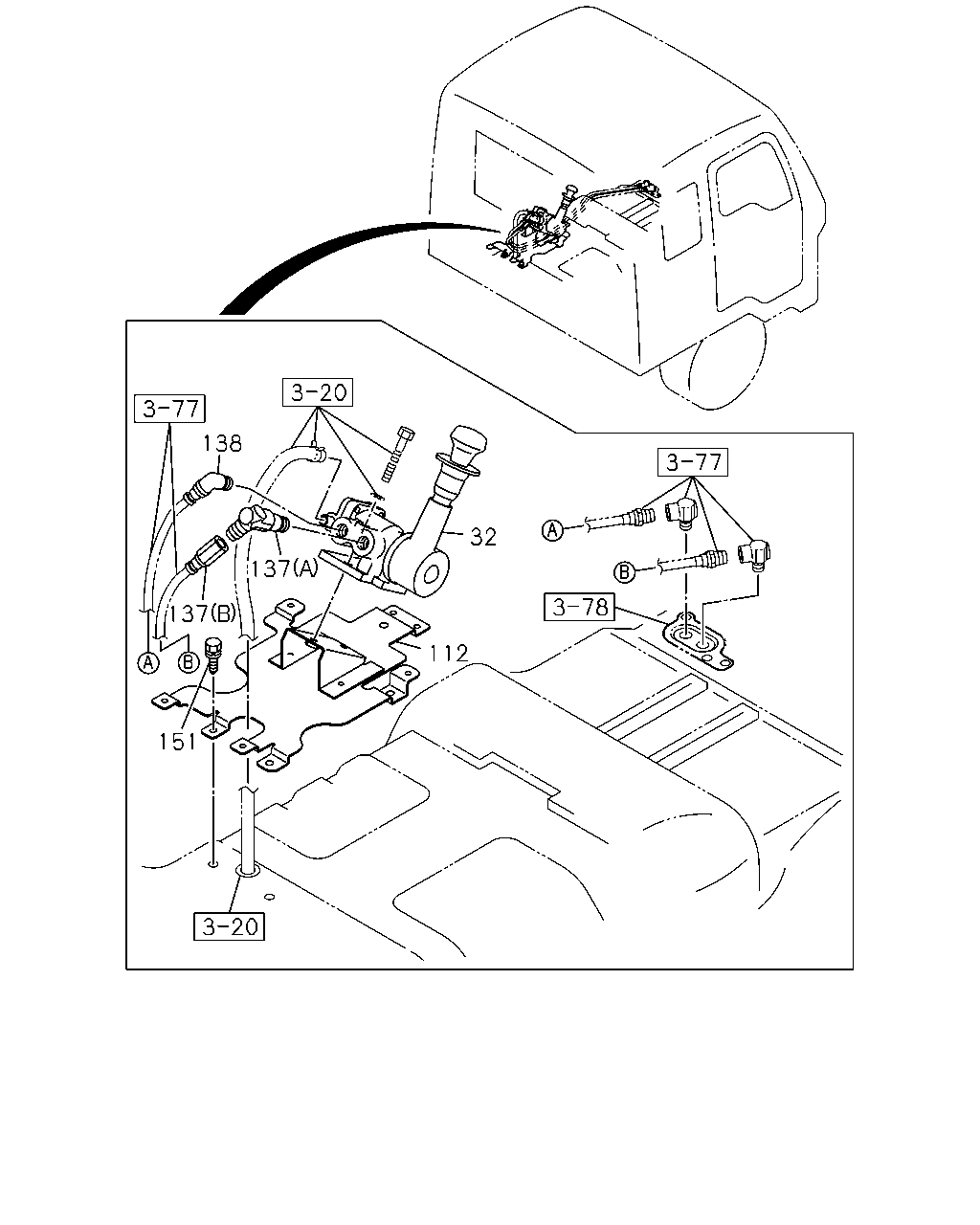

138
32
137
137
112
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48460-306-0
01
1
9510-0210
112
BRACKET; CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-73908-072-3
01
1
9510-0210
137
CONNECTOR; SUPPLY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-09650-240-1
01
1
9510-0210
137
CONNECTOR; SUPPLY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
9510-0004
137
CONNECTOR; SUPPLY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT
1-09661-094-0
01
1
9812-0007
137
CONNECTOR; SUPPLY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0008-0210
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9510-9811
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
9812-0210
151
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9510-0210

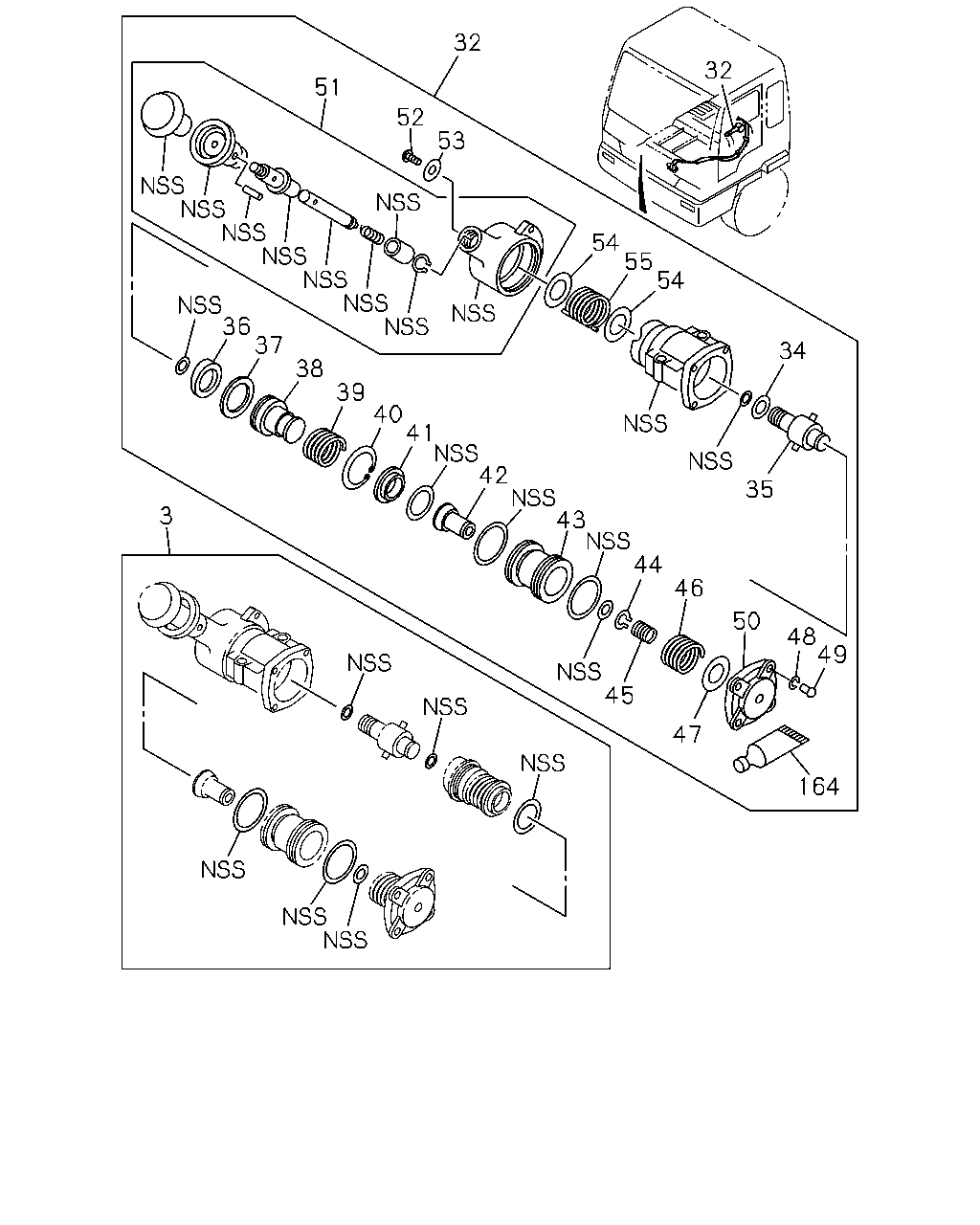

32
32
51
52
53
54
55
54
36
37
34
38
39
40
41
42
43
44
35
3
46
50
48
49
45
47
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-096-0
01
1
9510-0210
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48460-306-0
01
1
9510-0210
34
SHIM; CAM HOLDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-055-0
AR
1
9510-0210
35
HOLDER; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-054-0
01
1
9510-0210
36
RING; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-056-0
01
1
9510-0210
37
GUIDE; CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-058-0
01
1
9510-0210
38
SEAT; EXH VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-057-0
01
1
9510-0210
39
SPRING; RETURN,CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-063-0
01
1
9510-0210
40
RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-067-0
01
1
9510-0210
41
SEAT; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-066-0
01
1
9510-0210
42
VALVE; FEED
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-065-0
01
1
9510-0210
43
PISTON; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-064-0
01
1
9510-0210
44
RING; SNAP,FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-068-0
02
1
9510-0210
45
SPRING; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-070-0
01
1
9510-0210
46
SPRING; MAIN,PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-089-0
01
1
9510-0210
47
SHIM; MAIN SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-072-0
AR
1
9510-0210
48
WASHER; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-091-0
04
1
9510-0210
49
SCREW; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-092-0
04
1
9510-0210
50
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-090-0
01
1
9510-0210
51
HANDLE ASM; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-122-0
01
1
9510-0210
52
SCREW; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-062-0
01
1
9510-0210
53
WASHER; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-061-0
01
1
9510-0210
54
SEAT; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-082-0
02
1
9510-0210
55
SPRING; RETURN,HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-059-0
01
1
9510-0210
164
GREASE; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-084-0
01
1
9510-0210
