◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#2240) — 111 parça

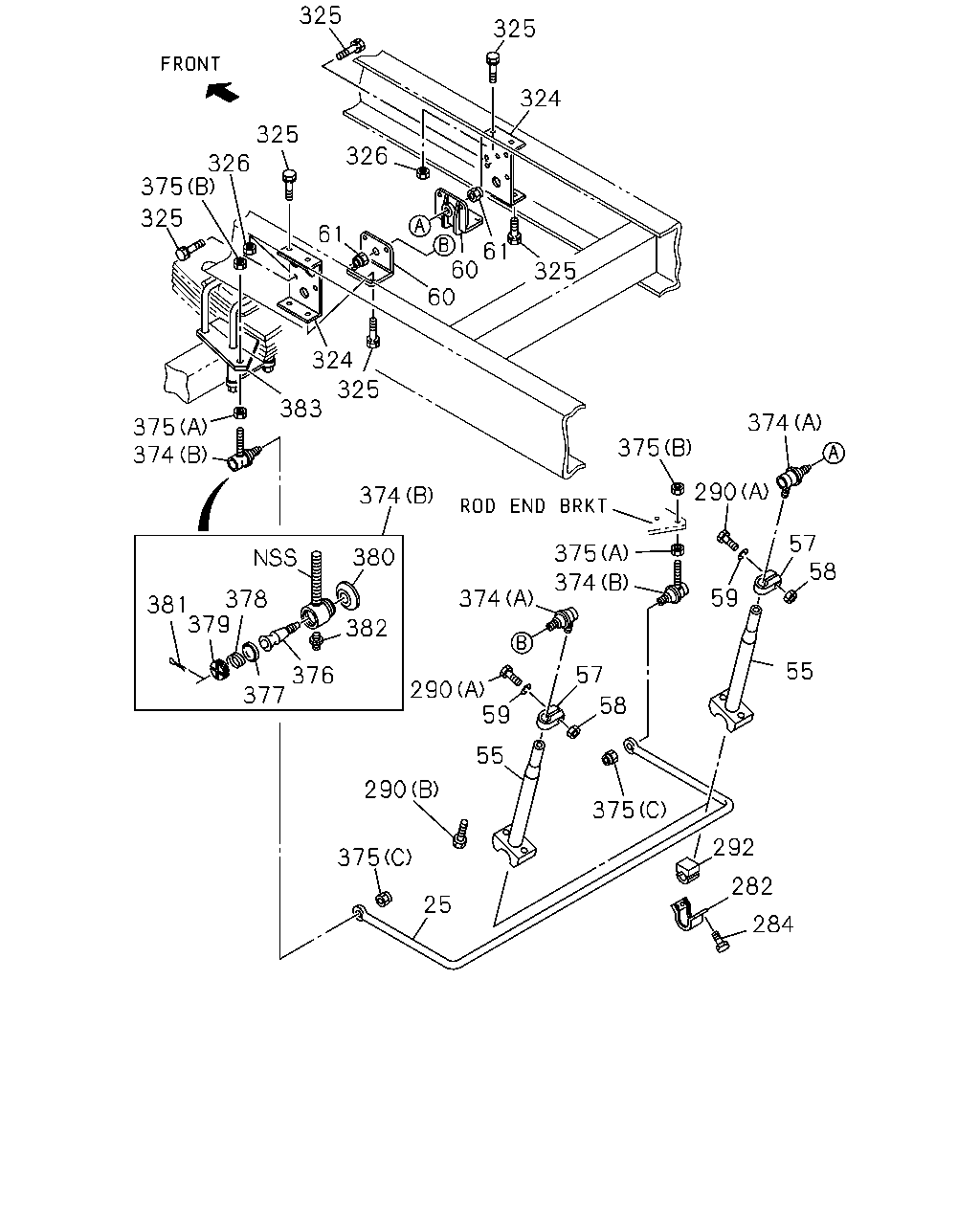

çizim 28133
325 325 324 325 326 375 326 325 61 61 60 60 325 324 325 383 374 375 374 375 290 374 57 58 375 380 374 59 374 378 381 379 382 55 57 376 377 290 59 58 55 290 375 292 375 282 25 284
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51771-040-1 01 1 9101-0401 ● ●
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-188-0 01 1 0402- ● ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-048-1 02 1 9101-0401 ● ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-024-1 02 1 0402- ● ●
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-43159-002-3 02 1 9101-0401 ● ●
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-512-0 02 1 9101-0401 ● ●
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-612-0 02 1 9101-9210 ● ●
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-812-0 02 1 9211-0401 ● ●
60 BRACKET; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-037-2 02 1 9101-0401 ● ●
61 NUT; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-09449-014-0 02 1 9101-0401 ● ●
282 RETAINER; STAB BAR
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-015-2 02 1 9101- ● ●
284 BOLT; RET TO RET
STABILIZER SHAFT FRT&RR<FE6> 		8-94463-351-0 08 1 9101- ● ●
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> (B) M12X45 W/LK WASHER 		0-50041-245-0 08 1 9101-0401 ● ●
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> (A) M12X47 		9-09801-294-0 02 1 9101-0401 ● ●
292 BUSHING; RUBBER,STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-017-0 02 1 9101-0401 ● ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-049-2 02 1 9101-0401 ● ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-059-0 02 1 0402- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		0-50041-230-0 04 1 9101-0401 ● ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		9-92061-440-0 06 1 0402- ● ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 		9-99110-514-0 06 1 0402- ● ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		9-99110-412-0 04 1 9101-0401 ● ●
374 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-43150-472-0 01 1 9101-0401 ● ●
374 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-43150-473-0 01 1 9101-0401 ● ●
374 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-43150-468-0 02 1 9101-0401 ● ●
375 NUT; ROD END
STABILIZER SHAFT FRT&RR<FE6> (C) M16 		1-09449-014-0 02 1 9101-0401 ● ●
375 NUT; ROD END
STABILIZER SHAFT FRT&RR<FE6> (B) M20 		9-99110-520-0 02 1 9101-0401 ● ●
375 NUT; ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) M20 		9-09840-318-0 02 1 9101-0401 ● ●
376 JOINT; BALL,ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-87090-211-0 04 1 9101-0401 ● ●
377 SEAT; JOINT BALL
STABILIZER SHAFT FRT&RR<FE6> UPPER 		1-44370-002-0 02 1 9101-0401 ● ●
377 SEAT; JOINT BALL
STABILIZER SHAFT FRT&RR<FE6> L0WER 		1-44373-002-0 02 1 9101-0401 ● ●
378 SPRING; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-09580-080-0 04 1 9101-0401 ● ●
379 PLUG; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-44375-001-0 04 1 9101-0401 ● ●
380 BOOT; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-43159-036-0 04 1 9101-0401 ● ●
381 PIN; SPLIT,PLUG
STABILIZER SHAFT FRT&RR<FE6> OD=2.8 L=55 		9-08113-055-0 04 1 9101-0401 ● ●
382 NIPPLE; GREASE,ROD END
STABILIZER SHAFT FRT&RR<FE6> M6 STRAIGHT 		9-09031-006-0 02 1 9101-0401 ● ●
382 NIPPLE; GREASE,ROD END
STABILIZER SHAFT FRT&RR<FE6> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9101-0401 ● ●
383 BRACKET; ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-069-0 02 1 9101-0401 ● ●

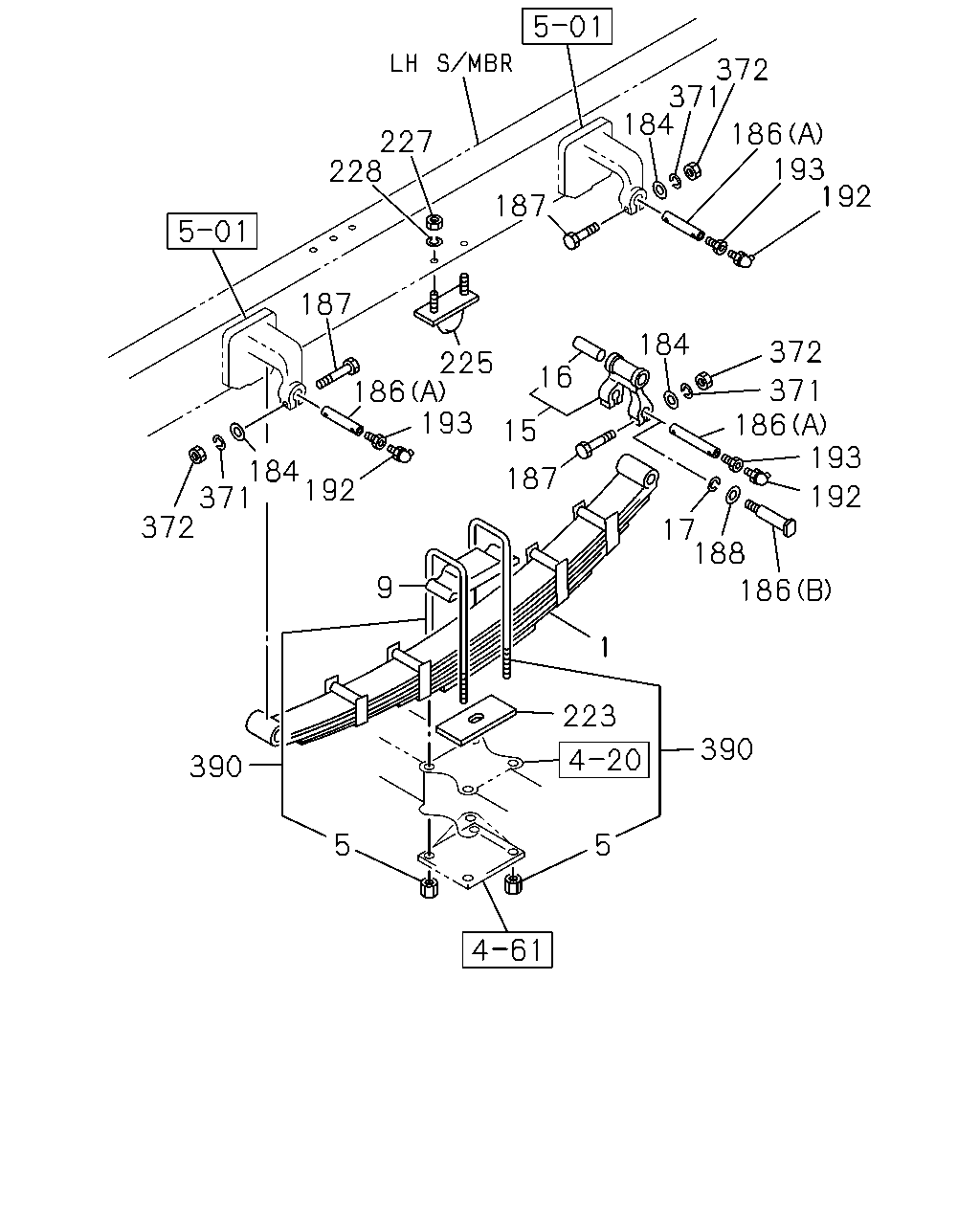

çizim 28500
372 371 184 186 193 192 227 228 187 187 184 372 225 16 193 16 371 186 193 15 184 192 371 372 187 192 17 188 186 9 1 223 390 390 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> BUS USER THAILAND BMTA<D5B> 12-LEAF 		1-51310-967-0 02 1 9101-9204 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> 12-LEAF 		1-51310-967-0 02 1 9205-0407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 6000MM(60W) 12-LEAF 		1-51310-967-0 02 1 0408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 10-LEAF 		1-51310-820-0 02 1 9101-0407 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 10-LEAF 		1-51310-820-0 02 1 0408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> 11-LEAF 		1-51310-907-0 02 1 9101-0407 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 11-LEAF 		1-51310-907-0 02 1 0408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> 11-LEAF 		1-51310-907-0 02 1 0408- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9101- ● ●
9 PAD; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51372-030-0 02 1 9101- ●
9 PAD; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51372-048-1 02 1 9101- ● ●
15 SHACKLE; RR SPR
WHEEL BASE 6000MM(60W) 		9-51362-085-1 02 1 9101- ●
15 SHACKLE; RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51162-039-2 02 1 9101- ● ●
16 BUSHING; SHACKLE,RR SPR
WHEEL BASE 6000MM(60W) 		1-51351-024-1 02 1 9101- ●
16 BUSHING; SHACKLE,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51351-009-0 02 1 9101- ● ●
17 WASHER; LK,SHACKLE PIN
WHEEL BASE 6000MM(60W) ID=24.5 OD=52 		9-51369-012-0 02 1 9101- ●
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9101- ● ●
186 PIN; SHACKLE,RR SPR
WHEEL BASE 6000MM(60W) (A) 		1-51361-020-0 04 1 9101- ●
186 PIN; SHACKLE,RR SPR
WHEEL BASE 6000MM(60W) (B) 		9-51361-062-1 02 1 9101- ●
186 PIN; SHACKLE,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) 		1-51161-031-0 06 1 9101- ● ●
187 BOLT; SPR & SHACKLE
WHEEL BASE 6000MM(60W) M14X80 		0-10806-480-0 04 1 9101- ●
187 BOLT; SPR & SHACKLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M12X80 		0-10806-280-0 08 1 9101- ● ●
188 WASHER; PL,SHACKLE PIN
WHEEL BASE 6000MM(60W) 		9-09164-624-0 02 1 9101- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		9-09031-210-0 06 1 9101- ● ●
193 ATTACHMENT; GREASE NIPPLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		9-43165-001-0 06 1 9101- ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51377-172-0 02 1 9101-0203 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) EXC. STABILIZER SHAFT FRT&RR<FE6> 		1-51377-217-0 02 1 9101-0401 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-217-0 02 1 0402- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51377-248-0 02 1 9101-0401 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. STABILIZER SHAFT FRT&RR<FE6> 		1-51377-247-0 02 1 9101-0401 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51377-247-0 02 1 0402- ● ●
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 9101- ● ●
227 NUT; CUSHION RUBBER 9-09110-410-0 04 1 9101-9307 ● ●
227 NUT; CUSHION RUBBER
M10 		9-09110-510-0 04 1 9308- ● ●
228 WASHER; LK,CUSHION RUBBER 9-09150-510-0 04 1 9101- ● ●
371 WASHER; LK,SHACKLE
WHEEL BASE 6000MM(60W) ID=14.2 		9-09150-514-0 04 1 9101- ●
371 WASHER; LK,SHACKLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=12.2 		9-09150-512-0 08 1 9101-9209 ● ●
371 WASHER; LK,SHACKLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=12.2 		9-09150-612-0 08 1 9210- ● ●
372 NUT; SHACKLE
WHEEL BASE 6000MM(60W) M14 		9-99110-414-0 04 1 9101- ●
372 NUT; SHACKLE
WHEEL BASE 6000MM(60W) M24 		9-99110-524-0 02 1 9101- ●
372 NUT; SHACKLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 08 1 9101- ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> L=470 		1-87870-300-0 04 1 9101-0407 ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 6000MM(60W) L=470 		1-87870-300-0 04 1 0408- ●
390 U-BOLT SET; RR SPRING
EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> L=445 		1-87870-323-0 04 1 9101-0407 ● ●
390 U-BOLT SET; RR SPRING
EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> L=445 		1-87870-323-0 04 1 0408- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> L=455 		1-87870-268-0 04 1 9101-0407 ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) L=455 		1-87870-268-0 04 1 0408- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> L=455 		1-87870-268-0 04 1 0408- ●

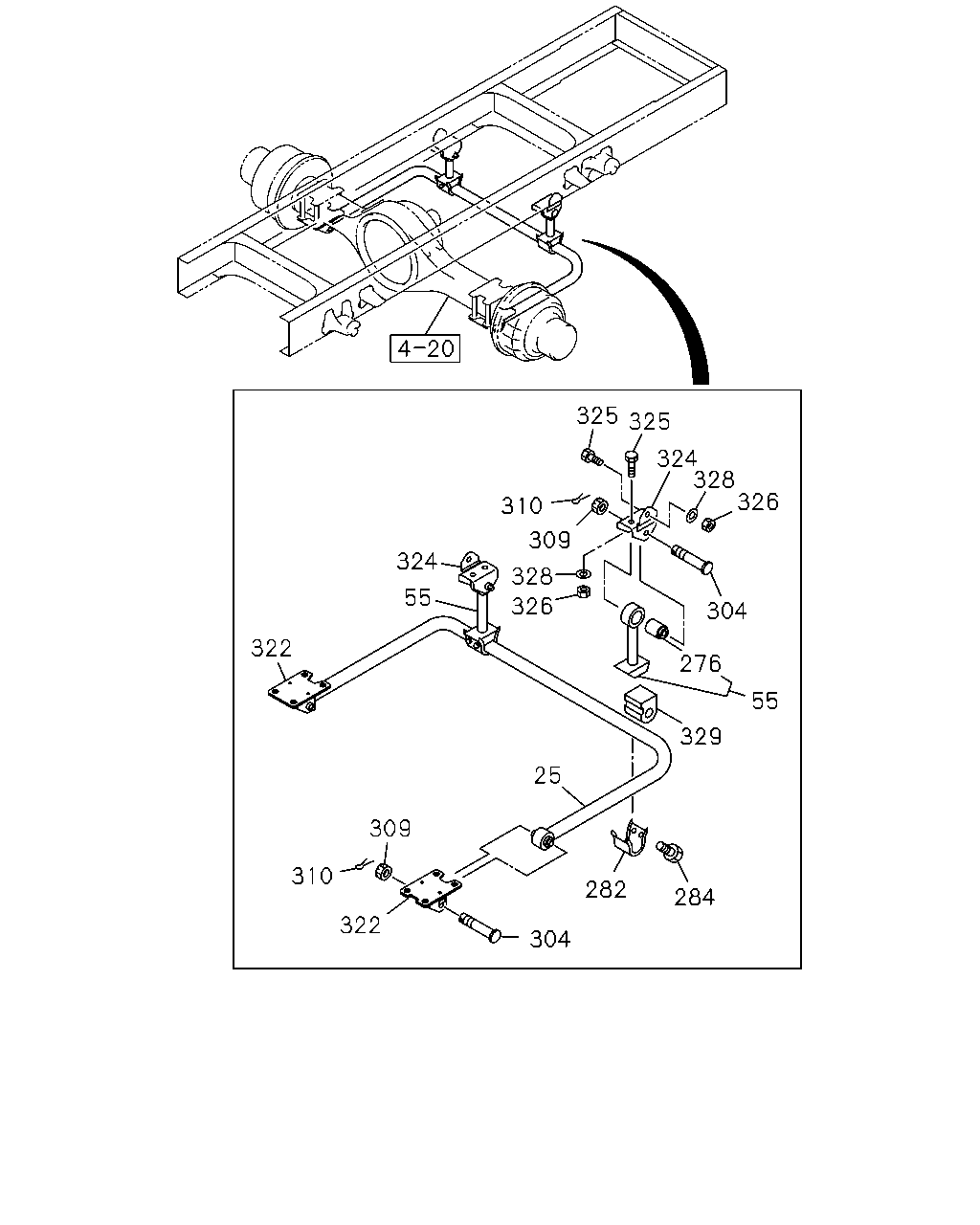

çizim 93721
325 325 324 328 326 310 309 324 328 55 326 304 322 276 55 329 25 309 310 282 284 322 304
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51771-040-1 01 1 9101-0401 ● ●
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-188-0 01 1 0402- ● ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-048-1 02 1 9101-0401 ● ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-024-1 02 1 0402- ● ●
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-019-0 02 1 0402- ● ●
282 RETAINER; STAB BAR
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-015-2 02 1 9101- ● ●
284 BOLT; RET TO RET
STABILIZER SHAFT FRT&RR<FE6> 		8-94463-351-0 08 1 9101- ● ●
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-020-2 04 1 0402- ● ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> M24 		9-99116-424-0 04 1 0402- ● ●
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		9-08115-045-0 04 1 0402- ● ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51781-038-1 01 1 0402-0407 ● ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) STABILIZER SHAFT FRT&RR<FE6> 		1-51781-038-1 01 1 0408- ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51781-038-1 01 1 0408- ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51781-128-0 01 1 0402-0407 ● ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) STABILIZER SHAFT FRT&RR<FE6> 		1-51781-128-0 01 1 0408- ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51781-128-0 01 1 0408- ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> STABILIZER SHAFT FRT&RR<FE6> 		1-51781-048-4 02 1 0402-0407 ●
322 BRACKET; STAB BAR TO RR AXLE
WHEEL BASE 6000MM(60W) STABILIZER SHAFT FRT&RR<FE6> 		1-51781-048-4 02 1 0408- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-049-2 02 1 9101-0401 ● ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-059-0 02 1 0402- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		0-50041-230-0 04 1 9101-0401 ● ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		9-92061-440-0 06 1 0402- ● ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 		9-99110-514-0 06 1 0402- ● ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		9-99110-412-0 04 1 9101-0401 ● ●
328 WASHER; PL,BRKT
STABILIZER SHAFT FRT&RR<FE6> ID=15 		9-09651-069-0 12 1 0402- ● ●
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-017-0 02 1 0402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
