Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#22399) — 204 parça

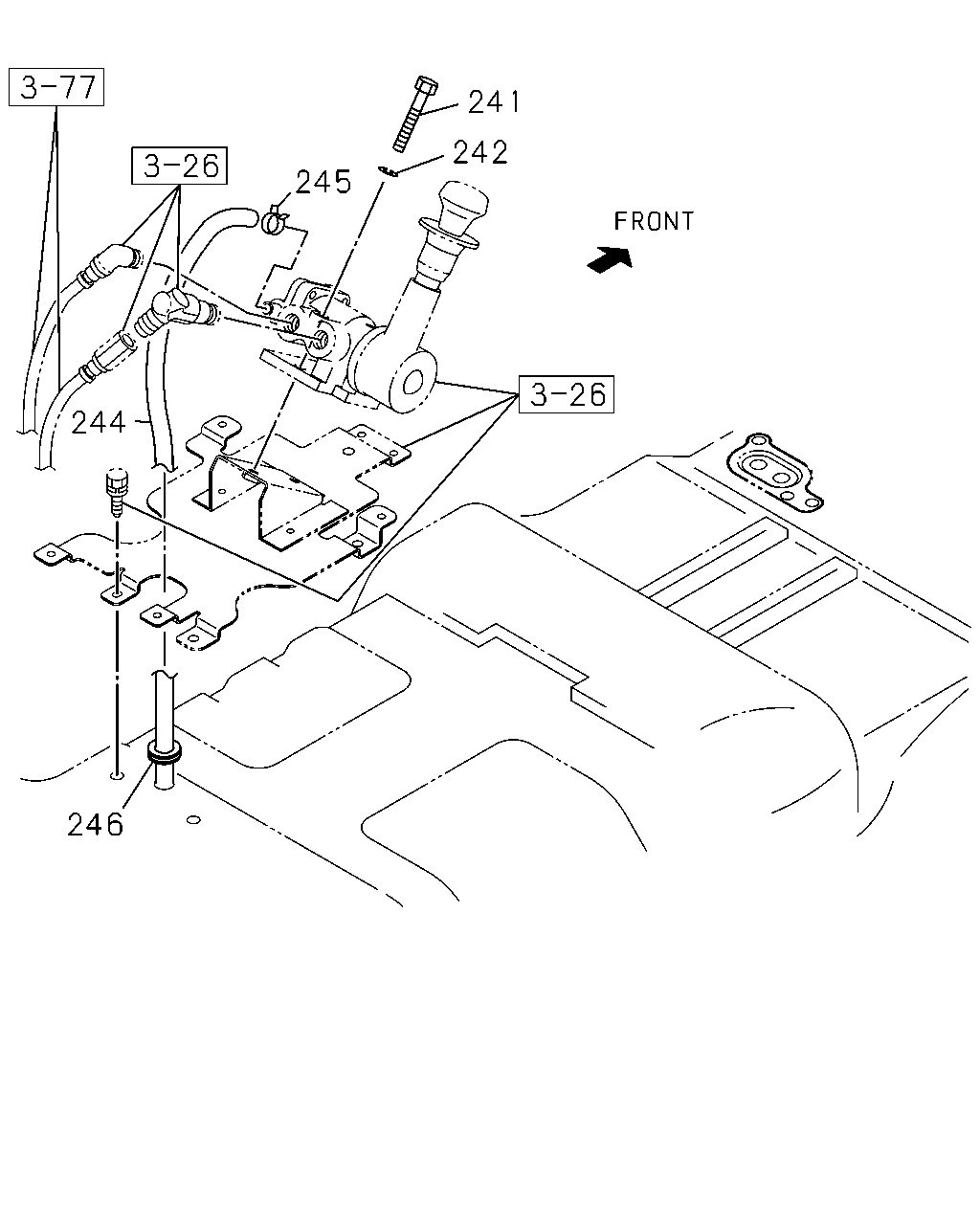

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9510-9704
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9705-0210
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9510-9704
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9510-0110
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0111-0210
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9510-0210
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9510-0210
246	GROMMET; VINYL PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	9510-0210

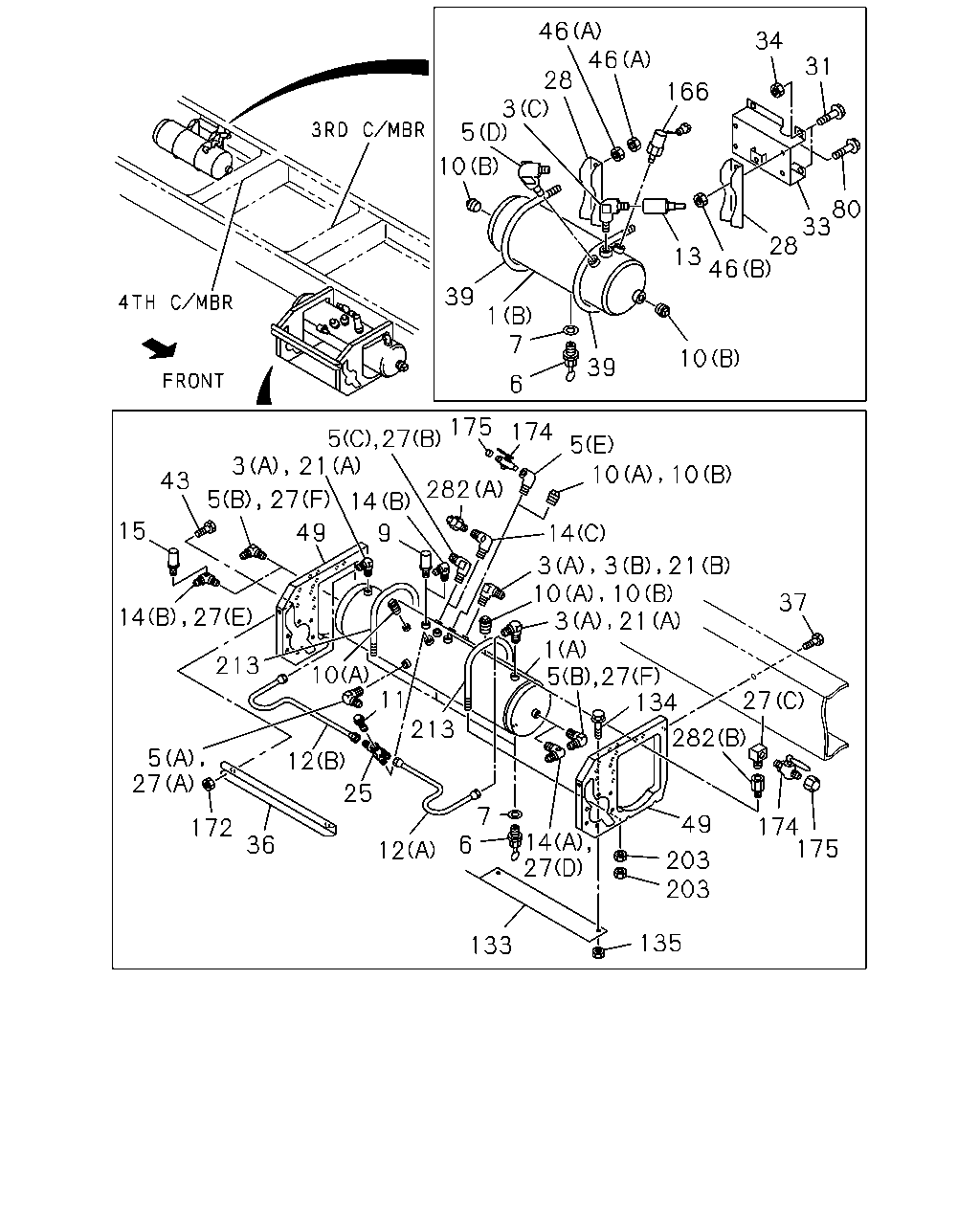

46 46 34 31 28 3 5 166 10 80 33 28 13 46 39 1 7 10 39 6 175 21 174 5 10 3 10 43 282 14 15 49 9 14 10 10 1 134 10 37 213 27 11 213 282 14 27 5 27 12 25 7 6 49 174 175 172 36 12 203 203 135 133 27 5 27 5 27 14 3 3 21 3 21 5 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	9510-0210
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-333-0	01	1	9510-9802
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	9803-9804
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-719-0	01	1	9805-0210
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9510-9606
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9802
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48410-132-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M22 & R1/2 W/VALVE	1-48320-026-0	01	1	9803-9804
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-0210
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9711
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9712-9802
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9803-0004
5	UNION; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0005-0109
5	UNION; AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0005-0109
5	UNION; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0110-0210
5	UNION; AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0110-0210
5	UNION; AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0110-0210
5	UNION; AIR TANK (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9711
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9712-9802
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9803-0004
5	UNION; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0005-0109
5	UNION; AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0005-0109
5	UNION; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0110-0210
5	UNION; AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0110-0210
5	UNION; AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0110-0210
5	UNION; AIR TANK (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9711
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9712-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0210
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 2WAY	1-09660-693-0	01	1	9510-9711
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	03	1	9510-9510
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9510-0210
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/COVER	1-48312-004-1	01	1	9510-9510
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	9510-0210
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-0210
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9608
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	9609-0210
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	01	1	9510-9711
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-0	01	1	9712-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	02	1	9510-9802
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	01	1	9803-0210
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	9803-0004
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0005-0210
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0005-0210
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	9803-0004
10	PLUG; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	0005-0109
10	PLUG; AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (B) PT3/8	9-09204-517-0	02	1	0005-0109
10	PLUG; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	0110-0210
10	PLUG; AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (B) PT3/8	9-09204-517-0	02	1	0110-0210
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	0110-0210
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0005-0210
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0005-0210
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0005-0210
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	9803-0210
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9510-0210
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-008-0	01	1	9510-0210
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-009-0	01	1	9510-0210
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9803-9804
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9805-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0005-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0005-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0005-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-0210
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-0210
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	01	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	01	1	0005-0109
15	SWITCH; LOW PRESS,AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> 530KPA	1-48340-054-1	01	1	0005-0109
15	SWITCH; LOW PRESS,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0005-0109
15	SWITCH; LOW PRESS,AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	01	1	0110-0210
15	SWITCH; LOW PRESS,AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> 530KPA	1-48340-054-1	01	1	0110-0210
15	SWITCH; LOW PRESS,AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	01	1	0110-0210
15	SWITCH; LOW PRESS,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0110-0210
15	SWITCH; LOW PRESS,AIR TANK TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-0	01	1	9712-9802
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	02	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	02	1	0005-0210
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	02	1	0005-0210
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	02	1	0005-0210
21	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0109
21	VALVE; CHECK,AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0110-0210
21	VALVE; CHECK,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0110-0210
21	VALVE; CHECK,AIR TANK ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0110-0210
21	VALVE; CHECK,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0110-0210
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0109
21	VALVE; CHECK,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0110-0210
21	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0110-0210
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0110-0210
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0110-0210
21	VALVE; CHECK,AIR TANK A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>,DUAL AIR GAUGE<UG2> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0110-0210
21	VALVE; CHECK,AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0110-0210
21	VALVE; CHECK,AIR TANK ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0110-0210
21	VALVE; CHECK,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0110-0210
25	UNION; 4 WAY	1-09656-699-0	01	1	9510-0210
27	UNION; ELBOW,AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9803-0210
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (D) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-0210
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (E) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-0210
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9712-9802
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0210
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9712-9802
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9803-0210
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9712-9802
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9803-0210
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-430-0	02	1	9510-0210
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28081-030-0	04	1	9510-9606
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28681-035-0	04	1	9607-0210
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	9510-0210
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9510-9606
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	9607-0210
36	STAY; MAIN TANK TIRE INFLATOR DEVICE<SG4>	1-48317-307-2	01	1	9712-9802
36	STAY; MAIN TANK	1-48317-307-2	01	1	9803-0210
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9510-0210
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	9510-9711
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9510-9711
39	U-BOLT; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> L=250	1-48317-308-0	02	1	9712-9802
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	9712-9802
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	9803-0210
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	02	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28680-820-0	02	1	9703-0210
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	9510-9711
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	9510-9711
46	NUT; U-BOLT EXC. TIRE INFLATOR DEVICE<SG4> (A) M8	9-09110-408-0	08	1	9712-9802
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	9712-9802
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	9803-0210
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10	9-09110-510-0	04	1	9510-9702
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	9703-0210
49	BRACKET; AIR TANK TIRE INFLATOR DEVICE<SG4>	1-48317-709-2	02	1	9712-9802
49	BRACKET; AIR TANK	1-48317-709-4	02	1	9803-0210
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0210
133	COVER; AIR MASTER	1-48317-641-1	01	1	9510-0210
134	BOLT; COVER FIX M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	9607-0210
135	NUT; COVER M8	9-09110-408-0	04	1	9510-9606
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	9607-0210
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	9510-0210
172	NUT; STAY,AIR TANK,MAIN M8	9-09110-408-0	02	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91150-108-0	02	1	9703-0210
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9510-0010
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-0210
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9510-0210
203	NUT TIRE INFLATOR DEVICE<SG4> M8	9-09110-408-0	08	1	9712-9802
203	NUT M8	9-09110-408-0	08	1	9803-0210
213	BOLT; U AIR TANK TIRE INFLATOR DEVICE<SG4> L=250	1-48317-308-0	02	1	9712-9802
213	BOLT; U AIR TANK L=250	1-48317-308-0	02	1	9803-0210
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9803-0004
282	UNION; 2 WAY AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0210
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0210
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0210
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (B) PT3/8	1-48319-058-0	01	1	9803-0210

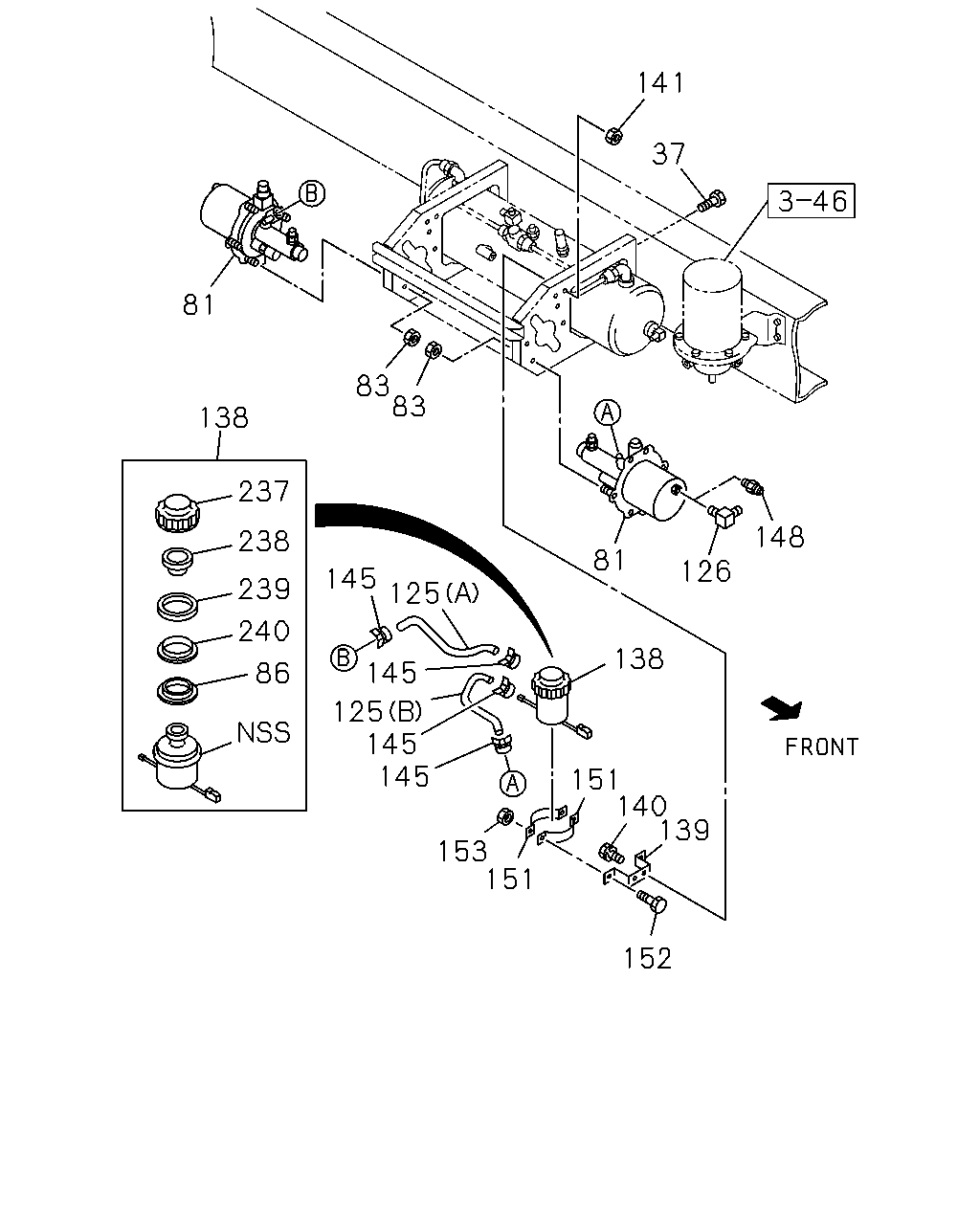

141 37 81 83 83 138 237 148 238 81 126 145 239 125 240 138 145 86 12 145 145 151 140 139 153 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-008-0	01	1	9510-0210
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-009-0	01	1	9510-0210
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9510-0210
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47800-575-0	02	1	9510-9802
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-656-2	02	1	9803-0202
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	02	1	0203-0210
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47800-500-2	02	1	9510-9802
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9510-0210
86	SEAL; DUST	1-47529-019-0	01	1	9510-0210
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9510-0210
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	9510-0210
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9712-9802
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9803-0210
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9510-0011
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-0	01	1	0207-0210
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9510-0210
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9510-9606
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-9903
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9904-0004
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9510-9606
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0210
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9510-0210
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9510-9802
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9510-0210
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9607-9712
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9801-0210
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9510-0210
237	CAP; OIL TANK	1-47525-024-0	01	1	9510-0011
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-0210
238	PLATE; BAFFLE	1-47529-022-0	01	1	9510-0210
239	FILTER; DUST	1-47529-017-0	01	1	9510-0210
240	HOLDER; FILTER	1-47529-018-0	01	1	9510-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
