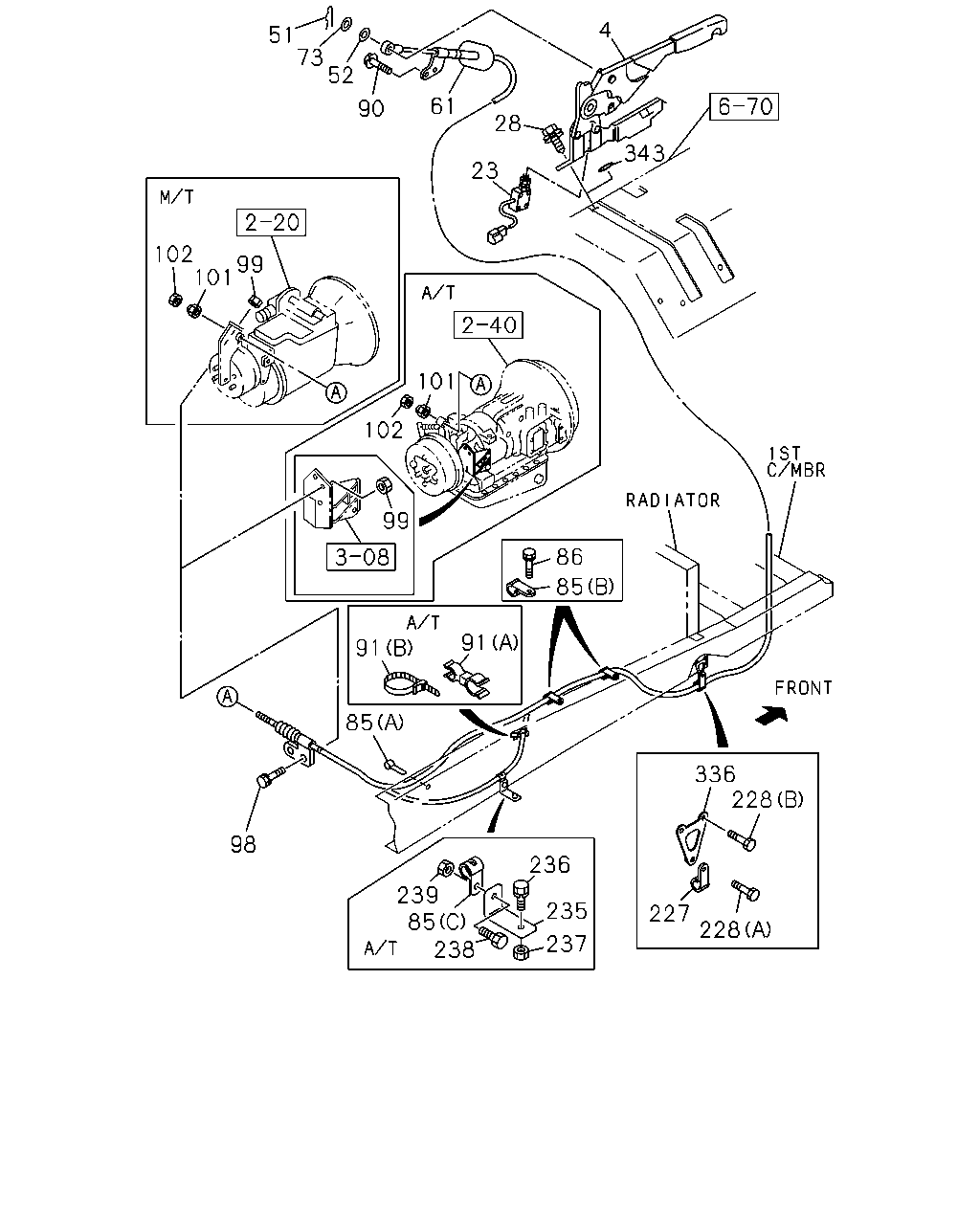

3-11 — PARKING BRAKE CONTROL (#22398) — 54 parça

4 51 73 52 61 90 28 343 23 102 99 101 101 102 99 86 85 91 91 85 336 228 98 236 239 85 238 235 227 228 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-295-0	01	1	9510-9809
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-423-0	01	1	9810-9908
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-485-0	01	1	9909-9911
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-505-0	01	1	9912-0010
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	0011-0210
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	9510-0210
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0210
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	9510-0210
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19	8-94206-429-1	02	1	9510-0210
61	CABLE; PARKING BRK A/T<X9D> L=4744	1-79996-511-0	01	1	0005-0210
61	CABLE; PARKING BRK MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544	1-79996-274-0	01	1	9510-9909
61	CABLE; PARKING BRK MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544	1-79996-476-0	01	1	9910-0210
61	CABLE; PARKING BRK MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4644	1-79996-226-1	01	1	9510-9909
61	CABLE; PARKING BRK MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4644	1-79996-458-0	01	1	9910-0210
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17	9-09160-516-0	01	1	9510-0210
85	CLIP; BRKT A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.5 L=28	1-09701-013-0	01	1	0005-0105
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	01	1	9510-0004
85	CLIP; BRKT ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	01	1	0005-0105
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	01	1	0106-0210
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=16 H=30 L=30	1-09701-080-0	01	1	9510-0210
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40	1-09701-139-0	01	1	9510-0210
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0210
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	0002-0002
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0210
91	CLIP; PARKING BRK CABLE A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6 & 13	8-94459-564-0	01	1	0005-0210
91	CLIP; PARKING BRK CABLE A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=140	5-09707-031-1	01	1	0106-0210
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28081-025-0	02	1	9510-9606
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28681-030-0	02	1	9607-0210
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9510-9702
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	9703-0210
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46259-007-0	01	1	9510-0210
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9709
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9710-0210
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	9-09525-235-0	01	1	9510-0210
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0210
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9510-0210
235	BRACKET; CONT CABLE TO FRAME A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=50	1-47475-663-1	01	1	0005-0105
236	BOLT; BRKT TO FRAME A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	0005-0105
237	NUT; BRKT TO FRAME A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0105
238	BOLT; CLIP TO BRKT A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0105
239	NUT; CLIP TO BRKT A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0105
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-36183-162-1	01	1	9510-0004
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-36183-162-1	01	1	0005-0210
343	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	03	1	9510-0210
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-74998-068-0	01	1	9510-9510

97 46 45 324 218 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-9812
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9901-0210
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	9-09525-535-0	02	1	9510-0210
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	9510-9802
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	9811-0210
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	8-94279-517-0	02	1	9510-9611
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0210
324	BRACKET	1-79996-260-2	01	1	9510-0210
