Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#22394) — 208 parça

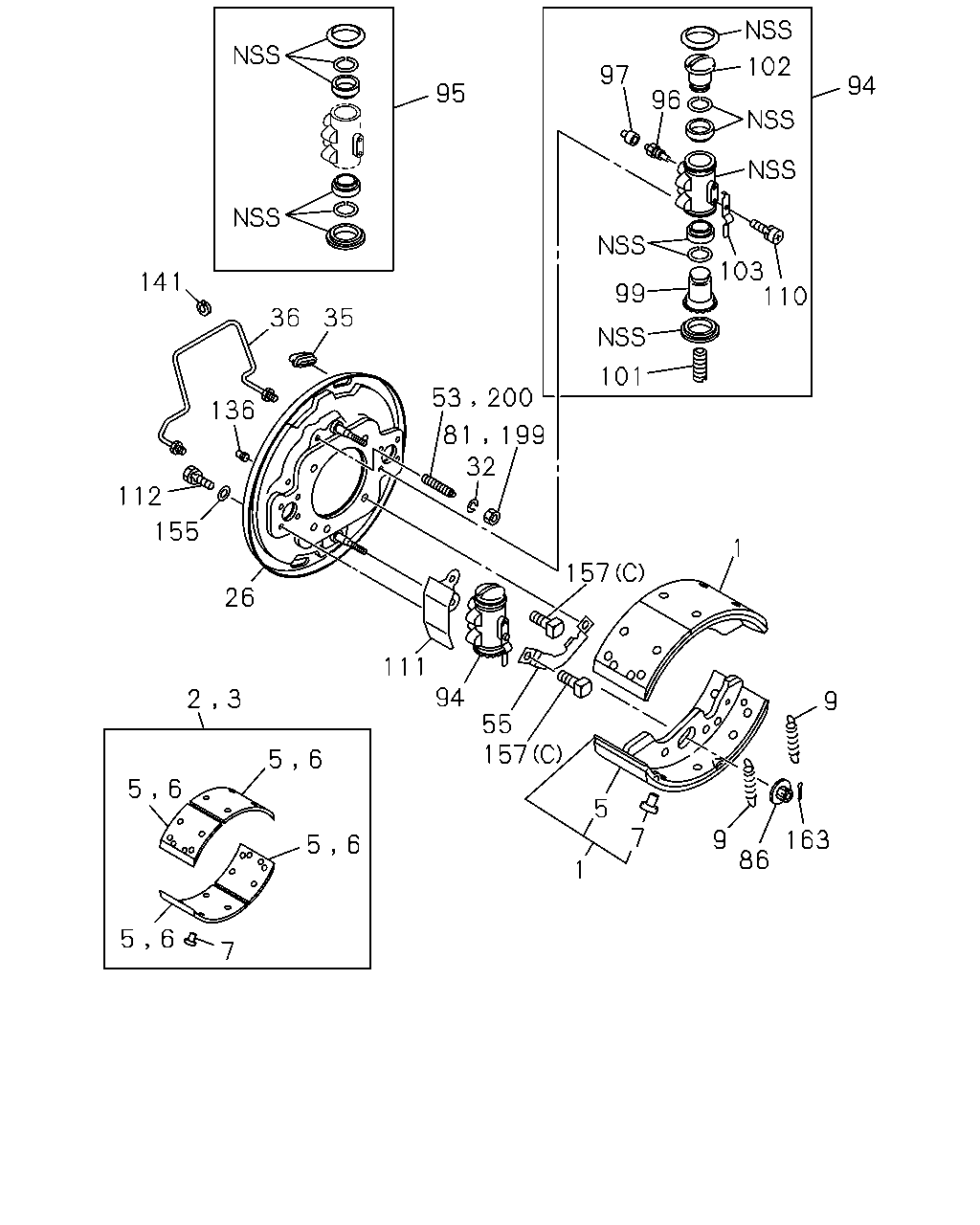

102 97 94 95 96 103 110 141 99 36 35 101 136 81 199 32 112 155 1 157 26 111 94 2 3 9 55 157 5 6 5 6 5 7 163 9 5 6 86 1 5 6 7 53 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-990-1	04	1	9510-9802
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-627-0	04	1	9803-0210
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-005-1	04	1	9510-9802
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	9803-0210
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-075-0	02	1	9510-9802
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-200-0	02	1	9803-0210
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-199-0	02	1	9510-9802
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	9803-0210
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-201-0	02	1	9803-0210
3	LINING SET; RR BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-552-1	02	1	9803-0210
5	LINING; RR BRK SHOE,STANDARD	1-47125-004-1	08	1	9510-9802
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9803-0210
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9803-0210
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=11.5	1-09732-015-0	96	1	9510-0210
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	9510-0210
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-275-0	04	1	9510-0210
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-271-0	04	1	9510-0210
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-480-0	01	1	9510-0210
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-481-0	01	1	9510-0210
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	9510-0210
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	9510-0210
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-110-0	04	1	9510-0210
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	04	1	9510-0210
35	GROMMET; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-139-0	04	1	9510-0210
35	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	9510-0210
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-415-0	01	1	9510-0210
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-416-0	01	1	9510-0210
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-815-0	02	1	9510-0210
53	BOLT; LOCK PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-017-0	02	1	9510-0210
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-037-0	02	1	9510-0210
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-038-0	02	1	9510-0210
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	9510-0210
81	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	9510-0210
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-038-0	04	1	9510-0210
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-662-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-664-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-718-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-719-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-847-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-956-0	01	1	9704-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-848-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-957-0	01	1	9704-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-849-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-958-0	01	1	9704-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-850-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-959-0	01	1	9704-0210
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-87830-562-0	02	1	9510-0210
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-87830-645-0	02	1	9510-0210
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-770-0	04	1	9510-0210
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	9510-0210
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-015-0	02	1	9510-9511
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	9512-0210
97	CAP; BLEEDER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=9.5	9-47619-005-0	02	1	9510-0210
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-246-0	01	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-247-0	01	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-263-1	01	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-264-1	01	1	9510-0210
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-240-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	9704-0210
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-241-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	9704-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD LH THREAD	1-47622-035-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47622-037-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-046-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-047-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	9510-0210
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-248-0	02	1	9510-0210
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-265-1	02	1	9510-0210
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-242-0	04	1	9510-9703
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	9704-0210
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-078-0	02	1	9510-0210
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	9510-0210
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94128-727-0	04	1	9510-0210
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-107-0	02	1	9510-0210
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	9510-0210
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	9510-0210
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-125-0	16	1	9510-0111
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	0112-0210
136	GROMMET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-138-0	04	1	9510-0210
136	GROMMET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	9510-0210
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=5 OD=18 T=8	1-09332-063-0	02	1	9510-0210
141	PROTECTOR; RR BRK PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	9510-0210
155	WASHER; PL,WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09503-221-0	16	1	9510-0111
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X47	1-47159-113-0	04	1	9510-0210
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X47 4 SQUARE HEAD	1-47159-114-0	08	1	9510-0210
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-009-0	12	1	9510-9512
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-015-0	12	1	9601-0210
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9510-0210
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	9510-0210
199	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	9510-0210
200	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-017-0	02	1	9510-0210

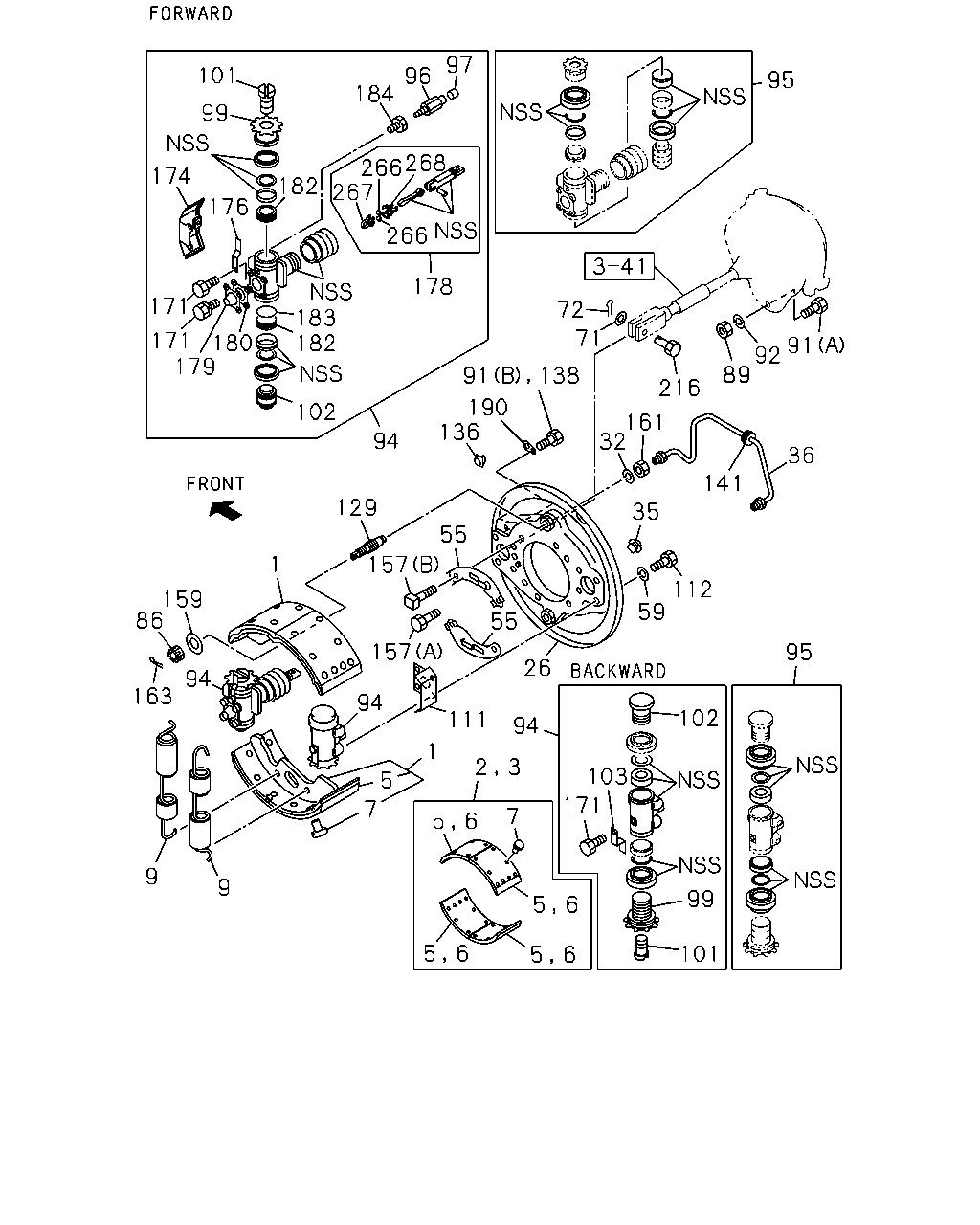

97 101 96 95 184 99 268 266 267 174 182 176 266 178 183 182 171 72 71 171 180 179 91 92 89 91 138 216 190 136 102 161 32 94 36 141 129 35 55 157 1 112 159 86 59 55 157 95 26 94 163 94 102 111 94 1 103 5 171 7 7 5 6 9 9 99 5 6 6 5 101 5 6 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-990-1	04	1	9510-9802
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-627-0	04	1	9803-0210
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-005-1	04	1	9510-9802
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	9803-0210
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-075-0	02	1	9510-9802
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-200-0	02	1	9803-0210
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-199-0	02	1	9510-9802
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	9803-0210
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-201-0	02	1	9803-0210
3	LINING SET; RR BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-552-1	02	1	9803-0210
5	LINING; RR BRK SHOE,STANDARD	1-47125-004-1	08	1	9510-9802
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9803-0210
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9803-0210
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=11.5	1-09732-015-0	96	1	9510-0210
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	9510-0210
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-275-0	04	1	9510-0210
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-271-0	04	1	9510-0210
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-480-0	01	1	9510-0210
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-481-0	01	1	9510-0210
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	9510-0210
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	9510-0210
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-110-0	04	1	9510-0210
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	04	1	9510-0210
35	GROMMET; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-139-0	04	1	9510-0210
35	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	9510-0210
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-415-0	01	1	9510-0210
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-416-0	01	1	9510-0210
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-815-0	02	1	9510-0210
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-037-0	02	1	9510-0210
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-038-0	02	1	9510-0210
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	9510-0210
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	14	1	9510-0210
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9510-0210
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9510-0210
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-038-0	04	1	9510-0210
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	9510-0210
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99110-512-0	04	1	9510-0210
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X30	0-20801-230-0	04	1	9510-0210
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M5X10 W/LK WASHER	9-03910-510-0	02	1	9510-0210
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	04	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-662-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-664-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-718-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-719-2	01	1	9510-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-847-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-956-0	01	1	9704-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-848-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-957-0	01	1	9704-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-849-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-958-0	01	1	9704-0210
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-850-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-959-0	01	1	9704-0210
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-87830-562-0	02	1	9510-0210
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-87830-645-0	02	1	9510-0210
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-770-0	04	1	9510-0210
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	9510-0210
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-015-0	02	1	9510-9511
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	9512-0210
97	CAP; BLEEDER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=9.5	9-47619-005-0	02	1	9510-0210
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-246-0	01	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-247-0	01	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-263-1	01	1	9510-0210
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-264-1	01	1	9510-0210
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-240-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	9704-0210
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-241-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	9704-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD LH THREAD	1-47622-035-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47622-037-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-046-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-047-0	01	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	9510-0210
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	9510-0210
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-248-0	02	1	9510-0210
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-265-1	02	1	9510-0210
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-242-0	04	1	9510-9703
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	9704-0210
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-078-0	02	1	9510-0210
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	9510-0210
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-107-0	02	1	9510-0210
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	9510-0210
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	9510-0210
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-125-0	16	1	9510-0111
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	0112-0210
129	PIN; SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-019-1	04	1	9510-0210
136	GROMMET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-138-0	04	1	9510-0210
136	GROMMET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	9510-0210
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	9-03910-510-0	02	1	9510-0210
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=5 OD=18 T=8	1-09332-063-0	02	1	9510-0210
141	PROTECTOR; RR BRK PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	9510-0210
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X47	1-47159-113-0	04	1	9510-0210
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X47 4 SQUARE HEAD	1-47159-114-0	08	1	9510-0210
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-009-0	12	1	9510-9512
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-015-0	12	1	9601-0210
159	WASHER; SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-037-0	04	1	9510-0210
161	NUT; SHOE HOLD LOCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-111-0	04	1	9510-0210
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9510-0210
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	9510-0210
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-036-0	14	1	9510-0210
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-091-0	02	1	9510-0210
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-001-0	02	1	9510-0210
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-001-1	02	1	9510-0210
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-002-0	02	1	9510-0111
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	0112-0210
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	9510-0210
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-082-0	04	1	9510-0210
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-561-0	02	1	9510-0210
184	CONNECTOR; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09660-111-0	04	1	9510-0210
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9510-0210
216	PIN; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-08234-038-0	02	1	9510-0210
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	9510-0210
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	9510-0210
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	9510-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
