◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#22392) — 8 parça
çizim 15270
55
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE 1-09983-068-0 01 1 9510-0210

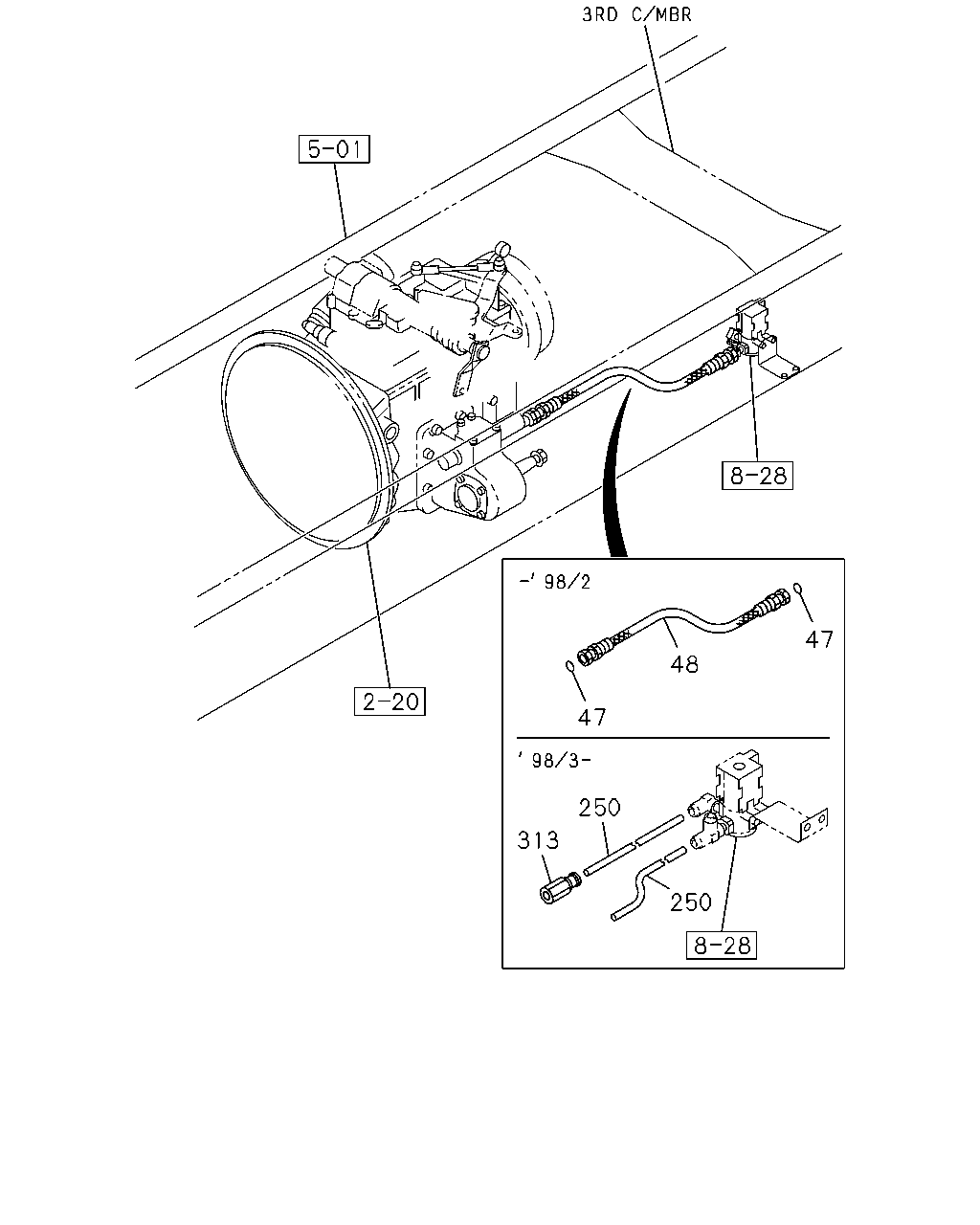

çizim 63668
47 48 47 250 313 250
BalonParca AdiParca NoAdetTipApplied Date
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=420 		0-07150-420-0 01 1 9510-9802
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-0210
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-0210
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0210
