4-55 — FRONT LEAF SPRING (#2239) — 96 parça

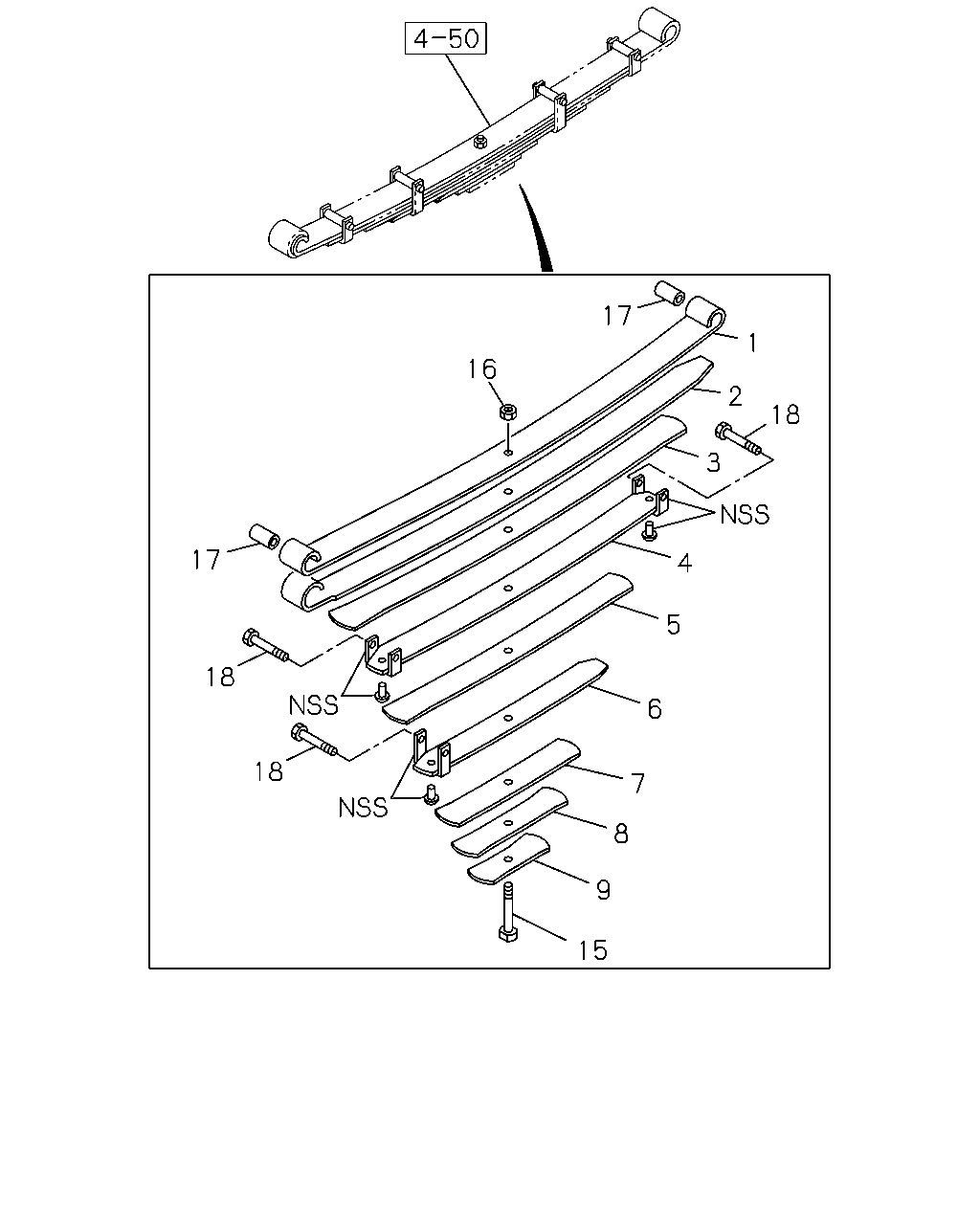

17 1 16 2 18 3 17 4 5 18 6 18 7 8 9 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-824-1	1-51111-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-826-0	1-51111-826-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-827-0	1-51111-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-142-0	1-51131-142-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-824-1	1-51112-824-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-826-0	1-51112-826-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-827-0	1-51112-827-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-142-0	1-51132-142-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-824-1	1-51113-824-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51110-826-0	1-51113-826-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-827-0	1-51113-827-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-142-0	1-51133-142-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-824-1	1-51114-824-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51110-826-0	1-51114-826-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-827-0	1-51114-827-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-142-0	1-51134-142-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-824-1	1-51115-824-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-826-0	1-51115-826-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-827-0	1-51115-827-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51130-142-0	1-51135-142-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-824-1	1-51116-824-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-826-0	1-51116-826-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-827-0	1-51116-827-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-142-0	1-51136-142-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-824-1	1-51117-824-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51110-826-0	1-51117-826-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-827-0	1-51117-827-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-142-0	1-51137-142-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-824-1	1-51118-824-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51110-826-0	1-51118-826-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-827-0	1-51118-827-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51130-142-0	1-51138-142-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51110-824-1	1-51119-824-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51110-826-0	1-51119-826-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51110-827-0	1-51119-827-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51130-142-0	1-51139-142-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: D = 1-51130-142-0	1-51156-199-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51110-827-0	1-51156-234-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: B = 1-51110-826-0	1-51156-239-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51110-824-1	1-51156-242-0	01	1	-9509
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51110-824-1	1-51156-384-0	01	1	9510-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-824-1, B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51110-824-1	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	9-51351-018-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51110-824-1	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X105 ASM PART: B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	1-09000-391-0	04	1	-

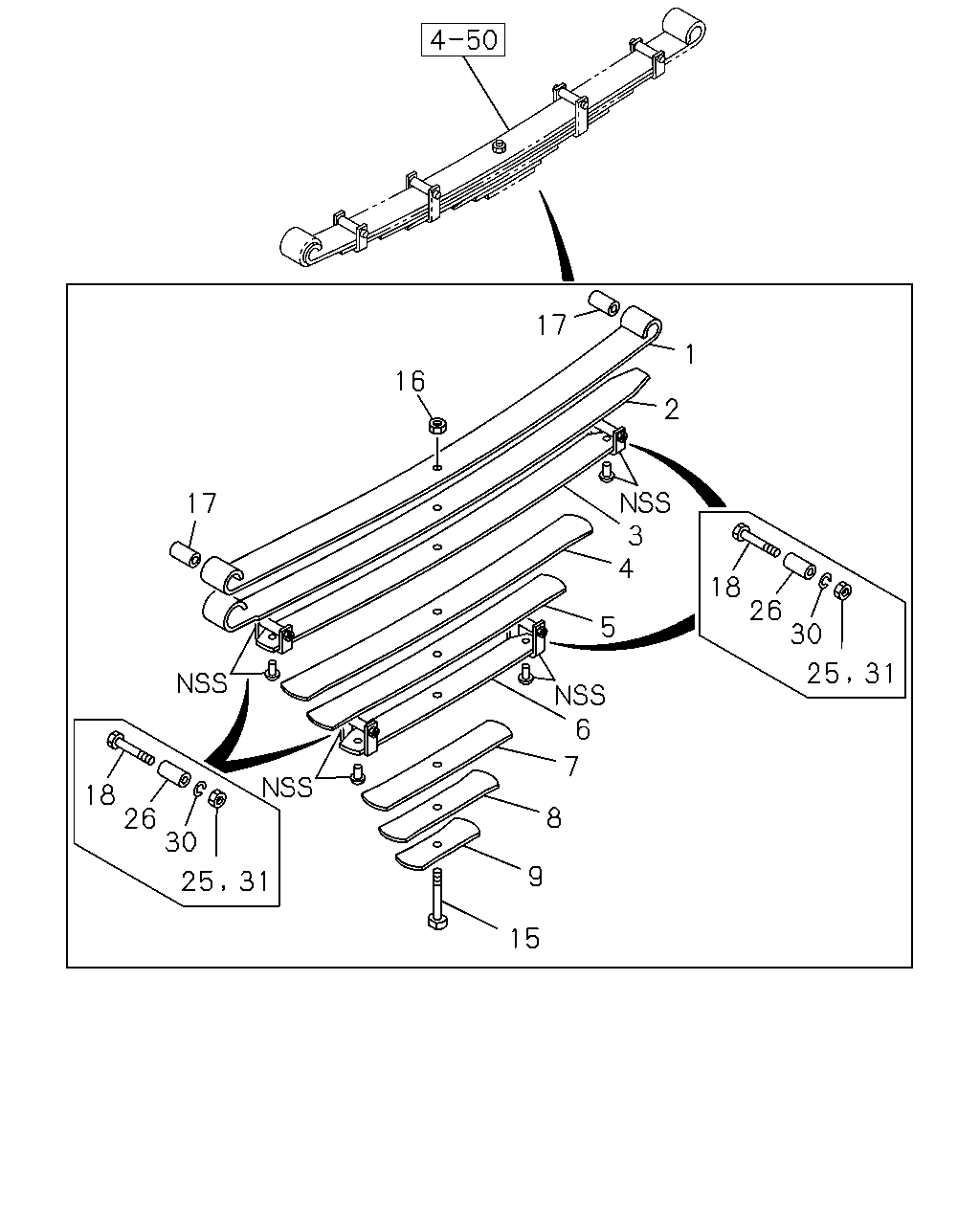

17 1 16 2 3 4 17 18 26 30 5 25 31 6 7 18 26 30 8 9 25 31 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-824-1	1-51111-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-826-0	1-51111-826-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-827-0	1-51111-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-142-0	1-51131-142-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-824-1	1-51112-824-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-826-0	1-51112-826-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-827-0	1-51112-827-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-142-0	1-51132-142-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-824-1	1-51113-824-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51110-826-0	1-51113-826-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-827-0	1-51113-827-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-142-0	1-51133-142-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-824-1	1-51114-824-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51110-826-0	1-51114-826-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-827-0	1-51114-827-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-142-0	1-51134-142-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-824-1	1-51115-824-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-826-0	1-51115-826-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-827-0	1-51115-827-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51130-142-0	1-51135-142-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-824-1	1-51116-824-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-826-0	1-51116-826-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-827-0	1-51116-827-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-142-0	1-51136-142-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-824-1	1-51117-824-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51110-826-0	1-51117-826-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-827-0	1-51117-827-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-142-0	1-51137-142-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-824-1	1-51118-824-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51110-826-0	1-51118-826-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-827-0	1-51118-827-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51130-142-0	1-51138-142-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51110-824-1	1-51119-824-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51110-826-0	1-51119-826-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51110-827-0	1-51119-827-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51130-142-0	1-51139-142-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: D = 1-51130-142-0	1-51156-199-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51110-827-0	1-51156-234-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: B = 1-51110-826-0	1-51156-239-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51110-824-1	1-51156-242-0	01	1	-9509
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51110-824-1	1-51156-384-0	01	1	9510-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-824-1, B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51110-824-1	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	9-51351-018-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51110-824-1	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X105 ASM PART: B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	1-09000-391-0	04	1	-
25	NUT; CLAMP M8 ASM PART: C = 1-51110-827-0, D = 1-51130-142-0	9-09110-008-0	04	1	-
26	PIPE; CLIP,LEAF SPR,FRT ASM PART: B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	1-51353-009-0	04	1	-
30	WASHER; CLIP,LEAF SPR,FRT ID=8.2 ASM PART: B = 1-51110-826-0, C = 1-51110-827-0, D = 1-51130-142-0	9-09150-508-0	04	1	-
31	NUT; CLIP M8 ASM PART: B = 1-51110-826-0	9-09110-008-0	04	1	-
