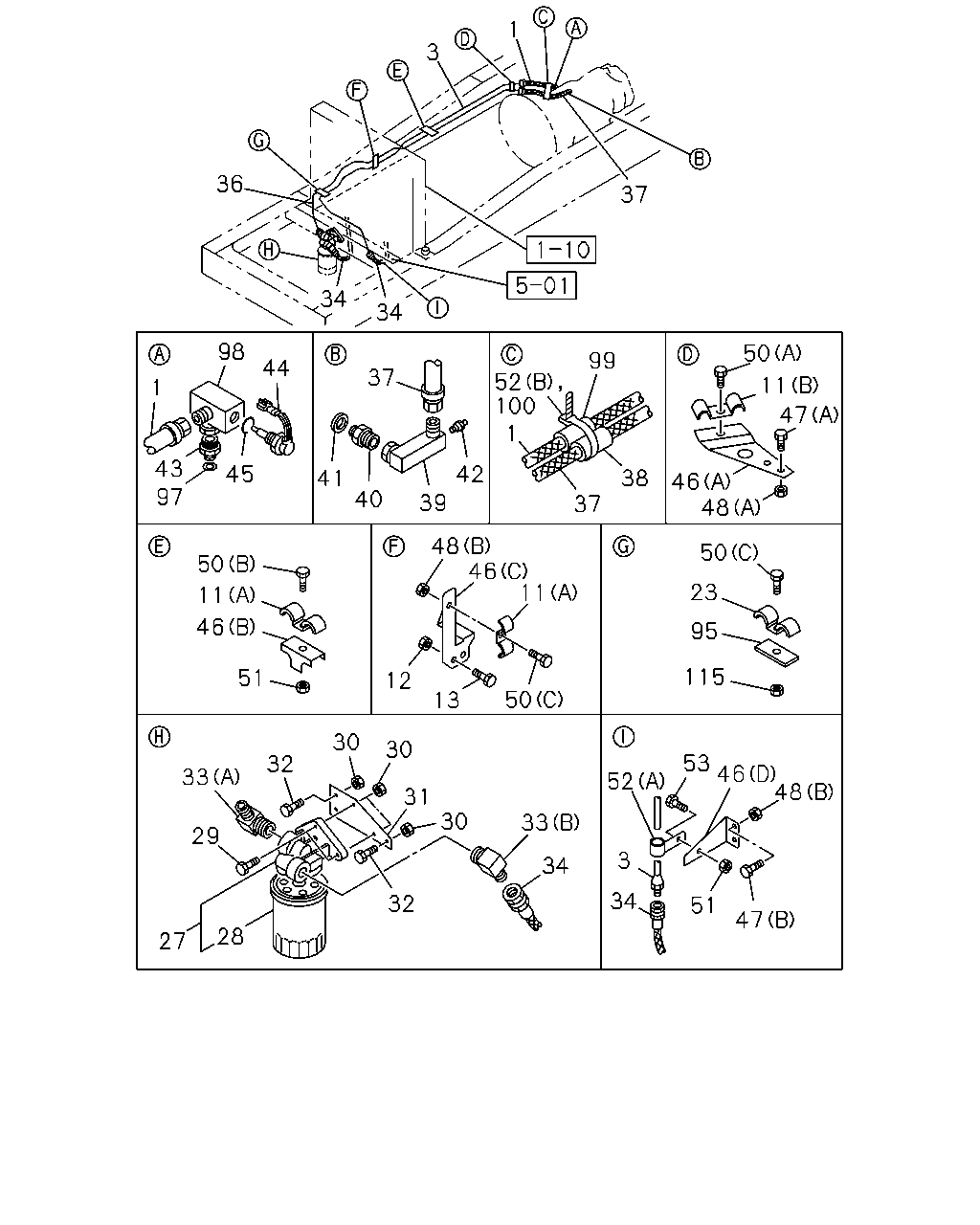

2-53 — TRANSMISSION OIL COOLER SYSTEM (#22388) — 52 parça

1 3 36 37 34 34 98 50 99 44 37 52 100 1 11 1 47 43 97 45 42 38 41 46 48 40 39 37 48 46 11 50 23 11 46 95 115 51 12 50 13 30 30 53 46 48 32 33 52 31 30 33 29 3 34 34 32 51 47 28 27 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF A/T<X9D> L=570	1-09364-829-0	01	1	0005-0210
3	PIPE; OIL,A/T TO OIL COOLER A/T<X9D>	1-21116-561-0	01	1	0005-0106
3	PIPE; OIL,A/T TO OIL COOLER A/T<X9D>	1-21117-053-0	01	1	0107-0111
3	PIPE; OIL,A/T TO OIL COOLER A/T<X9D>	1-21117-184-0	01	1	0112-0210
11	CLIP; PIPE A/T<X9D> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0005-0210
11	CLIP; PIPE A/T<X9D> (B)	1-21439-013-0	01	1	0005-0210
12	NUT; BRKT A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0005-0210
13	BOLT; BRKT A/T<X9D> M8X25 FLANGE	0-28680-825-0	02	1	0005-0210
23	CLIP; OIL PIPE A/T<X9D> ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0005-0210
27	FILTER ASM; OIL A/T<X9D>	1-32569-024-0	01	1	0005-0210
28	CARTRIDGE; OIL FILTER A/T<X9D>	1-32569-025-0	01	1	0005-0210
29	BOLT; FILTER TO BRKT A/T<X9D> M8X25 FLANGE	0-28680-825-0	02	1	0005-0210
30	NUT; BRKT A/T<X9D> M8 FLANGE	0-91150-108-0	05	1	0005-0210
31	BRACKET; OIL FILTER A/T<X9D>	1-32569-067-0	01	1	0005-0210
32	BOLT; BRKT A/T<X9D> M8X30 FLANGE	0-28680-830-0	03	1	0005-0210
33	UNION; OIL FILTER A/T<X9D> (A)	1-09650-208-2	01	1	0005-0210
33	UNION; OIL FILTER A/T<X9D> (B)	1-09650-417-0	01	1	0005-0210
34	HOSE; FLEX,RAD TO OIL COOLER PIPE A/T<X9D> L=395	1-09364-830-0	02	1	0005-0210
36	PIPE; OIL,FILTER TO A/T A/T<X9D>	1-21115-880-0	01	1	0102-0106
36	PIPE; OIL,FILTER TO A/T A/T<X9D>	1-21117-054-0	01	1	0107-0111
36	PIPE; OIL,FILTER TO A/T A/T<X9D>	1-21117-185-0	01	1	0112-0210
37	HOSE; FLEX,OIL COOLER PIPE TO A/T A/T<X9D> L=475	1-09364-828-0	01	1	0005-0210
38	SLEEVE; RUBBER,FLEX HOSE A/T<X9D> ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-0210
39	CONNECTOR; FLEX HOSE,A/T AT545 A/T ALLISON(MD1)	1-09664-220-0	01	1	0005-0210
40	CONNECTOR; FLEX HOSE,A/T AT545 A/T ALLISON(MD1) M27 & SAE3/4	1-09654-063-0	01	1	0005-0210
41	GASKET; FLEX HOSE,A/T AT545 A/T ALLISON(MD1)	9-09562-217-0	01	1	0005-0210
42	PLUG; CONNECTOR,A/T AT545 A/T ALLISON(MD1) PT1/4	9-99204-513-0	01	1	0005-0210
43	CONNECTOR; FLEX HOSE,A/T AT545 A/T ALLISON(MD1) M27 & SAE3/4	1-09654-063-0	01	1	0005-0210
44	SWITCH; OIL THERMO AT545 A/T ALLISON(MD1)	1-82450-047-1	01	1	0005-0210
45	GASKET; OIL THERMO SW AT545 A/T ALLISON(MD1) ID=26.8	1-09623-058-0	01	1	0005-0210
46	BRACKET; OIL PIPE A/T<X9D> (A)	1-21439-057-0	01	1	0005-0210
46	BRACKET; OIL PIPE A/T<X9D> (D)	1-21439-114-0	01	1	0005-0210
46	BRACKET; OIL PIPE A/T<X9D> (B)	1-47475-427-1	01	1	0005-0210
46	BRACKET; OIL PIPE A/T<X9D> (C)	1-47476-954-0	01	1	0005-0210
47	BOLT; BRKT TO FRAME A/T<X9D> (B) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210
47	BOLT; BRKT TO FRAME A/T<X9D> (A) M10X25 FLANGE	0-28681-025-0	02	1	0005-0210
48	NUT; BRKT A/T<X9D> (B) M8 FLANGE	0-91150-108-0	03	1	0005-0210
48	NUT; BRKT A/T<X9D> (A) M10 FLANGE	0-91150-210-0	02	1	0005-0210
50	BOLT; CLIP A/T<X9D> (C) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210
50	BOLT; CLIP A/T<X9D> (B) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210
50	BOLT; CLIP A/T<X9D> (A) M10X20 FLANGE	0-28681-020-0	01	1	0005-0210
51	NUT; CLIP TO BRKT A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0005-0210
52	CLIP; FLEX HOSE,A/T A/T<X9D> (A) ID=18 L=28	1-09701-067-0	01	1	0005-0210
52	CLIP; FLEX HOSE,A/T A/T<X9D> (B) L=250	5-09707-030-1	01	1	0005-0210
53	BOLT; CLIP,FLEX HOSE,A/T A/T<X9D> M8X16 FLANGE	0-28080-816-0	01	1	0005-0107
53	BOLT; CLIP,FLEX HOSE,A/T A/T<X9D> M8X20 FLANGE	0-28680-820-0	01	1	0108-0210
95	BRACKET; CLIP A/T<X9D> L=50	1-47475-299-2	01	1	0005-0210
97	GASKET; CONNECTOR AT545 A/T ALLISON(MD1)	9-09562-217-0	01	1	0005-0210
98	CONNECTOR; HOSE & SW AT545 A/T ALLISON(MD1)	1-09664-204-1	01	1	0005-0210
99	SLEEVE; RUBBER,FLEX HOSE A/T<X9D> ID=17 OD=21 L=40	1-09337-012-0	03	1	0005-0210
100	CLIP; BAND,RUBBER SLEEVE A/T<X9D> L=250	5-09707-030-1	01	1	0005-0210
115	NUT; CLIP A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210
