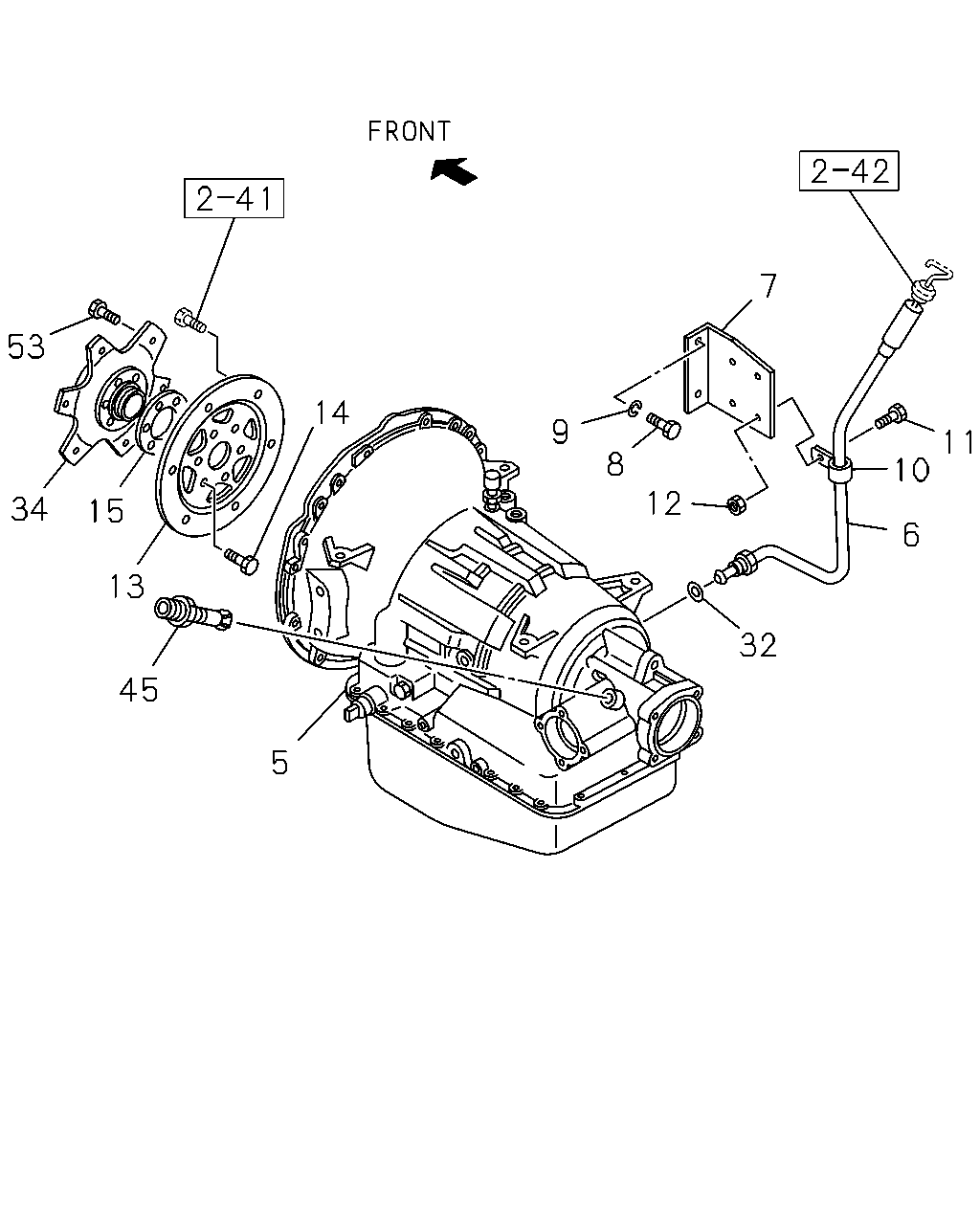

2-40 — AUTO TRANS ASM AND REPAIR KIT
(#22384) — 15 parça
7
53
14
9
11
8
10
12
34
15
6
13
32
45
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
TRANSMISSION ASM; AUTO
1-34000-270-0
01
1
0005-0210
6
FILLER; OIL
1-34121-126-0
01
1
0005-0210
7
BRACKET; OIL FILLER
1-34129-044-0
01
1
0005-0210
8
BOLT; BRKT
5/8"X30
1-09040-013-0
02
1
0005-0210
9
WASHER; LK
ID=16.2
9-09150-516-0
02
1
0005-0210
10
CLIP; OIL FILLER
ID=19
1-09700-664-0
02
1
0005-0210
11
BOLT; CLIP
M8X16 W/LK&PL WASHER
0-50140-816-0
04
1
0005-0210
12
NUT; BOLT
M8
9-09110-408-0
04
1
0005-0210
13
PLATE; FLEX,A/T
1-32213-022-0
01
1
0005-0210
14
BOLT; FLEX PLATE
M14X25
9-92061-425-0
06
1
0005-0210
15
WASHER; FLEX PLATE
1-32213-009-1
01
1
0005-0210
32
GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
9-09921-103-0
01
1
0005-0210
34
ADAPTER
8-94396-923-2
01
1
0005-0210
45
GEAR; DRIVEN,SPD,A/T
Z=17
1-33372-065-0
01
1
0005-0210
53
BOLT; ADAPTER
M10X30 FLANGE
0-28791-030-0
06
1
0005-0210
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
