2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#22382) — 48 parça

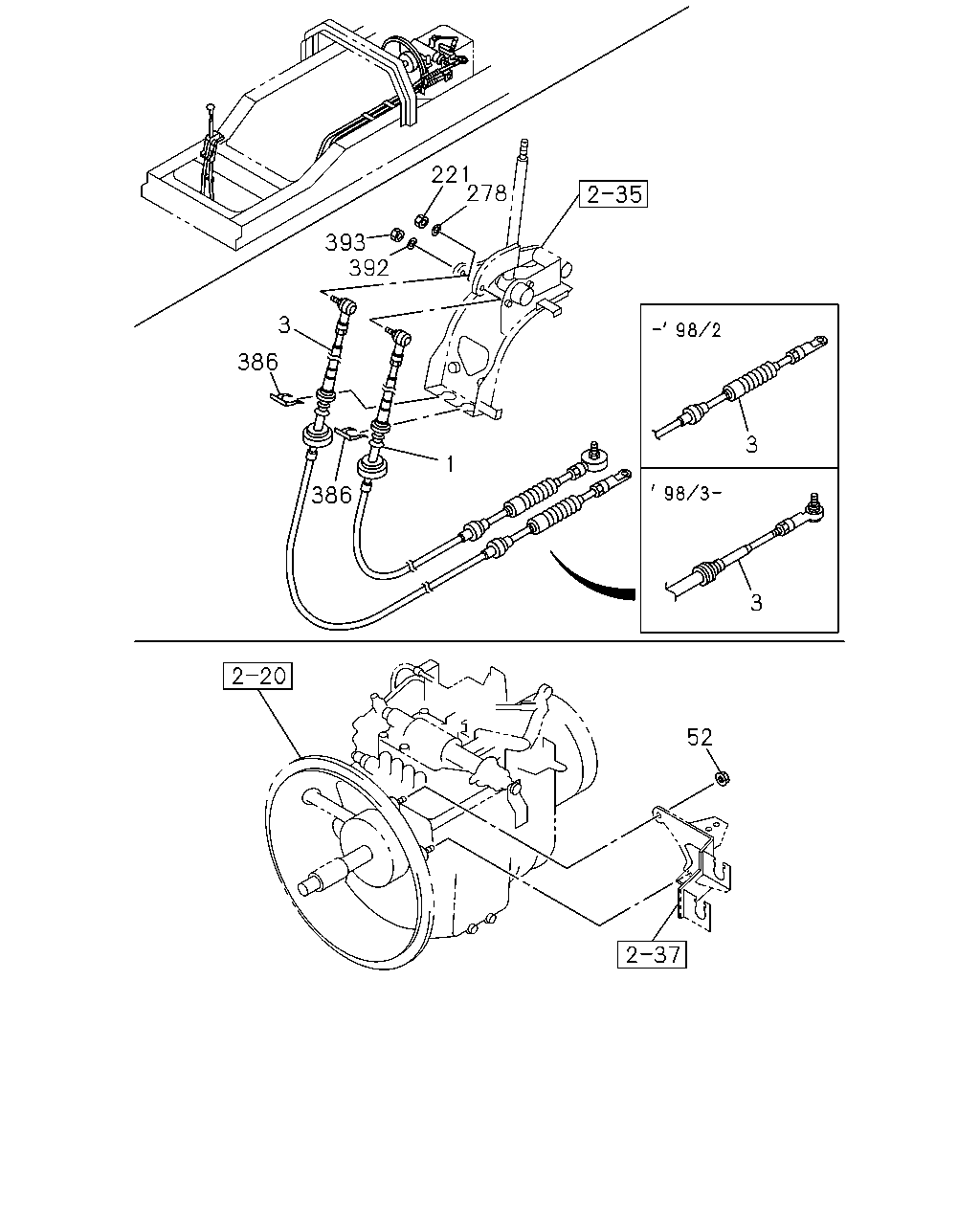

221 278 393 392 3 386 3 1 386 3 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT L=3321	1-33670-781-0	01	1	9510-9708
1	CABLE; SHIFT,TRANS CONT L=3321	1-33670-809-0	01	1	9709-9802
1	CABLE; SHIFT,TRANS CONT L=3320	1-33671-123-0	01	1	9803-0004
1	CABLE; SHIFT,TRANS CONT MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> L=3320	1-33671-123-0	01	1	0005-0210
3	CABLE; SELECT,TRANS CONT L=3409	1-33670-782-1	01	1	9510-9708
3	CABLE; SELECT,TRANS CONT L=3409	1-33670-810-1	01	1	9709-9802
3	CABLE; SELECT,TRANS CONT L=3410	1-33671-130-0	01	1	9803-0004
3	CABLE; SELECT,TRANS CONT MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> L=3410	1-33671-130-0	01	1	0005-0210
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9510-9605
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9606-9802
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9803-0004
52	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0005-0210
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9510-9802
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9803-0004
221	NUT; SHIFT WIRE TO LEVER ISUZU M/T<X9A> M8 FLANGE	1-09440-049-0	01	1	0005-0210
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9510-9802
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9510-0004
386	CLIP; CONT CABLE & TUBE ISUZU M/T<X9A>	1-09700-966-1	02	1	0005-0210
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9510-9802
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9510-9802
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9803-0004
393	NUT; SELECT CABLE,CAB ISUZU M/T<X9A> M8 FLANGE	1-09440-049-0	01	1	0005-0210

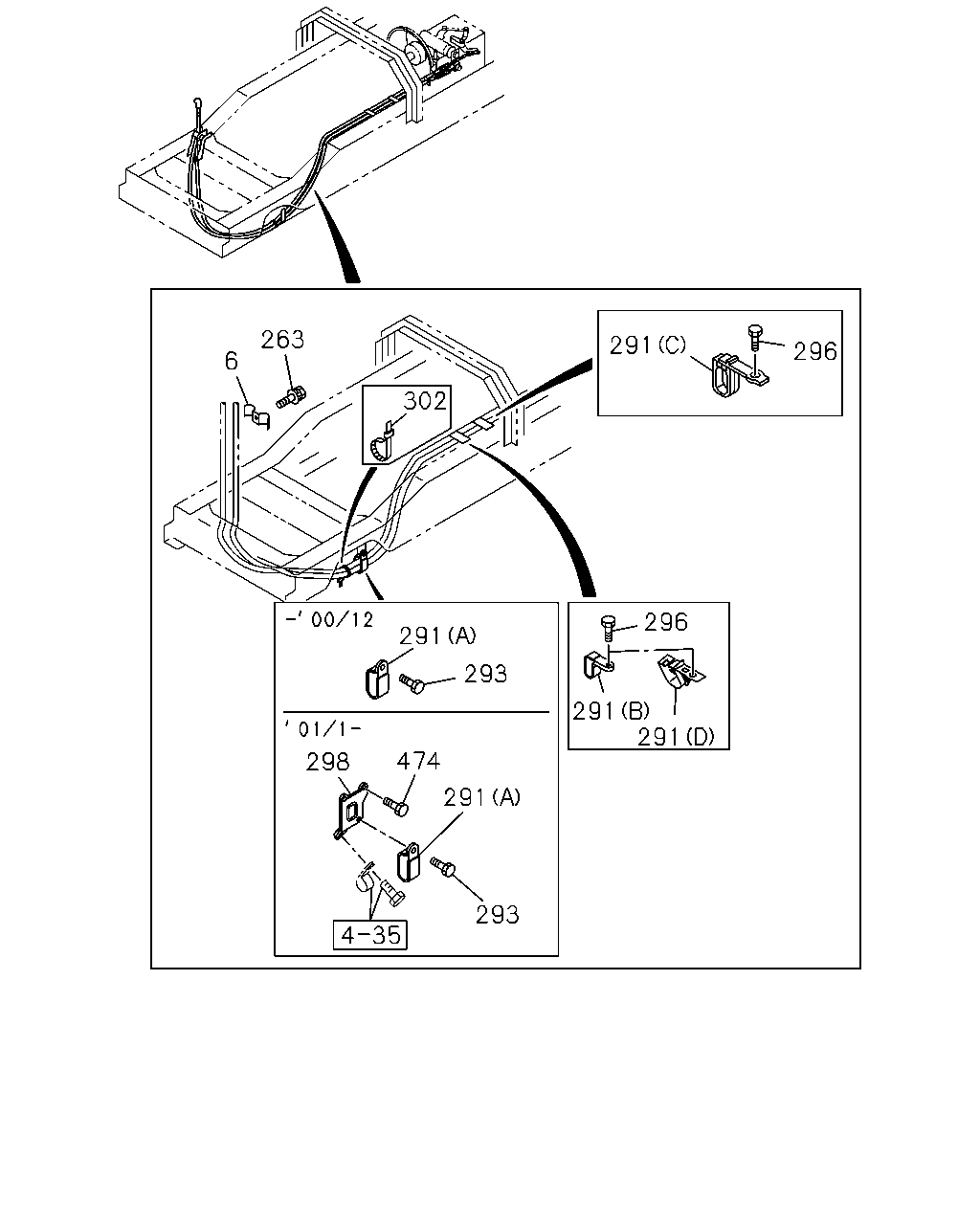

263 291 296 6 302 296 291 293 291 291 474 298 291 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9510-0004
6	CLIP; CABLE ISUZU M/T<X9A> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0210
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9802
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9803-9812
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004
263	BOLT; CLIP,TRANS CONT WIRE ISUZU M/T<X9A> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0210
291	CLIP; SHIFT TO SELECT,FRAME (B)	1-09700-621-2	01	1	9510-9602
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-245-0	01	1	9603-9701
291	CLIP; SHIFT TO SELECT,FRAME (D)	1-09701-258-0	01	1	9702-9702
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-245-0	01	1	9703-9802
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-245-0	01	1	9803-0004
291	CLIP; SHIFT TO SELECT,FRAME ISUZU M/T<X9A> (D) ID=13X2 L=32	1-09701-245-0	01	1	0005-0210
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9510-0004
291	CLIP; SHIFT TO SELECT,FRAME ISUZU M/T<X9A> (C) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0210
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	9510-0004
291	CLIP; SHIFT TO SELECT,FRAME ISUZU M/T<X9A> (A) ID=11X2 L=16	9-09535-026-0	01	1	0005-0210
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	9510-0004
293	BOLT; CLIP,SHIFT TO SELECT ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0005-0210
296	BOLT; CLIP,SHIFT & SELECT M8X25 FLANGE	0-28680-825-0	02	1	9510-9610
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	9611-9802
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	9803-0004
296	BOLT; CLIP,SHIFT & SELECT ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0005-0210
298	BRACKET	1-82659-149-0	01	1	0101-0210
302	CLIP; BAND L=300	1-09707-001-1	01	1	9510-0004
302	CLIP; BAND ISUZU M/T<X9A> L=300	1-09707-001-1	01	1	0005-0210
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0101-0210
