◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#2238) — 103 parça

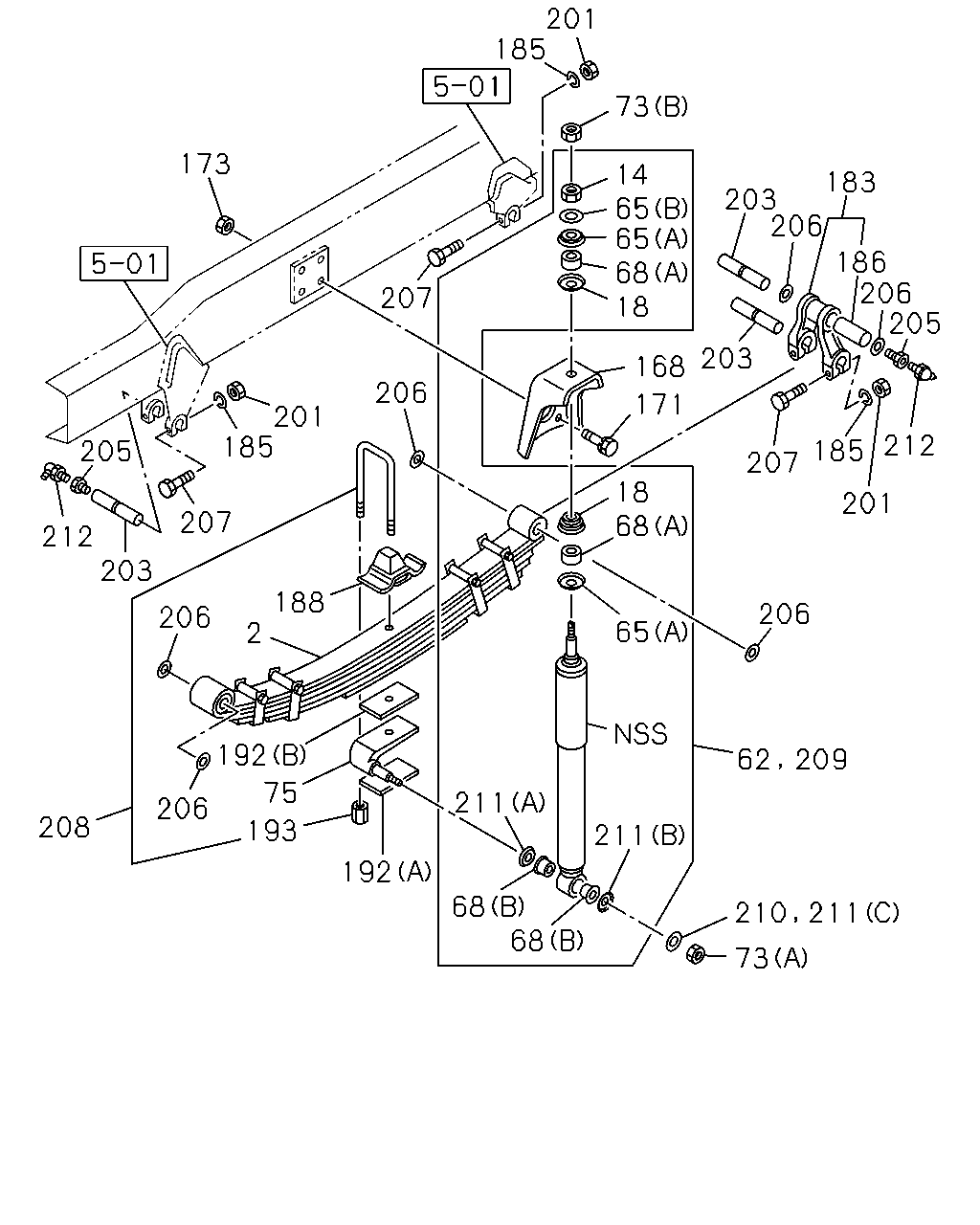

çizim 29373
201 185 73 173 14 65 65 68 18 183 203 206 186 206 205 207 203 168 206 171 185 212 185 205 207 18 68 201 207 212 203 188 206 206 65 2 192 209 75 211 206 208 193 211 192 68 68 73 62 210 211 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) 9-LEAF 		1-51110-827-0 02 1 9101-9204 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) 9-LEAF 		1-51110-827-0 02 1 9205-0203 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> BUS USER THAILAND BMTA<D5B> 9-LEAF 		1-51130-142-0 02 1 9101-9204 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6000MM(60W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> 9-LEAF 		1-51130-142-0 02 1 9205-0407 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6000MM(60W) 9-LEAF 		1-51130-142-0 02 1 0408- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 9-LEAF 		1-51110-826-0 02 1 9101-9204 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. THAILAND EQUIPMENT(PM9) 9-LEAF 		1-51110-826-0 02 1 9205-0203 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> 9-LEAF 		1-51110-826-0 02 1 0204-0407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 9-LEAF 		1-51110-826-0 02 1 0408- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY<B2D> 9-LEAF 		1-51110-826-0 02 1 0408- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>,BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 9-LEAF 		1-51110-824-0 02 1 9101-9204 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>,THAILAND EQUIPMENT(PM9) 9-LEAF 		1-51110-824-1 02 1 9205-0203 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 9-LEAF 		1-51110-824-1 02 1 0204-0407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 9-LEAF 		1-51110-824-1 02 1 0408- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9101- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9101-0205 ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0206- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-726-0 02 1 9909-0205 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0206- ● ●
65 WASHER; S/ABS
(B) UPPER ID=16.5 		1-09503-266-0 02 1 0206- ● ●
65 WASHER; S/ABS
(A) UPPER,LOWER ID=16.5 		9-51631-040-0 04 1 9101-0205 ● ●
65 WASHER; S/ABS
(A) UPPER,LOWER ID=16.5 		1-51631-068-0 04 1 0206- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9101- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9101-0205 ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0206- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		9-99110-420-0 02 1 9101-0311 ● ●
73 NUT; BRKT,SHOCK
(A) M20 		9-99110-520-0 02 1 0312- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		9-99111-414-0 02 1 9101- ● ●
75 BRACKET; FRT S/ABS
THAILAND EQUIPMENT(PM9) 		1-51681-606-0 01 1 9101-0203 ●
75 BRACKET; FRT S/ABS 1-51681-551-0 01 1 0204- ● ●
75 BRACKET; FRT S/ABS
THAILAND EQUIPMENT(PM9) 		1-51681-605-0 01 1 9101-0203 ●
75 BRACKET; FRT S/ABS
POWER STEERING<N40> 		1-51681-551-0 01 1 9101- ● ●
75 BRACKET; FRT S/ABS
POWER STEERING<N40> 		1-51681-550-0 01 1 9101-0203 ● ●
75 BRACKET; FRT S/ABS 1-51681-550-1 01 1 0204- ● ●
75 BRACKET; FRT S/ABS
EXC. POWER STEERING<N40>,THAILAND EQUIPMENT(PM9) 		1-51681-610-0 01 1 9101-0203 ●
75 BRACKET; FRT S/ABS
EXC. POWER STEERING<N40> 		1-51681-610-0 01 1 9101-0203 ●
75 BRACKET; FRT S/ABS
EXC. POWER STEERING<N40>,THAILAND EQUIPMENT(PM9) 		1-51681-609-0 01 1 9101-0203 ●
75 BRACKET; FRT S/ABS
EXC. POWER STEERING<N40> 		1-51681-609-0 01 1 9101-0203 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-426-0 02 1 9101- ● ●
171 BOLT; S/ABS BRKT
M12X40 W/LK WASHER 		0-50041-240-0 08 1 9101- ● ●
173 NUT; S/ABS
M12 		9-99110-412-0 08 1 9101- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9101- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9101-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210- ● ●
186 BUSHING; SHACKLE 1-51351-009-0 02 1 9101- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 9-51172-068-1 02 1 9101- ● ●
192 PIECE; DIST
THAILAND EQUIPMENT(PM9) (A) CASTER 80X145 ID=17 		1-51177-230-1 02 1 9101-9202 ●
192 PIECE; DIST
EXC. THAILAND EQUIPMENT(PM9) (A) CASTER 80X145 ID=17 		1-51177-238-1 02 1 9101-9202 ●
192 PIECE; DIST
(A) CASTER 80X145 ID=17 		1-51177-238-1 02 1 9101-9202 ●
192 PIECE; DIST
(A) CASTER 80X145 ID=17 		1-51177-238-1 02 1 9203- ● ●
192 PIECE; DIST
EXC. BUS USER THAILAND BMTA<D5B>,STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,THAILAND EQUIPMENT(PM9) (B) SPACER 80X150 ID=24.5 		1-51177-162-0 02 1 9101-9205 ● ●
192 PIECE; DIST
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. BUS USER THAILAND BMTA<D5B>,STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,THAILAND EQUIPMENT(PM9) (B) SPACER 80X150 ID=24.5 		1-51177-162-0 02 1 9101-9205 ● ●
192 PIECE; DIST
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. BUS USER THAILAND BMTA<D5B>,STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,THAILAND EQUIPMENT(PM9) (B) SPACER 80X148 ID=24.5 		1-51377-022-1 02 1 9207-0203 ● ●
192 PIECE; DIST
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> (B) SPACER 80X148 ID=24.5 		1-51377-022-1 02 1 0204- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9101- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9101- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9101- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9101- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9101- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9101- ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6000MM(60W) L=210 		1-87870-309-0 04 1 9101-0203 ●
208 U-BOLT SET; FRT SPRING
THAILAND EQUIPMENT(PM9) L=210 		1-87870-309-0 04 1 9101-0203 ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6000MM(60W) L=210 		1-87870-309-0 04 1 0204- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. THAILAND EQUIPMENT(PM9) L=230 		1-87870-311-0 04 1 9101-0203 ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) L=230 		1-87870-311-0 04 1 0204- ● ●
209 ABSORBER ASM; SHOCK
POWER STEERING<N40> 		1-51630-171-1 02 1 9101-9908 ● ●
209 ABSORBER ASM; SHOCK
EXC. POWER STEERING<N40> 		1-51630-171-1 02 1 9101-9908 ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9909- ● ●
211 WASHER; BRKT,SHOCK
POWER STEERING<N40> (C) ID=21 		9-09160-520-0 02 1 9101-9908 ● ●
211 WASHER; BRKT,SHOCK
POWER STEERING<N40> (A) ID=27 		9-51631-027-0 02 1 9101-9908 ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9909- ● ●
211 WASHER; BRKT,SHOCK
POWER STEERING<N40> (B) ID=21 		9-51631-028-0 02 1 9101-9908 ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9909- ● ●
211 WASHER; BRKT,SHOCK
EXC. POWER STEERING<N40> (C) ID=21 		9-09160-520-0 02 1 9101-9908 ● ●
211 WASHER; BRKT,SHOCK
EXC. POWER STEERING<N40> (A) ID=27 		9-51631-027-0 02 1 9101-9908 ● ●
211 WASHER; BRKT,SHOCK
EXC. POWER STEERING<N40> (B) ID=21 		9-51631-028-0 02 1 9101-9908 ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5? 		9-09031-110-0 06 1 9101- ● ●

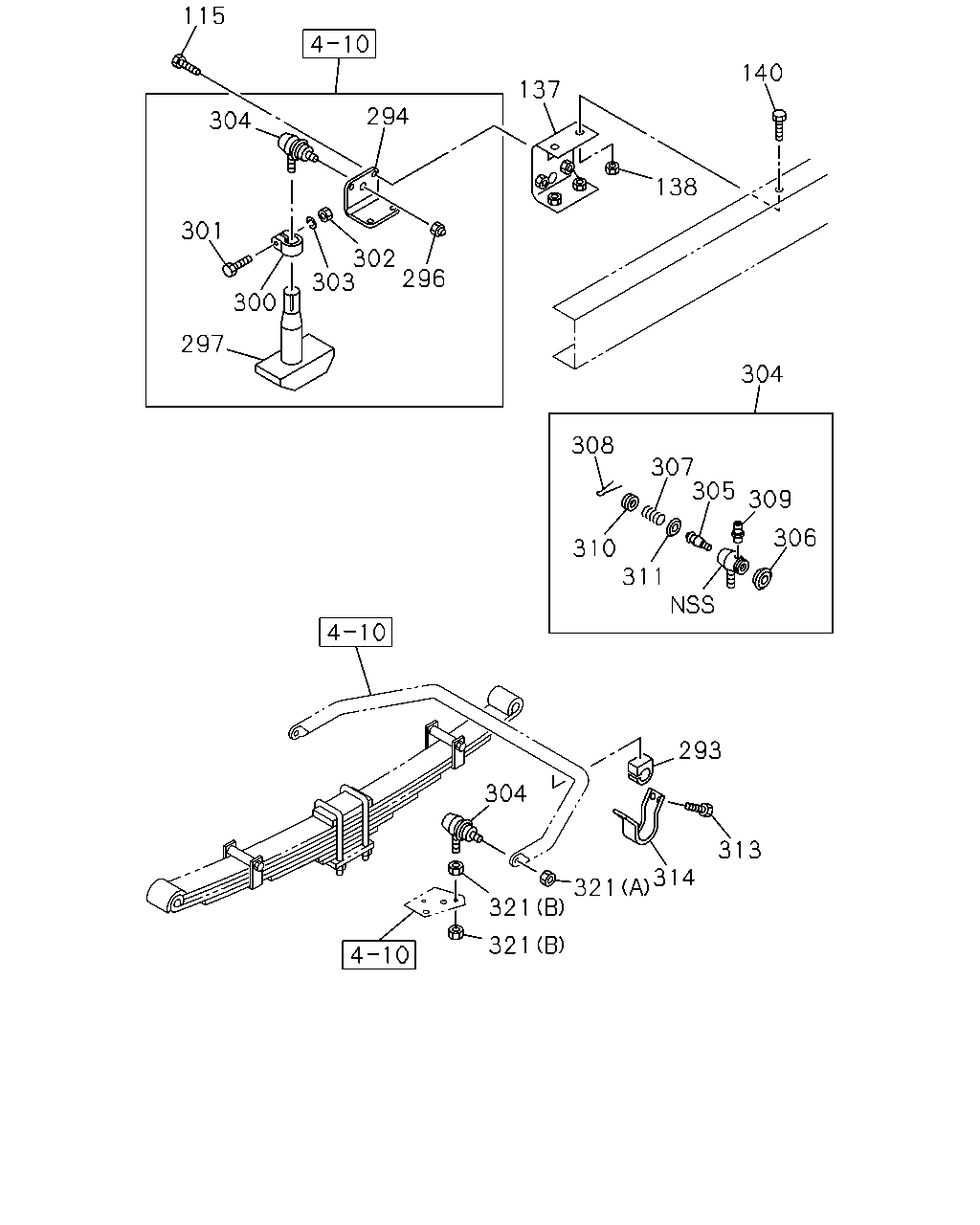

çizim 95519
115 140 137 294 304 138 301 302 303 296 300 297 304 308 307 305 309 306 310 311 293 304 313 314 321 321 321
BalonParca AdiParca NoAdetTipApplied Date A B
115 BOLT; SUPPORT BRKT TO BODY
STABILIZER SHAFT FRT&RR<FE6> M12X45 W/LK WASHER 		0-50041-245-0 08 1 9101- ● ●
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-049-2 02 1 9101- ● ●
138 NUT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-512-0 04 1 9101-0205 ● ●
140 BOLT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9101- ● ●
293 BUSHING; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-017-0 02 1 9101- ● ●
294 BRACKET; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-037-2 02 1 9101- ● ●
296 NUT; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> M16 		1-09449-014-0 02 1 9101- ● ●
297 ROD; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-046-1 02 1 9101- ● ●
300 CLAMP; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-43159-002-3 02 1 9101- ● ●
301 BOLT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12X47 		9-09801-294-0 02 1 9101- ● ●
302 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-512-0 02 1 9101- ● ●
303 WASHER; LK,CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-612-0 02 1 9101-9210 ● ●
303 WASHER; LK,CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-812-0 02 1 9211- ● ●
304 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-43150-468-0 02 1 9101- ● ●
305 JOINT; BALL,ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-87090-211-0 02 1 9101- ● ●
306 BOOT; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-43159-036-0 02 1 9101- ● ●
307 SPRING; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-09580-080-0 02 1 9101- ● ●
308 PIN; SPLIT
STABILIZER SHAFT FRT&RR<FE6> OD=2.8 L=55 		9-08113-055-0 02 1 9101- ● ●
309 NIPPLE; GREASE,ROD END
STABILIZER SHAFT FRT&RR<FE6> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9101- ● ●
310 PLUG; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-44375-001-0 02 1 9101- ● ●
311 SEAT; JOINT BALL
STABILIZER SHAFT FRT&RR<FE6> 		1-44373-002-0 02 1 9101- ● ●
313 BOLT; RET,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		8-94463-351-0 08 1 9101- ● ●
314 RETAINER; SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-015-2 02 1 9101- ● ●
321 NUT; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> (A) M16 		1-09449-014-0 02 1 9101- ● ●
321 NUT; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> (B) M20 		9-99110-520-0 02 1 9101- ● ●
321 NUT; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> (B) M20 		9-09840-318-0 02 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
