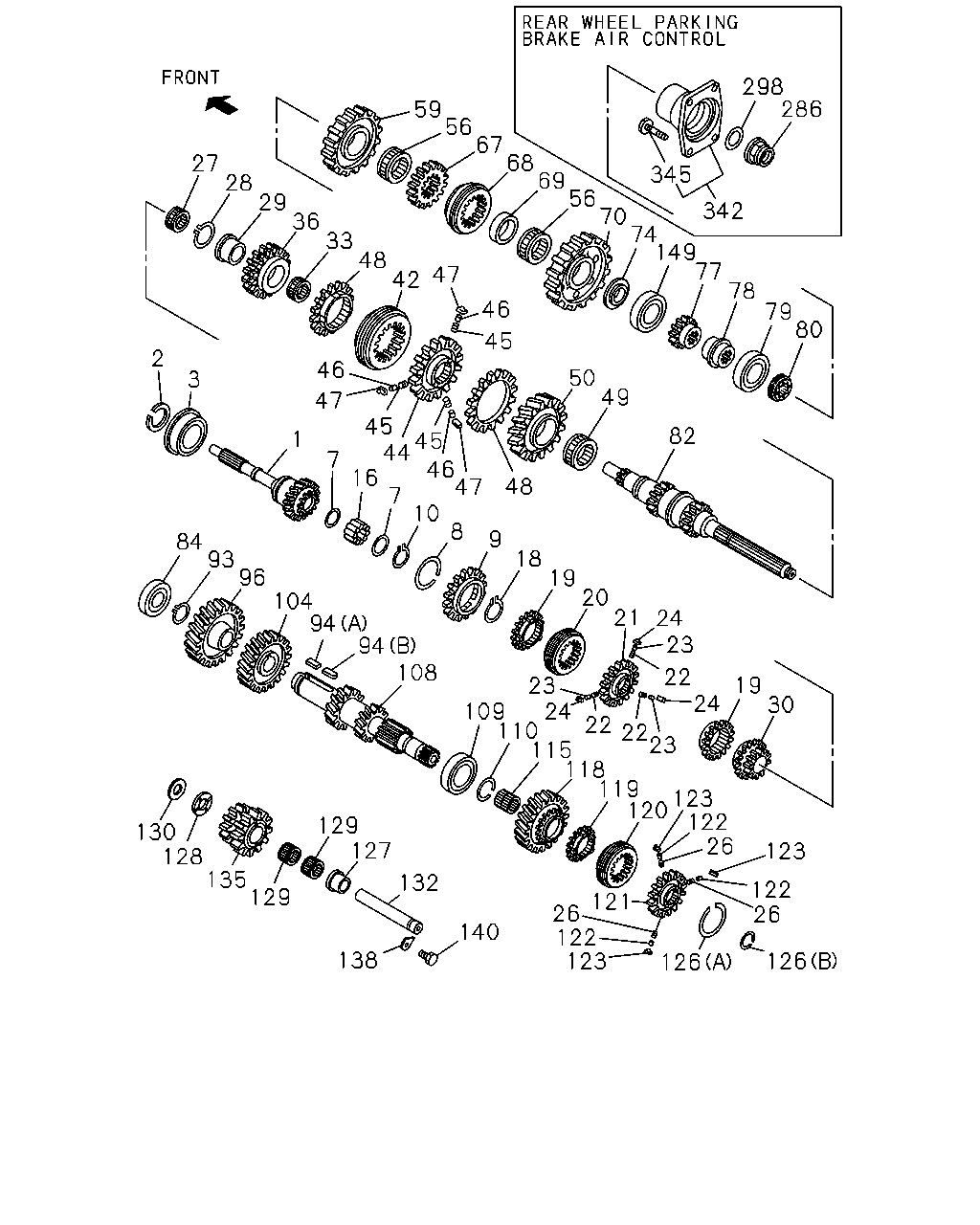

2-26A — MANUAL TRANSMISSION GEAR (#22379) — 193 parça

298 286 59 56 67 68 69 56 70 74 149 77 78 79 80 345 27 28 29 36 33 48 42 342 47 46 45 2 46 50 49 3 47 45 45 44 16 82 1 7 46 47 48 7 10 8 9 84 93 96 18 19 20 21 104 94 24 23 94 108 22 24 19 30 23 109 24 110 115 118 119 123 120 122 26 22 22 23 129 127 130 128 135 129 123 132 122 26 121 26 122 123 140 138 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0210	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0210	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-0210	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0210	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-0210	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-0210	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0210	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0210	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-0210	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-0210	●	●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9510-0210	●	●
20	SLEEVE	1-33262-167-0	01	1	9510-0210	●	●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9510-9811	●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-0210	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-0210	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0210	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0210	●	●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9510-0210		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-0210	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-0210	●	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-0210	●	●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9510-0210	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-0210	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9510-0210	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9510-0210	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-0210	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-0210	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-0210	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9510-0210	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-0210	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0210	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0210	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9510-0210	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9510-0210	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9510-0210	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-0210	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-0210	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-0210	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-0210	●	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-0210	●	●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9510-0210	●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9510-0210	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9510-0210	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-0210	●	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-0210	●	●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9510-0210		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-099-0	01	1	9510-0210		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9510-9902		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	9903-0210		●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	9510-0210		●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-0210	●	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-0210	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-0210		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-0210	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-0210	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-0210	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-0210	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-0210	●	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-283-0	01	1	9510-9601	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-0210	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-281-0	01	1	9510-9601		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-0210		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-0210	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-0210	●	●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9510-0210		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9510-0210		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9510-0210		●
115	BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	9510-0210		●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9510-0210		●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9510-0210		●
120	SLEEVE	1-33262-095-0	01	1	9510-0210		●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9510-0210		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0210		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0210		●
126	RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9510-0210		●
126	RING; SNAP,CLU HUB (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9510-0210		●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9510-0210	●	●
128	WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	9510-0210	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-0210	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-0210	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-0210	●	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-0210	●
132	SHAFT; REV	1-33351-023-1	01	1	9510-0210		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-0210	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9510-0210	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9510-0210	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9510-0210	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9510-0210	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-0210	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-0210	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-291-0	01	1	9510-0210	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-2	04	1	9510-0210	●	●

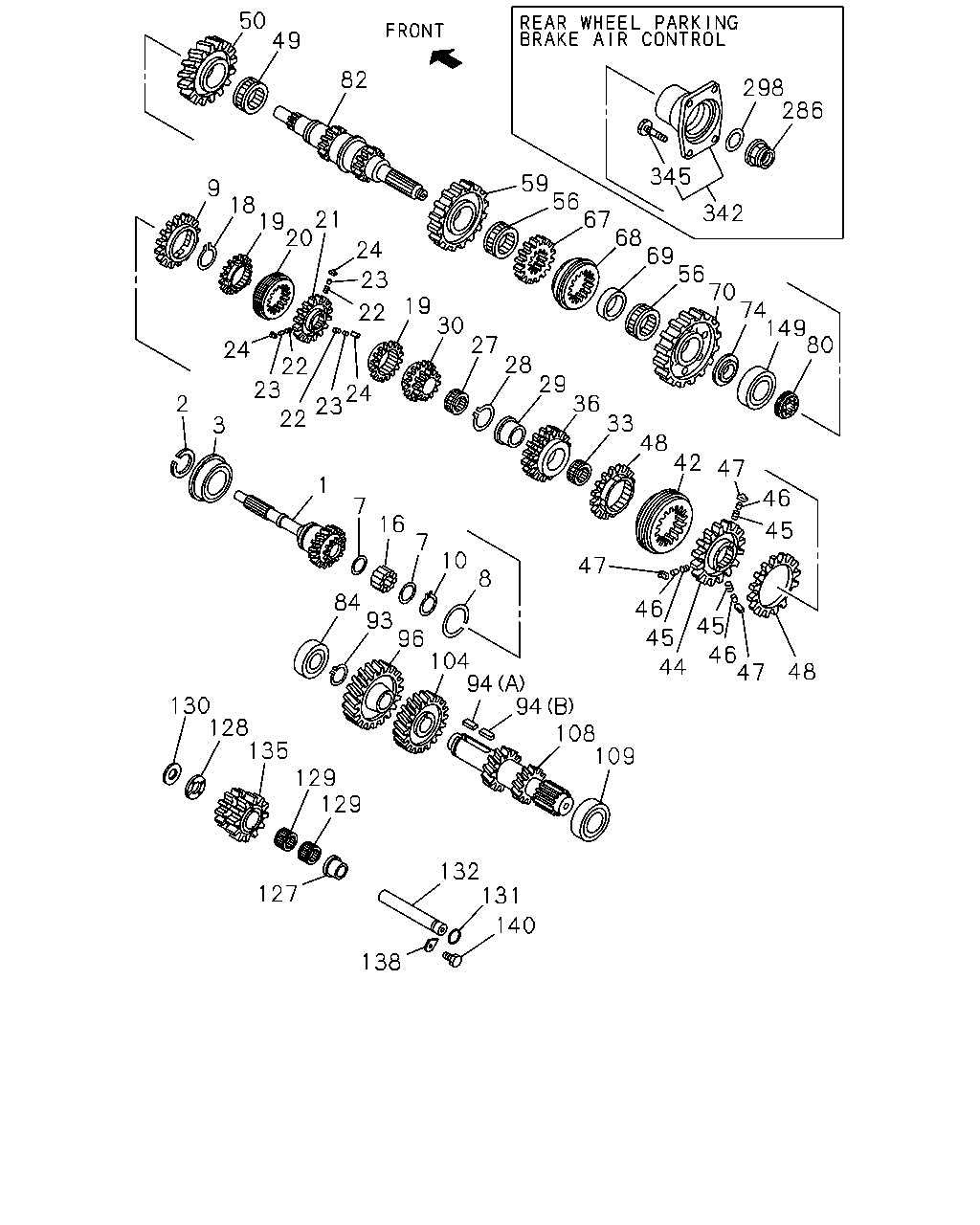

50 49 82 298 286 345 59 56 67 68 69 56 70 74 149 80 9 18 19 21 20 342 24 23 19 30 27 28 29 36 33 48 42 22 24 22 23 24 23 22 2 3 47 1 46 7 16 45 7 10 47 8 84 93 96 104 94 46 45 45 46 47 44 48 94 108 109 130 128 135 129 129 132 131 127 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0210	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0210	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-0210	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0210	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-0210	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-0210	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0210	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0210	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-0210	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-0210	●	●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9510-0210	●	●
20	SLEEVE	1-33262-167-0	01	1	9510-0210	●	●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9510-9811	●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-0210	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-0210	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0210	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0210	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-0210	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-0210	●	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-0210	●	●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9510-0210	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-0210	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9510-0210	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9510-0210	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-0210	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-0210	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-0210	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9510-0210	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-0210	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0210	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0210	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9510-0210	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9510-0210	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9510-0210	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-0210	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-0210	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-0210	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-0210	●	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-0210	●	●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9510-0210	●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9510-0210	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9510-0210	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-0210	●	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-0210	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-0210	●	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-0210	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-0210		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-0210	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-0210	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-0210	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-0210	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-0210	●	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-283-0	01	1	9510-9601	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-0210	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-281-0	01	1	9510-9601		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-0210		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-0210	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-0210	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9510-0210	●	●
128	WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	9510-0210	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-0210	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-0210	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-0210	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9510-0210	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-0210	●
132	SHAFT; REV	1-33351-023-1	01	1	9510-0210		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-0210	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9510-0210	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9510-0210	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9510-0210	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9510-0210	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-0210	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-0210	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-291-0	01	1	9510-0210	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-2	04	1	9510-0210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
