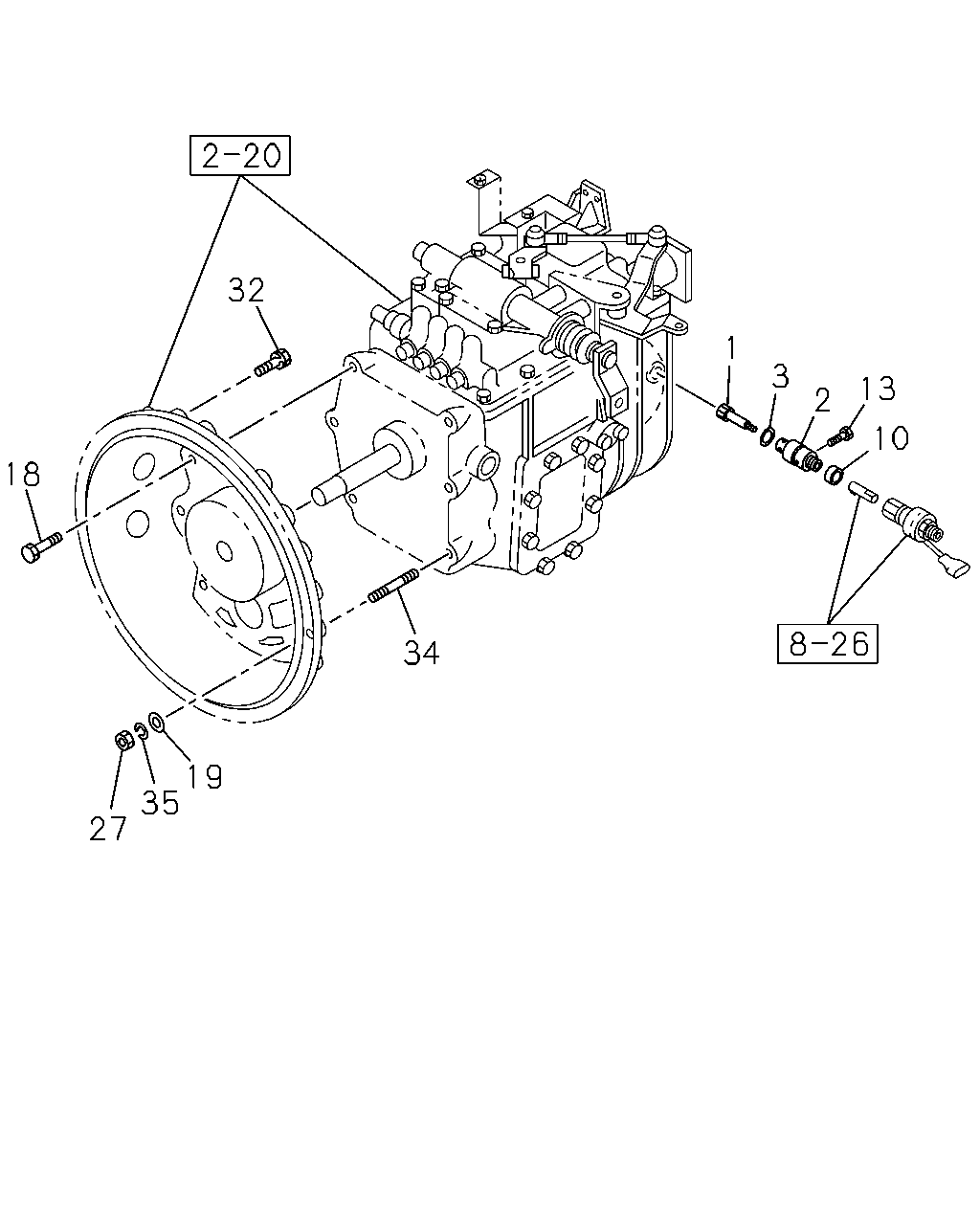

2-25A — SPEEDOMETER DRIVEN GEAR (#22377) — 13 parça

32 1 3 13 2 10 18 34 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=18	1-33372-121-4	01	1	9510-0210	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-039-1	01	1	9510-0210	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-370-0	01	1	9510-0210	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9510-0210	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9510-0210	●	●
18	BOLT; CLU HSG TO TRANS M14X40 W/LK&PL WASHER	0-50151-440-0	05	1	9510-0210	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=15	9-09160-514-0	01	1	9510-0210	●	●
27	NUT; CLU HSG TO TRANS M14	9-99110-514-0	01	1	9510-0210	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 W/LK&PL WASHER	0-50151-030-0	10	1	9510-9606	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28781-030-0	10	1	9607-0210	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X20,M10X26 L=56	1-09049-014-1	02	1	9510-0210	●	●
34	STUD; CLU HSG M14X39 L=57	1-09302-145-1	01	1	9510-0210	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=14.2	9-09150-514-0	01	1	9510-0210	●	●
