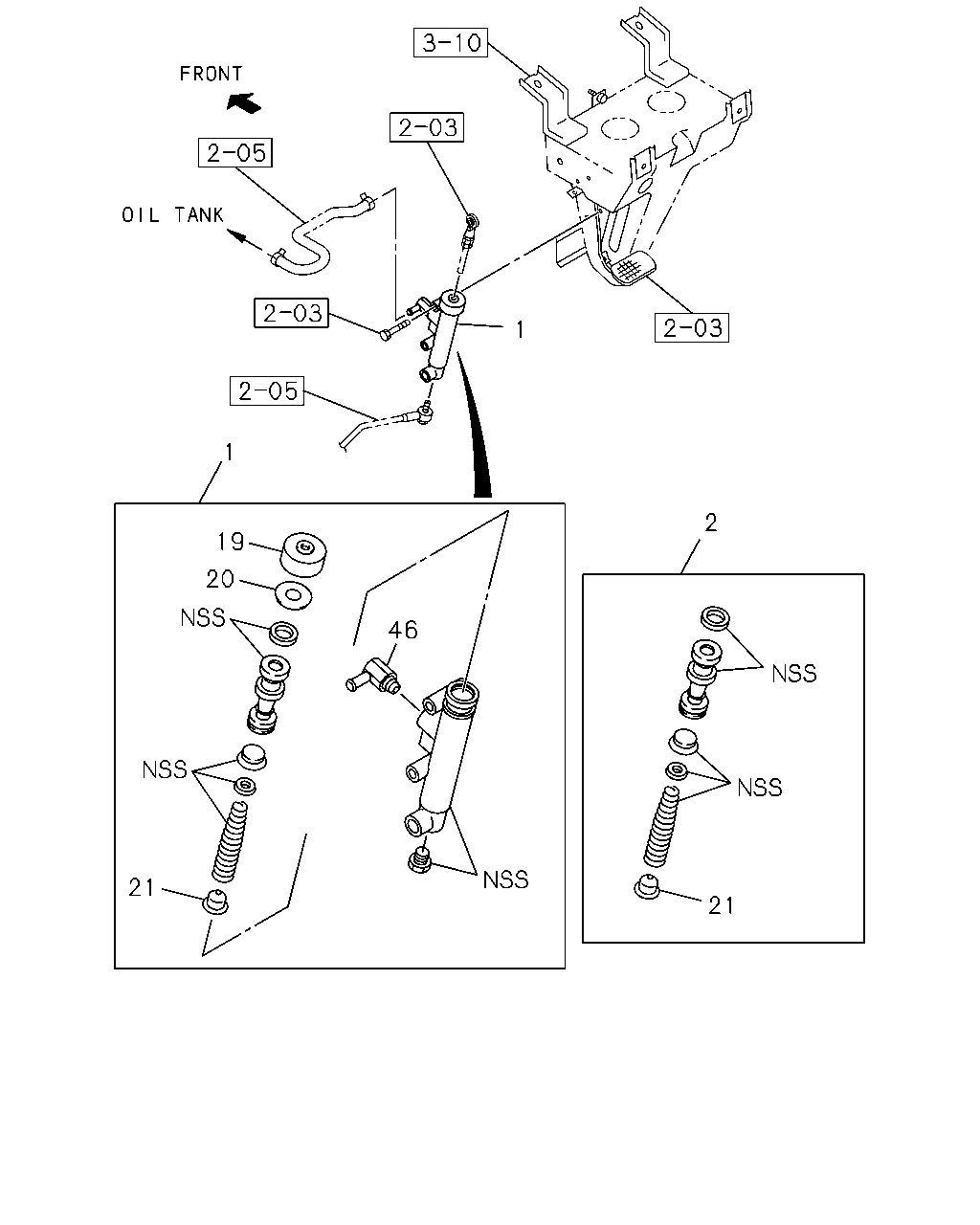

2-08 — CLUTCH MASTER CYLINDER (#22374) — 12 parça

1 1 2 19 20 46 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER	1-47500-239-2	01	1	9510-0103
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A>	1-47500-239-2	01	1	0104-0210
2	REPAIR KIT; CLU M/CYL	1-85572-010-0	01	1	9510-0103
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A>	1-85572-010-0	01	1	0104-0210
19	BOOT; CLU M/CYL	9-47545-032-0	01	1	9510-0103
19	BOOT; CLU M/CYL ISUZU M/T<X9A>	9-47545-032-0	01	1	0104-0210
20	RING; SNAP,BODY OD=26.9	9-09180-125-0	01	1	9510-0103
20	RING; SNAP,BODY ISUZU M/T<X9A> OD=26.9	9-09180-125-0	01	1	0104-0210
21	VALVE; CHECK	1-47565-004-0	01	1	9510-0103
21	VALVE; CHECK ISUZU M/T<X9A>	1-47565-004-0	01	1	0104-0210
46	CONNECTOR; PIPE	1-47559-016-0	01	1	9510-0103
46	CONNECTOR; PIPE ISUZU M/T<X9A>	1-47559-016-0	01	1	0104-0210
