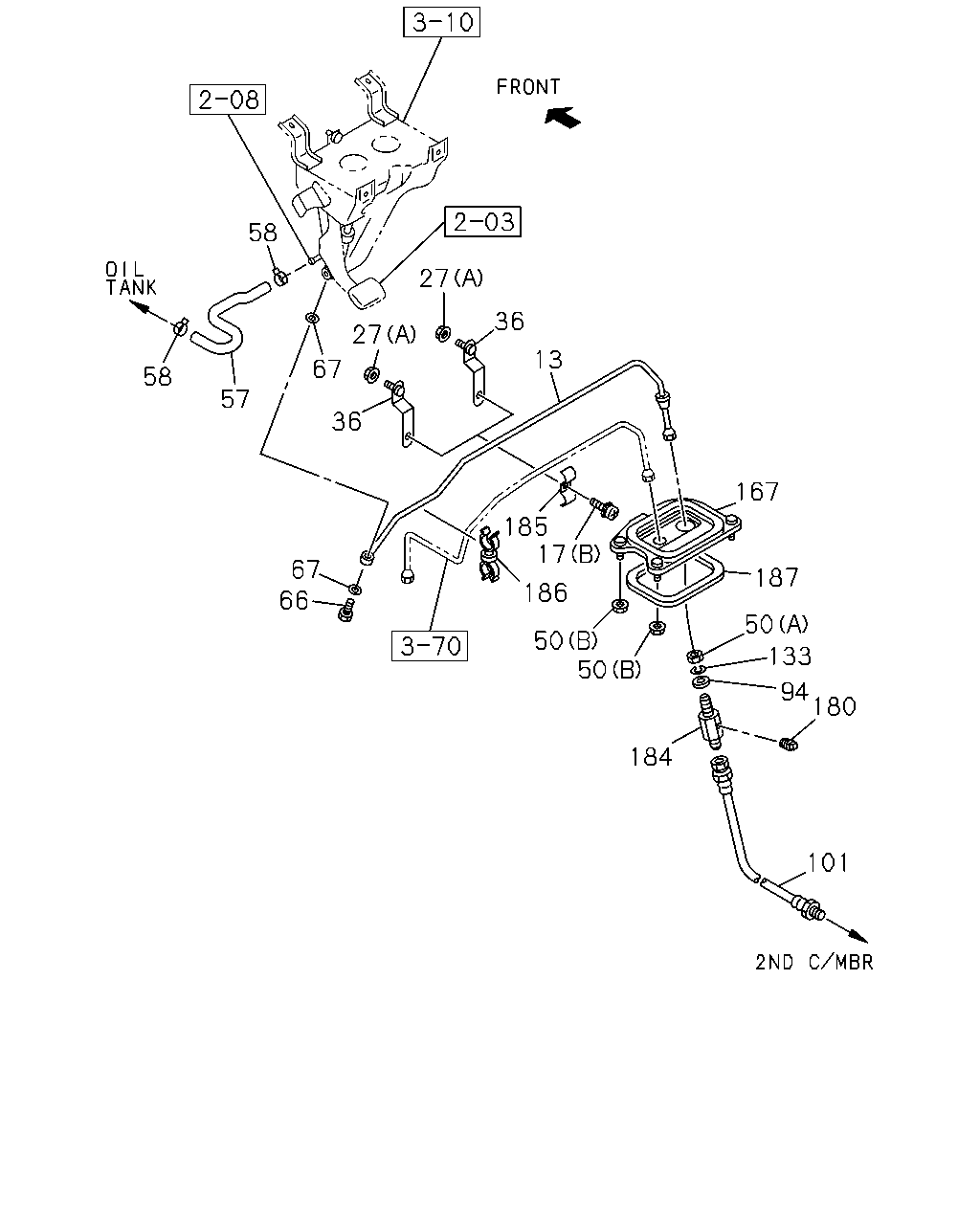

2-05 — CLUTCH PIPING (#22372) — 119 parça

160 167 185 187 36 27 17 50 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9802
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9803-0004
17	BOLT; BRKT ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0210
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9802
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9803-0004
27	NUT; BRKT ISUZU M/T<X9A> (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210
36	BRACKET; CLIP	1-79738-186-1	02	1	9510-0210
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0210
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9510-0004
50	NUT; UNION ISUZU M/T<X9A> (A) M14	9-99111-414-0	01	1	0005-0210
160	GROMMET; OIL PIPE A/T<X9D> OD=31.6	8-94198-177-0	01	1	0005-0210
167	BRACKET; UNION	1-79738-204-2	01	1	9510-9911
167	BRACKET; UNION	1-79738-845-0	01	1	9912-0210
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9510-0210
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	01	1	9510-9706
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9707-0210
187	SEAL; BRKT	1-79738-190-0	01	1	9510-0210

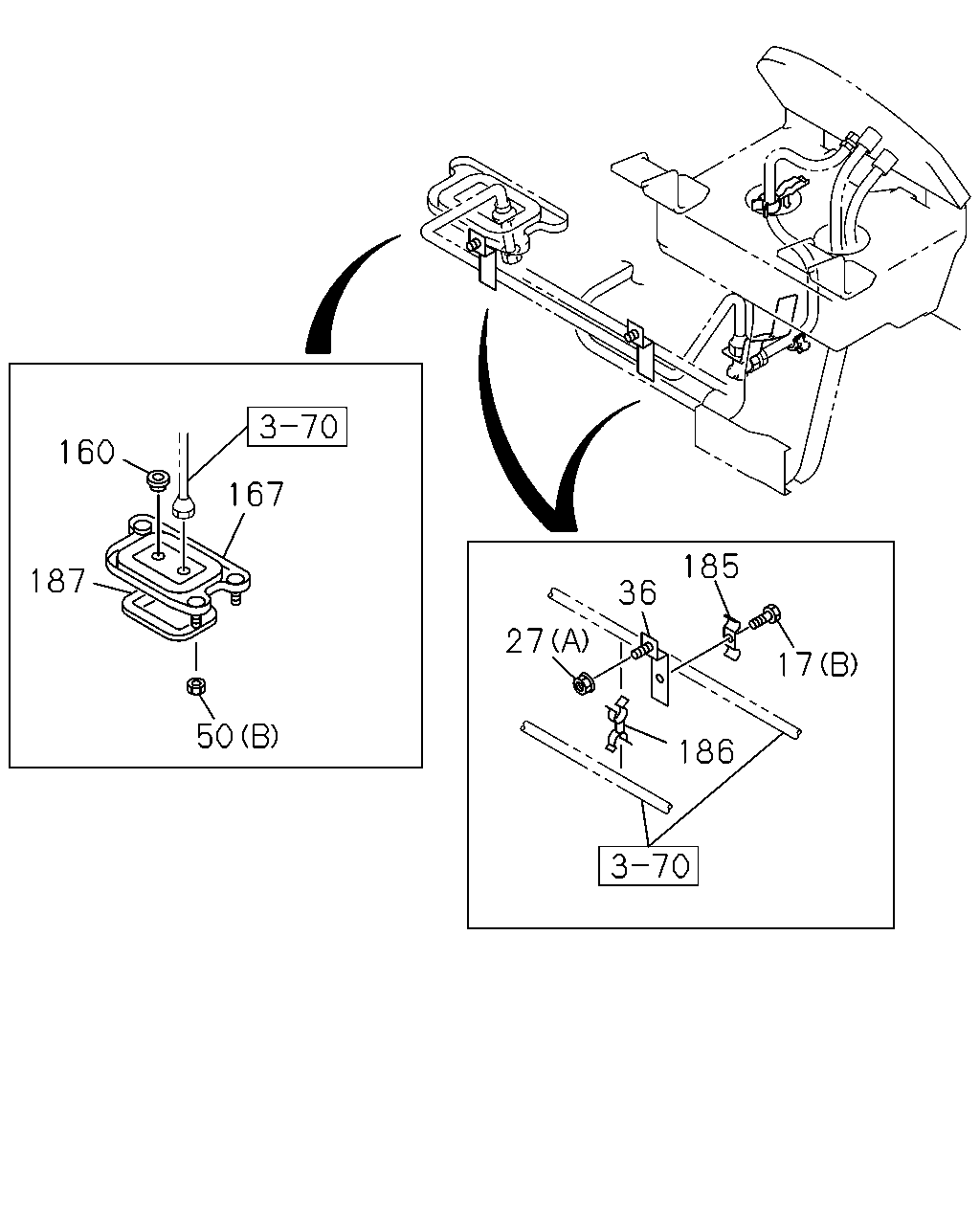

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9510-0004
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL ISUZU M/T<X9A>	1-47429-143-0	01	1	0005-0210
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9802
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9803-0004
17	BOLT; BRKT ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0210
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9802
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9803-0004
27	NUT; BRKT ISUZU M/T<X9A> (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210
36	BRACKET; CLIP	1-79738-186-1	02	1	9510-0210
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0210
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9510-0004
50	NUT; UNION ISUZU M/T<X9A> (A) M14	9-99111-414-0	01	1	0005-0210
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9510-0004
57	HOSE; CLU M/CYL TO OIL TANK ISUZU M/T<X9A>	1-47427-312-0	01	1	0005-0210
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9510-0004
58	CLIP; RUBBER HOSE TO M/CYL ISUZU M/T<X9A> ID=14	8-94238-572-0	02	1	0005-0210
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9510-0004
66	BOLT; EYE JOINT,CLU M/CYL ISUZU M/T<X9A> M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0210
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004
67	GASKET; EYE JOINT,CLU M/CYL ISUZU M/T<X9A> ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9510-0004
94	WASHER; PL,UNION ISUZU M/T<X9A> ID=15	9-09160-514-0	01	1	0005-0210
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-0004
101	HOSE; FLEX,OIL PIPE TO OIL PIPE ISUZU M/T<X9A> L=430	1-09364-859-1	01	1	0005-0210
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-0004
133	WASHER; LK,UNION ISUZU M/T<X9A> ID=14.2	9-09150-514-0	01	1	0005-0210
167	BRACKET; UNION	1-79738-204-2	01	1	9510-9911
167	BRACKET; UNION	1-79738-845-0	01	1	9912-0210
180	PLUG; PIPE	9-09204-510-0	01	1	9510-0004
180	PLUG; PIPE ISUZU M/T<X9A>	9-09204-510-0	01	1	0005-0210
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9510-0004
184	UNION; FLEX HOSE ISUZU M/T<X9A> 3WAY	1-09656-679-0	01	1	0005-0210
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9510-0210
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	01	1	9510-9706
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9707-0210
187	SEAL; BRKT	1-79738-190-0	01	1	9510-0210

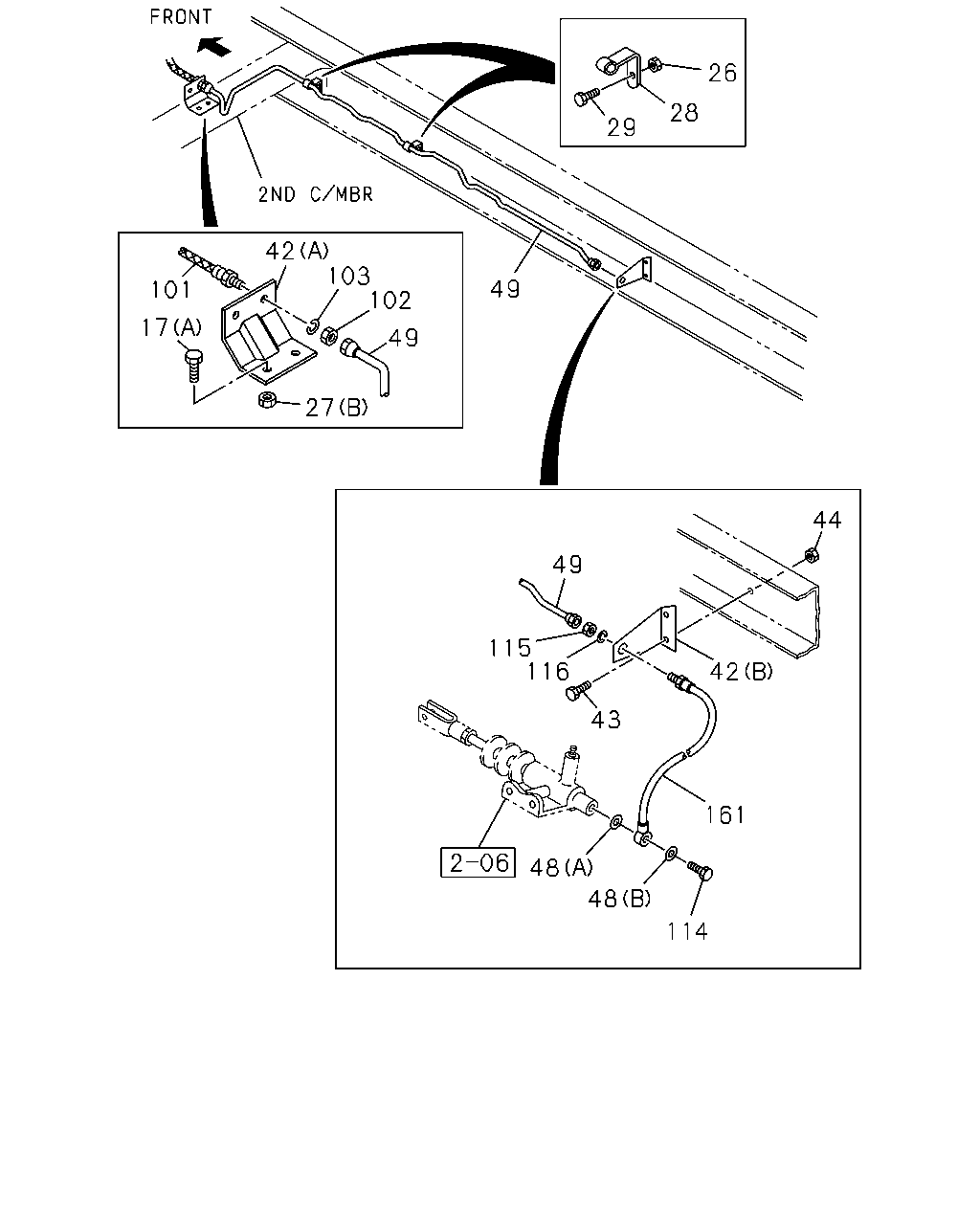

26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9802
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9803-0004
17	BOLT; BRKT ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9510-9606
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9809
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9810-0004
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0005-0210
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0210
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9802
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9803-0004
27	NUT; BRKT ISUZU M/T<X9A> (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9809
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9810-0004
28	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9810-0004
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	03	1	0005-0210
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-0004
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> (B)	1-47475-709-0	01	1	0005-0210
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0004
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> (A)	1-47476-781-0	01	1	0005-0210
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9803-0004
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0005-0210
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9802
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9803-0004
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0005-0210
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-0004
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> (B) ID=10.5	1-09630-074-1	01	1	0005-0210
48	GASKET; FLEX HOSE,CLU CONT (A) ID=14.2	9-09851-004-0	01	1	9510-0004
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> (A) ID=14.2	9-09851-004-0	01	1	0005-0210
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2330 SERVICED BY L=2400	1-47426-395-0	01	1	9510-0004
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ISUZU M/T<X9A> L=2330 SERVICED BY L=2400	1-47426-395-0	01	1	0005-0210
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-0004
101	HOSE; FLEX,OIL PIPE TO OIL PIPE ISUZU M/T<X9A> L=430	1-09364-859-1	01	1	0005-0210
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0004
102	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> M14	9-99111-414-0	01	1	0005-0210
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0004
103	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=14.2	9-09150-514-0	01	1	0005-0210
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9510-0004
114	BOLT; EYE,FLEX HOSE ISUZU M/T<X9A>	1-09675-158-0	01	1	0005-0210
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0004
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> M14	9-99111-414-0	01	1	0005-0210
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0004
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=14.2	9-09150-514-0	01	1	0005-0210
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	9510-0004
161	HOSE; FLEX,SLAVE CYL ISUZU M/T<X9A> L=310	0-05567-310-0	01	1	0005-0210
