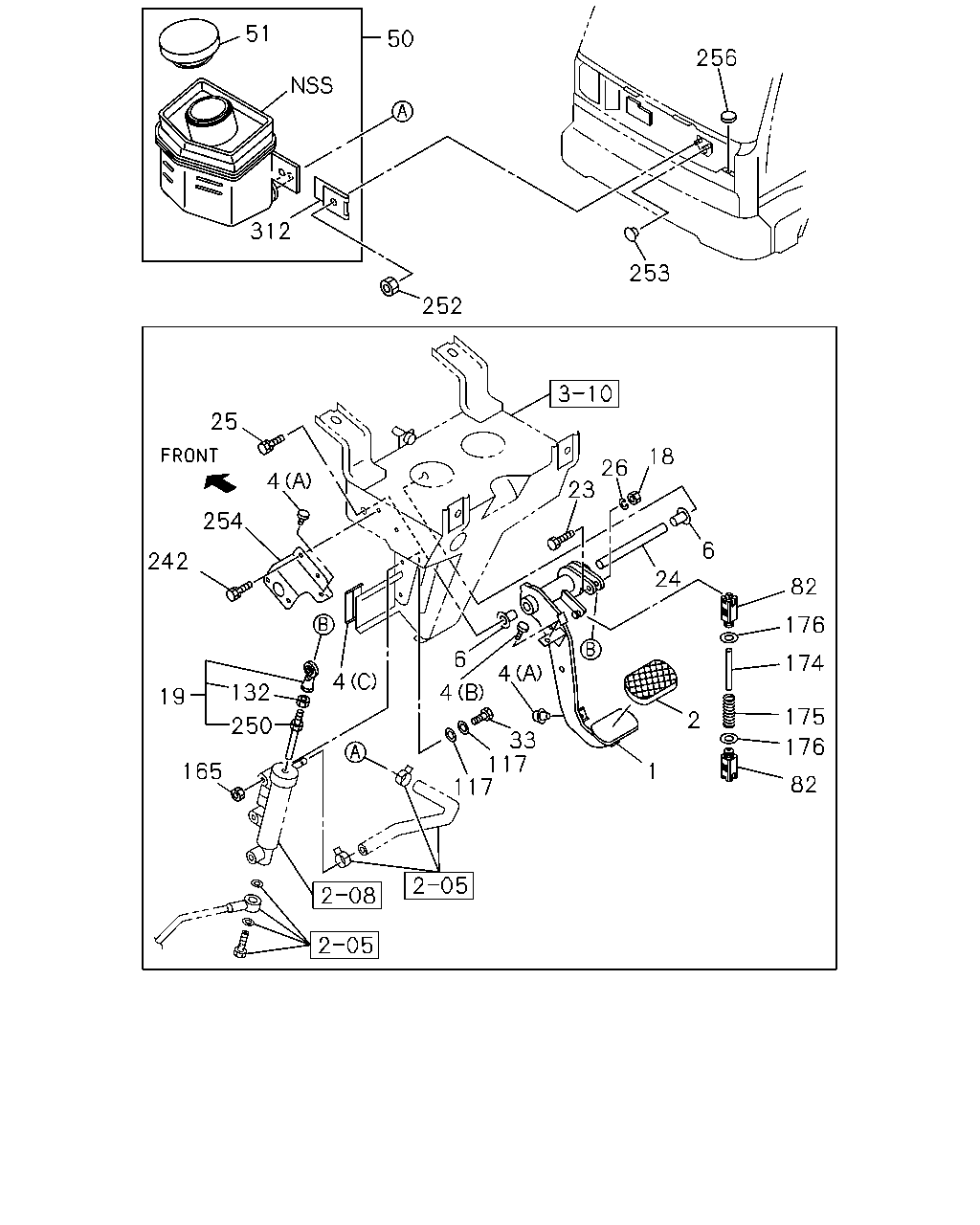

2-03 — CLUTCH PEDAL AND CONTROL (#22371) — 55 parça

51 50 256 312 253 252 25 18 26 23 4 254 6 242 24 82 176 6 174 4 4 132 4 19 175 2 250 33 117 117 176 165 1 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU	1-73908-078-3	01	1	9510-9803
1	PEDAL; CLU	1-73908-342-2	01	1	9804-0103
1	PEDAL; CLU ISUZU M/T<X9A>	1-73908-342-2	01	1	0104-0210
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9510-0103
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-94204-810-0	01	1	0104-0104
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-97893-618-1	01	1	0104-0210
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	02	1	9510-0210
4	STOPPER; CLU PEDAL (C)	1-73908-088-0	01	1	9510-9612
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9510-9904
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (C)	1-73908-088-1	01	1	0104-0210
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9510-0103
6	BUSHING; CLU PEDAL ISUZU M/T<X9A>	1-09330-045-0	02	1	0104-0210
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9510-0103
18	NUT; PUSH ROD ISUZU M/T<X9A> M8	9-09110-508-0	01	1	0104-0210
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9510-9803
19	ROD ASM; PUSH,CLU	1-73908-332-0	01	1	9804-0103
19	ROD ASM; PUSH,CLU ISUZU M/T<X9A>	1-73908-332-0	01	1	0104-0210
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9510-9803
23	BOLT; PUSH ROD M8X43.7	1-73908-333-0	01	1	9804-0103
23	BOLT; PUSH ROD ISUZU M/T<X9A> M8X43.7	1-73908-333-0	01	1	0104-0210
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9510-0210
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9510-0210
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9510-0103
26	WASHER; LK,PUSH ROD ISUZU M/T<X9A> ID=8.2	9-09150-608-0	01	1	0104-0210
33	BOLT; CLU M/CYL TO BRKT M10X65	5-09030-024-1	02	1	9510-0103
33	BOLT; CLU M/CYL TO BRKT ISUZU M/T<X9A> M10X65	5-09030-024-1	02	1	0104-0210
50	TANK; OIL,CLU	1-47530-182-0	01	1	9510-0004
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-182-0	01	1	0005-0210
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	9511-0004
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	8-94136-483-1	01	1	0005-0210
82	CLEVIS; HELPER,CLU PEDAL	1-73998-472-1	02	1	9510-0103
82	CLEVIS; HELPER,CLU PEDAL ISUZU M/T<X9A>	1-73998-472-1	02	1	0104-0210
117	WASHER; PL,CLU M/CYL ID=10.5 OD=18	1-09985-173-0	04	1	9510-9601
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9510-0103
132	NUT; LK,PUSH ROD ISUZU M/T<X9A> M8	9-09110-408-0	01	1	0104-0210
165	NUT; CLU M/CYL M10 FLANGE	0-91150-210-0	02	1	9510-0103
165	NUT; CLU M/CYL ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0104-0210
174	PIN; STRAIGHT,CLU PEDAL	1-73998-474-0	01	1	9510-0103
174	PIN; STRAIGHT,CLU PEDAL ISUZU M/T<X9A>	1-73998-474-0	01	1	0104-0210
175	SPRING; HELPER	1-73908-052-0	01	1	9510-0103
175	SPRING; HELPER ISUZU M/T<X9A>	1-73908-052-0	01	1	0104-0210
176	SEAT; SPRING	1-09503-114-0	02	1	9510-9612
176	SEAT; SPRING ISUZU M/T<X9A>	1-09503-114-0	02	1	0104-0210
242	BOLT; BRKT,CLUTCH M6X16 W/LK WASHER	0-50040-616-0	02	1	9510-0103
242	BOLT; BRKT,CLUTCH ISUZU M/T<X9A> M6X16 W/LK WASHER	0-50040-616-0	02	1	0104-0210
250	ROD; PUSH,CLU	1-73996-219-0	01	1	9510-0103
250	ROD; PUSH,CLU ISUZU M/T<X9A>	1-73996-219-0	01	1	0104-0210
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9510-0004
252	NUT; OIL TANK ISUZU M/T<X9A> M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0005-0210
253	GROMMET; HOLE,OIL TANK A/T<X9D>	1-09983-146-0	01	1	0005-0210
254	BRACKET; CLU SENSOR	1-73998-979-4	01	1	9510-0103
254	BRACKET; CLU SENSOR ISUZU M/T<X9A>	1-73998-979-4	01	1	0104-0210
256	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	9510-0210
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	9511-0004
312	PLATE; OIL TANK,CLU ISUZU M/T<X9A>	1-21249-007-1	01	1	0005-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
