Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01A - CLUTCH
▶
2-01A — CLUTCH
(#22370) — 52 parça
Tümü
A - MBJ5J M/T
B - MBJ6T M/T
◀

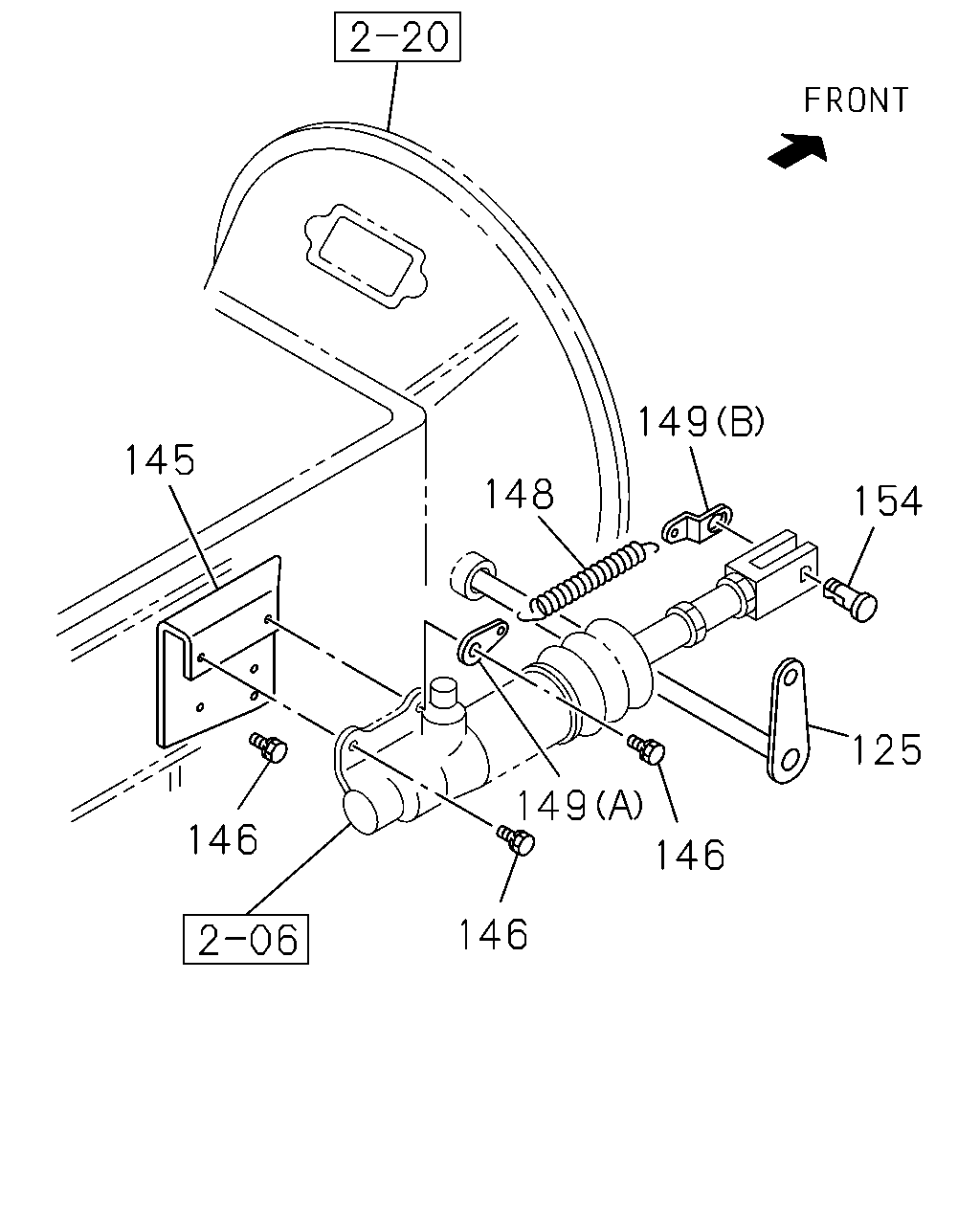

[201A] SLAVE CYLINDER (9 parça)

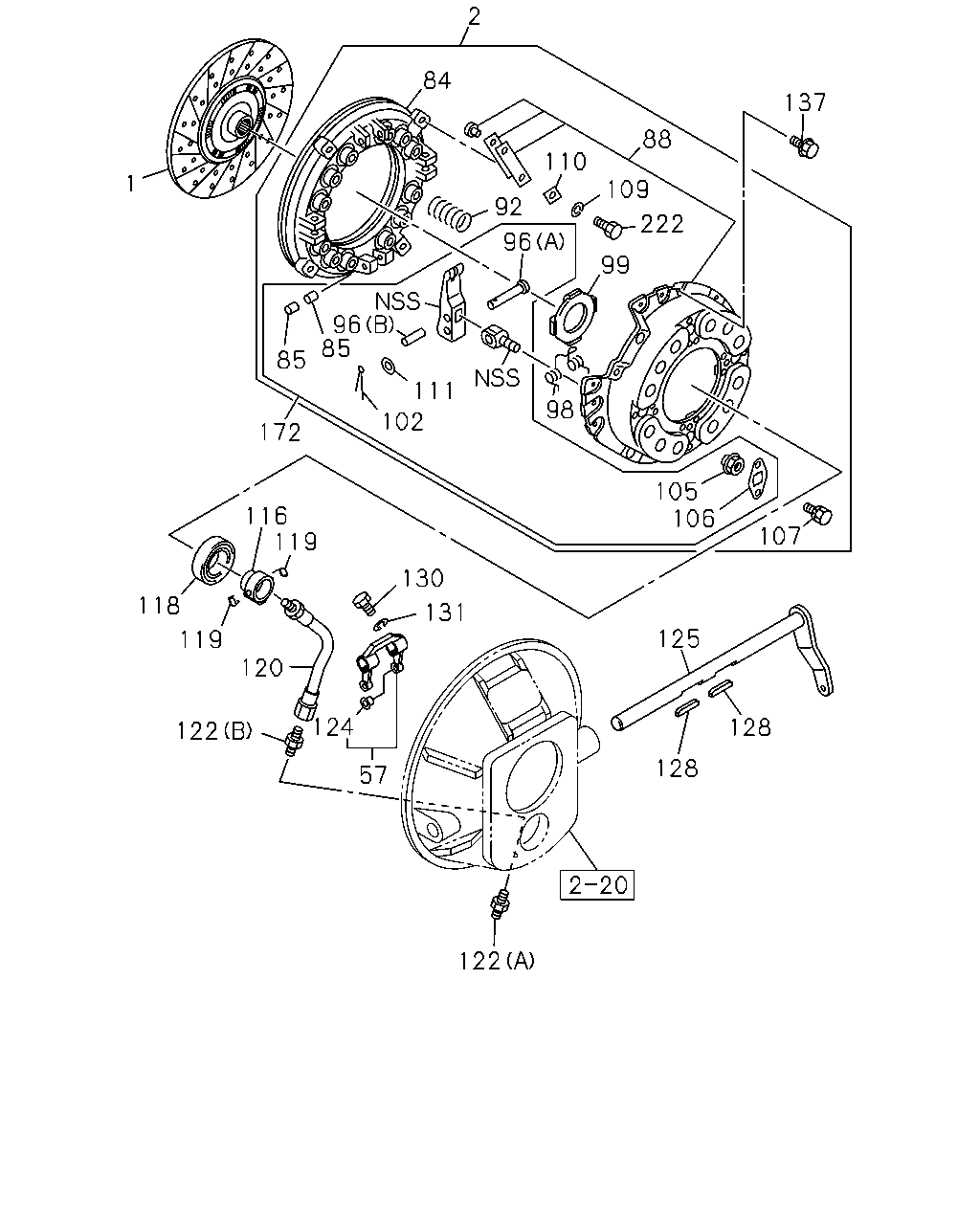

[201A] CLUTCH DISC AND PRESSURE PLATE (43 parça)
▶
149
145
148
154
125
149
146
146
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
125
SHAFT; CLU
1-31342-273-0
01
1
9510-9803
●
●
125
SHAFT; CLU
1-31342-299-0
01
1
9804-0210
●
●
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-054-0
01
1
9510-9803
●
●
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-059-0
01
1
9804-0210
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28181-025-0
04
1
9510-0210
●
●
148
SPRING; CLU RETURN
1-09583-249-0
01
1
9510-0210
●
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-019-1
01
1
9510-0210
●
●
149
EYE; SPRING,RETURN SPRING
(A) T=2.3
1-47324-005-1
01
1
9510-0210
●
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
9510-0210
●
●
2
84
137
88
110
1
109
92
222
96
99
96
85
85
111
98
102
172
105
106
116
119
107
130
118
131
125
119
120
124
128
122
128
57
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
13"
1-31240-661-0
01
1
9510-0105
●
●
1
DISC; CLUTCH
13"
1-31240-900-0
01
1
0106-0210
●
●
2
PLATE ASM; PRESSURE,CLU
13"
1-31220-278-1
01
1
9510-9802
●
●
2
PLATE ASM; PRESSURE,CLU
13"
1-31220-235-3
01
1
9803-0110
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-393-0
01
1
0111-0210
●
●
57
FORK; SHIFT,CLU
1-31340-056-0
01
1
9510-0210
●
●
84
PLATE; PRESSURE
13"
1-31221-105-0
01
1
9510-0210
●
●
85
BUSHING; RELEASE LEVER
1-31239-004-0
08
1
9510-0210
●
●
88
COVER SUB ASM; CLU
1-31210-016-0
01
1
9510-0004
●
●
88
COVER SUB ASM; CLU
1-31210-016-0
01
1
0111-0210
●
●
92
SPRING; CLU
1-31214-045-0
12
1
9510-9802
●
●
92
SPRING; CLU
1-31214-034-0
12
1
9803-0210
●
●
96
PIN; RELEASE LEVER
(A) L=63.0
1-31232-002-0
04
1
9510-0210
●
●
96
PIN; RELEASE LEVER
(B) L=29.0
1-31232-003-0
04
1
9510-0210
●
●
98
SPRING; RETURN
1-31233-004-0
04
1
9510-9710
●
●
98
SPRING; RETURN
1-31233-010-0
04
1
9711-0210
●
●
99
PLATE; RELEASE LEVER
1-31321-006-0
01
1
9510-0210
●
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
04
1
9510-0210
●
●
105
NUT; SUPPORT
1-31239-006-0
04
1
9510-0210
●
●
106
PLATE; LK,LEVER SUPPORT
1-31239-017-0
04
1
9510-0210
●
●
107
BOLT; LK PLATE
1-31239-015-0
08
1
9510-0210
●
●
109
WASHER; LK,STRAP
ID=10.2
9-09150-010-0
04
1
9510-0210
●
●
110
WASHER; SPECIAL,STRAP
T=1.0
9-09854-128-0
04
1
9510-0110
●
●
110
WASHER; SPECIAL,STRAP
1-31239-060-0
04
1
0111-0210
●
●
111
WASHER; PL,STRAP
9-31239-039-0
04
1
9510-0110
●
●
111
WASHER; PL,STRAP
1-31239-058-0
04
1
0111-0210
●
●
116
BLOCK; SHIFT,CLU
1-31321-080-1
01
1
9510-0210
●
●
118
BEARING; CLU RELEASE
1-09820-008-0
01
1
9510-0111
●
●
118
BEARING; CLU RELEASE
1-09820-114-0
01
1
0112-0210
●
●
119
SPRING; SHIFT FORK
1-09585-053-0
01
1
9510-0210
●
●
119
SPRING; SHIFT FORK
1-09585-054-0
01
1
9510-0210
●
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=170
1-09364-869-0
01
1
9510-0210
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
9510-0210
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
01
1
9510-0210
●
●
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
9510-0210
●
●
125
SHAFT; CLU
1-31342-273-0
01
1
9510-9803
●
●
125
SHAFT; CLU
1-31342-299-0
01
1
9804-0210
●
●
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
9510-0210
●
●
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
9510-0210
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
9510-0210
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
10
1
9510-0210
●
●
172
LEVER KIT; RELEASE,CLU
13"
1-87830-086-5
01
1
9510-0210
●
●
222
BOLT; STRAP
M10X24
9-09802-708-0
04
1
9510-0210
●
●
