◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#2237) — 27 parça

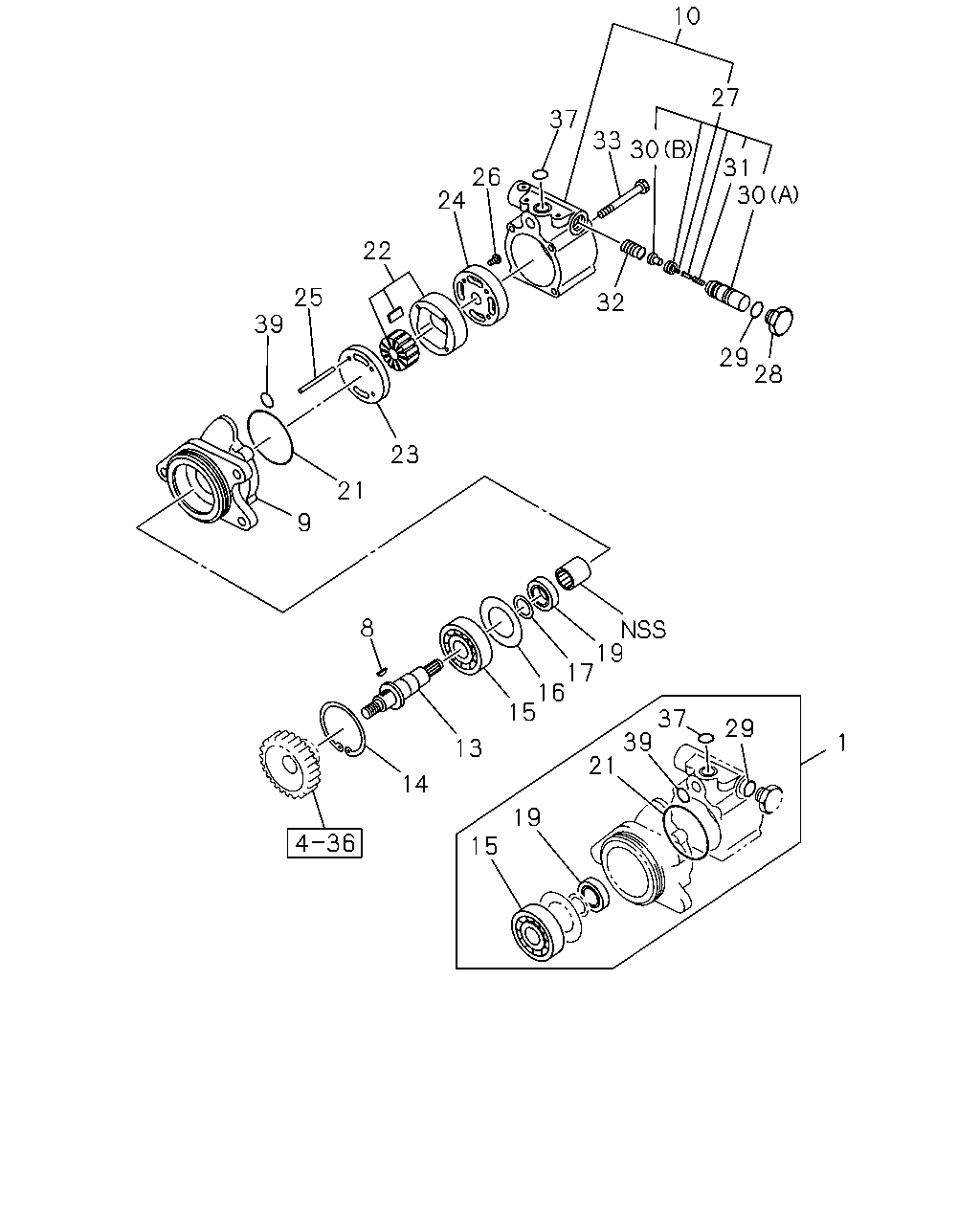

çizim 94273
10 27 37 33 30 31 30 26 24 22 25 32 39 29 28 23 21 9 8 19 17 16 15 37 39 21 29 1 13 14 19 15
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-285-3 		1-85574-008-0 01 1 -
7 WASHER; SHAFT
ASM PART: A = 1-19500-285-3 		9-09150-016-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-285-3 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19511-057-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19511-091-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-285-3 		1-19521-018-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-285-3 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-285-3 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-285-3 		9-88510-234-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-132-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-234-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-285-3 		1-19519-233-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-285-3 		9-88510-408-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-285-3 		1-19519-106-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-236-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-285-3 		9-88510-248-0 01 1 -
30 VALVE; OIL PUMP
(A) ASM PART: A = 1-19500-285-3 		1-19519-098-0 01 1 9106-
30 VALVE; OIL PUMP
(B) ASM PART: A = 1-19500-285-3 		1-19519-179-0 01 1 9106-
31 SPRING; INNER,OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-175-0 01 1 9106-
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-285-3 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-285-3 		1-19519-244-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-285-3 		9-48429-028-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-285-3 		1-19519-100-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
