Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#22368) — 305 parça

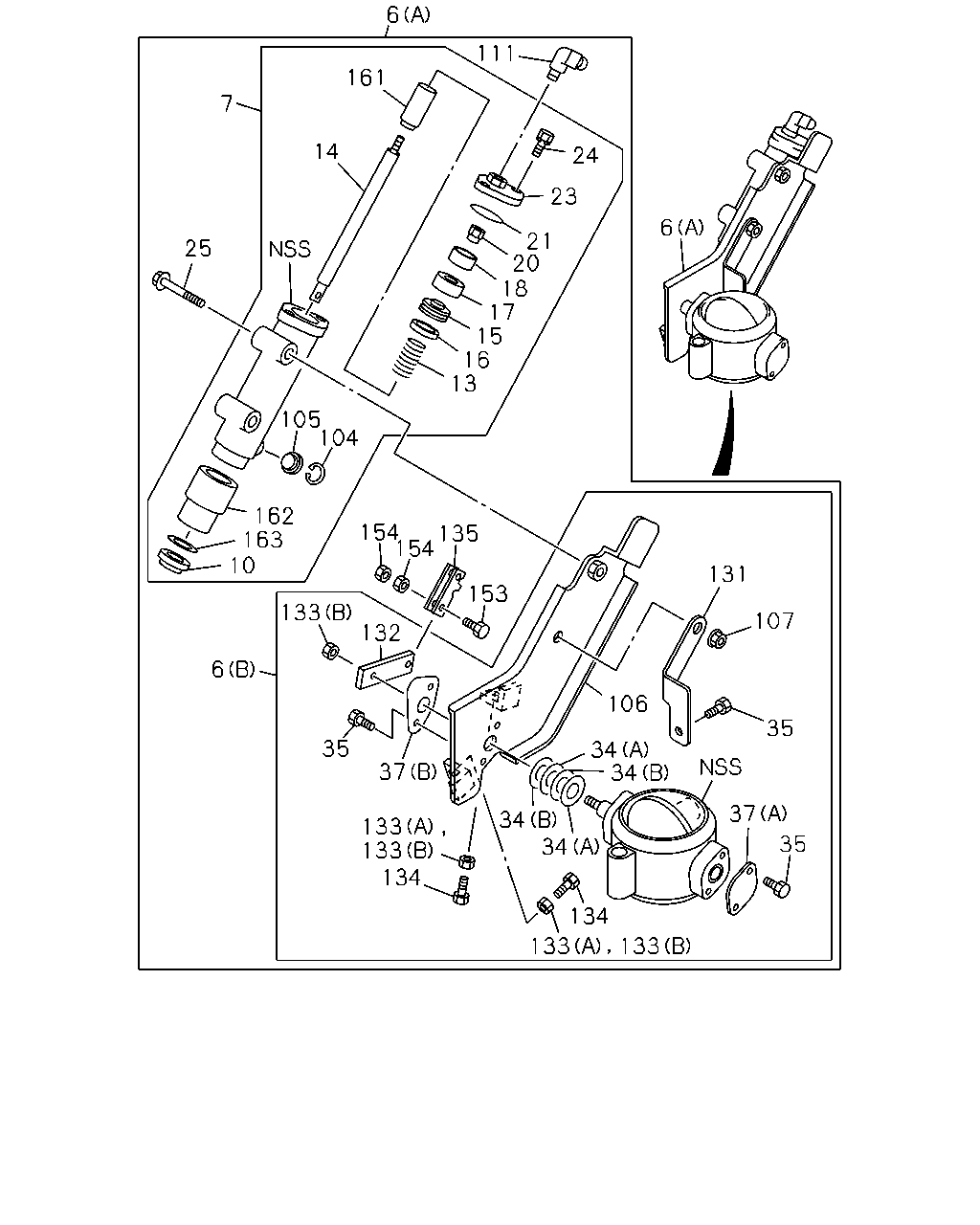

6 111 161 7 14 24 23 6 21 20 18 17 15 16 13 25 105 104 162 163 10 154 135 154 131 153 133 107 132 6 106 35 35 34 34 37 37 34 34 133 133 134 35 134 133 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-133-0	01	1	9510-9609	●	●
6	VALVE; EXH BRAKE (B)	8-94391-042-0	01	1	9610-9809	●	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	9810-0004	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0102	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0103-0210	●	●
6	VALVE; EXH BRAKE (A)	8-94395-759-0	01	1	9510-9609	●	●
6	VALVE; EXH BRAKE (A)	8-94391-044-0	01	1	9610-9802	●	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	9803-0004	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0102	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0103-0210	●	●
7	CYLINDER ASM; CONT	8-94396-813-0	01	1	9510-9510	●	●
7	CYLINDER ASM; CONT	1-22190-631-0	01	1	9510-9809	●	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	9810-0004	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0005-0102	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0103-0210	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9510-0004	●	●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0005-0102	●	●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0103-0210	●	●
13	SPRING; CONT CYL	1-09580-465-0	01	1	9510-9510	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9510-9609	●	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9610-9809	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9810-0004	●	●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0005-0102	●	●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0103-0210	●	●
14	SHAFT; CONT CYL	1-22196-256-0	01	1	9510-9510	●	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	9510-0004	●	●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0005-0102	●	●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0103-0210	●	●
15	PLATE; CONT CYL	1-22199-001-0	01	1	9510-9510	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9510-9809	●	●
15	PLATE; CONT CYL	8-97600-316-0	01	1	9810-0004	●	●
15	PLATE; CONT CYL EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0005-0102	●	●
15	PLATE; CONT CYL EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0103-0210	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9510-9510	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9510-9809	●	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	9810-0004	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0005-0102	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0103-0210	●	●
17	GASKET; CONT CYL	1-22199-110-0	01	1	9510-9510	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9510-9809	●	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	9810-0004	●	●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0005-0102	●	●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0103-0210	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9510-9809	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9510-9510	●	●
20	NUT; CONT CYL M8 W/LK WASHER	8-94279-050-0	01	1	9510-9809	●	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9810-0004	●	●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0005-0102	●	●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0103-0210	●	●
21	GASKET; COVER	1-22199-072-0	01	1	9510-0004	●	●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0005-0102	●	●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0103-0210	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9510-9809	●	●
23	COVER; CONT CYL	8-97600-319-0	01	1	9810-0004	●	●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0005-0102	●	●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0103-0210	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9510-9809	●	●
24	BOLT; COVER	1-22199-174-0	02	1	9810-0004	●	●
24	BOLT; COVER EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0005-0102	●	●
24	BOLT; COVER EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0103-0210	●	●
25	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-0	02	1	9510-9609	●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9610-9809	●	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9810-0004	●	●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0005-0102	●	●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0103-0210	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9510-0004	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0005-0102	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0103-0210	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9510-0004	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0005-0102	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0103-0210	●	●
35	BOLT; PLATE FIX M8X16	9-02050-816-0	05	1	9510-9609	●	●
35	BOLT; PLATE FIX	1-22199-154-0	05	1	9610-9809	●	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	9810-0004	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8>	1-22199-174-0	05	1	0005-0102	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8>	1-22199-174-0	05	1	0103-0210	●	●
37	COVER; BODY (B)	1-22199-130-0	01	1	9510-0004	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0005-0102	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0103-0210	●	●
37	COVER; BODY (A)	9-22189-160-0	01	1	9510-0004	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0005-0102	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0103-0210	●	●
104	RING; RET	9-88510-331-0	01	1	9510-0004	●	●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0005-0102	●	●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0103-0210	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9510-0004	●	●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0005-0102	●	●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0103-0210	●	●
106	BRACKET; CONT CYL	8-94396-192-0	01	1	9510-9609	●	●
106	BRACKET; CONT CYL	8-94391-038-0	01	1	9610-9809	●	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	9810-0004	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0005-0102	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0103-0210	●	●
107	NUT; CONT CYL M10 FLANGE	0-91150-110-0	01	1	9610-0004	●	●
107	NUT; CONT CYL EXHAUST BRAKE<NF8> M10 FLANGE	0-91150-110-0	01	1	0005-0102	●	●
107	NUT; CONT CYL EXHAUST BRAKE<NF8> M10 FLANGE	0-91150-110-0	01	1	0103-0210	●	●
111	ELBOW; CONT CYL	8-94393-086-1	01	1	9510-9802	●	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9803-0004	●	●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0005-0102	●	●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0103-0210	●	●
131	PLATE; BODY	8-94391-039-0	01	1	9610-0004	●	●
131	PLATE; BODY EXHAUST BRAKE<NF8>	8-94391-039-0	01	1	0005-0102	●	●
131	PLATE; BODY EXHAUST BRAKE<NF8>	8-94391-039-0	01	1	0103-0210	●	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	9510-0004	●	●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0005-0102	●	●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0103-0210	●	●
133	NUT; LK (A)	8-94311-428-0	04	1	9510-9510	●	●
133	NUT; LK (A)	8-94311-428-0	03	1	9510-9809	●	●
133	NUT; LK (B)	1-47829-069-0	01	1	9610-9809	●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	03	1	9810-0004	●	●
133	NUT; LK EXHAUST BRAKE<NF8> (B) M8 FLANGE	0-91150-108-0	03	1	0005-0102	●	●
133	NUT; LK EXHAUST BRAKE<NF8> (B) M8 FLANGE	0-91150-108-0	03	1	0103-0210	●	●
134	BOLT; STOPPER	1-22199-121-0	05	1	9510-9510	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9510-9609	●	●
134	BOLT; STOPPER	1-22199-121-0	05	1	9610-9809	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9810-0004	●	●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0005-0102	●	●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0103-0210	●	●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	9510-0004	●	●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	0005-0102	●	●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	0103-0210	●	●
153	BOLT; CLEVIS,CONT CYL M6X30	1-09000-559-0	02	1	9510-9809	●	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	9810-0004	●	●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0005-0102	●	●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0103-0210	●	●
154	NUT; CLEVIS,CONT CYL	9-88510-123-0	04	1	9510-9510	●	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	9510-0004	●	●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0005-0102	●	●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0103-0210	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9510-0004	●	●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0005-0102	●	●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0103-0210	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9510-0004	●	●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0005-0102	●	●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0103-0210	●	●
163	WASHER; CONT CYL ID=8.2	9-09150-508-0	01	1	9510-9510	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9510-0004	●	●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0005-0102	●	●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0103-0210	●	●

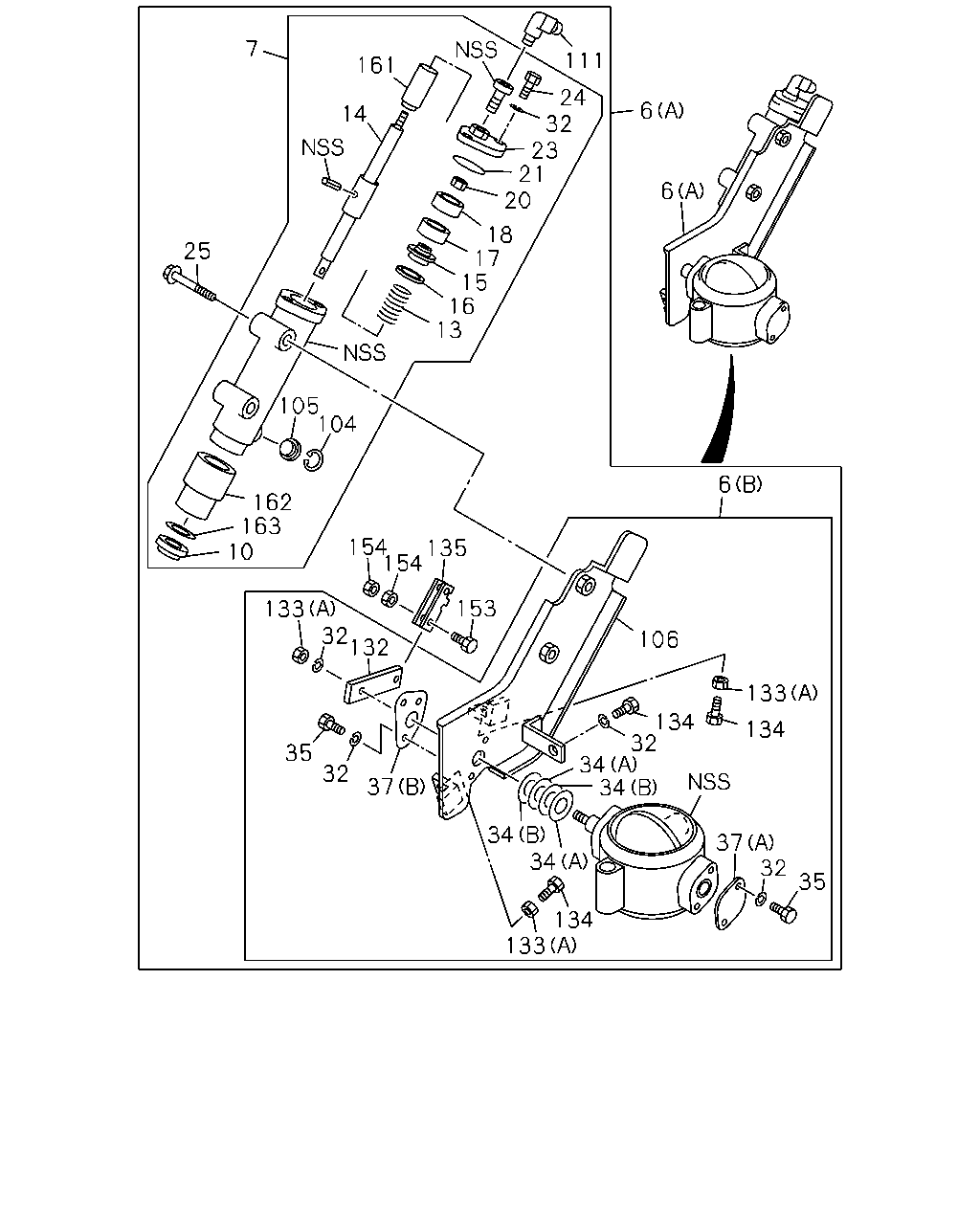

7 111 161 24 32 23 21 20 6 14 6 18 17 15 16 13 25 105 104 6 162 163 10 154 135 154 153 133 32 132 106 133 134 32 34 34 134 35 32 37 34 34 37 32 35 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-133-0	01	1	9510-9609	●	●
6	VALVE; EXH BRAKE (B)	8-94391-042-0	01	1	9610-9809	●	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	9810-0004	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0102	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0103-0210	●	●
6	VALVE; EXH BRAKE (A)	8-94395-759-0	01	1	9510-9609	●	●
6	VALVE; EXH BRAKE (A)	8-94391-044-0	01	1	9610-9802	●	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	9803-0004	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0102	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0103-0210	●	●
7	CYLINDER ASM; CONT	8-94396-813-0	01	1	9510-9510	●	●
7	CYLINDER ASM; CONT	1-22190-631-0	01	1	9510-9809	●	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	9810-0004	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0005-0102	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0103-0210	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9510-0004	●	●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0005-0102	●	●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0103-0210	●	●
13	SPRING; CONT CYL	1-09580-465-0	01	1	9510-9510	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9510-9609	●	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9610-9809	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9810-0004	●	●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0005-0102	●	●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0103-0210	●	●
14	SHAFT; CONT CYL	1-22196-256-0	01	1	9510-9510	●	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	9510-0004	●	●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0005-0102	●	●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0103-0210	●	●
15	PLATE; CONT CYL	1-22199-001-0	01	1	9510-9510	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9510-9809	●	●
15	PLATE; CONT CYL	8-97600-316-0	01	1	9810-0004	●	●
15	PLATE; CONT CYL EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0005-0102	●	●
15	PLATE; CONT CYL EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0103-0210	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9510-9510	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9510-9809	●	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	9810-0004	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0005-0102	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0103-0210	●	●
17	GASKET; CONT CYL	1-22199-110-0	01	1	9510-9510	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9510-9809	●	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	9810-0004	●	●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0005-0102	●	●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0103-0210	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9510-9809	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9510-9510	●	●
20	NUT; CONT CYL M8 W/LK WASHER	8-94279-050-0	01	1	9510-9809	●	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9810-0004	●	●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0005-0102	●	●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0103-0210	●	●
21	GASKET; COVER	1-22199-072-0	01	1	9510-0004	●	●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0005-0102	●	●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0103-0210	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9510-9809	●	●
23	COVER; CONT CYL	8-97600-319-0	01	1	9810-0004	●	●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0005-0102	●	●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0103-0210	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9510-9809	●	●
24	BOLT; COVER	1-22199-174-0	02	1	9810-0004	●	●
24	BOLT; COVER EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0005-0102	●	●
24	BOLT; COVER EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0103-0210	●	●
25	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-0	02	1	9510-9609	●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9610-9809	●	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9810-0004	●	●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0005-0102	●	●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0103-0210	●	●
32	WASHER; LK ID=8.2	9-09150-508-0	07	1	9510-9510	●	●
32	WASHER; LK ID=8.2	9-09150-508-0	06	1	9510-9609	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9510-0004	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0005-0102	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0103-0210	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9510-0004	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0005-0102	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0103-0210	●	●
35	BOLT; PLATE FIX M8X16	9-02050-816-0	05	1	9510-9609	●	●
35	BOLT; PLATE FIX	1-22199-154-0	05	1	9610-9809	●	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	9810-0004	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8>	1-22199-174-0	05	1	0005-0102	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8>	1-22199-174-0	05	1	0103-0210	●	●
37	COVER; BODY (B)	1-22199-130-0	01	1	9510-0004	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0005-0102	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0103-0210	●	●
37	COVER; BODY (A)	9-22189-160-0	01	1	9510-0004	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0005-0102	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0103-0210	●	●
104	RING; RET	9-88510-331-0	01	1	9510-0004	●	●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0005-0102	●	●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0103-0210	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9510-0004	●	●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0005-0102	●	●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0103-0210	●	●
106	BRACKET; CONT CYL	8-94396-192-0	01	1	9510-9609	●	●
106	BRACKET; CONT CYL	8-94391-038-0	01	1	9610-9809	●	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	9810-0004	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0005-0102	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0103-0210	●	●
111	ELBOW; CONT CYL	8-94393-086-1	01	1	9510-9802	●	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9803-0004	●	●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0005-0102	●	●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0103-0210	●	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	9510-0004	●	●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0005-0102	●	●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0103-0210	●	●
133	NUT; LK (A)	8-94311-428-0	04	1	9510-9510	●	●
133	NUT; LK (A)	8-94311-428-0	03	1	9510-9809	●	●
133	NUT; LK (B)	1-47829-069-0	01	1	9610-9809	●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	03	1	9810-0004	●	●
133	NUT; LK EXHAUST BRAKE<NF8> (B) M8 FLANGE	0-91150-108-0	03	1	0005-0102	●	●
133	NUT; LK EXHAUST BRAKE<NF8> (B) M8 FLANGE	0-91150-108-0	03	1	0103-0210	●	●
134	BOLT; STOPPER	1-22199-121-0	05	1	9510-9510	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9510-9609	●	●
134	BOLT; STOPPER	1-22199-121-0	05	1	9610-9809	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9810-0004	●	●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0005-0102	●	●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0103-0210	●	●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	9510-0004	●	●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	0005-0102	●	●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	0103-0210	●	●
153	BOLT; CLEVIS,CONT CYL M6X30	1-09000-559-0	02	1	9510-9809	●	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	9810-0004	●	●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0005-0102	●	●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0103-0210	●	●
154	NUT; CLEVIS,CONT CYL	9-88510-123-0	04	1	9510-9510	●	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	9510-0004	●	●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0005-0102	●	●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0103-0210	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9510-0004	●	●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0005-0102	●	●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0103-0210	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9510-0004	●	●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0005-0102	●	●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0103-0210	●	●
163	WASHER; CONT CYL ID=8.2	9-09150-508-0	01	1	9510-9510	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9510-0004	●	●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0005-0102	●	●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0103-0210	●	●

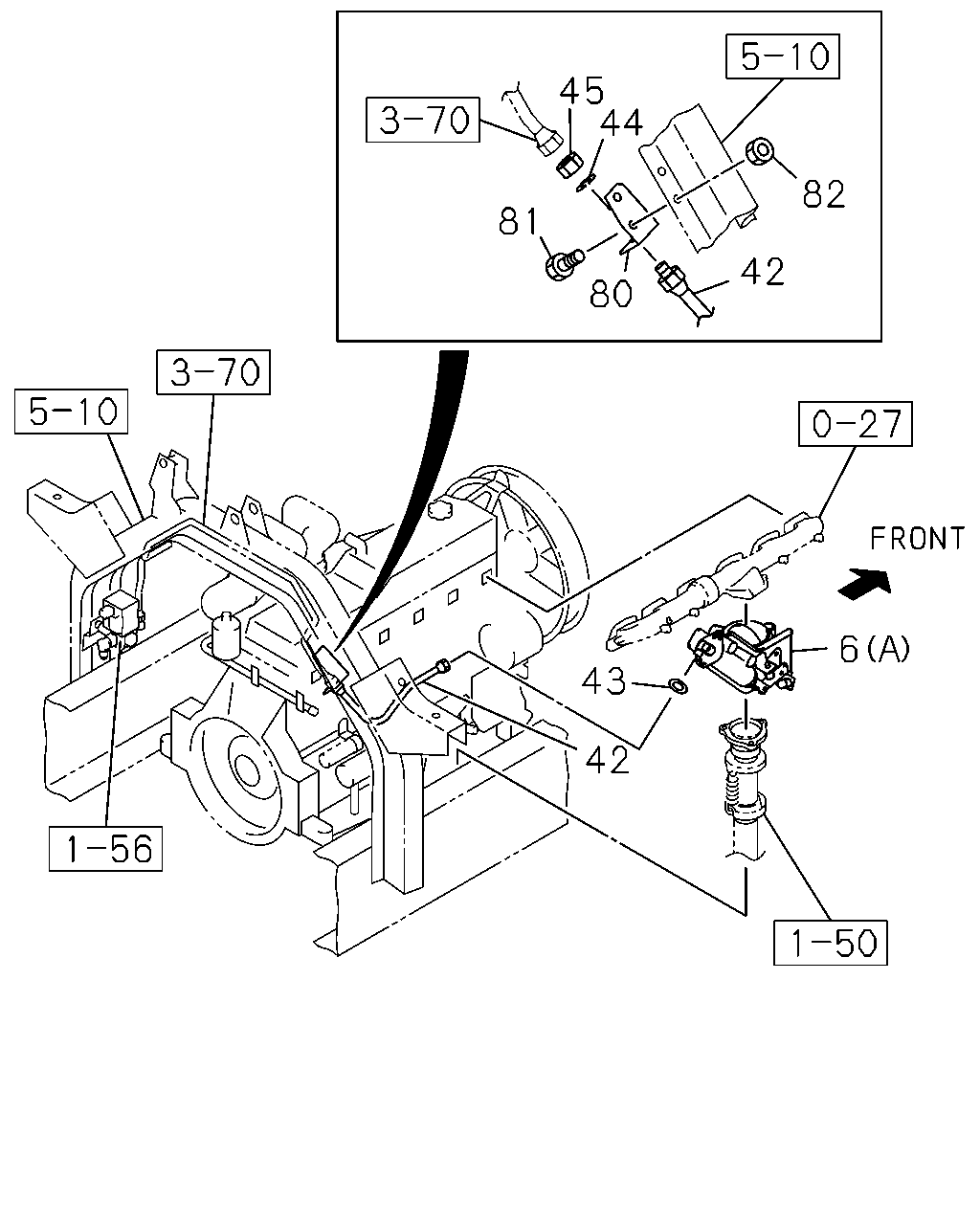

45 44 82 80 81 42 6 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-133-0	01	1	9510-9609	●	●
6	VALVE; EXH BRAKE (B)	8-94391-042-0	01	1	9610-9809	●	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	9810-0004	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0102	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0103-0210	●	●
6	VALVE; EXH BRAKE (A)	8-94395-759-0	01	1	9510-9609	●	●
6	VALVE; EXH BRAKE (A)	8-94391-044-0	01	1	9610-9802	●	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	9803-0004	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0102	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0103-0210	●	●
42	HOSE; FLEX,EXH BRK L=300	0-07120-300-0	01	1	9510-9802	●	●
42	HOSE; FLEX,EXH BRK L=300	1-09363-608-0	01	1	9803-0004	●	●
42	HOSE; FLEX,EXH BRK EXHAUST BRAKE<NF8> L=300	1-09363-608-0	01	1	0005-0102	●	●
42	HOSE; FLEX,EXH BRK EXHAUST BRAKE<NF8> L=300	1-09363-608-0	01	1	0103-0210	●	●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9510-0004	●	●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	01	1	0005-0102	●	●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	01	1	0103-0210	●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9510-0004	●	●
45	NUT; FLEX HOSE EXHAUST BRAKE<NF8> M12	9-09840-280-0	01	1	0005-0102	●	●
45	NUT; FLEX HOSE EXHAUST BRAKE<NF8> M12	9-09840-280-0	01	1	0103-0210	●	●
80	BRACKET; FLEX HOSE	1-47476-355-0	01	1	9510-0004	●	●
80	BRACKET; FLEX HOSE EXHAUST BRAKE<NF8>	1-47476-355-0	01	1	0005-0102	●	●
80	BRACKET; FLEX HOSE EXHAUST BRAKE<NF8>	1-47476-355-0	01	1	0103-0210	●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9801-0004	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
82	NUT; HOSE BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
