1-50 — EXHAUST PIPE AND SILENCER (#22367) — 98 parça

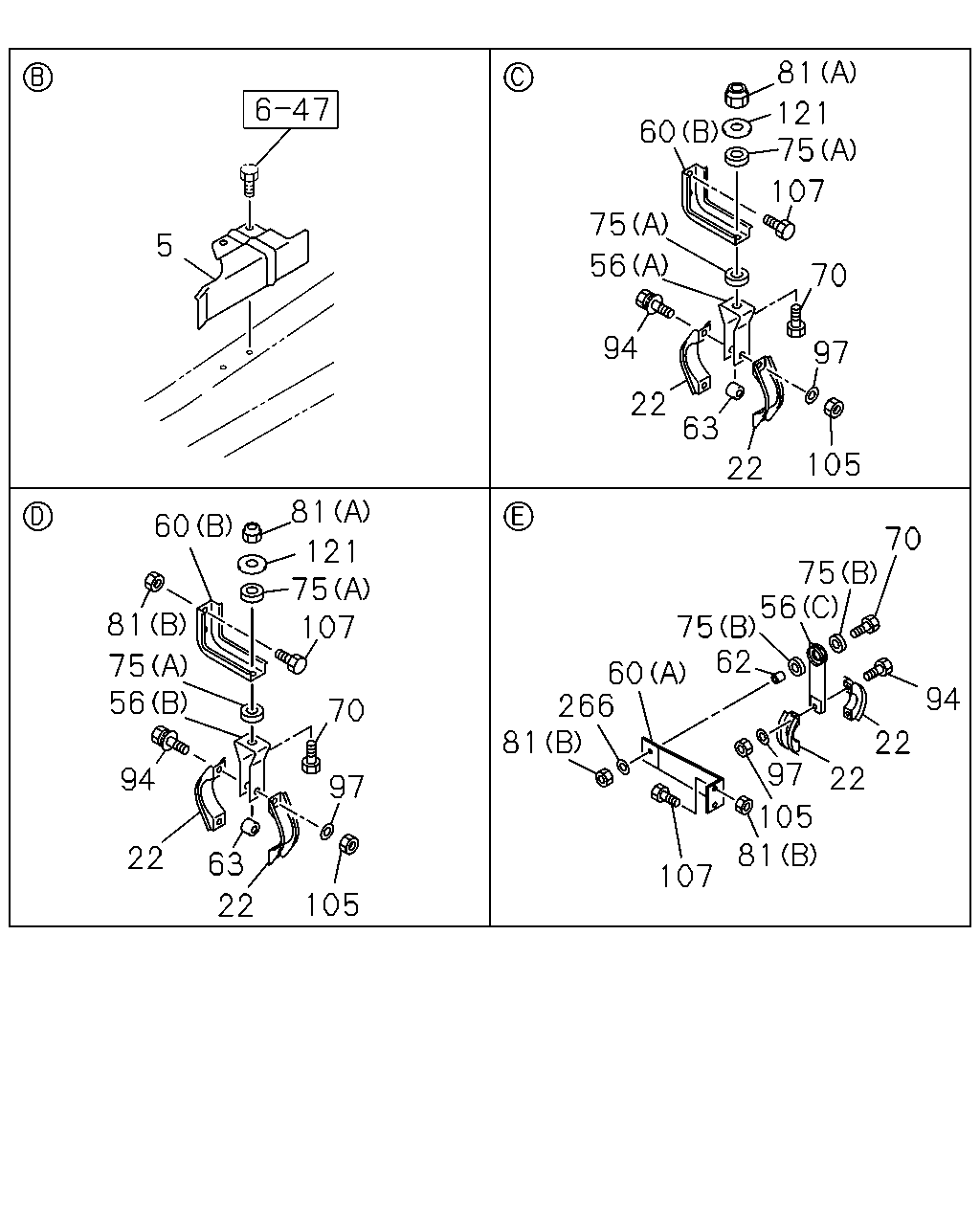

çizim 15292
81 121 75 60 107 75 5 56 70 94 97 22 63 105 22 81 60 70 75 56 75 62 121 75 107 81 75 56 60 266 81 94 70 22 22 97 94 97 105 81 22 63 107 105 22
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S) 		1-33659-182-1 01 1 9510-0004
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) 		1-33659-182-1 01 1 0005-0210
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-0210
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-0210
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-0210
56 BRACKET; CLAMP,EXH PIPE
(C) L=204 		1-22131-520-1 01 1 9510-0210
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 9510-0210
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9510-0210
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-602-0 01 1 9510-0210
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9510-0210
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9510-0210
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9510-0210
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9510-0210
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9510-0210
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9510-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9510-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0210
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0210
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0210
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9510-9606
70 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 01 1 9607-9705
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9706-0204
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9510-0210
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9510-0210
75 RUBBER; SUPPORT,BRKT
(B) OD=35 		9-22159-008-0 02 1 9510-9802
75 RUBBER; SUPPORT,BRKT
(B) OD=35 		9-22159-008-0 02 1 9803-9805
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 9806-0210
81 NUT; BRKT
(B) M10 		9-09110-510-0 01 1 9510-9606
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-0205
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0210
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0210
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-0210
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-0210
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9510-0210
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9510-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9510-9606
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9510-9606
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9612
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9612
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9612
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9701-9705
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9802
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9802
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9802
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9803-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9803-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9803-0210
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9510-9606
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9510-9606
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9701-9705
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9701-9705
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9802
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9802
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9802
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9803-0210
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9803-0210
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9803-0210
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9510-9606
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9612
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9612
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9612
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9701-0204
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-9802
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-9802
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9803-0204
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9803-0204
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0210
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0210
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0210
107 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-0210
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9510-9606
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9802
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9803-0102
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0103-0210
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9510-0210
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9510-0210
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-0204
çizim 15935
12 126 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH 1-22122-650-1 01 1 9510-0210
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0205
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 9510-0210
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W) OD=80 		1-22126-076-0 01 1 9510-9802
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) OD=80 		1-22126-076-1 01 1 9803-0004
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) OD=80 		1-22126-076-1 01 1 0005-0210
çizim 64426
1 34 476 36 475 476 36 475 35
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH 1-22122-650-1 01 1 9510-0210
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9510-0210
35 GASKET; EXH PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		1-22116-024-0 01 1 0005-0210
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9510-0004
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0005-0210
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 9510-0210
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9510-0210
