Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

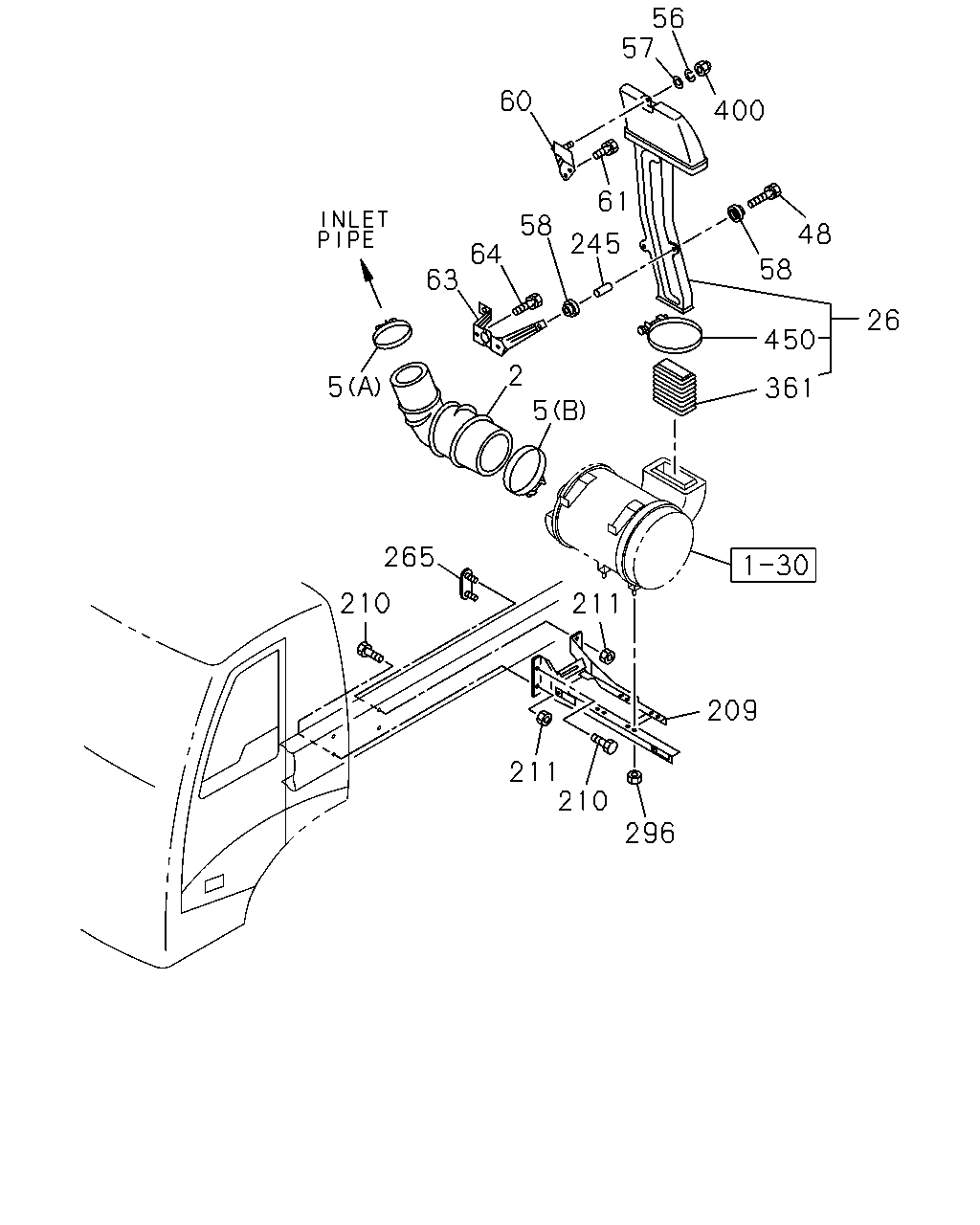

1-31 — AIR DUCT
(#22363) — 58 parça
Tümü
A - 6HH1-STD ENG
B - 6HH1 N ENG
56
57
60
400
61
58
48
245
64
58
63
26
450
2
5
361
5
265
210
211
209
211
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; ACL
1-14231-851-0
01
1
9510-0102
●
●
2
HOSE; ACL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>
1-14231-851-0
01
1
0103-0210
●
●
2
HOSE; ACL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
1-14231-907-1
01
1
0103-0210
●
5
CLIP; AIR DUCT
(A) ID=87-116
1-09707-144-0
01
1
9510-0004
●
●
5
CLIP; AIR DUCT
(A) ID=87-116
1-09707-144-0
01
1
0005-0102
●
5
CLIP; AIR DUCT
(A) ID=87-116
1-09707-144-0
01
1
0103-0210
●
●
5
CLIP; AIR DUCT
(B) ID=104-142
1-09707-155-0
01
1
9510-0004
●
●
5
CLIP; AIR DUCT
(B) ID=104-142
1-09707-155-0
01
1
0005-0102
●
5
CLIP; AIR DUCT
(B) ID=104-142
1-09707-155-0
01
1
0103-0210
●
●
26
DUCT; AIR INT
1-14230-126-4
01
1
9510-9610
●
●
26
DUCT; AIR INT
1-14230-153-0
01
1
9611-9712
●
●
26
DUCT; AIR INT
1-14230-176-0
01
1
9801-0004
●
●
26
DUCT; AIR INT
1-14230-176-0
01
1
0005-0102
●
26
DUCT; AIR INT
1-14230-176-0
01
1
0103-0210
●
●
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
9510-0004
●
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0005-0210
●
●
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
9510-0004
●
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0005-0210
●
●
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
9510-0004
●
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0005-0210
●
●
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
9510-0004
●
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0005-0210
●
●
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
9510-9802
●
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
9803-0004
●
●
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
0005-0210
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
9510-9802
●
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
9803-0004
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0005-0210
●
●
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
9510-9802
●
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
9803-0004
●
●
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
0005-0210
●
●
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
9510-0004
●
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0005-0210
●
●
209
BRACKET; ACL
1-53497-478-2
01
1
9510-0102
●
●
209
BRACKET; ACL
1-53497-478-2
01
1
0103-0210
●
●
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28081-235-0
02
1
9510-9606
●
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28681-240-0
02
1
9607-9802
●
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28681-240-0
02
1
9803-0004
●
●
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28681-240-0
02
1
0005-0210
●
●
211
NUT; BRKT
M12 FLANGE
0-91150-112-0
03
1
9510-9606
●
●
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
03
1
9607-0210
●
●
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
9510-9802
●
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
9803-0004
●
●
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0005-0210
●
●
265
BRACKET; STUD,ACL
1-53497-477-0
01
1
9510-0210
●
●
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
9510-9802
●
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
9803-0004
●
●
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0005-0210
●
●
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-0
01
1
9611-9712
●
●
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-0
01
1
9801-0004
●
●
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-0
01
1
0005-0102
●
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-0
01
1
0103-0210
●
●
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
9510-0004
●
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0005-0210
●
●
450
CLAMP; HOSE
9-09915-504-1
01
1
9611-9712
●
●
450
CLAMP; HOSE
9-09915-504-1
01
1
9801-0004
●
●
450
CLAMP; HOSE
9-09915-504-1
01
1
0005-0102
●
450
CLAMP; HOSE
9-09915-504-1
01
1
0103-0210
●
●
