◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#22360) — 127 parça

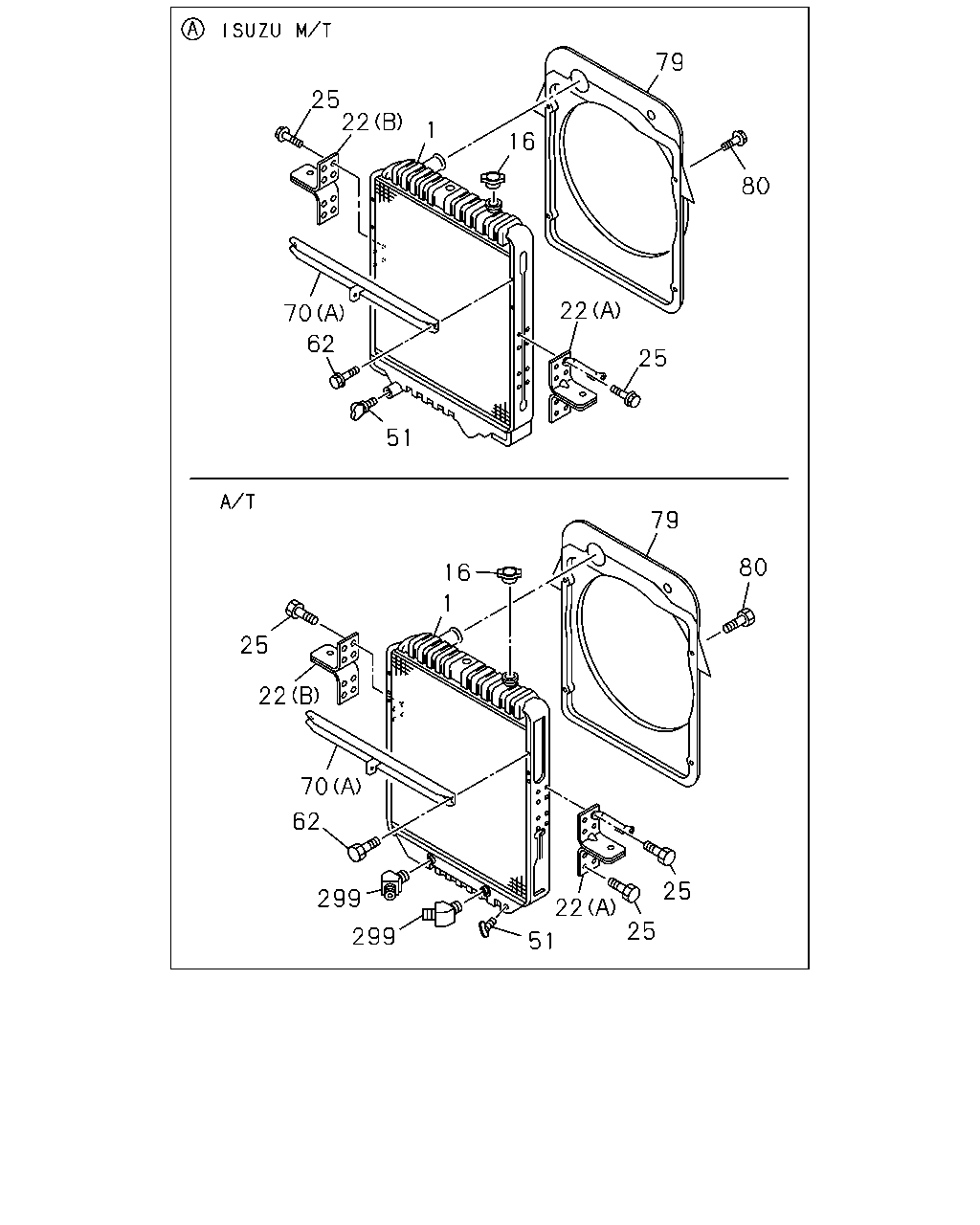

çizim 63576
79 25 22 1 16 80 22 70 62 25 51 79 80 16 1 25 22 70 62 25 299 22 25 299 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-674-1 01 1 9510-0004 ●
1 RADIATOR ASM
EXC. A/T<X9D> 		1-21410-674-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0011-0102 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0103-0210 ● ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-689-2 01 1 0005-0210 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011-0102 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0103-0210 ● ●
16 CAP; RAD 1-21450-053-2 01 1 9510-0102 ●
16 CAP; RAD 1-21450-053-2 01 1 0103-0210 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9510-0102 ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0103-0210 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9510-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9705-0004 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0005-0010 ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0011-0102 ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0011-0102 ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0103-0103 ● ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0103-0103 ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0104-0210 ● ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0104-0210 ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0011-0102 ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0103-0210 ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510-0102 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0103-0210 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0102 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0103-0210 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9510-0102 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0103-0210 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9510-0102 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0103-0210 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-0102 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0103-0210 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9510-0102 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 0103-0210 ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9510-0102 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0103-0210 ● ●
299 NIPPLE; RAD
A/T<X9D> 		1-09660-646-0 02 1 0005-0203 ●

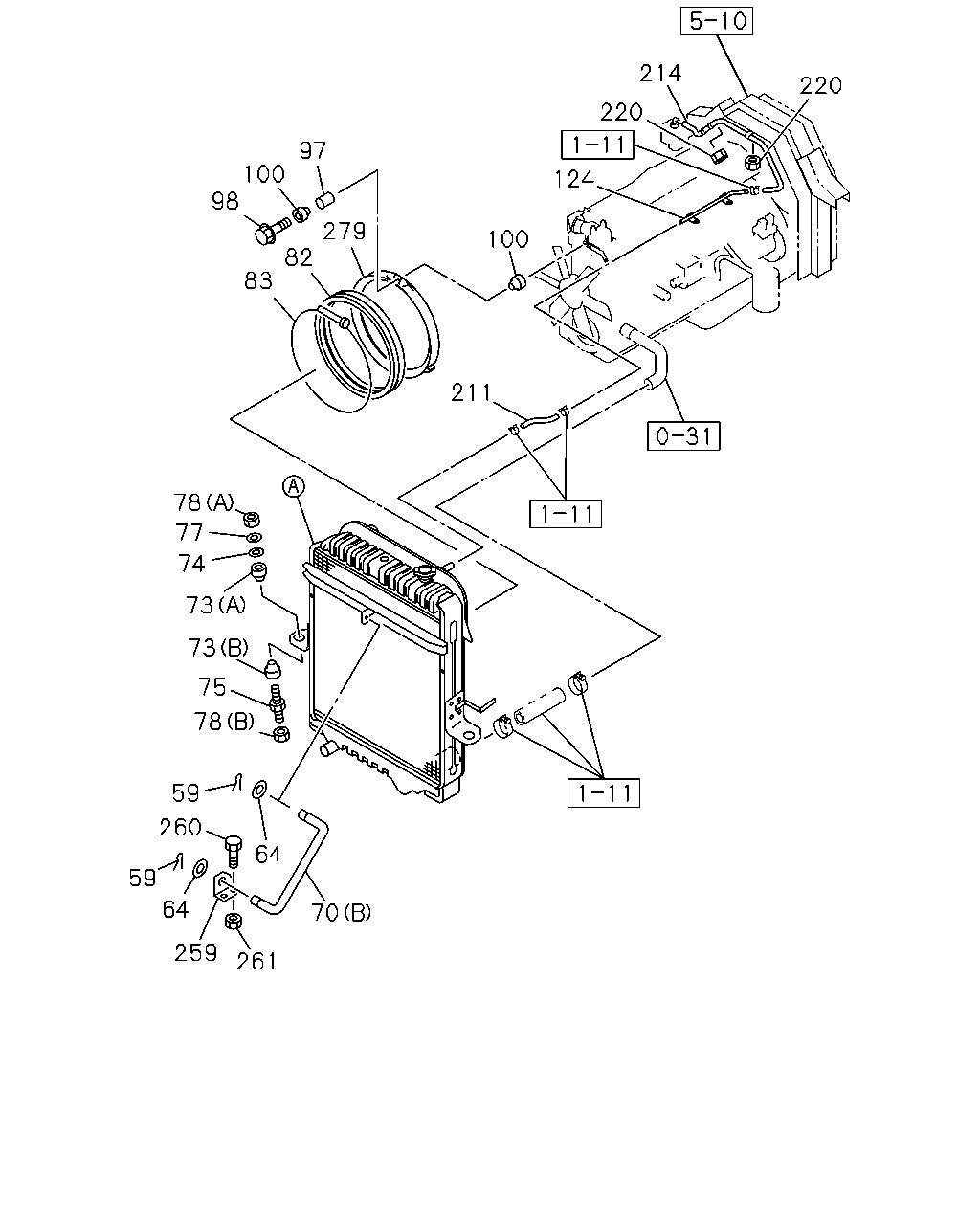

çizim 63716
214 220 220 97 100 98 124 279 82 100 83 211 78 77 74 73 73 75 78 59 260 64 59 64 70 259 261
BalonParca AdiParca NoAdetTipApplied Date A B
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9510-0004 ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005-0210 ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9510-0004 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0210 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-0102 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0103-0210 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9510-0004 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0205 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9510-0004 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9510-9604 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-0004 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9510-0004 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9510-9702 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9510-0004 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9510-9702 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-0004 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9510-0102 ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0103-0210 ●
82 COVER; FAN,RAD
EXC. A/T<X9D> 		1-21559-340-0 01 1 0103-0210 ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 0103-0210 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9510-0004 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9802 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9803-0004 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9911-0001 ●
100 RUBBER; MTG 1-09337-027-0 06 1 9510-9603 ●
100 RUBBER; MTG 8-94395-766-0 06 1 9604-9802 ● ●
100 RUBBER; MTG 8-94395-766-0 06 1 9803-0004 ●
100 RUBBER; MTG 8-94395-766-0 06 1 0005-0210 ● ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 9510-0102 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 0103-0210 ●
124 PIPE; WATER,TANK TO RAD
ISUZU M/T<X9A> 		8-94396-222-1 01 1 0103-0210 ●
124 PIPE; WATER,TANK TO RAD
A/T<X9D> 		8-94394-461-4 01 1 0103-0210 ●
211 HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-0102 ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0103-0109 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0103-0109 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9603 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0102 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0103-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9603 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0103-0109 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9510-9603 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9603 ●
220 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9510-0004 ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0005-0210 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
279 BELL MOUTH 8-94394-808-2 01 1 9510-0102 ● ●
279 BELL MOUTH 8-94394-808-2 01 1 0103-0210 ●
279 BELL MOUTH
EXC. A/T<X9D> 		8-94394-808-2 01 1 0103-0210 ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 0103-0210 ●

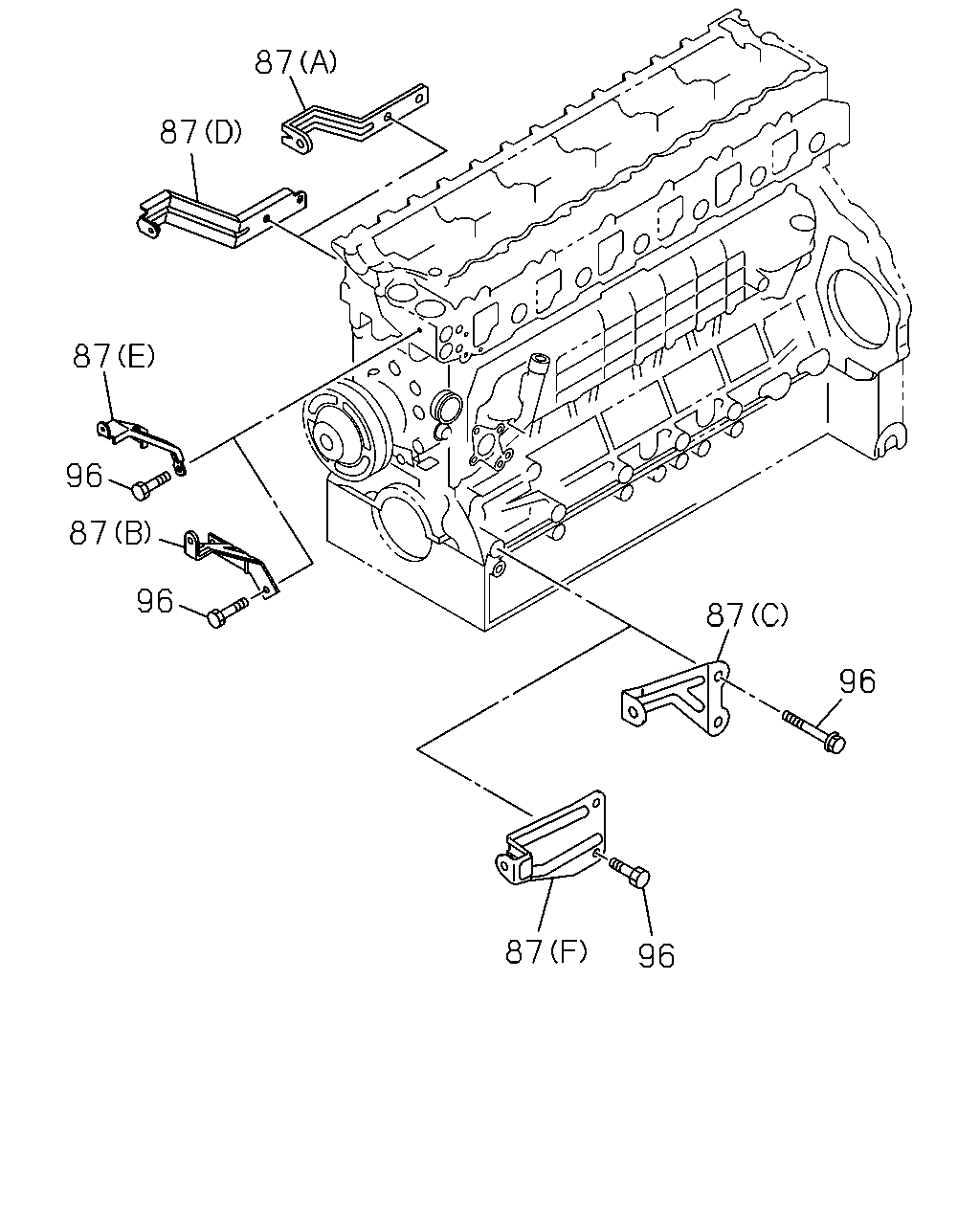

çizim 64737
87 87 87 96 87 96 87 96 87 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(A) 		8-94394-775-0 01 1 9510-0102 ●
87 STAY; FAN GUIDE
(A) 		8-94394-775-0 01 1 0103-0210 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (A) 		8-94394-775-0 01 1 0103-0210 ●
87 STAY; FAN GUIDE
(B) 		8-94396-496-1 01 1 9510-0102 ●
87 STAY; FAN GUIDE
(B) 		8-94396-496-1 01 1 0103-0210 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (B) 		8-94396-496-1 01 1 0103-0210 ●
87 STAY; FAN GUIDE
(C) 		8-94397-395-1 01 1 9510-0102 ●
87 STAY; FAN GUIDE
(C) 		8-94397-395-1 01 1 0103-0210 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (C) 		8-94397-395-1 01 1 0103-0210 ●
87 STAY; FAN GUIDE
A/T<X9D> (D) 		8-94393-119-2 01 1 0103-0210 ●
87 STAY; FAN GUIDE
A/T<X9D> (E) 		8-94393-726-0 01 1 0103-0210 ●
87 STAY; FAN GUIDE
A/T<X9D> (F) 		8-97601-016-0 01 1 0103-0210 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9510-0102 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0103-0210 ● ●
