◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#2236) — 385 parça

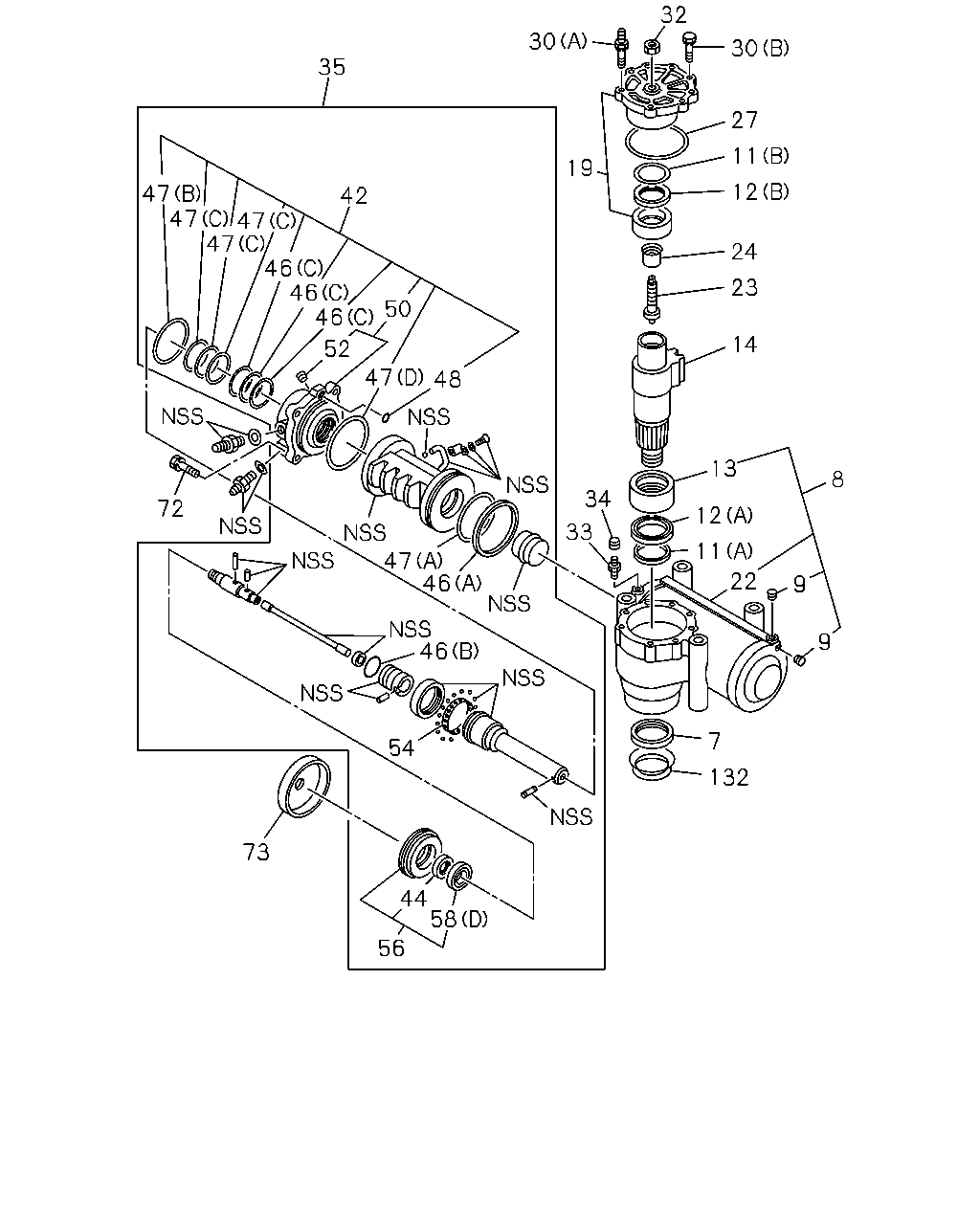

çizim 28014
32 30 30 35 27 11 19 12 47 47 47 47 46 46 46 42 24 23 50 14 52 13 8 34 72 12 33 47 46 11 22 9 46 7 54 132 73 44 58 56 9 47 48
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-702-1 		1-44241-112-1 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
PT3/8 ASM PART: C = 1-44000-755-0 		9-09204-517-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-040-0 01 1 -9709
11 RING; BACKUP,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-040-0 01 1 -0401
11 RING; BACKUP,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-075-0 01 1 9710-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-075-0 01 1 0402-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-071-0 01 1 -0401
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-076-0 01 1 0402-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44261-032-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-016-0 01 1 -0401
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-035-0 01 1 9710-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-035-0 01 1 0402-
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(D), M14X30 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-99110-414-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		9-83331-704-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
M24 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-99202-024-0 02 1 -
34 PROTECTOR; STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-703-1 		1-44150-005-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-702-1 		1-44150-010-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44150-065-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44150-066-0 01 1 -0401
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44150-088-1 01 1 0402-
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: D = 1-44000-756-0 		1-09625-353-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-116-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: E = 1-44000-836-1 		1-44519-100-0 03 1 -0401
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: F = 1-44000-837-1 		1-44519-100-0 03 1 -9709
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: E = 1-44000-836-1 		1-44519-255-0 03 1 0402-
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: F = 1-44000-837-1 		1-44519-255-0 03 1 9710-
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-099-0 01 1 -0401
47 GASKET; HSG,STRG UNIT
(C) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-260-0 01 1 0402-
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09623-053-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-097-0 01 1 -0401
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-262-0 01 1 0402-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-119-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-115-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-122-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09811-041-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-123-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-227-0 01 1 -

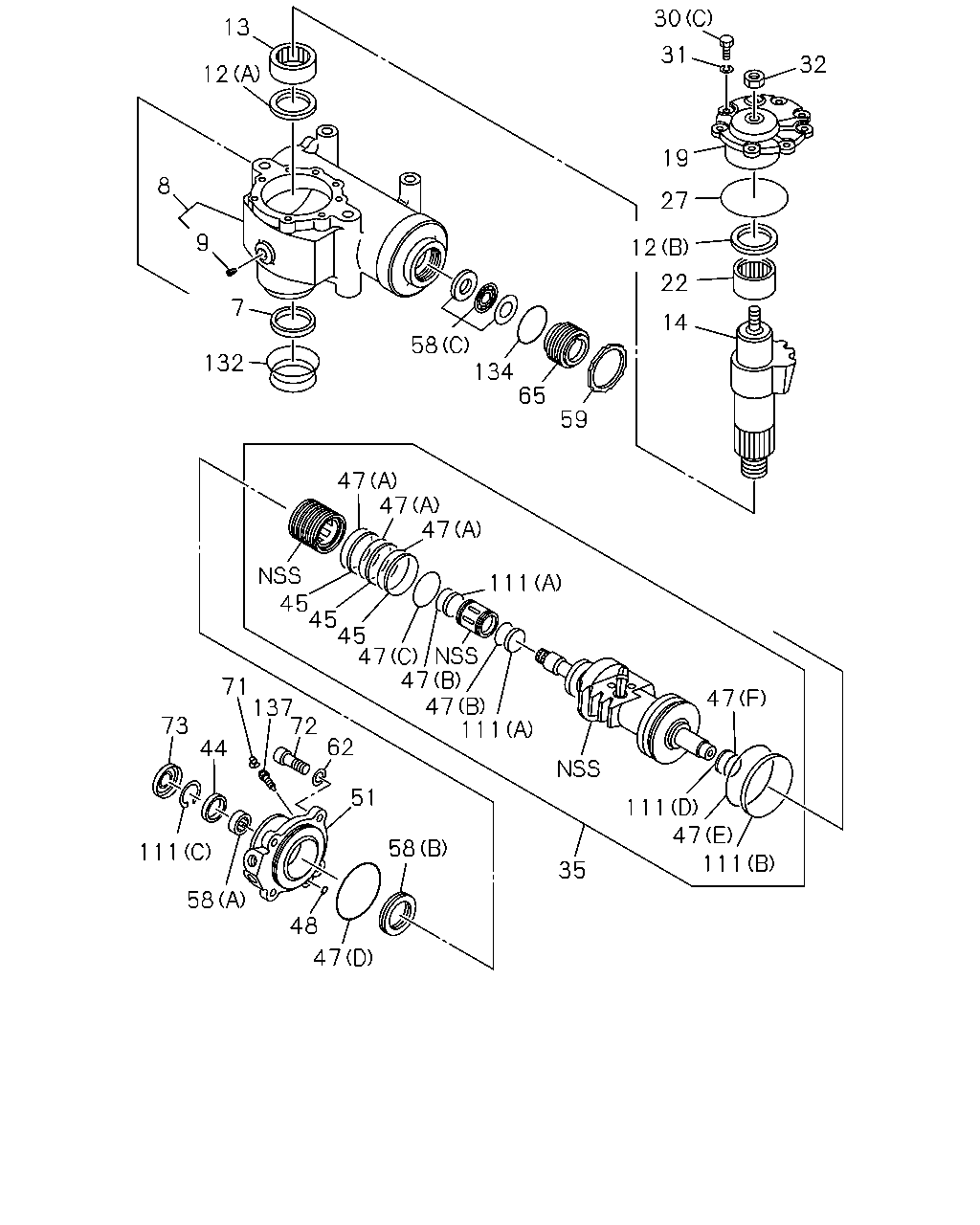

çizim 28215
30 13 31 32 12 19 8 27 9 12 22 7 14 58 134 65 132 59 47 47 47 45 45 45 47 47 111 111 71 137 72 47 73 62 44 51 111 47 111 58 11 35 58 48 47
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-702-1 		1-44241-112-1 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
PT3/8 ASM PART: C = 1-44000-755-0 		9-09204-517-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-040-0 01 1 -9709
11 RING; BACKUP,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-040-0 01 1 -0401
11 RING; BACKUP,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-075-0 01 1 9710-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-075-0 01 1 0402-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-071-0 01 1 -0401
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-076-0 01 1 0402-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44261-032-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-00096-071-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-016-0 01 1 -0401
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-035-0 01 1 9710-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-035-0 01 1 0402-
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(D), M14X30 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09509-011-0 08 1 -
31 WASHER; COVER STRG UNIT
ID=14.2 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-99110-414-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-703-1 		1-44150-005-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-702-1 		1-44150-010-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44150-065-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44150-066-0 01 1 -0401
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44150-088-1 01 1 0402-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: D = 1-44000-756-0 		1-09625-353-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-116-0 01 1 -
45 RING; RET
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-023-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-099-0 01 1 -0401
47 GASKET; HSG,STRG UNIT
(C) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-260-0 01 1 0402-
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09623-053-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-097-0 01 1 -0401
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-262-0 01 1 0402-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-119-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44561-014-0 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-115-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-122-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09811-041-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44259-003-0 01 1 -
62 WASHER; HSG BOLT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-124-0 04 1 -
65 COVER; FRT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44251-055-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44251-063-0 01 1 -
71 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44249-003-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-123-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-114-0 01 1 -
111 RING; BACKUP
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-024-0 02 1 -
111 RING; BACKUP
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-025-0 01 1 -
111 RING; BACKUP
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-117-0 01 1 -
111 RING; BACKUP
(D) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09629-004-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-227-0 01 1 -
134 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-027-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44249-002-0 01 1 -
137 PLUG; BREATHER STRG UNIT
PT3/8 ASM PART: D = 1-44000-756-0 		9-09204-517-0 01 1 -

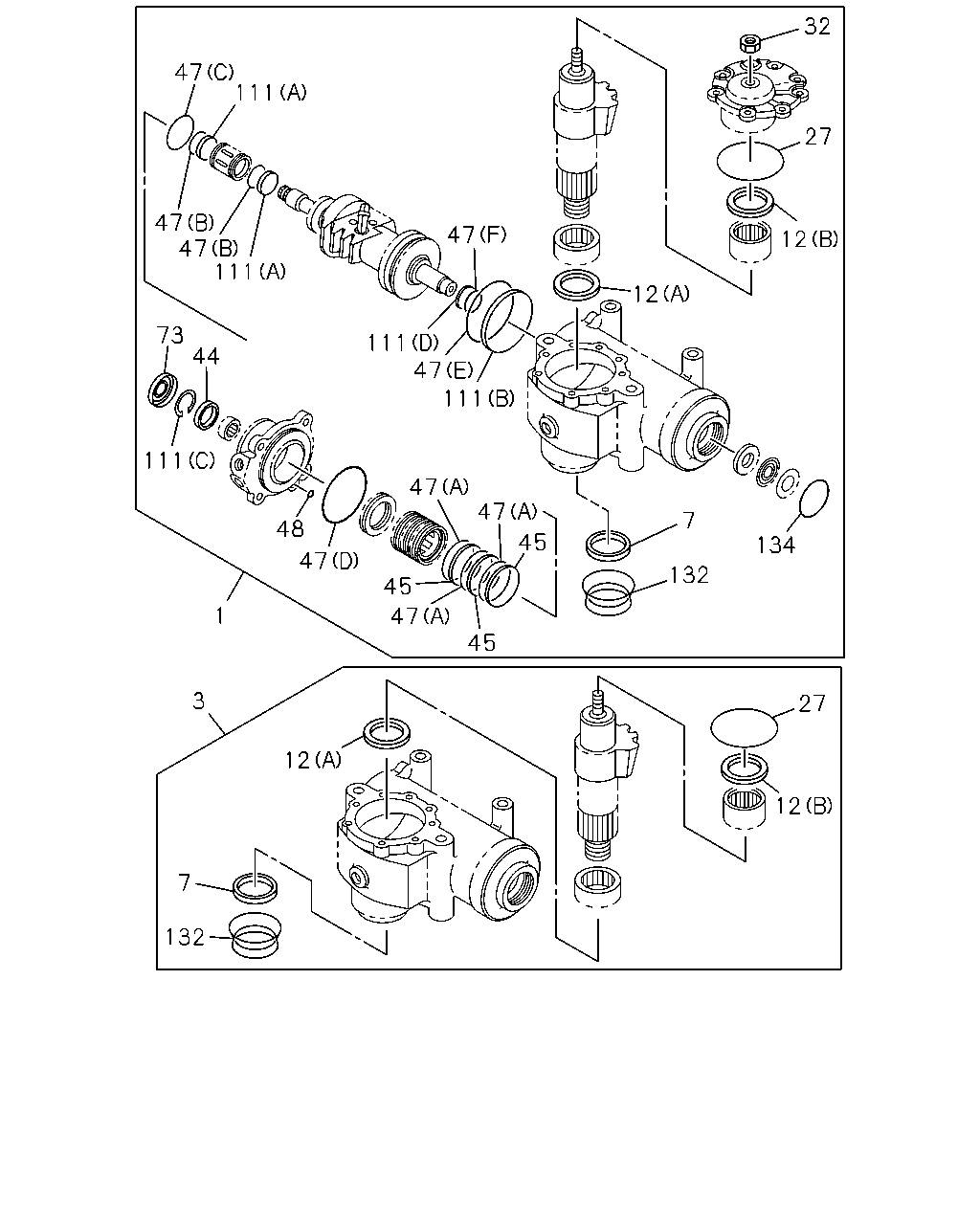

çizim 29522
32 47 111 27 47 47 111 47 12 12 73 44 111 47 111 111 47 47 7 48 45 134 47 132 45 1 47 45 3 27 12 12 7 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
NIPPON P.S. ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-042-0 01 1 -
3 SEAL KIT; SECTOR SHAFT
NIPPON P.S. ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44329-003-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-041-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-071-0 01 1 -0401
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-076-0 01 1 0402-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-016-0 01 1 -0401
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-035-0 01 1 9710-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-035-0 01 1 0402-
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-99110-414-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: D = 1-44000-756-0 		1-09625-353-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-116-0 01 1 -
45 RING; RET
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-023-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-099-0 01 1 -0401
47 GASKET; HSG,STRG UNIT
(C) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-260-0 01 1 0402-
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09623-053-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-097-0 01 1 -0401
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-262-0 01 1 0402-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-119-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-114-0 01 1 -
111 RING; BACKUP
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-024-0 02 1 -
111 RING; BACKUP
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-025-0 01 1 -
111 RING; BACKUP
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-117-0 01 1 -
111 RING; BACKUP
(D) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09629-004-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-227-0 01 1 -
134 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-027-0 01 1 -

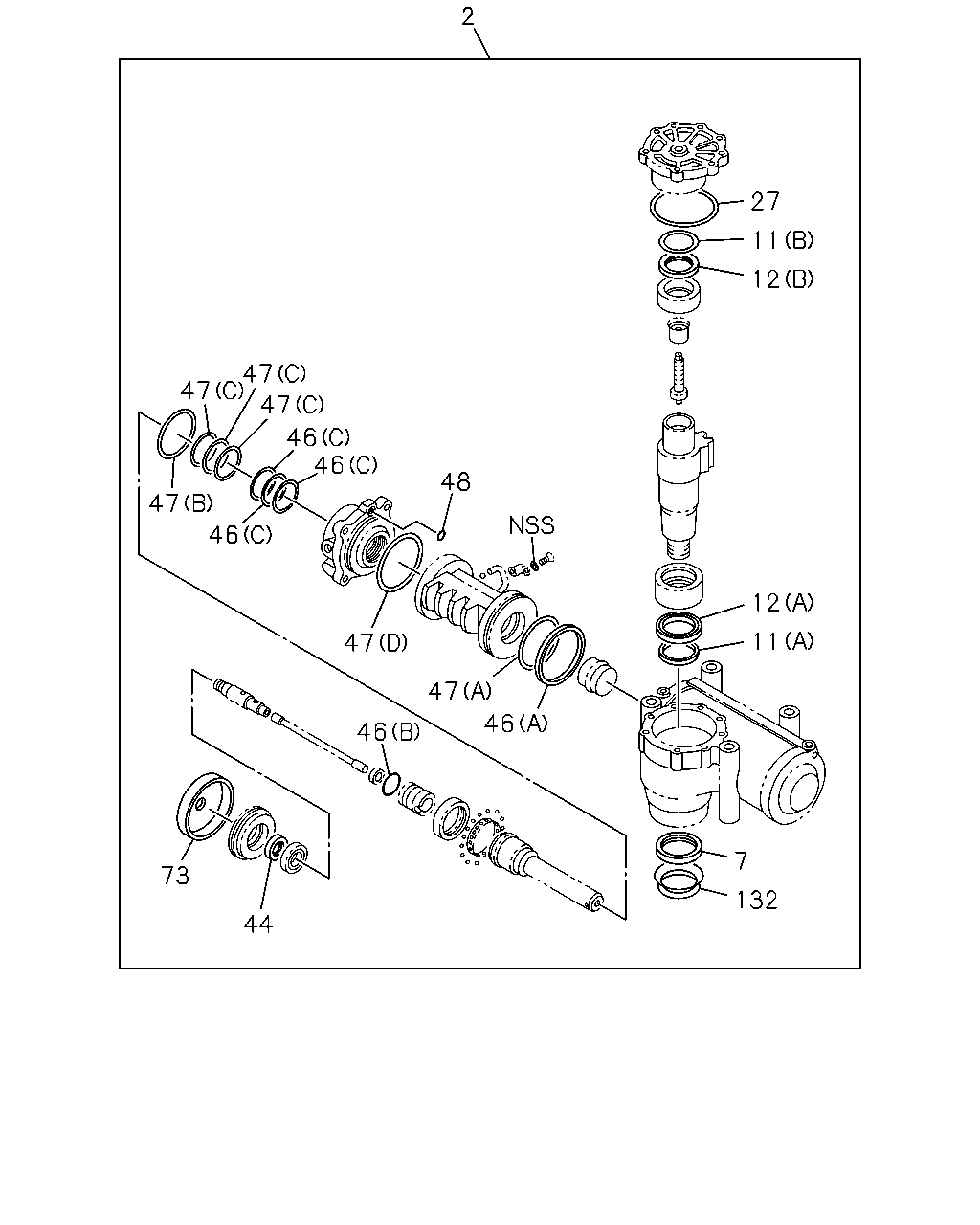

çizim 93690
2 27 11 12 47 47 47 46 46 48 47 46 12 11 47 47 46 46 7 73 132 44
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
JKC, 2 YEAR ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-040-0 01 1 -9709
11 RING; BACKUP,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-040-0 01 1 -0401
11 RING; BACKUP,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-075-0 01 1 9710-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-075-0 01 1 0402-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-071-0 01 1 -0401
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: F = 1-44000-837-1 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: E = 1-44000-836-1 		1-44249-076-0 01 1 0402-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-016-0 01 1 -0401
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44269-035-0 01 1 9710-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44269-035-0 01 1 0402-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: D = 1-44000-756-0 		1-09625-353-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-116-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: E = 1-44000-836-1 		1-44519-100-0 03 1 -0401
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: F = 1-44000-837-1 		1-44519-100-0 03 1 -9709
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: E = 1-44000-836-1 		1-44519-255-0 03 1 0402-
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: F = 1-44000-837-1 		1-44519-255-0 03 1 9710-
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-099-0 01 1 -0401
47 GASKET; HSG,STRG UNIT
(C) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: E = 1-44000-836-1 		1-44519-260-0 01 1 0402-
47 GASKET; HSG,STRG UNIT
(B) ASM PART: F = 1-44000-837-1 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09623-053-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-097-0 01 1 -0401
48 GASKET; HSG,STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44519-262-0 01 1 0402-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-119-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-227-0 01 1 -

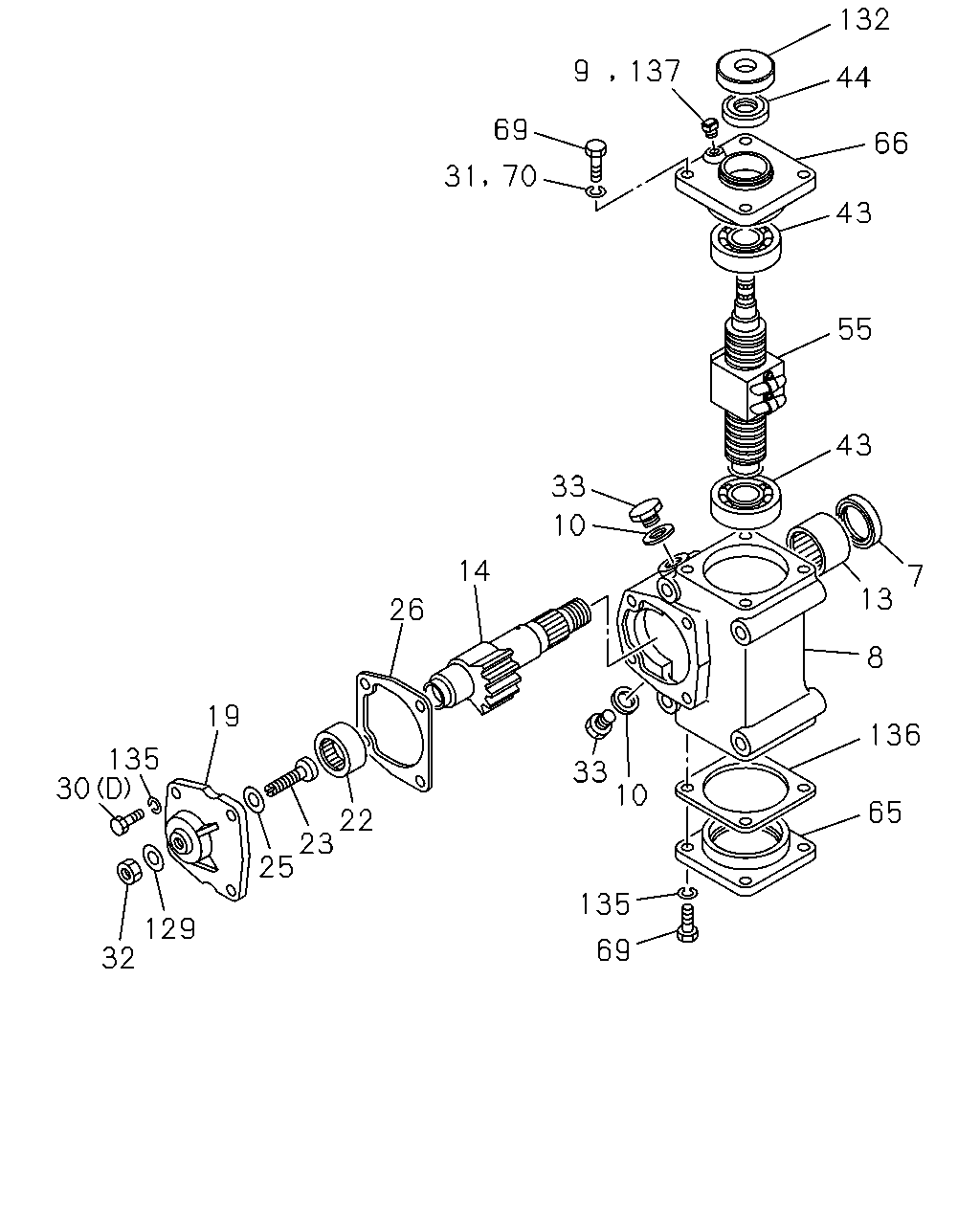

çizim 95225
132 9 137 44 69 66 31 70 43 55 43 33 10 14 7 13 26 8 19 136 135 30 33 10 65 22 23 25 135 129 32 69
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-836-1 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: F = 1-44000-837-1 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-702-1 		1-44241-112-1 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
PT3/8 ASM PART: C = 1-44000-755-0 		9-09204-517-0 01 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-09920-392-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44261-032-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(D), M14X30 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-09509-011-0 08 1 -
31 WASHER; COVER STRG UNIT
ID=14.2 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-99110-414-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		9-83331-704-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
M24 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-99202-024-0 02 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-09803-001-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: D = 1-44000-756-0 		1-09625-353-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44569-116-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: D = 1-44000-756-0 		1-44130-258-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44130-321-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44251-055-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44251-063-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: C = 1-44000-755-0 		1-44251-054-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: D = 1-44000-756-0 		1-44251-062-0 01 1 -
69 BOLT; COVER FIX STRG UNIT
M14X35 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-92051-435-0 08 1 -
70 WASHER; COVER FIX STRG UNIT
ID=14.2 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-09150-514-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-836-1, F = 1-44000-837-1 		1-44519-227-0 01 1 -
135 WASHER; COVER FIX,STRG UNIT
ID=14.2 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		9-09150-514-0 04 1 -
136 SHIM; FRT COVER
T=0.04 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-014-0 AR 1 -
136 SHIM; FRT COVER
T=0.05 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-015-0 AR 1 -
136 SHIM; FRT COVER
T=0.06 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-016-0 AR 1 -
136 SHIM; FRT COVER
T=0.07 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-017-0 AR 1 -
136 SHIM; FRT COVER
T=0.08 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-018-0 AR 1 -
136 SHIM; FRT COVER
T=0.10 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-019-0 AR 1 -
136 SHIM; FRT COVER
T=0.20 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-020-0 AR 1 -
136 SHIM; FRT COVER
T=0.50 ASM PART: C = 1-44000-755-0, D = 1-44000-756-0 		1-44253-021-0 AR 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: A = 1-44000-702-1, B = 1-44000-703-1 		5-44249-002-0 01 1 -
137 PLUG; BREATHER STRG UNIT
PT3/8 ASM PART: D = 1-44000-756-0 		9-09204-517-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
