◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#22359) — 123 parça

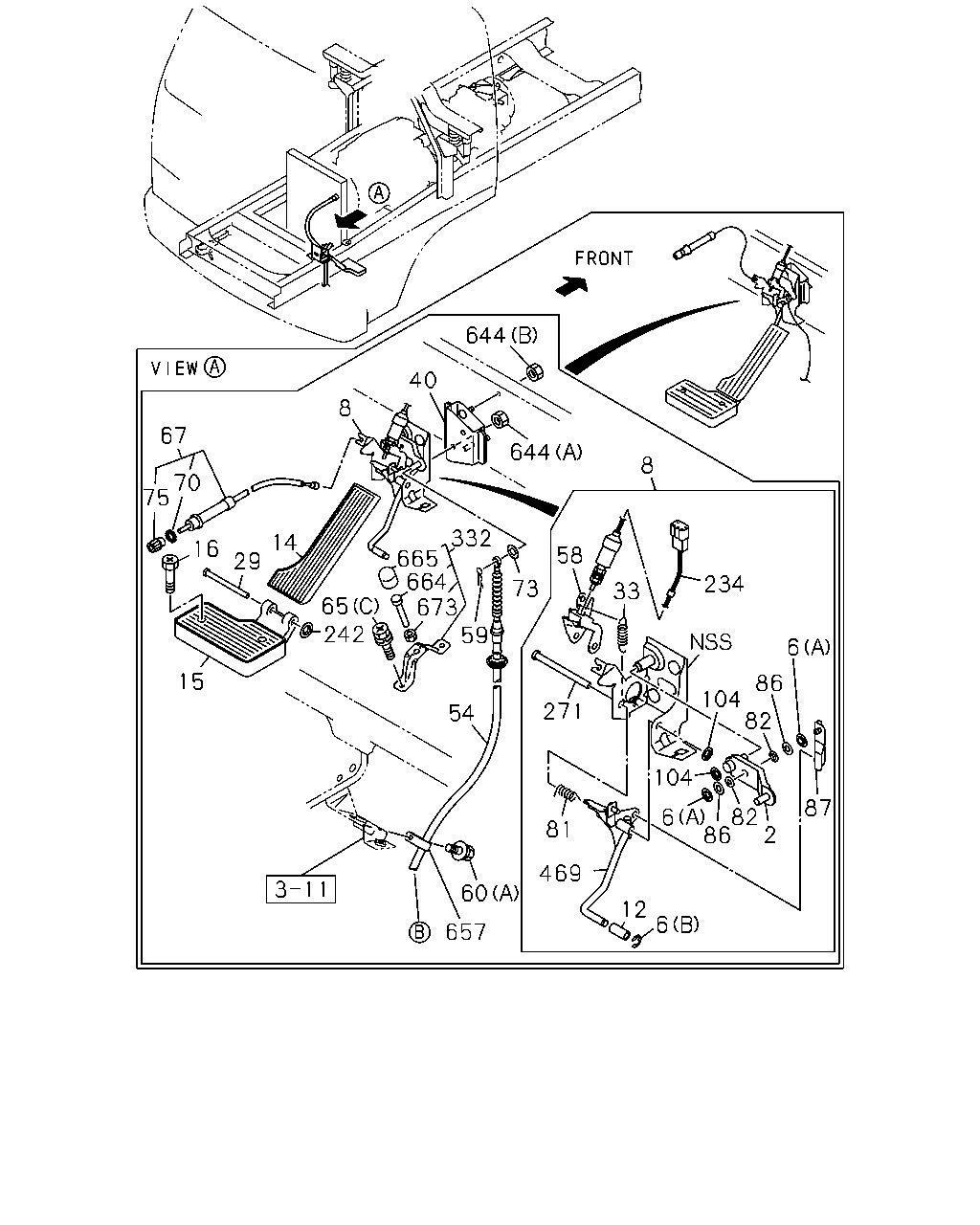

çizim 15841
644 40 8 67 644 8 70 75 332 14 16 58 665 664 673 59 29 234 73 33 65 242 6 15 86 104 82 271 54 104 87 6 81 469 60 12 6 657 2 82 86
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 1-71907-210-2 01 1 9510-0210 ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9510-0103 ● ●
6 RING; SNAP,LINK TO LINK
ISUZU M/T<X9A> (A) ID=4 		9-09185-404-0 02 1 0104-0210 ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9510-9802 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9510-0103 ● ●
8 LINK ASM; ENG CONT
ISUZU M/T<X9A> 		1-73996-206-6 01 1 0104-0210 ● ●
8 LINK ASM; ENG CONT
A/T<X9D> 		1-73996-359-1 01 1 0104-0210 ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9510-9802 ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9510-9708 ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-0004 ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0005-0210 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9510-0004 ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 0005-0210 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9510-9902 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0004 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0005-0210 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9510-0004 ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9510-0210 ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9510-0210 ● ●
54 CABLE; ENG CONT
L=1624 		1-73996-240-9 01 1 9510-0102 ● ●
54 CABLE; ENG CONT
L=1624 		1-73996-240-9 01 1 0103-0210 ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9510-0210 ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9510-0004 ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 0005-0210 ● ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9510-0004 ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0210 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9510-0102 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0103-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9510-0102 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0103-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0004 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ●
65 BOLT
A/T<X9D> (D) M6X25 W/LK WASHER 		0-50040-625-0 02 1 0103-0210 ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9510-0004 ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 0005-0204 ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-0 01 1 0205-0210 ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9510-0004 ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 0005-0210 ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9510-0004 ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9510-0004 ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 0005-0109 ● ●
75 KNOB ASM; IDLING CONT 8-97137-504-0 01 1 0110-0204 ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0205-0210 ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 9510-0210 ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9510-0210 ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9510-0210 ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9510-0210 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9510-0210 ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9510-0103 ● ●
234 SWITCH; ACCEL
ISUZU M/T<X9A> 		1-82380-114-2 01 1 0104-0210 ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9510-0004 ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0005-0210 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 9510-9510 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9511-0210 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9510-0004 ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0005-0210 ● ●
469 LEVER ASM 1-71907-209-5 01 1 9510-0210 ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9510-0210 ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9510-0210 ● ●
657 CLIP; ENG CONT CABLE
ID=16 L=20 		9-09525-535-0 01 1 9705-9707 ● ●
657 CLIP; ENG CONT CABLE
ID=7 L=20 		9-09524-635-0 01 1 9708-9712 ● ●
657 CLIP; ENG CONT CABLE
D=18 H=30 		1-09701-028-0 01 1 9801-0210 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9510-0004 ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0005-0210 ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9510-0004 ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0005-0210 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9510-0004 ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0005-0210 ● ●

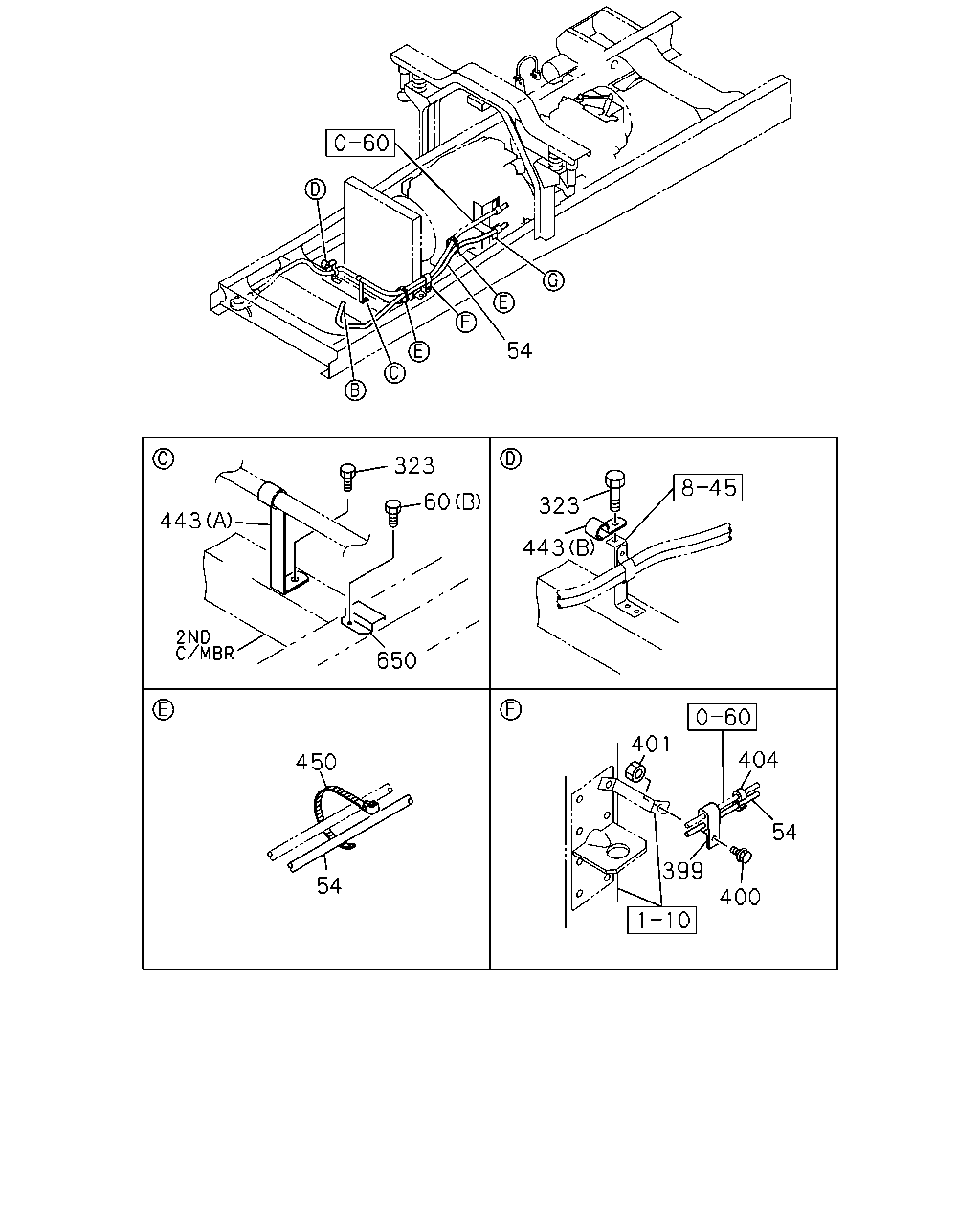

çizim 64534
54 323 60 323 443 443 650 401 404 450 54 399 54 400
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT
L=1624 		1-73996-240-9 01 1 9510-0102 ● ●
54 CABLE; ENG CONT
L=1624 		1-73996-240-9 01 1 0103-0210 ● ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9510-0004 ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0210 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0210 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0210 ● ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9510-9704 ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-0004 ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005-0210 ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0004 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9510-9606 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
404 CLIP; CABLE
ID=10 & 10 		1-09709-277-1 01 1 9510-9711 ● ●
404 CLIP; CABLE
ID=10 & 10 		1-09709-277-1 01 1 9803-9904 ● ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9510-0210 ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9510-0004 ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 0005-0210 ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9510-0004 ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 0005-0210 ● ●
650 PROTECTOR; ACCEL CABLE 1-47478-691-0 01 1 0005-0210 ● ●

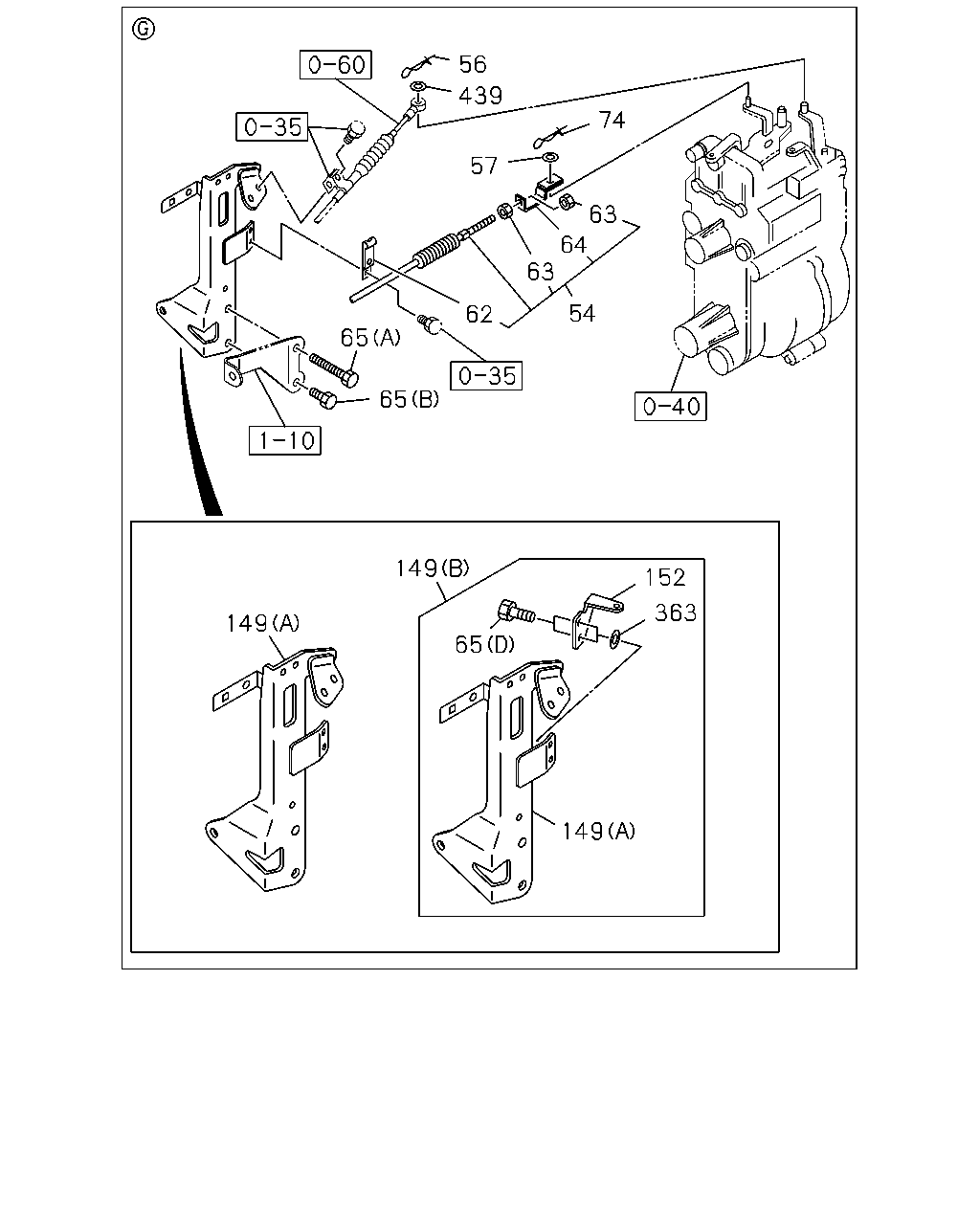

çizim 64607
56 439 74 57 63 64 63 54 62 65 65 149 152 363 149 65 149
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT
L=1624 		1-73996-240-9 01 1 9510-0102 ● ●
54 CABLE; ENG CONT
L=1624 		1-73996-240-9 01 1 0103-0210 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9510-0004 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0210 ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9510-0004 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9510-0002 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0101-0102 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0103-0210 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9510-0102 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0103-0210 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9510-0102 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0103-0210 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9510-0102 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0103-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9510-0102 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0103-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0004 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ●
65 BOLT
A/T<X9D> (D) M6X25 W/LK WASHER 		0-50040-625-0 02 1 0103-0210 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9510-0004 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-0210 ● ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-2 01 1 9510-0102 ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-2 01 1 0103-0210 ● ●
149 BRACKET; ENG CONT
A/T<X9D> (B) 		8-94390-009-2 01 1 0103-0210 ●
152 BRACKET; SPRING
A/T<X9D> 		8-94393-718-0 01 1 0103-0210 ●
363 SPACER; BRKT,ENG CONT SHAFT
A/T<X9D> ID=6.4 		9-09164-506-0 02 1 0103-0210 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9510-0004 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0210 ● ●
