0-87 — COUPLING; INJECTION PUMP (#22358) — 40 parça

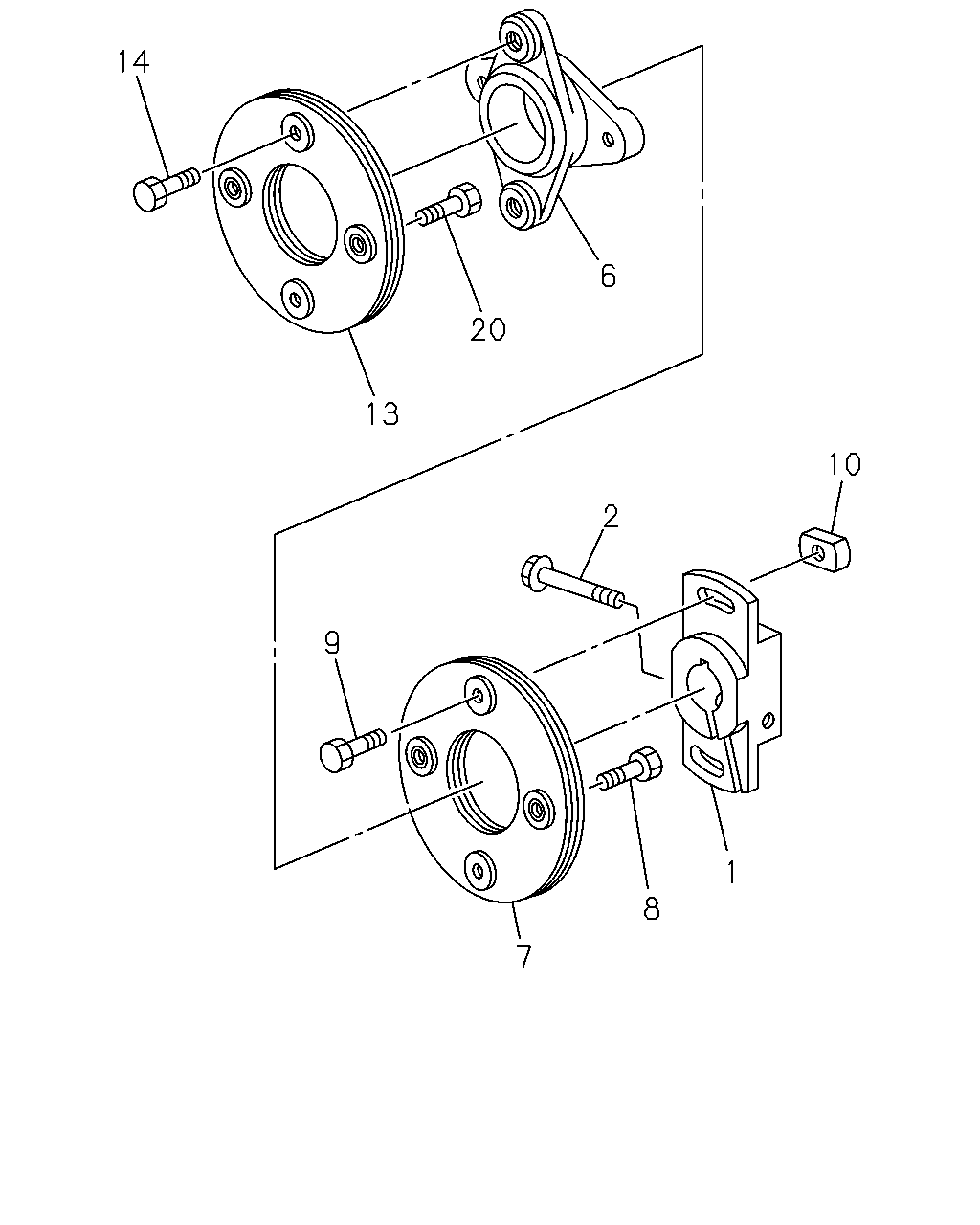

çizim 64482
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9510-0102 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 0103-0210 ●
1 COUPLING; INJ PUMP DRIVE
ISUZU M/T<X9A> 		1-15782-014-0 01 1 0103-0210 ●
1 COUPLING; INJ PUMP DRIVE
A/T<X9D> 		1-15782-019-0 01 1 0103-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9510-0102 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 0103-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP
ISUZU M/T<X9A> 		1-15789-010-0 01 1 0103-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP
A/T<X9D> 		1-15789-170-0 01 1 0103-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9510-0102 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 0103-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
ISUZU M/T<X9A> 		1-15789-155-0 01 1 0103-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
A/T<X9D> 		1-15789-184-0 01 1 0103-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9510-0102 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 0103-0210 ●
7 PLATE; COUPLING,COUPLING SIDE
ISUZU M/T<X9A> 		1-15789-194-0 01 1 0103-0210 ●
7 PLATE; COUPLING,COUPLING SIDE
A/T<X9D> 		1-15789-199-0 01 1 0103-0210 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9510-0102 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 0103-0210 ●
8 BOLT; PLATE TO CROSS COUPLING
ISUZU M/T<X9A> 		1-15749-501-0 02 1 0103-0210 ●
8 BOLT; PLATE TO CROSS COUPLING
A/T<X9D> 		1-15789-183-0 02 1 0103-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9510-0102 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 0103-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
ISUZU M/T<X9A> 		1-15789-122-0 02 1 0103-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
A/T<X9D> 		1-15789-182-0 02 1 0103-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9510-0102 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 0103-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
ISUZU M/T<X9A> 		1-15789-066-0 02 1 0103-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
A/T<X9D> 		1-15789-167-0 02 1 0103-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9510-0102 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 0103-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
ISUZU M/T<X9A> 		1-15789-194-0 01 1 0103-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
A/T<X9D> 		1-15789-199-0 01 1 0103-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9510-0102 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 0103-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
ISUZU M/T<X9A> 		1-15789-120-0 02 1 0103-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
A/T<X9D> 		1-15789-183-0 02 1 0103-0210 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9510-0102 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 0103-0210 ●
20 BOLT; COUPLING TO INJ PUMP
ISUZU M/T<X9A> 		1-15789-119-0 02 1 0103-0210 ●
20 BOLT; COUPLING TO INJ PUMP
A/T<X9D> 		1-15789-183-0 02 1 0103-0210 ●
