EQ-Hit EPC
Kataloglar
Sepet (0)
Bilgi
Yardım
🔍
🔍
◀
🏠
▶
Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#22349) — 76 parça
Tümü
A - 6HH1 N ENG
B - 6HH1-STD ENG
◀

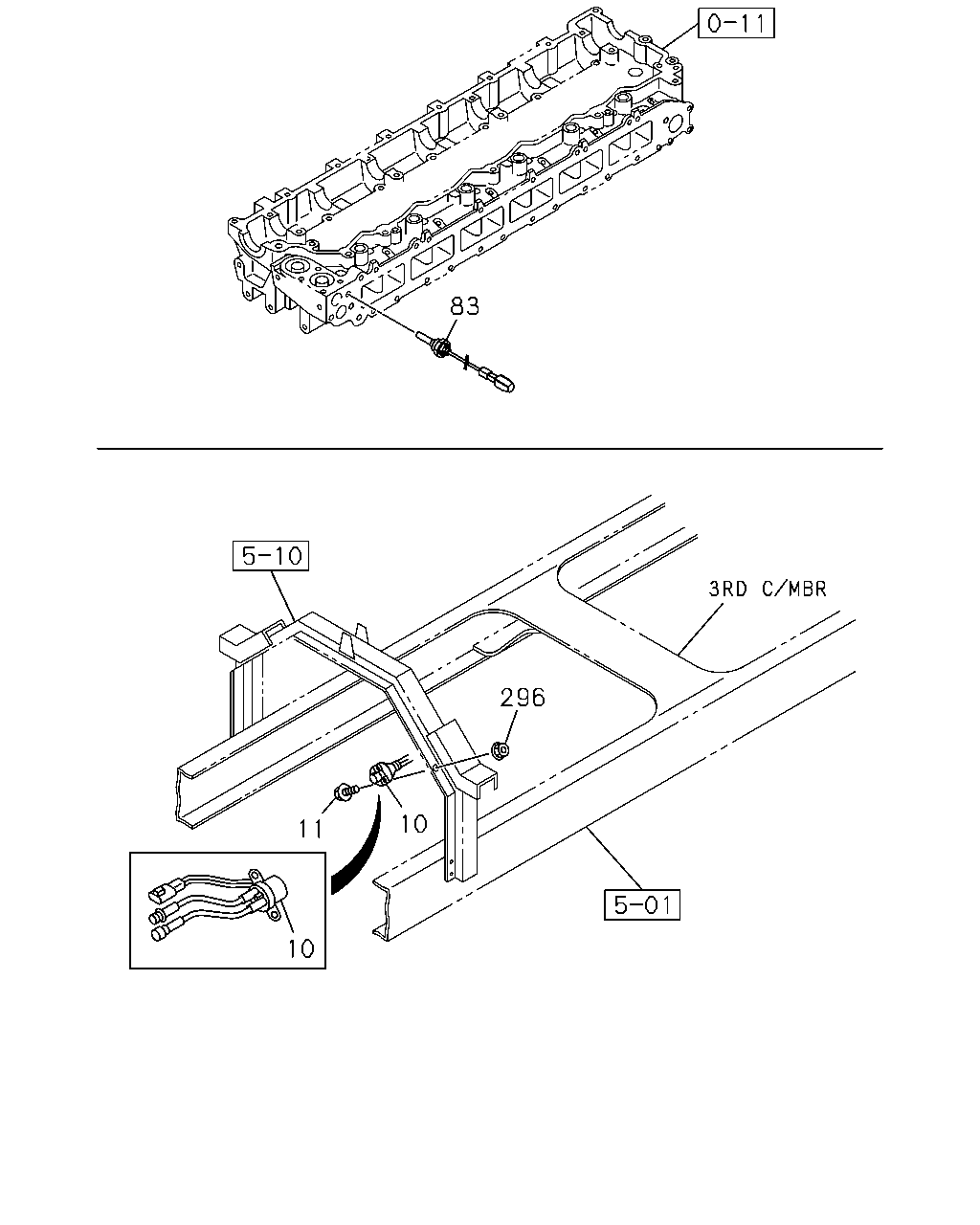

[060A] CYLINDER SIDE AND CAB REAR MEMBER SIDE (14 parça)

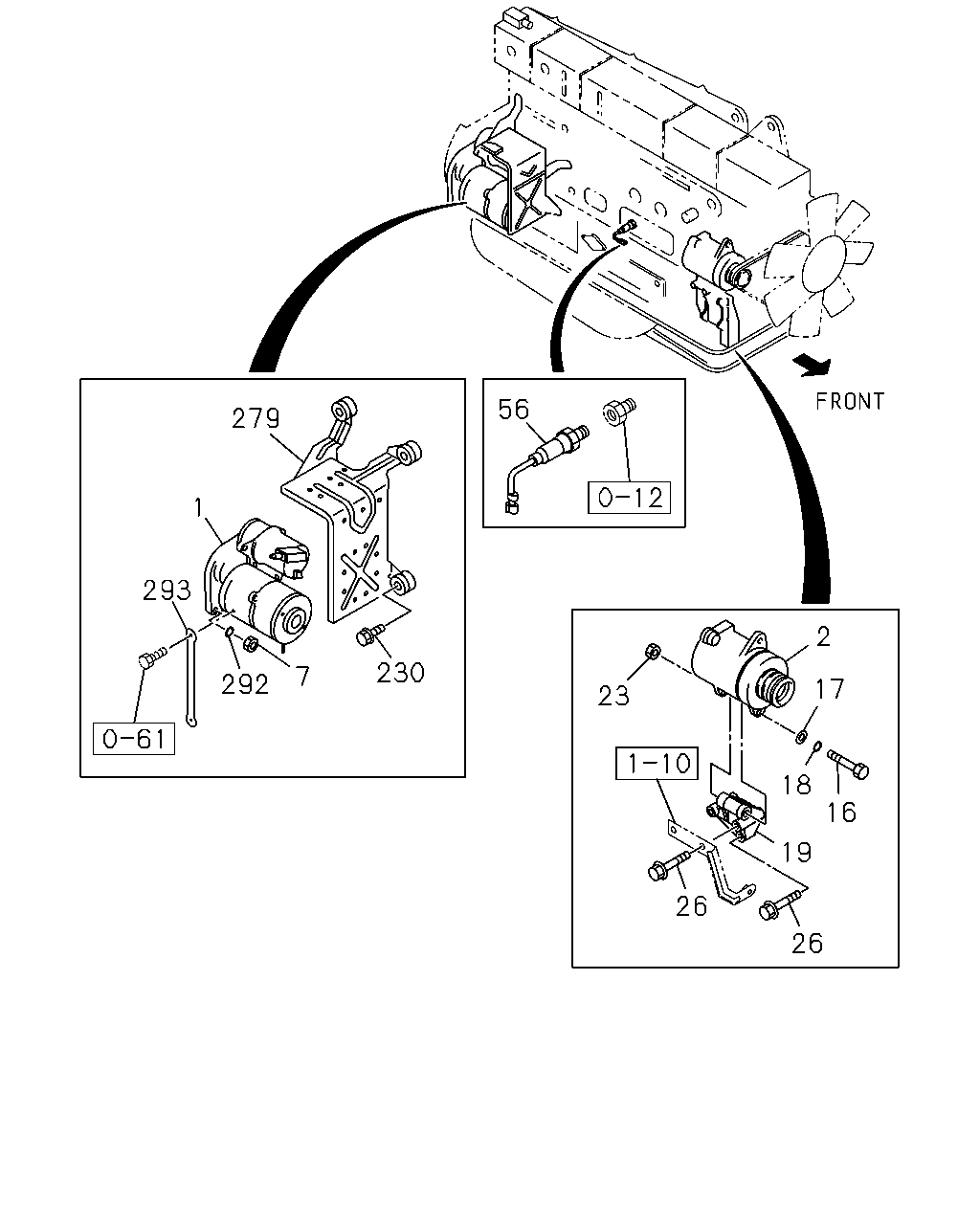

[060A] FIXING;STARTER ASM AND GENERATOR ASM (37 parça)
[060A] CAB SIDE (10 parça)
[060A] CHASSIS FRONT SIDE (15 parça)
▶
83
296
10
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
RELAY; STARTER
NIKKO
1-81171-067-0
01
1
9510-9608
●
10
RELAY; STARTER
NIKKO
1-81171-075-0
01
1
9609-0004
●
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
0005-0210
●
●
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
9904-9907
●
10
RELAY; STARTER
EXC. NIKKO<Y70> HITACHI
1-81171-087-0
01
1
9908-0004
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
●
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
9607-9801
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28680-820-0
02
1
9802-0004
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
●
83
THERMOMETER UNIT
1-83161-031-1
01
1
9510-0102
●
83
THERMOMETER UNIT
1-83161-031-1
01
1
0103-0210
●
●
296
NUT; RELAY,STARTER
M8
9-09110-408-0
02
1
9510-9606
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
9607-0004
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0005-0210
●
●
56
279
1
293
2
230
7
292
17
23
18
16
19
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-307-0
01
1
9510-9708
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-323-0
01
1
9709-0102
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-323-0
01
1
0103-0210
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
8-94399-159-4
01
1
9905-9907
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-4
01
1
9510-0102
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-4
01
1
0103-0210
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-521-0
01
1
9904-9905
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-577-0
01
1
9906-9907
●
7
NUT; STARTER
M14
9-99110-414-0
02
1
9510-0102
●
7
NUT; STARTER
M14
9-99110-414-0
02
1
0103-0210
●
●
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
9510-0102
●
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0103-0210
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9510-0102
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0103-0210
●
●
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
9510-0102
●
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0103-0210
●
●
19
BRACKET; GEN
8-94396-297-0
01
1
9510-0102
●
19
BRACKET; GEN
8-94396-297-0
01
1
0103-0112
●
●
19
BRACKET; GEN
8-97602-318-0
01
1
0201-0210
●
●
23
NUT; GEN
M14
9-99110-414-0
01
1
9510-0102
●
23
NUT; GEN
M14
9-99110-414-0
01
1
0103-0210
●
●
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
9510-0102
●
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
0103-0210
●
●
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
9510-0102
●
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
0103-0210
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
01
1
9510-0102
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
01
1
0103-0210
●
●
230
BOLT; HEAT PROTECTOR
M8X28 FLANGE
0-28080-828-0
01
1
9510-0102
●
230
BOLT; HEAT PROTECTOR
M8X28 FLANGE
0-28080-828-0
01
1
0103-0210
●
●
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28181-030-0
01
1
9510-0102
●
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28181-030-0
01
1
0103-0210
●
●
279
PROTECTOR; STARTER
8-94394-952-1
01
1
9510-0102
●
279
PROTECTOR; STARTER
8-94394-952-1
01
1
0103-0210
●
●
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
9510-0102
●
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0103-0210
●
●
293
CABLE; STARTER EARTH
L=360
1-82650-230-1
01
1
9510-0102
●
293
CABLE; STARTER EARTH
L=360
1-82650-230-1
01
1
0103-0210
●
●
835
606
153
430
38
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
9510-0004
●
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
0005-0210
●
●
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
9510-0004
●
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0005-0210
●
●
153
BOLT; BRKT FIX
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0103-0210
●
430
NUT; RELAY FIX
M6 FLANGE
0-91150-106-0
02
1
9510-9601
●
430
NUT; RELAY FIX
M6 FLANGE
0-91150-106-0
01
1
9602-0004
●
430
NUT; RELAY FIX
M6 FLANGE
0-91150-106-0
01
1
0005-0210
●
●
606
BRACKET; CONT UNIT
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
1-75558-567-0
01
1
0103-0210
●
835
NUT; ECU
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE
0-91150-106-0
02
1
0103-0210
●
428
441
210
428
441
489
488
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
210
BOLT; CABLE FIX
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
9510-9907
●
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9908-0004
●
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0005-0210
●
●
428
CLIP; HARNESS
ID=35 L=50
1-09701-214-0
02
1
9510-0004
●
428
CLIP; HARNESS
ID=35 L=50
1-09701-214-0
02
1
0005-0104
●
●
428
CLIP; HARNESS
ID=35 L=50
1-09701-214-0
02
1
0105-0210
●
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28080-825-0
02
1
9510-9606
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
9607-0004
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0005-0210
●
●
488
STOPPER; ENG
1-82840-128-2
01
1
9510-0004
●
488
STOPPER; ENG
1-82840-128-2
01
1
0005-0210
●
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
9510-0004
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0005-0210
●
●
492
BRACKET; ENG STOPPER
1-82849-067-0
01
1
9510-0004
●
492
BRACKET; ENG STOPPER
1-82849-067-0
01
1
0005-0210
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
