0-50 — OIL COOLER AND OIL FILTER (#22346) — 132 parça

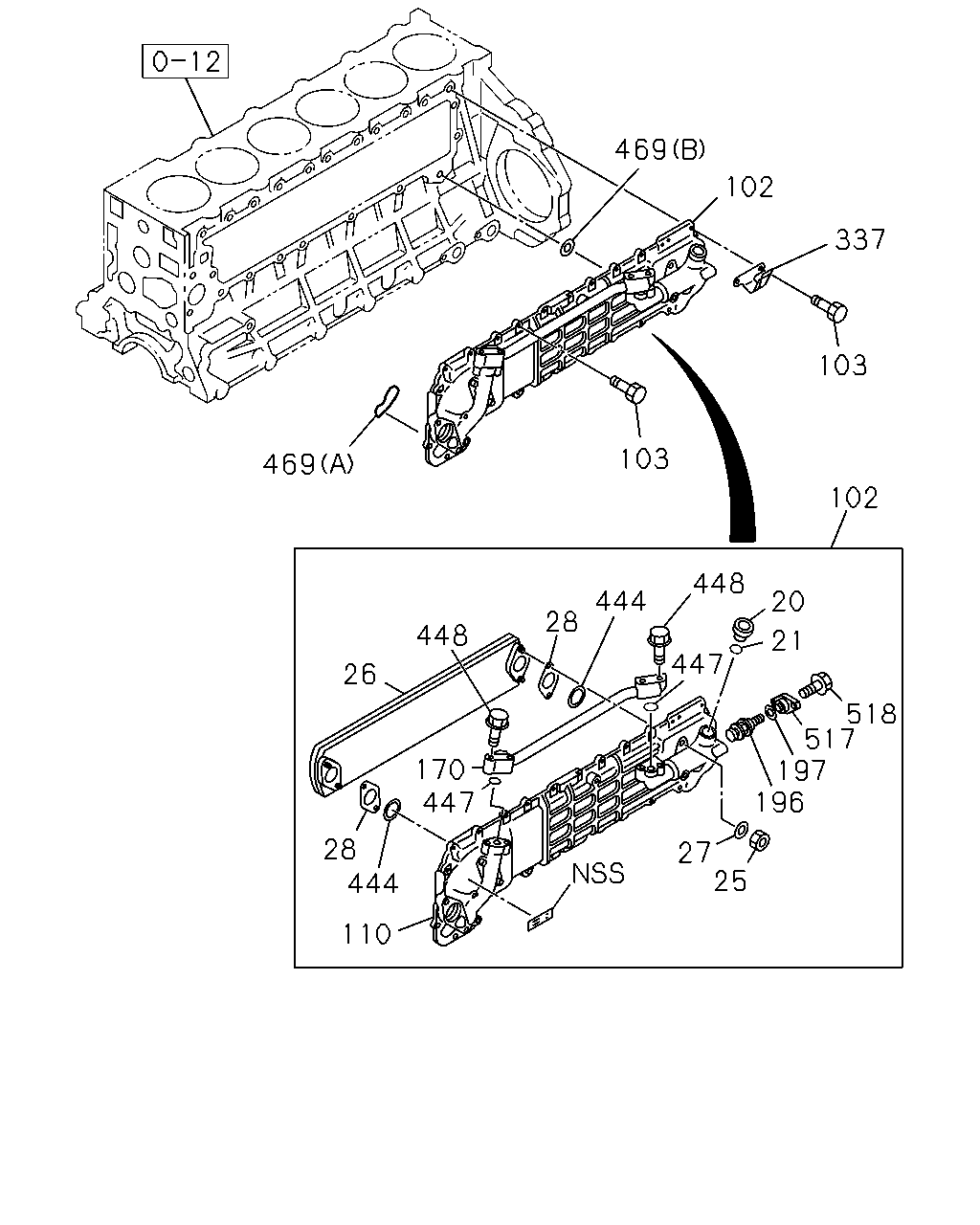

469 102 337 103 103 469 102 448 20 444 28 448 21 447 26 518 517 197 196 170 447 28 444 27 25 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY	8-94396-753-0	01	1	9510-0102	●
20	PLUG; COOLER BODY	8-94396-753-0	01	1	0103-0210	●	●
21	GASKET; PLUG M24	8-94396-755-0	01	1	9510-0102	●
21	GASKET; PLUG M24	8-94396-755-0	01	1	0103-0210	●	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9510-0102	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	0103-0210	●	●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9510-0102	●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	0103-0210	●	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9510-0102	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	0103-0210	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9510-0102	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0103-0210	●	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-3	01	1	9510-0102	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-4	01	1	0103-0210	●	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-3	01	1	9510-0102	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-4	01	1	0103-0210	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9510-0102	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	0103-0210	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9510-0102	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	0103-0210	●	●
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-027-2	01	1	9510-0102	●
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-027-2	01	1	0103-0210	●	●
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-028-2	01	1	9510-0102	●
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-028-2	01	1	0103-0210	●	●
170	PIPE; BYPASS	8-94390-078-1	01	1	9510-0102	●
170	PIPE; BYPASS	8-94390-078-1	01	1	0103-0210	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9510-0102	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0103-0111	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-0210	●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9510-0102	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0103-0210	●	●
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	9510-0102	●
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	0103-0210	●	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	9510-0102	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	0103-0210	●	●
447	GASKET; BYPASS PIPE	1-09623-588-0	02	1	9510-0102	●
447	GASKET; BYPASS PIPE	1-09623-588-0	02	1	0103-0210	●	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9510-0102	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	0103-0210	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9510-0102	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0103-0210	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9510-0102	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0103-0210	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9510-0102	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	0103-0210	●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9510-0102	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0103-0210	●	●

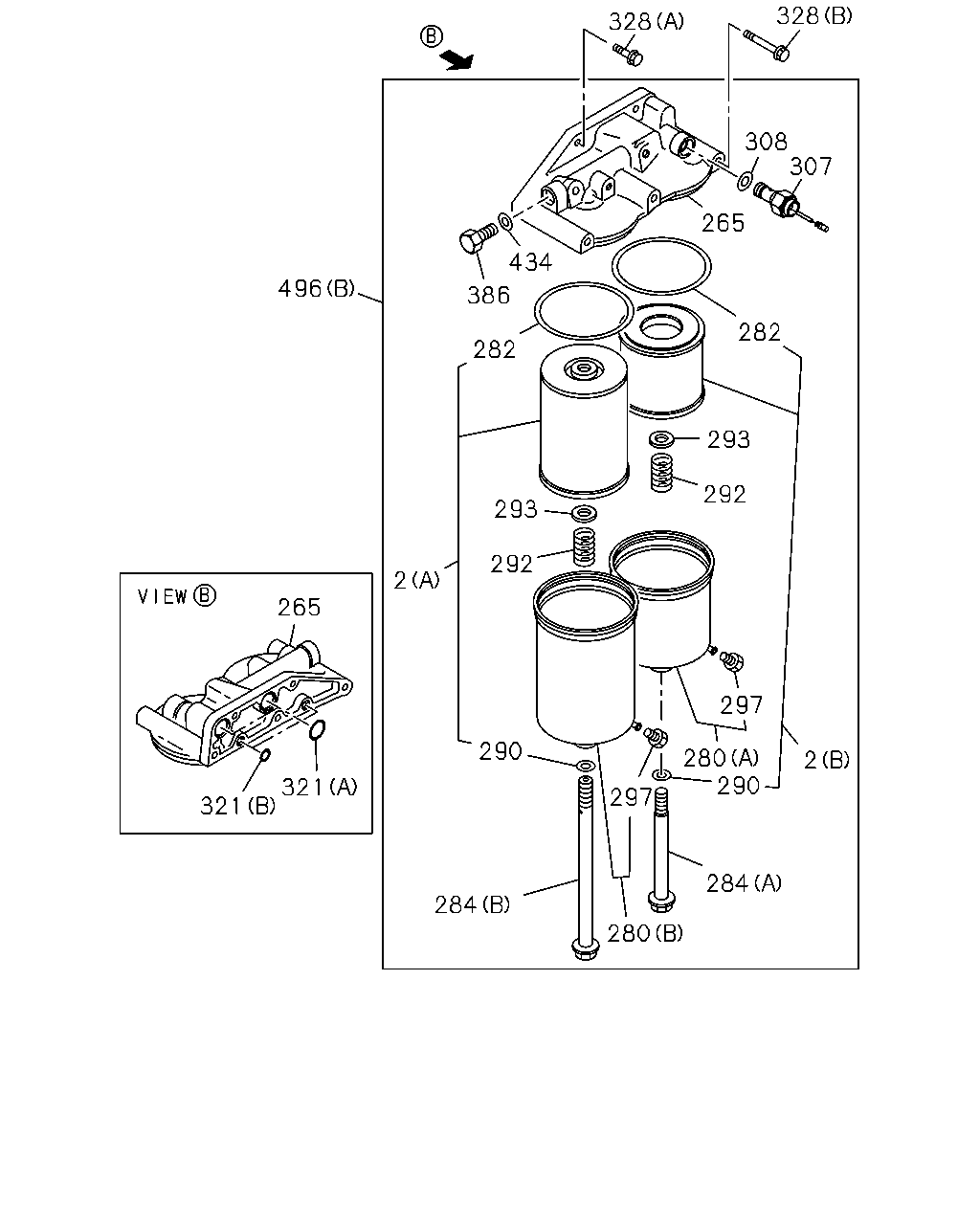

328 328 308 307 265 434 496 386 282 282 293 292 293 292 2 265 297 290 280 290 2 297 321 321 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9510-9510	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94396-375-4	01	1	9511-9609	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9610-0102	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C)	8-94391-049-2	01	1	0103-0210	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9511-0210	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9511-0210	●
265	BODY; OIL FILTER	8-94395-701-0	01	1	9510-9510	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-701-0	01	1	9511-9609	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-3	01	1	9610-0102	●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94391-016-4	01	1	0103-0210	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	9511-0210	●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	9511-0210	●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	9511-0210	●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	9511-0210	●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	9511-0210	●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	9511-0210	●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	9511-0210	●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	9511-0210	●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	9511-0210	●
297	PLUG; COVER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-275-0	02	1	9511-0210	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9510-9510	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9511-0102	●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-700-0	01	1	0103-0210	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13260-066-1	01	1	9511-9809	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	9810-0210	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9510-0102	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0103-0210	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9510-9510	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1>. (B) ID=9.8	8-94399-339-0	01	1	9511-0102	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9511-0102	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0103-0210	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0103-0210	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9510-0102	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0103-0210	●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9510-0102	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	0103-0210	●	●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	02	1	9510-9510	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M10X90 FLANGE	0-28181-090-0	02	1	9511-0102	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X90 FLANGE	0-28181-090-0	02	1	0103-0210	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X135	8-94397-139-1	03	1	9511-0210	●
386	PLUG; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16X9	9-13226-011-0	01	1	9511-0210	●
434	GASKET; PLUG,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-526-0	01	1	9511-0210	●
496	FILTER ASM; OIL (A)	8-94395-686-0	01	1	9510-9510	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94395-686-0	01	1	9511-9609	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94391-015-3	01	1	9610-0102	●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94391-015-5	01	1	0103-0210	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-427-1	01	1	9511-9809	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94392-898-1	01	1	9810-0210	●

496 307 308 265 328 2 321 265 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9510-9510	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94396-375-4	01	1	9511-9609	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9610-0102	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C)	8-94391-049-2	01	1	0103-0210	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9511-0210	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9511-0210	●
265	BODY; OIL FILTER	8-94395-701-0	01	1	9510-9510	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-701-0	01	1	9511-9609	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-3	01	1	9610-0102	●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94391-016-4	01	1	0103-0210	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	9511-0210	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9510-9510	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9511-0102	●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-700-0	01	1	0103-0210	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13260-066-1	01	1	9511-9809	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	9810-0210	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9510-0102	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0103-0210	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9510-9510	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1>. (B) ID=9.8	8-94399-339-0	01	1	9511-0102	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9511-0102	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0103-0210	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0103-0210	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9510-0102	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0103-0210	●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9510-0102	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	0103-0210	●	●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	02	1	9510-9510	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M10X90 FLANGE	0-28181-090-0	02	1	9511-0102	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X90 FLANGE	0-28181-090-0	02	1	0103-0210	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X135	8-94397-139-1	03	1	9511-0210	●
496	FILTER ASM; OIL (A)	8-94395-686-0	01	1	9510-9510	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94395-686-0	01	1	9511-9609	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94391-015-3	01	1	9610-0102	●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94391-015-5	01	1	0103-0210	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-427-1	01	1	9511-9809	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94392-898-1	01	1	9810-0210	●
