0-40 — FUEL INJECTION SYSTEM (#22343) — 152 parça

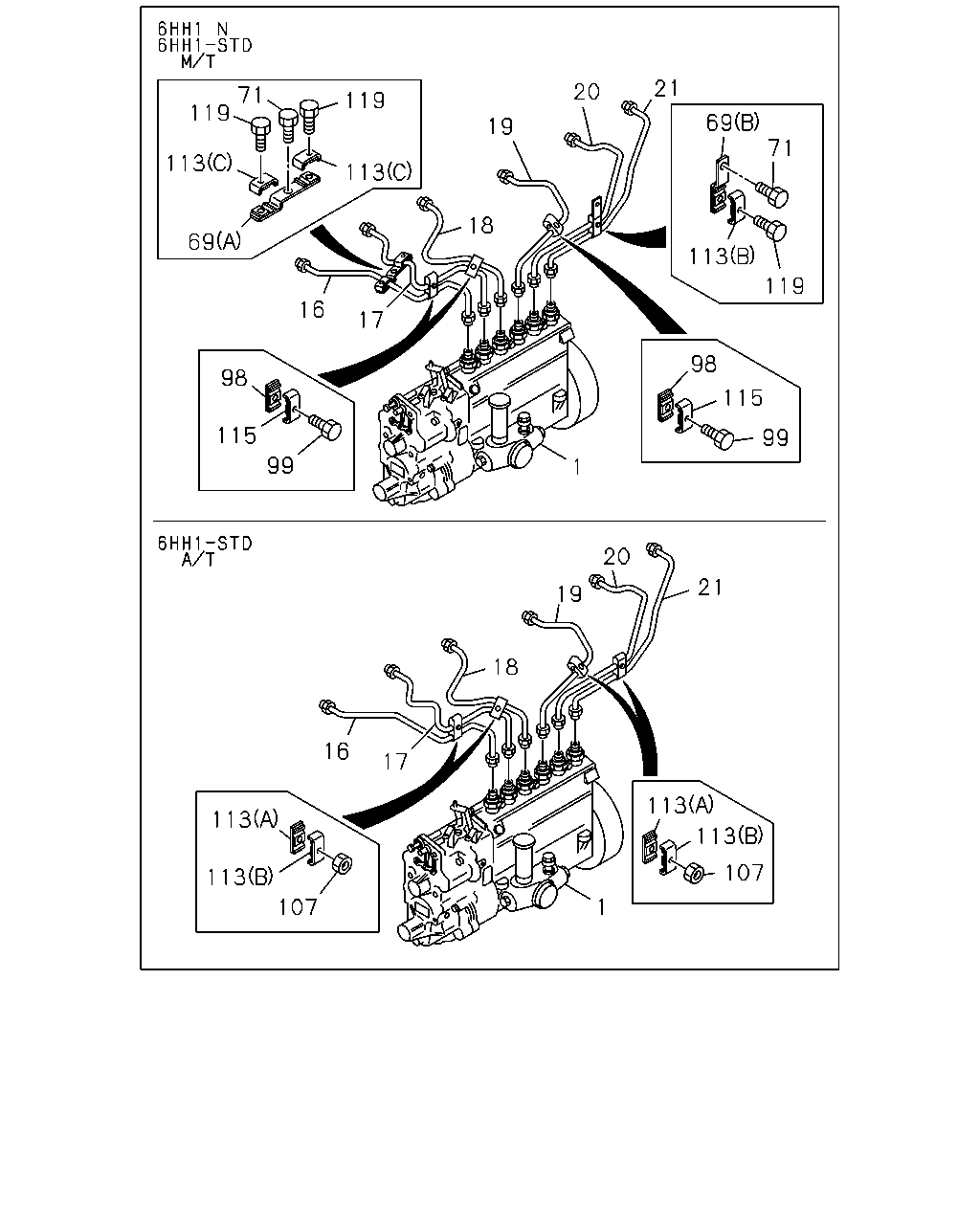

21 20 71 119 119 69 19 71 113 113 18 69 113 119 16 17 98 98 115 115 99 99 1 20 21 19 18 16 17 113 113 113 107 113 1 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-812-1	01	1	9510-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-902-2	01	1	9510-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ISUZU M/T<X9A>	8-94395-901-1	01	1	0103-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	8-97600-630-0	01	1	0103-0210		●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9510-0102	●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	0103-0210	●
16	PIPE; INJ NO.1 ISUZU M/T<X9A>	8-94396-007-2	01	1	0103-0210		●
16	PIPE; INJ NO.1 A/T<X9D>	8-94394-546-0	01	1	0103-0210		●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9510-0102	●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	0103-0210	●
17	PIPE; INJ NO.2 ISUZU M/T<X9A>	8-94396-008-3	01	1	0103-0210		●
17	PIPE; INJ NO.2 A/T<X9D>	8-94394-547-0	01	1	0103-0210		●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9510-0102	●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	0103-0210	●
18	PIPE; INJ NO.3 ISUZU M/T<X9A>	8-94396-009-3	01	1	0103-0210		●
18	PIPE; INJ NO.3 A/T<X9D>	8-94394-548-0	01	1	0103-0210		●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9510-0102	●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	0103-0210	●
19	PIPE; INJ NO.4 ISUZU M/T<X9A>	8-94396-010-4	01	1	0103-0210		●
19	PIPE; INJ NO.4 A/T<X9D>	8-94394-549-0	01	1	0103-0210		●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9510-0102	●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	0103-0210	●
20	PIPE; INJ NO.5 ISUZU M/T<X9A>	8-94396-011-2	01	1	0103-0210		●
20	PIPE; INJ NO.5 A/T<X9D>	8-94394-550-0	01	1	0103-0210		●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9510-0102	●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	0103-0210	●
21	PIPE; INJ NO.6 ISUZU M/T<X9A>	8-94396-494-3	01	1	0103-0210		●
21	PIPE; INJ NO.6 A/T<X9D>	8-94394-551-0	01	1	0103-0210		●
69	BRACKET; INJ PIPE CLIP (A)	8-94396-086-0	01	1	9510-0102	●
69	BRACKET; INJ PIPE CLIP (A)	8-94396-086-0	01	1	0103-0210	●
69	BRACKET; INJ PIPE CLIP ISUZU M/T<X9A> (A)	8-94396-086-0	01	1	0103-0210		●
69	BRACKET; INJ PIPE CLIP (B)	8-94396-087-0	01	1	9510-0102	●
69	BRACKET; INJ PIPE CLIP (B)	8-94396-087-0	01	1	0103-0210	●
69	BRACKET; INJ PIPE CLIP ISUZU M/T<X9A> (B)	8-94396-087-0	01	1	0103-0210		●
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9510-0102	●
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0103-0210	●
71	BOLT; BRKT ISUZU M/T<X9A> M8X12 FLANGE	0-28080-812-0	02	1	0103-0210		●
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	9510-0102	●
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	0103-0210	●
98	CLIP; "A",INJ PIPE ISUZU M/T<X9A>	8-94397-445-0	03	1	0103-0210		●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9510-0102	●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	0103-0210	●
99	BOLT; CLIP,INJ,PIPE ISUZU M/T<X9A>	8-94365-129-0	03	1	0103-0210		●
107	NUT; INJ PIPE CLIP A/T<X9D> M6 FLANGE	0-91150-106-0	04	1	0103-0210		●
113	CLIP; INJ PIPE (C)	1-09701-091-0	02	1	9510-0102	●
113	CLIP; INJ PIPE (C)	1-09701-091-0	02	1	0103-0210	●
113	CLIP; INJ PIPE ISUZU M/T<X9A> (C)	1-09701-091-0	02	1	0103-0210		●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9510-0102	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	0103-0210	●
113	CLIP; INJ PIPE ISUZU M/T<X9A> (B)	8-94397-444-0	01	1	0103-0210		●
113	CLIP; INJ PIPE A/T<X9D> (A)	8-94396-793-0	04	1	0103-0210		●
113	CLIP; INJ PIPE A/T<X9D> (B)	8-94397-444-0	04	1	0103-0210		●
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	9510-0102	●
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	0103-0210	●
115	CLIP; "B",INJ PIPE ISUZU M/T<X9A>	8-94397-444-0	03	1	0103-0210		●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28080-622-0	03	1	9510-0102	●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28080-622-0	03	1	0103-0210	●
119	BOLT; CLIP,INJ PIPE ISUZU M/T<X9A> M6X22 FLANGE	0-28080-622-0	03	1	0103-0210		●

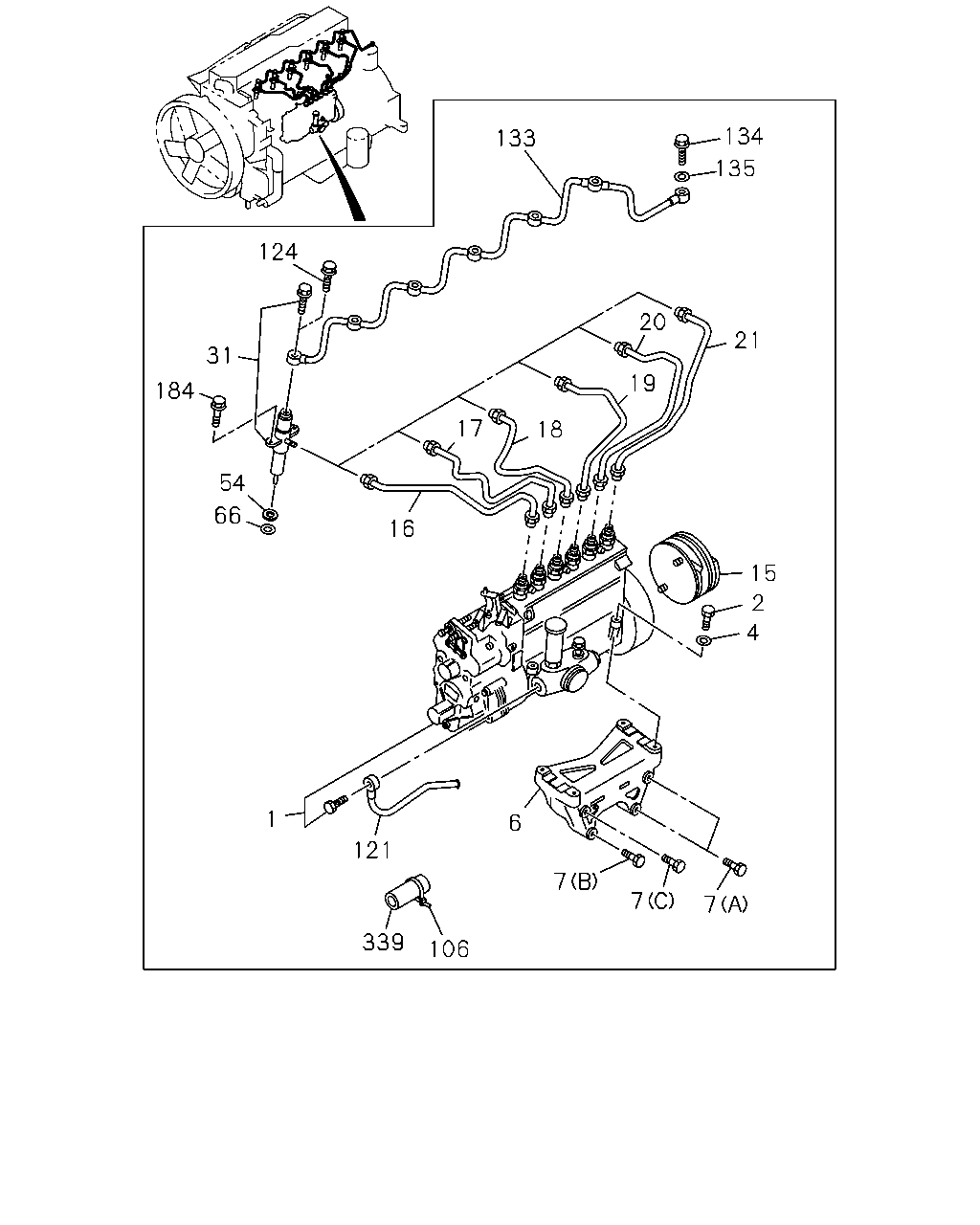

134 133 135 124 20 21 31 19 184 17 18 54 66 16 15 2 4 1 6 121 7 7 7 339 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-812-1	01	1	9510-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-902-2	01	1	9510-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ISUZU M/T<X9A>	8-94395-901-1	01	1	0103-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	8-97600-630-0	01	1	0103-0210		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9510-0102	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0103-0210	●	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9510-0102	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0103-0210	●	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9510-0102	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0103-0210	●	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9510-0102	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0103-0210	●	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9510-0102	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0103-0210	●	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9510-0102	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0103-0210	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9510-0102	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	0103-0210	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. ISUZU M/T<X9A>	8-94395-308-0	01	1	0103-0210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. A/T<X9D>	8-94393-962-2	01	1	0103-0210		●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9510-0102	●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	0103-0210	●
16	PIPE; INJ NO.1 ISUZU M/T<X9A>	8-94396-007-2	01	1	0103-0210		●
16	PIPE; INJ NO.1 A/T<X9D>	8-94394-546-0	01	1	0103-0210		●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9510-0102	●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	0103-0210	●
17	PIPE; INJ NO.2 ISUZU M/T<X9A>	8-94396-008-3	01	1	0103-0210		●
17	PIPE; INJ NO.2 A/T<X9D>	8-94394-547-0	01	1	0103-0210		●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9510-0102	●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	0103-0210	●
18	PIPE; INJ NO.3 ISUZU M/T<X9A>	8-94396-009-3	01	1	0103-0210		●
18	PIPE; INJ NO.3 A/T<X9D>	8-94394-548-0	01	1	0103-0210		●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9510-0102	●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	0103-0210	●
19	PIPE; INJ NO.4 ISUZU M/T<X9A>	8-94396-010-4	01	1	0103-0210		●
19	PIPE; INJ NO.4 A/T<X9D>	8-94394-549-0	01	1	0103-0210		●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9510-0102	●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	0103-0210	●
20	PIPE; INJ NO.5 ISUZU M/T<X9A>	8-94396-011-2	01	1	0103-0210		●
20	PIPE; INJ NO.5 A/T<X9D>	8-94394-550-0	01	1	0103-0210		●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9510-0102	●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	0103-0210	●
21	PIPE; INJ NO.6 ISUZU M/T<X9A>	8-94396-494-3	01	1	0103-0210		●
21	PIPE; INJ NO.6 A/T<X9D>	8-94394-551-0	01	1	0103-0210		●
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	9510-0102	●
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	0103-0210	●
31	NOZZLE ASM; INJ ISUZU M/T<X9A>	8-94395-511-2	06	1	0103-0210		●
31	NOZZLE ASM; INJ A/T<X9D>	8-94395-498-2	06	1	0103-0210		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9510-0102	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0103-0210	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	9510-0006	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-0	06	1	0007-0102	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0103-0210	●	●
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0002-0102	●
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0103-0106	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9510-0102	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0103-0210	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0102	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	06	1	0103-0210	●	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9510-0102	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	0103-0210	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9510-0102	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0103-0210	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9510-0004	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-0102	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0103-0210	●	●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9510-0102	●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	0103-0210	●	●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-0102	●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0103-0210	●	●

34 36 36 37 38 31 39 32 44 45 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	9510-0102	●
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	0103-0210	●
31	NOZZLE ASM; INJ ISUZU M/T<X9A>	8-94395-511-2	06	1	0103-0210		●
31	NOZZLE ASM; INJ A/T<X9D>	8-94395-498-2	06	1	0103-0210		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9510-0102	●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	0103-0210	●	●
33	NOZZLE; INJ	8-94390-383-0	06	1	9510-0102	●
33	NOZZLE; INJ	8-94390-383-0	06	1	0103-0210	●
33	NOZZLE; INJ ISUZU M/T<X9A>	8-94390-383-0	06	1	0103-0210		●
33	NOZZLE; INJ A/T<X9D>	8-94390-382-0	06	1	0103-0210		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9510-9901	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9510-0102	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0103-0210	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9510-9901	●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9510-0102	●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	0103-0210	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9510-0102	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	0103-0210	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9510-0102	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	0103-0210	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9510-0102	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	0103-0210	●	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9510-0102	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	0103-0210	●	●
