◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶

0-39 — AIR COMPRESSOR; BRAKE (#22342) — 150 parça

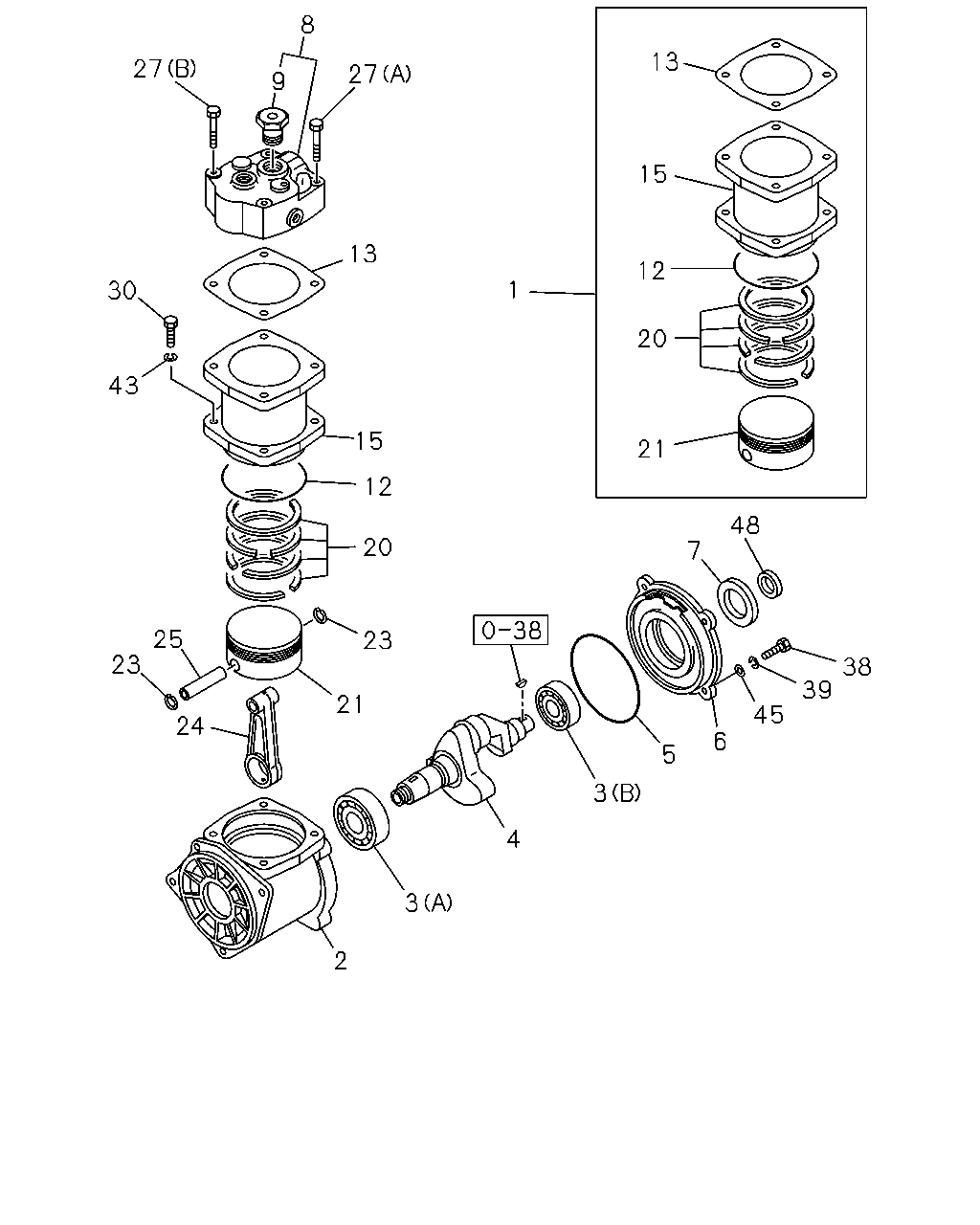

8 13 27 27 9 15 13 12 1 30 20 43 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9510-0102	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	0103-0210	●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9510-0102	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0103-0210	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-0102	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0103-0210	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-0102	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0103-0210	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-0102	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0103-0210	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-0102	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	0103-0210	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-0102	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0103-0210	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-0102	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0103-0210	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-0102	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0103-0210	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9510-0102	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0103-0210	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-0102	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	0103-0210	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-0102	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0103-0210	●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9510-0102	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0103-0210	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-0102	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0103-0210	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8	1-19139-004-0	01	1	9510-9805	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	9806-0102	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0103-0210	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-0	01	1	9510-9805	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	9806-0102	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	0103-0210	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-0102	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	0103-0210	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-0102	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0103-0210	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-0102	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0103-0210	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-0102	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0103-0210	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-0102	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0103-0210	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-0102	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0103-0210	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-0102	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0103-0210	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-0102	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0103-0210	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-0102	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0103-0210	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-0102	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0103-0210	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-0102	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0103-0210	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9510-0102	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0103-0210	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9510-0102	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0103-0210	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9805	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9805	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0102	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0103-0210	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9805	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-0102	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0103-0210	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-0102	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0103-0210	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9805	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9510-0102	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0103-0210	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9510-0102	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0103-0210	●	●

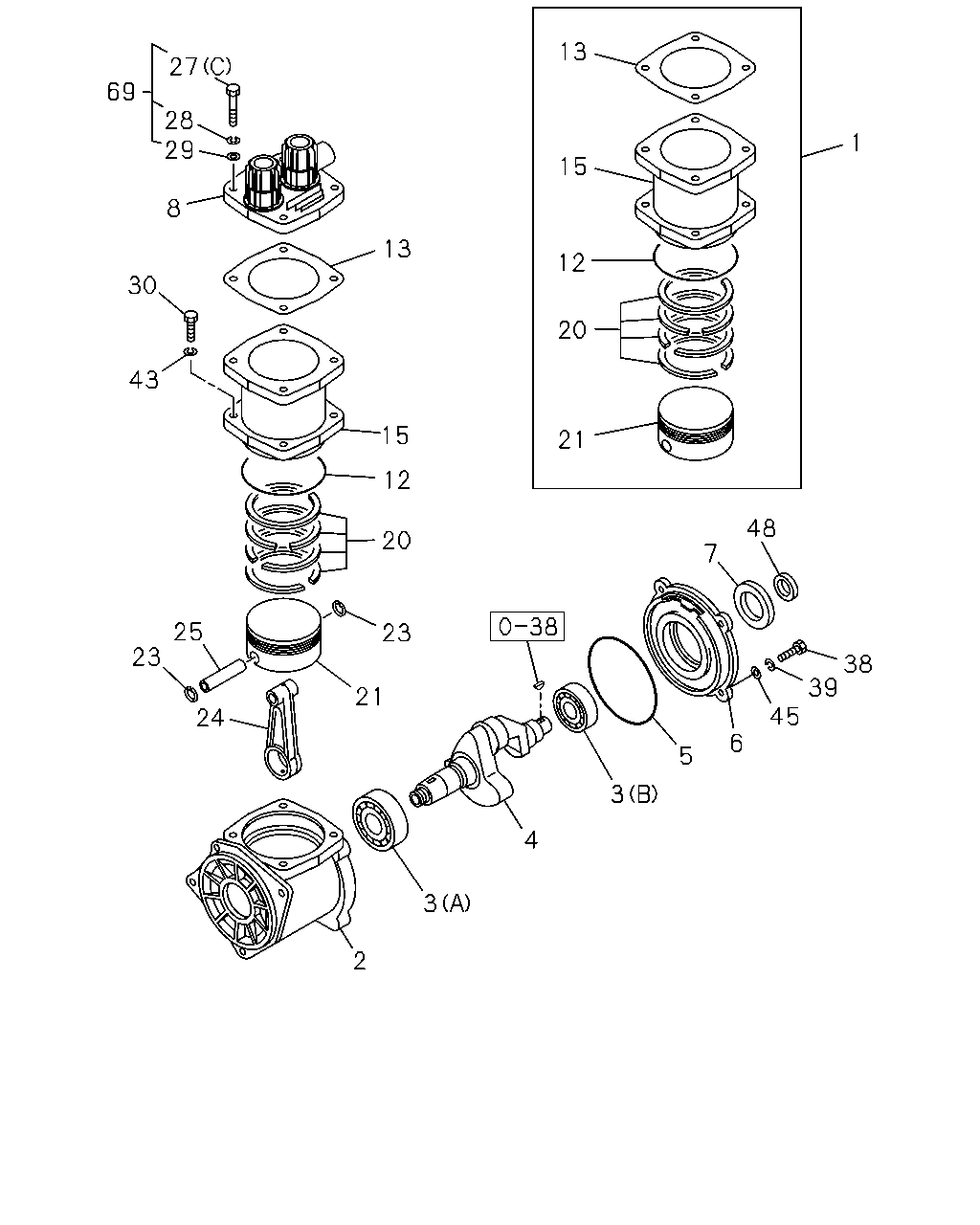

13 27 69 28 29 1 15 8 13 12 30 20 43 15 21 12 48 20 7 25 23 23 38 39 45 21 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9510-0102	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	0103-0210	●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9510-0102	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0103-0210	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-0102	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0103-0210	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-0102	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0103-0210	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-0102	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0103-0210	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-0102	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	0103-0210	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-0102	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0103-0210	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-0102	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0103-0210	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-0102	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0103-0210	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9510-0102	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0103-0210	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-0102	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	0103-0210	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-0102	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0103-0210	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-0102	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0103-0210	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8	1-19139-004-0	01	1	9510-9805	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	9806-0102	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0103-0210	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-0	01	1	9510-9805	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	9806-0102	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	0103-0210	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-0102	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	0103-0210	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-0102	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0103-0210	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-0102	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0103-0210	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-0102	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0103-0210	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-0102	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0103-0210	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-0102	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0103-0210	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-0102	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0103-0210	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-0102	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0103-0210	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-0102	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0103-0210	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-0102	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0103-0210	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-0102	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0103-0210	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9510-0102	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0103-0210	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9510-0102	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0103-0210	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9805	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9510-9805	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9510-9805	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9805	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0102	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0103-0210	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9805	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-0102	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0103-0210	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-0102	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0103-0210	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9805	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9510-0102	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0103-0210	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9510-0102	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0103-0210	●	●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	9806-0102	●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	0103-0210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
