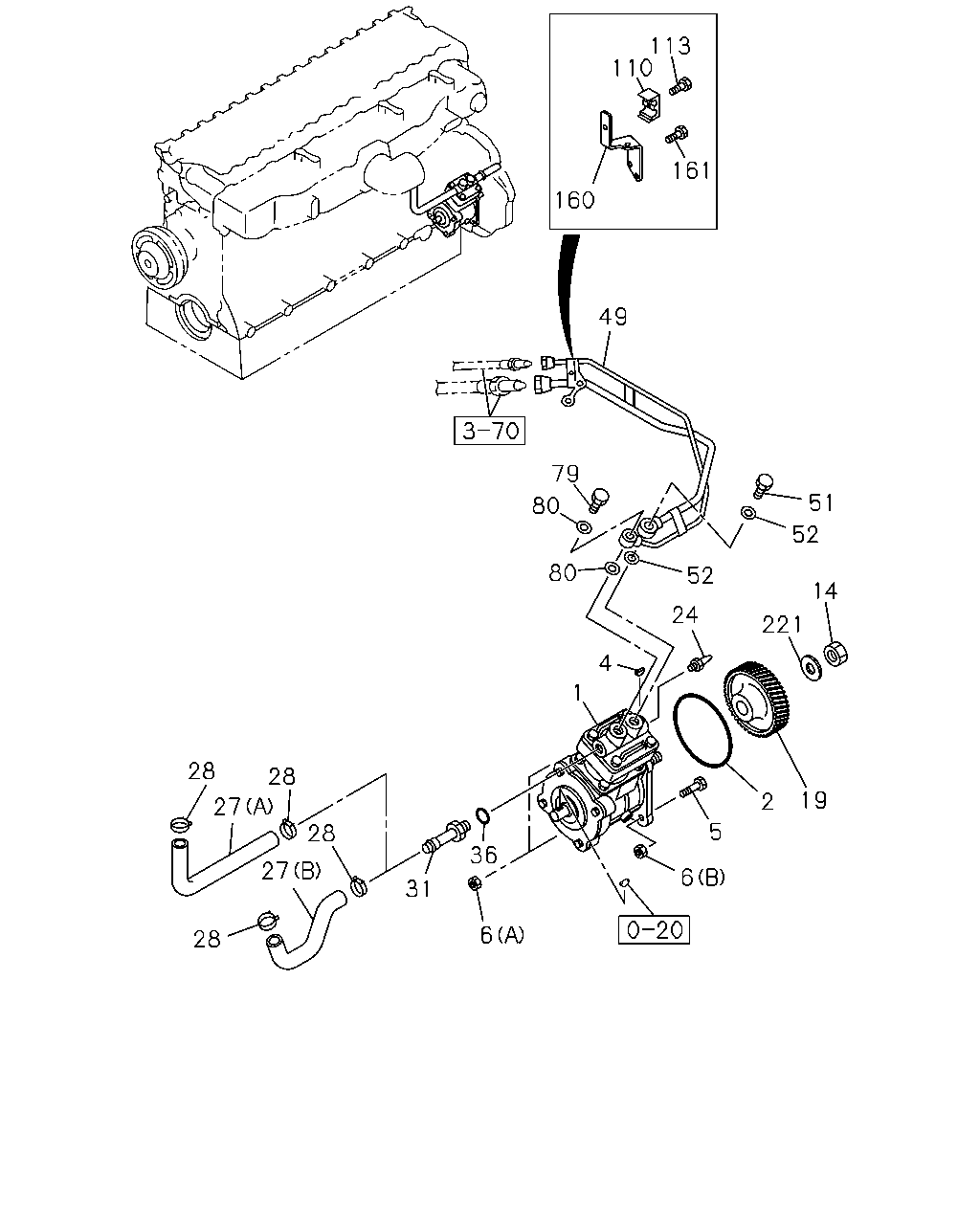

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#22341) — 64 parça

113 110 161 160 49 79 51 80 52 80 52 14 24 221 4 1 28 28 19 2 27 5 28 36 27 6 31 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9510-0102	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	0103-0210	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-0102	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0103-0210	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0102	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0103-0210	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-0102	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0103-0210	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-0102	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0103-0210	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0102	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0103-0210	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0102	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0103-0210	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-0102	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0103-0210	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-0102	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0103-0210	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0102	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0103-0210	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9510-0102	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0103-0210	●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	9510-0210	●
27	HOSE; AIR CMPR,SUCTION A/T<X9D> (B)	8-94394-809-1	01	1	0103-0210		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-0102	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0103-0210	●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-954-0	01	1	9510-0102	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-954-0	01	1	0103-0210	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-942-1	01	1	9510-0102	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-942-1	01	1	0103-0210	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9510-0102	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0103-0210	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-0102	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	0103-0210	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	9510-0102	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0103-0112	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-0102	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0103-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-0102	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0103-0210	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9510-0102	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0103-0210	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-0102	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0103-0210	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-0102	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0103-0210	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-0102	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0103-0210	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0102	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-0210	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-0102	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0103-0210	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0102	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0103-0210	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0102	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0103-0210	●	●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9510-0102	●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0103-0210	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0102	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0103-0210	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-0102	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0103-0210	●	●
