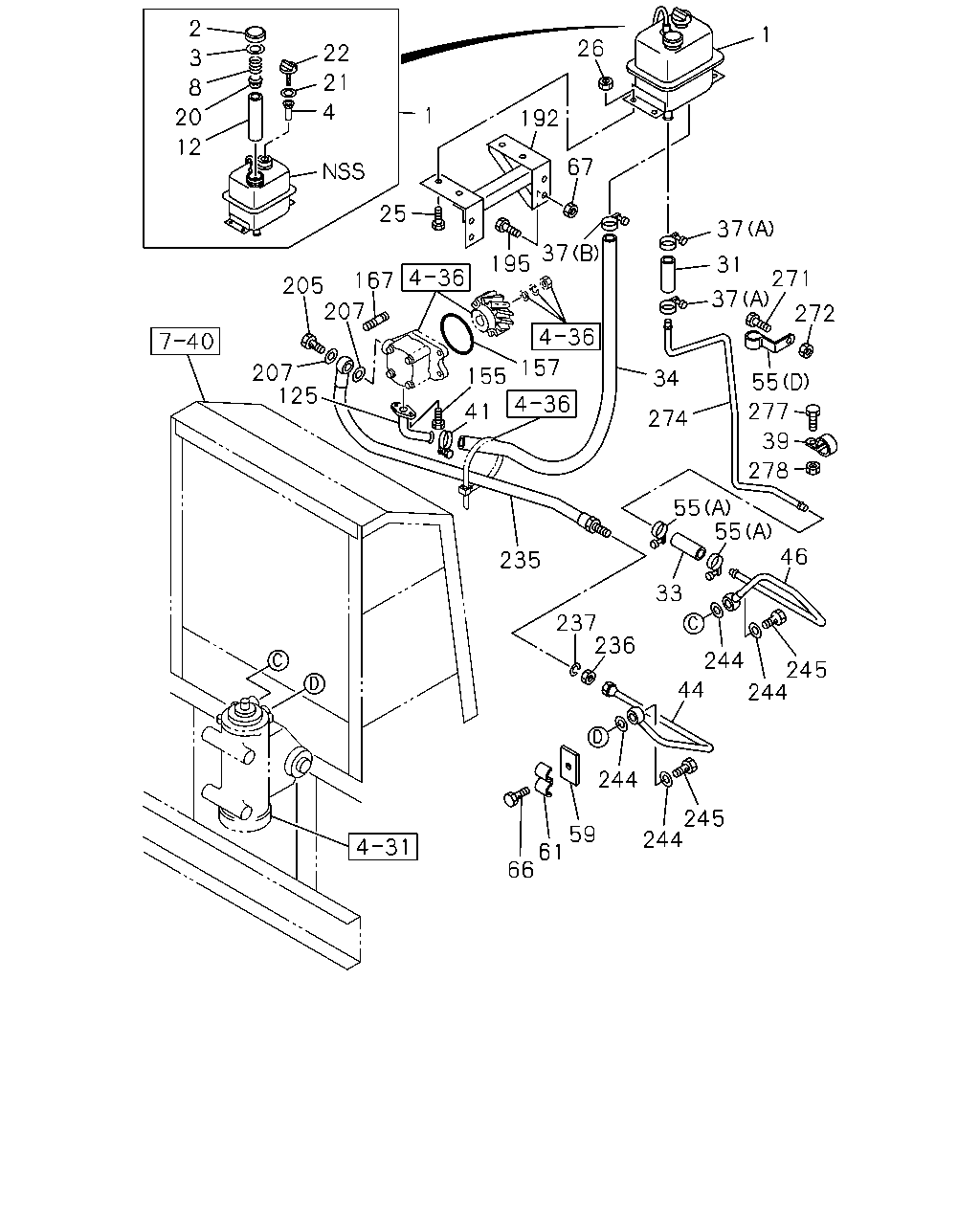

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#2234) — 151 parça

2 3 22 1 8 21 25 1 20 4 12 213 37 68 37 277 67 31 61 39 58 65 192 37 79 34 26 274 278 288 46 244 195 245 244 157 125 167 55 41 33 155 55 244 221 207 244 55 245 271 271 55 65 235 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING<N40> EXC. USER DAEWOO MOTORS<D4S>	1-21210-199-0	01	1	9101-0203	●
1	TANK ASM; OIL,P/S POWER STEERING<N40>	1-21210-199-0	01	1	9101-0203		●
1	TANK ASM; OIL,P/S POWER STEERING<N40>	1-21210-199-0	01	1	0204-	●	●
1	TANK ASM; OIL,P/S USER DAEWOO MOTORS<D4S> POWER STEERING<N40>	1-21210-206-0	01	1	9101-0203	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	1-21241-009-0	01	1	9101-	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40>	1-09630-106-0	01	1	9101-	●	●
4	FILTER; OIL TANK,P/S POWER STEERING<N40>	1-21231-002-0	01	1	9101-	●	●
8	SPRING; OIL TANK,P/S POWER STEERING<N40>	1-09580-365-0	01	1	9101-	●	●
12	FILTER; MICROBON,OIL TANK,P/S POWER STEERING<N40>	1-21235-005-0	01	1	9101-	●	●
20	HOLDER; FILTER,OIL TANK,P/S POWER STEERING<N40>	1-21239-005-0	01	1	9101-	●	●
21	GASKET; OIL GAUGE,P/S TANK POWER STEERING<N40>	1-09630-095-1	01	1	9101-	●	●
22	GAUGE; OIL TANK,P/S POWER STEERING<N40>	1-21240-001-1	01	1	9101-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8	9-09110-408-0	04	1	9101-	●	●
31	HOSE; P/S OIL TANK,INL POWER STEERING<N40> L=80	1-09360-570-0	01	1	9101-	●	●
33	HOSE; RUBBER,POWER STRG POWER STEERING<N40> L=80	1-09360-570-0	01	1	9101-	●	●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING<N40> EXC. USER DAEWOO MOTORS<D4S>	1-09360-706-1	01	1	9101-0203	●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING<N40>	1-09360-706-1	01	1	0204-	●
34	HOSE; P/S OIL TANK,OUTLET USER DAEWOO MOTORS<D4S> POWER STEERING<N40>	1-09360-854-0	01	1	9101-0203	●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING<N40>	1-09360-707-0	01	1	9101-		●
37	CLIP; HOSE,P/S POWER STEERING<N40> (B) ID=38	9-09915-666-1	01	1	9101-	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (A) ID=28	9-09915-672-1	02	1	9101-	●	●
39	CLIP; FLEX HOSE POWER STEERING<N40> ID=31 L=35	1-09700-329-1	01	1	9101-	●
39	CLIP; FLEX HOSE POWER STEERING<N40> ID=40	1-09700-899-0	01	1	9101-		●
41	CLIP; HOSE,P/S POWER STEERING<N40> ID=32	9-09915-692-1	01	1	9101-	●
41	CLIP; HOSE,P/S POWER STEERING<N40> ID=38	9-09915-666-1	01	1	9101-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	1-21112-644-0	01	1	9101-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	1-21113-149-0	01	1	9101-		●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9101-	●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (C) ID=16 L=20	9-09525-535-0	01	1	9101-	●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (A) ID=28	9-09915-672-1	02	1	9101-	●	●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (D) ID=12 H=24 L=20	1-09700-605-0	02	1	9101-		●
58	BOLT; CLIP POWER STEERING<N40> M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●
58	BOLT; CLIP POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> L=55	1-47475-304-0	01	1	9101-	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> L=50	1-47475-299-2	01	1	9101-		●
61	CLIP; OIL PIPE POWER STEERING<N40> ID=15 H=24 L=20	1-09700-606-0	01	1	9101-	●
61	CLIP; OIL PIPE POWER STEERING<N40> ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9101-		●
65	NUT; BRKT POWER STEERING<N40> M8	9-09110-408-0	05	1	9101-	●
67	NUT; BRKT POWER STEERING<N40> M8	9-09110-408-0	04	1	9101-	●	●
68	NUT; CLIP,OIL PIPE POWER STEERING<N40> M8	9-09110-408-0	01	1	9101-	●
79	BOLT; BRKT POWER STEERING<N40> M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●
79	BOLT; BRKT POWER STEERING<N40> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●
125	CONNECTOR; P/S PUMP POWER STEERING<N40>	1-21122-011-1	01	1	9101-9207	●
125	CONNECTOR; P/S PUMP POWER STEERING<N40>	1-21122-011-1	01	1	9209-	●
125	CONNECTOR; P/S PUMP POWER STEERING<N40>	1-21122-017-1	01	1	9101-		●
155	BOLT; CONNECTOR POWER STEERING<N40> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9101-9207	●	●
155	BOLT; CONNECTOR POWER STEERING<N40> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9209-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40> ID=77	1-09623-143-0	01	1	9101-	●	●
167	STUD; OIL PIPE FIX POWER STEERING<N40>	1-09300-040-0	01	1	9101-9207	●	●
167	STUD; OIL PIPE FIX POWER STEERING<N40>	1-09300-040-0	01	1	9209-	●	●
192	BRACKET; P/S OIL TANK POWER STEERING<N40>	1-59459-025-0	01	1	9101-	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> ID=18.2 OD=24.4	1-09630-087-0	01	1	9101-	●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-		●
213	CLIP; BAND,RUBBER SLEEVE POWER STEERING<N40> L=250	5-09707-030-1	01	1	9101-	●
221	CONNECTOR; OIL PIPE,P/S POWER STEERING<N40>	1-09660-011-1	01	1	9101-	●
235	HOSE; FLEX,BOOSTER,DELIVERY POWER STEERING<N40> L=450	0-09672-450-0	01	1	9101-	●
235	HOSE; FLEX,BOOSTER,DELIVERY POWER STEERING<N40>	0-09664-950-0	01	1	9101-		●
244	GASKET; OIL PIPE,P/S POWER STEERING<N40> ID=18	9-09571-418-0	04	1	9101-	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING<N40> M18X39	1-09675-114-0	01	1	9101-	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING<N40> M18X36	1-09675-059-0	01	1	9101-9310	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING<N40> M18X36	1-09675-205-0	01	1	0204-	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●
274	PIPE; OIL,HOSE TO OIL TANK POWER STEERING<N40>	1-21112-645-1	01	1	9101-	●
274	PIPE; OIL,HOSE TO OIL TANK POWER STEERING<N40>	1-21113-150-0	01	1	9101-		●
277	BOLT; HOSE CLIP POWER STEERING<N40> M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●
277	BOLT; HOSE CLIP POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●
277	BOLT; HOSE CLIP POWER STEERING<N40> M6X20 W/LK WASHER	9-01900-620-0	02	1	9101-9204		●
277	BOLT; HOSE CLIP POWER STEERING<N40> M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-		●
278	NUT; HOSE CLIP POWER STEERING<N40> M8	9-09110-408-0	01	1	9101-	●
278	NUT; HOSE CLIP POWER STEERING<N40> M6	9-09110-406-0	01	1	9101-		●
288	BRACKET; CLIP,P/S POWER STEERING<N40>	1-47475-272-1	01	1	9101-	●

2 1 26 22 3 21 8 4 1 20 192 12 67 25 37 37 195 31 271 167 205 207 37 272 157 207 125 155 34 55 277 41 274 39 278 55 55 46 235 33 237 236 244 245 244 44 244 245 244 59 61 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING<N40> EXC. USER DAEWOO MOTORS<D4S>	1-21210-199-0	01	1	9101-0203	●
1	TANK ASM; OIL,P/S POWER STEERING<N40>	1-21210-199-0	01	1	9101-0203		●
1	TANK ASM; OIL,P/S POWER STEERING<N40>	1-21210-199-0	01	1	0204-	●	●
1	TANK ASM; OIL,P/S USER DAEWOO MOTORS<D4S> POWER STEERING<N40>	1-21210-206-0	01	1	9101-0203	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	1-21241-009-0	01	1	9101-	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40>	1-09630-106-0	01	1	9101-	●	●
4	FILTER; OIL TANK,P/S POWER STEERING<N40>	1-21231-002-0	01	1	9101-	●	●
8	SPRING; OIL TANK,P/S POWER STEERING<N40>	1-09580-365-0	01	1	9101-	●	●
12	FILTER; MICROBON,OIL TANK,P/S POWER STEERING<N40>	1-21235-005-0	01	1	9101-	●	●
20	HOLDER; FILTER,OIL TANK,P/S POWER STEERING<N40>	1-21239-005-0	01	1	9101-	●	●
21	GASKET; OIL GAUGE,P/S TANK POWER STEERING<N40>	1-09630-095-1	01	1	9101-	●	●
22	GAUGE; OIL TANK,P/S POWER STEERING<N40>	1-21240-001-1	01	1	9101-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8	9-09110-408-0	04	1	9101-	●	●
31	HOSE; P/S OIL TANK,INL POWER STEERING<N40> L=80	1-09360-570-0	01	1	9101-	●	●
33	HOSE; RUBBER,POWER STRG POWER STEERING<N40> L=80	1-09360-570-0	01	1	9101-	●	●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING<N40> EXC. USER DAEWOO MOTORS<D4S>	1-09360-706-1	01	1	9101-0203	●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING<N40>	1-09360-706-1	01	1	0204-	●
34	HOSE; P/S OIL TANK,OUTLET USER DAEWOO MOTORS<D4S> POWER STEERING<N40>	1-09360-854-0	01	1	9101-0203	●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING<N40>	1-09360-707-0	01	1	9101-		●
37	CLIP; HOSE,P/S POWER STEERING<N40> (B) ID=38	9-09915-666-1	01	1	9101-	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (A) ID=28	9-09915-672-1	02	1	9101-	●	●
39	CLIP; FLEX HOSE POWER STEERING<N40> ID=31 L=35	1-09700-329-1	01	1	9101-	●
39	CLIP; FLEX HOSE POWER STEERING<N40> ID=40	1-09700-899-0	01	1	9101-		●
41	CLIP; HOSE,P/S POWER STEERING<N40> ID=32	9-09915-692-1	01	1	9101-	●
41	CLIP; HOSE,P/S POWER STEERING<N40> ID=38	9-09915-666-1	01	1	9101-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING<N40>	1-21113-236-0	01	1	9101-9212		●
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING<N40>	1-21114-531-0	01	1	9301-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	1-21112-644-0	01	1	9101-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	1-21113-149-0	01	1	9101-		●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9101-	●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (C) ID=16 L=20	9-09525-535-0	01	1	9101-	●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (A) ID=28	9-09915-672-1	02	1	9101-	●	●
55	CLIP; P/S RUBBER HOSE POWER STEERING<N40> (D) ID=12 H=24 L=20	1-09700-605-0	02	1	9101-		●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> L=55	1-47475-304-0	01	1	9101-	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> L=50	1-47475-299-2	01	1	9101-		●
61	CLIP; OIL PIPE POWER STEERING<N40> ID=15 H=24 L=20	1-09700-606-0	01	1	9101-	●
61	CLIP; OIL PIPE POWER STEERING<N40> ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9101-		●
66	BOLT; BRKT,OIL PIPE POWER STEERING<N40> M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204		●
66	BOLT; BRKT,OIL PIPE POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
67	NUT; BRKT POWER STEERING<N40> M8	9-09110-408-0	04	1	9101-	●	●
125	CONNECTOR; P/S PUMP POWER STEERING<N40>	1-21122-011-1	01	1	9101-9207	●
125	CONNECTOR; P/S PUMP POWER STEERING<N40>	1-21122-011-1	01	1	9209-	●
125	CONNECTOR; P/S PUMP POWER STEERING<N40>	1-21122-017-1	01	1	9101-		●
155	BOLT; CONNECTOR POWER STEERING<N40> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9101-9207	●	●
155	BOLT; CONNECTOR POWER STEERING<N40> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9209-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40> ID=77	1-09623-143-0	01	1	9101-	●	●
167	STUD; OIL PIPE FIX POWER STEERING<N40>	1-09300-040-0	01	1	9101-9207	●	●
167	STUD; OIL PIPE FIX POWER STEERING<N40>	1-09300-040-0	01	1	9209-	●	●
192	BRACKET; P/S OIL TANK POWER STEERING<N40>	1-59459-025-0	01	1	9101-	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING<N40> M18X39	1-09675-114-0	01	1	9101-		●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> ID=18.2 OD=24.4	1-09630-087-0	01	1	9101-	●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-		●
235	HOSE; FLEX,BOOSTER,DELIVERY POWER STEERING<N40> L=450	0-09672-450-0	01	1	9101-	●
235	HOSE; FLEX,BOOSTER,DELIVERY POWER STEERING<N40>	0-09664-950-0	01	1	9101-		●
236	NUT; FLEX HOSE,P/S PIPING POWER STEERING<N40> M20	9-99111-420-0	01	1	9101-		●
237	WASHER; LK,FLEX HOSE,P/S PIPE POWER STEERING<N40> ID=21	9-09160-520-0	01	1	9101-		●
244	GASKET; OIL PIPE,P/S POWER STEERING<N40> ID=18	9-09571-418-0	04	1	9101-	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING<N40> M18X39	1-09675-114-0	01	1	9101-	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING<N40> M18X36	1-09675-059-0	01	1	9101-9310	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING<N40> M18X36	1-09675-205-0	01	1	0204-	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●
272	NUT; P/S OIL PIPE FIX POWER STEERING<N40> M8	9-09110-408-0	02	1	9101-		●
274	PIPE; OIL,HOSE TO OIL TANK POWER STEERING<N40>	1-21112-645-1	01	1	9101-	●
274	PIPE; OIL,HOSE TO OIL TANK POWER STEERING<N40>	1-21113-150-0	01	1	9101-		●
277	BOLT; HOSE CLIP POWER STEERING<N40> M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●
277	BOLT; HOSE CLIP POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●
277	BOLT; HOSE CLIP POWER STEERING<N40> M6X20 W/LK WASHER	9-01900-620-0	02	1	9101-9204		●
277	BOLT; HOSE CLIP POWER STEERING<N40> M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-		●
278	NUT; HOSE CLIP POWER STEERING<N40> M8	9-09110-408-0	01	1	9101-	●
278	NUT; HOSE CLIP POWER STEERING<N40> M6	9-09110-406-0	01	1	9101-		●
