Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶

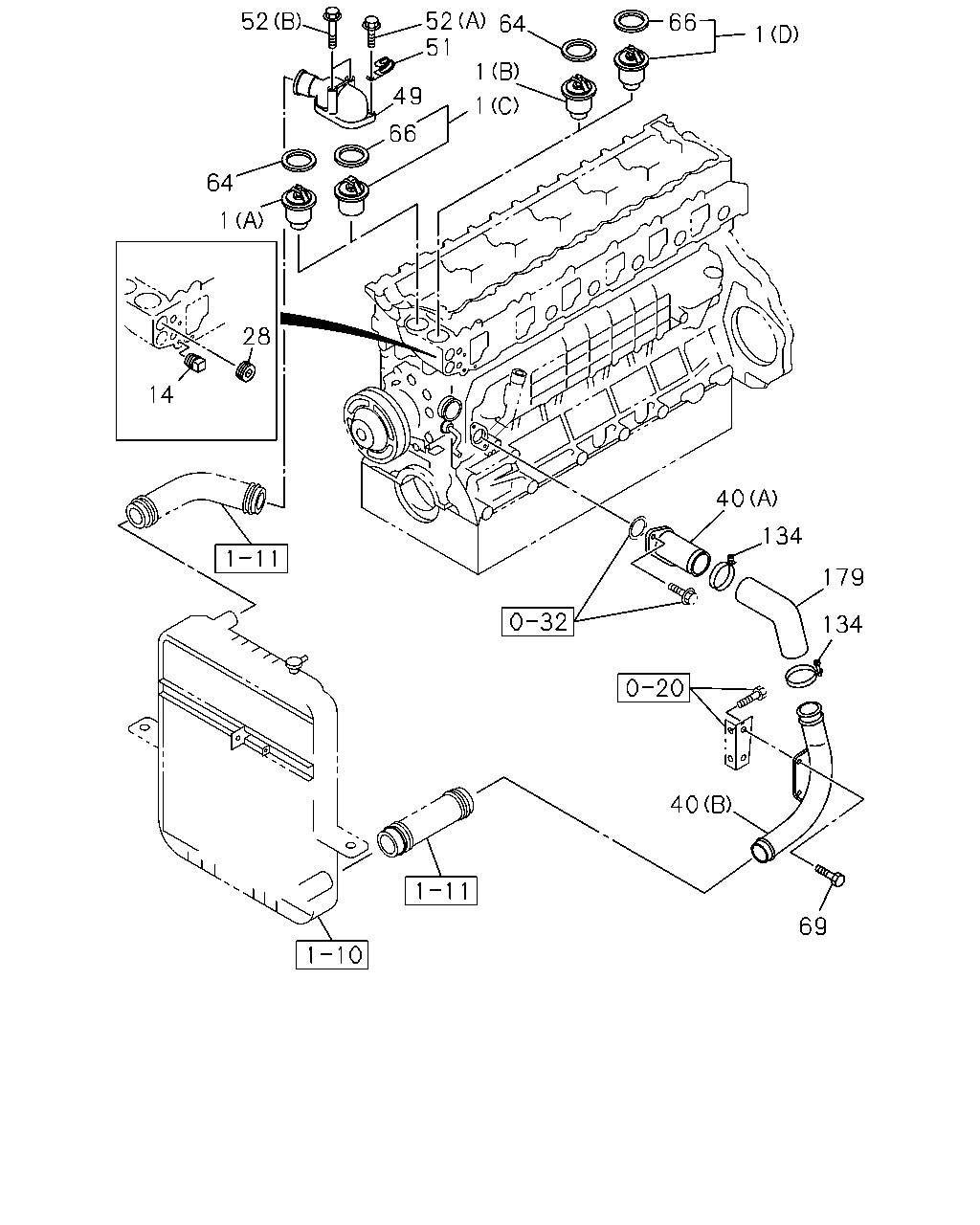

0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#22337) — 38 parça
Tümü
A - 6HH1 N ENG
B - 6HH1-STD ENG
52
51
52
66
64
1
1
49
1
66
64
1
28
14
40
134
179
134
40
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
(A) 82 CELSIUS
8-94397-310-0
01
1
9510-0102
●
1
THERMOSTAT
(A) 82 CELSIUS
8-94397-310-0
01
1
0103-0105
●
●
1
THERMOSTAT
(C) 82 CELSIUS
8-97602-048-1
01
1
0106-0210
●
●
1
THERMOSTAT
(B) 82 CELSIUS
8-94397-311-0
01
1
9510-9807
●
1
THERMOSTAT
(B) 82 CELSIUS
8-94392-817-0
01
1
9808-0102
●
1
THERMOSTAT
(B) 82 CELSIUS
8-94392-817-0
01
1
0103-0105
●
●
1
THERMOSTAT
(D) 82 CELSIUS
8-97602-037-0
01
1
0106-0112
●
●
1
THERMOSTAT
(D) 82 CELSIUS
8-97602-393-0
01
1
0201-0210
●
●
14
PLUG; SW
PT3/8
8-94397-338-0
01
1
9510-0102
●
14
PLUG; SW
PT3/8
8-94397-338-0
01
1
0103-0210
●
●
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
9510-0102
●
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0103-0210
●
●
40
DUCT; WATER,SUCTION
(A)
8-94394-403-1
01
1
9510-9611
●
40
DUCT; WATER,SUCTION
(A)
8-94391-091-0
01
1
9612-0102
●
40
DUCT; WATER,SUCTION
(A)
8-94391-091-0
01
1
0103-0210
●
●
40
DUCT; WATER,SUCTION
(B)
8-94394-404-1
01
1
9510-0004
●
40
DUCT; WATER,SUCTION
(B)
8-94394-404-1
01
1
0005-0210
●
●
49
PIPE; WATER OUTLET
8-94399-499-1
01
1
9510-0102
●
49
PIPE; WATER OUTLET
8-94399-499-1
01
1
0103-0105
●
●
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0106-0210
●
●
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-94225-185-0
01
1
9510-0102
●
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-94225-185-0
01
1
0103-0210
●
●
52
BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE
0-28080-822-0
02
1
9510-9709
●
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE
0-28680-825-0
02
1
9710-0102
●
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE
0-28680-825-0
02
1
0103-0210
●
●
52
BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE
8-94311-617-1
02
1
9510-9611
●
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28080-880-0
02
1
9612-0102
●
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28080-880-0
02
1
0103-0210
●
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94370-480-0
02
1
9510-0102
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94370-480-0
02
1
0103-0105
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0106-0210
●
●
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28080-820-0
02
1
9510-9712
●
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28680-820-0
02
1
9801-0004
●
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
●
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
02
1
9510-0004
●
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
02
1
0005-0210
●
●
179
HOSE; RUBBER,WATER DUCT
8-94394-535-1
01
1
9510-0004
●
179
HOSE; RUBBER,WATER DUCT
8-94394-535-2
01
1
0005-0210
●
●
