0-30 — WATER PUMP AND CORROSION RESISTOR (#22336) — 172 parça

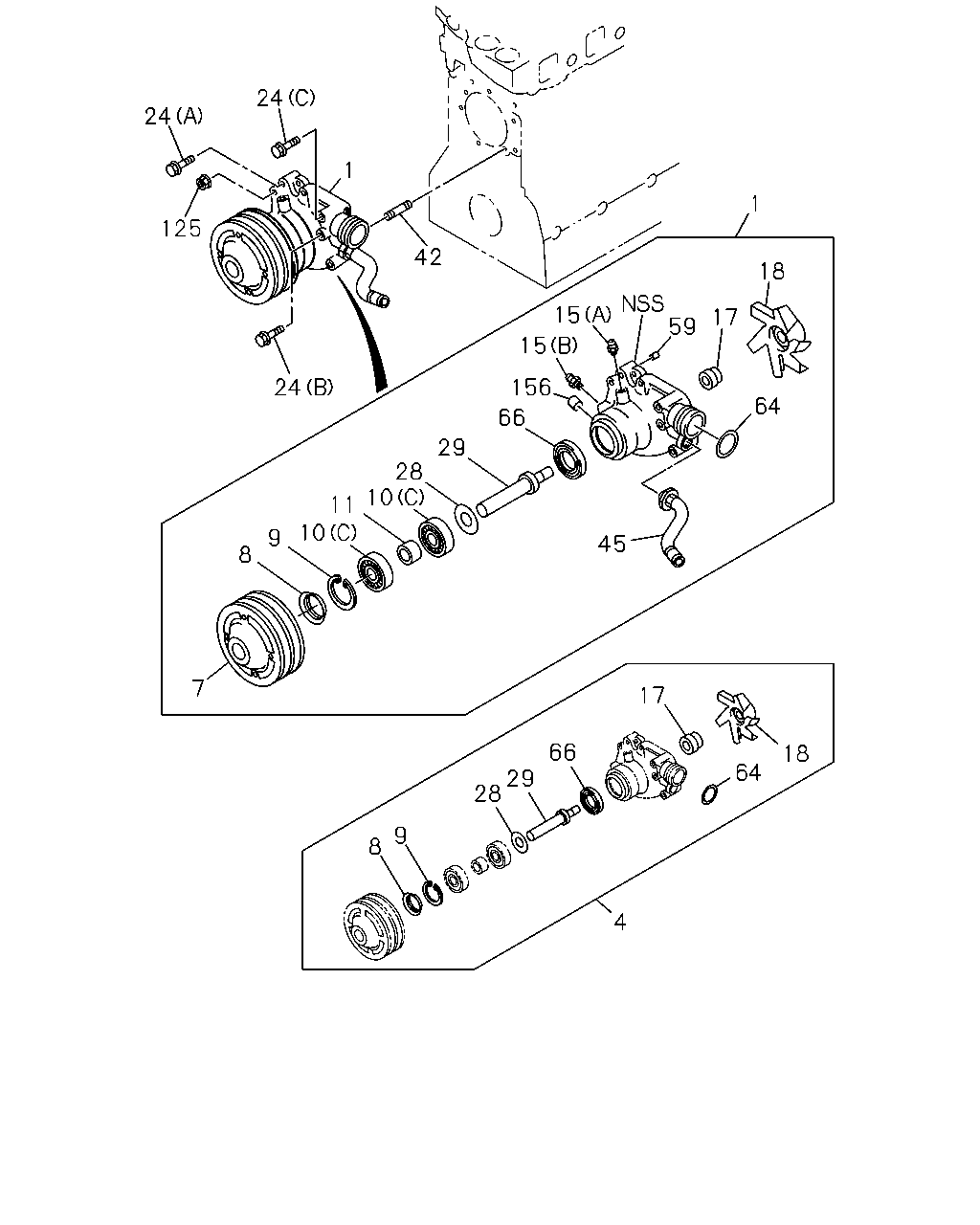

24 24 1 125 42 15 15 18 59 1 156 24 64 66 29 28 45 17 69 57 9 8 7 10 18 11 10 64 17 66 10 29 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41)	8-94395-657-5	01	1	9510-0102	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41)	8-94395-657-6	01	1	0103-0210	●
1	PUMP ASM; WATER,W/GASKET ISUZU M/T<X9A>	8-94395-657-6	01	1	0103-0210		●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41)	8-94390-601-5	01	1	9510-0102	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94390-601-5	01	1	0103-0210	●
1	PUMP ASM; WATER,W/GASKET A/T<X9D>	8-94391-059-5	01	1	0103-0210		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9510-9911	●
4	REPAIR KIT; WATER PUMP	1-87812-027-0	01	1	9912-0102	●
4	REPAIR KIT; WATER PUMP	1-87812-027-0	01	1	0103-0210	●
4	REPAIR KIT; WATER PUMP ISUZU M/T<X9A>	1-87812-027-0	01	1	0103-0210		●
4	REPAIR KIT; WATER PUMP A/T<X9D>	1-87812-028-0	01	1	0103-0210		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9510-0102	●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0103-0210	●
7	PULLEY; WATER PUMP ISUZU M/T<X9A> 2-GROOVE	8-94394-826-0	01	1	0103-0210		●
7	PULLEY; WATER PUMP A/T<X9D> 4-GROOVE	8-94394-927-0	01	1	0103-0210		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9510-0102	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0103-0208	●	●
8	THROWER; DUST,WATER PUMP A/T<X9D>	8-94399-457-0	01	1	0209-0210		●
8	THROWER; DUST,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94399-457-0	01	1	0209-0210	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9510-0102	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0103-0208	●	●
9	RING; SNAP,WATER PUMP A/T<X9D> ID=57.9	9-09180-162-0	01	1	0209-0210		●
9	RING; SNAP,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=57.9	9-09180-162-0	01	1	0209-0210	●	●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	9510-0102	●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	0103-0210	●
10	BEARING; WATER PUMP ISUZU M/T<X9A> (C)	1-09800-011-0	02	1	0103-0210		●
10	BEARING; WATER PUMP A/T<X9D> (A)	8-94391-298-0	02	1	0103-0210		●
10	BEARING; WATER PUMP A/T<X9D> (B)	8-94391-299-0	01	1	0103-0210		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9510-0102	●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0103-0210	●
11	SPACER; BRG,WATER PUMP ISUZU M/T<X9A>	1-13634-025-0	01	1	0103-0210		●
11	SPACER; BRG,WATER PUMP A/T<X9D>	1-13634-040-0	01	1	0103-0210		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9510-0102	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0103-0208	●	●
15	NIPPLE; GREASE,WATER PUMP A/T<X9D> (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0209-0210		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9510-0102	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0103-0208	●	●
15	NIPPLE; GREASE,WATER PUMP A/T<X9D> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0209-0210		●
15	NIPPLE; GREASE,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0209-0210	●	●
15	NIPPLE; GREASE,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0209-0210	●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9510-9912	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0102	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0103-0208	●	●
17	SEAL UNIT; WATER PUMP A/T<X9D>	8-94392-090-0	01	1	0209-0210		●
17	SEAL UNIT; WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-090-0	01	1	0209-0210	●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9510-0102	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0103-0208	●	●
18	IMPELLER; WATER PUMP A/T<X9D>	8-94397-375-0	01	1	0209-0210		●
18	IMPELLER; WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94397-375-0	01	1	0209-0210	●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9510-0102	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0103-0210	●	●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9510-9611	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9612-0102	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0103-0210	●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9510-0102	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0103-0210	●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9510-0102	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0103-0208	●	●
28	WASHER; WATER PUMP A/T<X9D> ID=25.5 OD=50	8-94397-097-0	01	1	0209-0210		●
28	WASHER; WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=25.5 OD=50	8-94397-097-0	01	1	0209-0210	●	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9510-0102	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0103-0210	●
29	SHAFT; WATER PUMP ISUZU M/T<X9A>	8-94397-374-0	01	1	0103-0210		●
29	SHAFT; WATER PUMP A/T<X9D>	8-94396-130-1	01	1	0103-0210		●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9510-0102	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0103-0210	●	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41)	8-94397-377-2	01	1	9510-0102	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41)	8-94397-377-2	01	1	0103-0210	●
45	JOINT; HTR HOSE,WATER PUMP ISUZU M/T<X9A>	8-94397-377-2	01	1	0103-0210		●
45	JOINT; HTR HOSE,WATER PUMP A/T<X9D>	8-94394-389-0	01	1	0103-0210		●
57	PLUG; HTR,WATER PUMP EXC. HEATER & DEFROSTER(C41) M20	9-99202-320-0	01	1	9510-9510	●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	9510-0102	●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	0103-0210	●
59	DOWEL; WATER PUMP ISUZU M/T<X9A>	9-13119-022-0	02	1	0103-0210		●
59	DOWEL; WATER PUMP A/T<X9D> OD=12 L=9	1-13119-003-0	02	1	0103-0210		●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9510-0102	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0103-0210	●	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	9510-0102	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	0103-0210	●
66	SEAL; SECONDARY ISUZU M/T<X9A>	1-09625-437-0	01	1	0103-0210		●
69	GASKET; PLUG,HTR EXC. HEATER & DEFROSTER(C41) ID=20.5 OD=28.0	9-09571-420-0	01	1	9510-9510	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9510-0102	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0103-0210	●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0004-0102	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0103-0208	●	●
156	CUP; SEALING A/T<X9D> OD=25	1-09600-016-0	01	1	0209-0210		●
156	CUP; SEALING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=25	1-09600-016-0	01	1	0209-0210	●	●

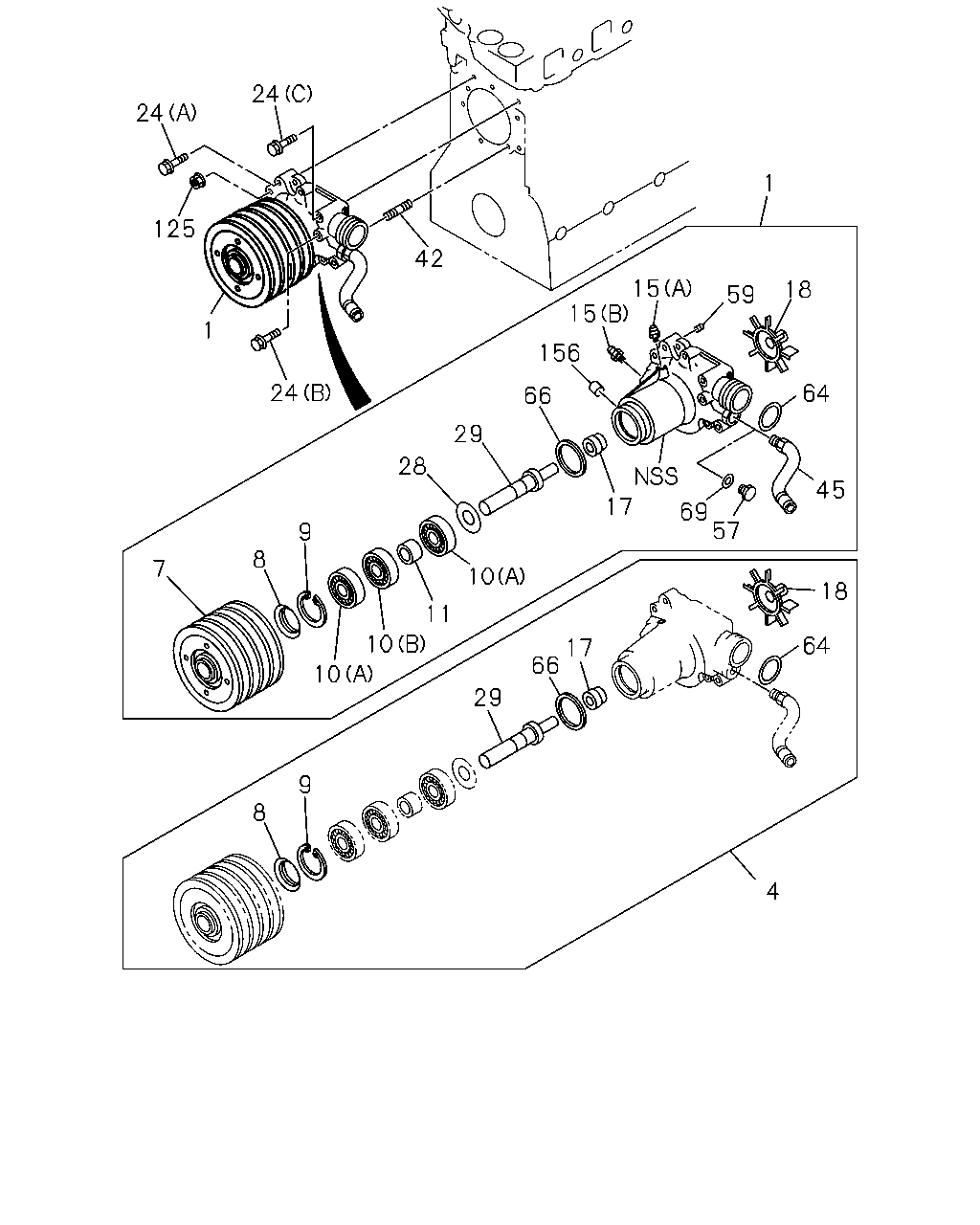

24 24 1 1 125 42 18 59 15 17 15 24 156 64 66 29 28 10 11 10 9 45 8 7 17 66 18 64 29 28 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41)	8-94395-657-5	01	1	9510-0102	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41)	8-94395-657-6	01	1	0103-0210	●
1	PUMP ASM; WATER,W/GASKET ISUZU M/T<X9A>	8-94395-657-6	01	1	0103-0210		●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41)	8-94390-601-5	01	1	9510-0102	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94390-601-5	01	1	0103-0210	●
1	PUMP ASM; WATER,W/GASKET A/T<X9D>	8-94391-059-5	01	1	0103-0210		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9510-9911	●
4	REPAIR KIT; WATER PUMP	1-87812-027-0	01	1	9912-0102	●
4	REPAIR KIT; WATER PUMP	1-87812-027-0	01	1	0103-0210	●
4	REPAIR KIT; WATER PUMP ISUZU M/T<X9A>	1-87812-027-0	01	1	0103-0210		●
4	REPAIR KIT; WATER PUMP A/T<X9D>	1-87812-028-0	01	1	0103-0210		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9510-0102	●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0103-0210	●
7	PULLEY; WATER PUMP ISUZU M/T<X9A> 2-GROOVE	8-94394-826-0	01	1	0103-0210		●
7	PULLEY; WATER PUMP A/T<X9D> 4-GROOVE	8-94394-927-0	01	1	0103-0210		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9510-0102	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0103-0208	●	●
8	THROWER; DUST,WATER PUMP A/T<X9D>	8-94399-457-0	01	1	0209-0210		●
8	THROWER; DUST,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94399-457-0	01	1	0209-0210	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9510-0102	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0103-0208	●	●
9	RING; SNAP,WATER PUMP A/T<X9D> ID=57.9	9-09180-162-0	01	1	0209-0210		●
9	RING; SNAP,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=57.9	9-09180-162-0	01	1	0209-0210	●	●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	9510-0102	●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	0103-0210	●
10	BEARING; WATER PUMP ISUZU M/T<X9A> (C)	1-09800-011-0	02	1	0103-0210		●
10	BEARING; WATER PUMP A/T<X9D> (A)	8-94391-298-0	02	1	0103-0210		●
10	BEARING; WATER PUMP A/T<X9D> (B)	8-94391-299-0	01	1	0103-0210		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9510-0102	●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0103-0210	●
11	SPACER; BRG,WATER PUMP ISUZU M/T<X9A>	1-13634-025-0	01	1	0103-0210		●
11	SPACER; BRG,WATER PUMP A/T<X9D>	1-13634-040-0	01	1	0103-0210		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9510-0102	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0103-0208	●	●
15	NIPPLE; GREASE,WATER PUMP A/T<X9D> (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0209-0210		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9510-0102	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0103-0208	●	●
15	NIPPLE; GREASE,WATER PUMP A/T<X9D> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0209-0210		●
15	NIPPLE; GREASE,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0209-0210	●	●
15	NIPPLE; GREASE,WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0209-0210	●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9510-9912	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0102	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0103-0208	●	●
17	SEAL UNIT; WATER PUMP A/T<X9D>	8-94392-090-0	01	1	0209-0210		●
17	SEAL UNIT; WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-090-0	01	1	0209-0210	●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9510-0102	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0103-0208	●	●
18	IMPELLER; WATER PUMP A/T<X9D>	8-94397-375-0	01	1	0209-0210		●
18	IMPELLER; WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94397-375-0	01	1	0209-0210	●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9510-0102	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0103-0210	●	●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9510-9611	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9612-0102	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0103-0210	●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9510-0102	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0103-0210	●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9510-0102	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0103-0208	●	●
28	WASHER; WATER PUMP A/T<X9D> ID=25.5 OD=50	8-94397-097-0	01	1	0209-0210		●
28	WASHER; WATER PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=25.5 OD=50	8-94397-097-0	01	1	0209-0210	●	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9510-0102	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0103-0210	●
29	SHAFT; WATER PUMP ISUZU M/T<X9A>	8-94397-374-0	01	1	0103-0210		●
29	SHAFT; WATER PUMP A/T<X9D>	8-94396-130-1	01	1	0103-0210		●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9510-0102	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0103-0210	●	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41)	8-94397-377-2	01	1	9510-0102	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41)	8-94397-377-2	01	1	0103-0210	●
45	JOINT; HTR HOSE,WATER PUMP ISUZU M/T<X9A>	8-94397-377-2	01	1	0103-0210		●
45	JOINT; HTR HOSE,WATER PUMP A/T<X9D>	8-94394-389-0	01	1	0103-0210		●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	9510-0102	●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	0103-0210	●
59	DOWEL; WATER PUMP ISUZU M/T<X9A>	9-13119-022-0	02	1	0103-0210		●
59	DOWEL; WATER PUMP A/T<X9D> OD=12 L=9	1-13119-003-0	02	1	0103-0210		●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9510-0102	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0103-0210	●	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	9510-0102	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	0103-0210	●
66	SEAL; SECONDARY ISUZU M/T<X9A>	1-09625-437-0	01	1	0103-0210		●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9510-0102	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0103-0210	●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0004-0102	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0103-0208	●	●
156	CUP; SEALING A/T<X9D> OD=25	1-09600-016-0	01	1	0209-0210		●
156	CUP; SEALING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=25	1-09600-016-0	01	1	0209-0210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
